Filters
Filters 1
F Low MHz
0.05 - 30 6 50 - 1000 6 2000 - 6000 4 7900 - 40000 4
–
F High MHz
30 - 2000 3 2400 - 5000 3 6000 - 9000 3 10000 - 32000 3 40000 - 67000 8
–
Category
LNA 20
Max gain dB
14 - 21 3 21.4 - 25 3 27 - 32 8 36 - 45 5 48 1
–
Noise figure dB
1 - 1.4 4 1.5 - 1.9 4 3 - 4.5 4 5 - 7.5 6 8 1
–
Connector
Other 4 SMA 11 2.92 2 2.4 3
Output power dBm
5 - 10 4 12 - 13 5 14 - 15 7 16 - 17 2 21 - 23 2
–
Voltage V
3.5 1 5 11 6 4 8 4
–
Voltage：3.5 - 8 V× Clear all
matches 20 models Default Newest
DLNA8-3000-5000-1000 LNA

LNA DLNA8-3000-5000-1000

3~5GHz, Gain25dB, Noise figure1dB, P-1dB13dBm, SMA
In Stock View Details →
DLNA-100-6000-14 LNA

LNA DLNA-100-6000-14

100~6000MHz, Gain32dB, Noise figure1.8dB, P-1dB15dBm, OIP322dBm, SMA
In Stock View Details →
DLNA8-0.01-50G-9513 LNA

LNA DLNA8-0.01-50G-9513

0.01~50GHz, Gain36dB, Noise figure4.5dB, P-1dB12dBm, 2.4
In Stock View Details →
DLNA8-40-67G-9474 LNA

LNA DLNA8-40-67G-9474

40~67GHz, Gain48dB, Noise figure10（设计保证）dB, P-1dBdBm, 1.85
In Stock View Details →
DLNA8-2-50G-9191 LNA

LNA DLNA8-2-50G-9191

2~50GHz, Gain32dB, Noise figure5.5dB, P-1dB13dBm, 2.4-F or K
In Stock View Details →
DLNA8-15-50G-9196 LNA

LNA DLNA8-15-50G-9196

15~50GHz, Gain38dB, Noise figure5dB, P-1dB17dBm, 2.4
In Stock View Details →
DLNA8-1-67000M-9194 LNA

LNA DLNA8-1-67000M-9194

50kHz~67GHz, Gain27dB, Noise figure8.5dB, P-1dB12dBm, 1.85
In Stock View Details →

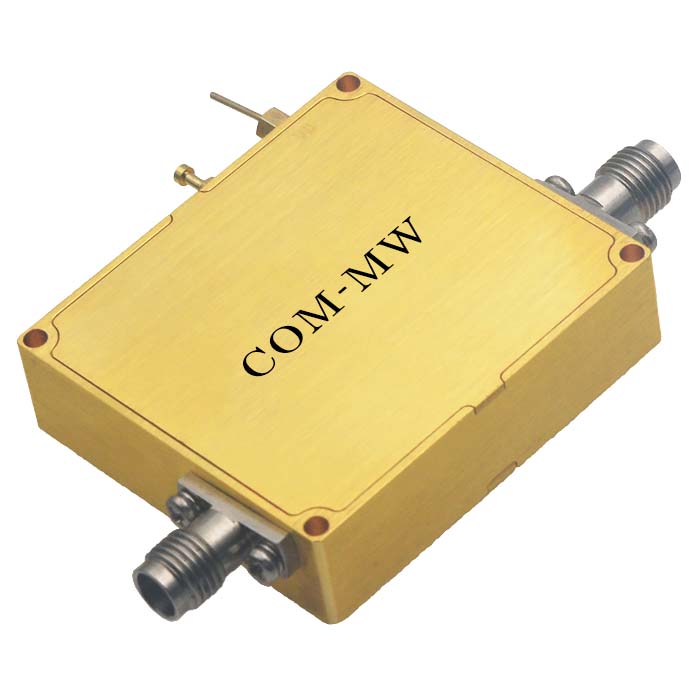

DLNA8-0.01-67G-9193 LNA

LNA DLNA8-0.01-67G-9193

0.01~67GHz, Gain45dB, Noise figure8.5dB, P-1dB13dBm, 1.85
In Stock View Details →

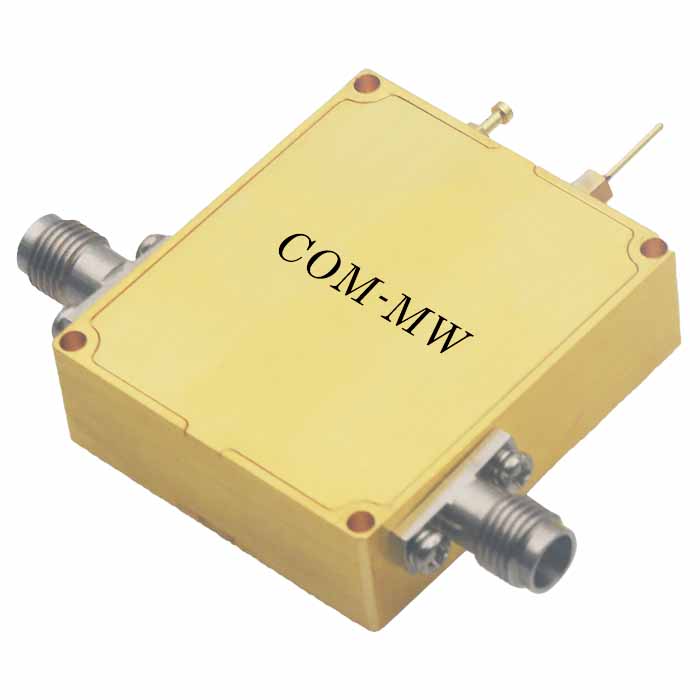

DLNA8-0.01-67G-9192 LNA

LNA DLNA8-0.01-67G-9192

0.01~67GHz, Gain27dB, Noise figure7.5dB, P-1dB13dBm, 1.85
In Stock View Details →

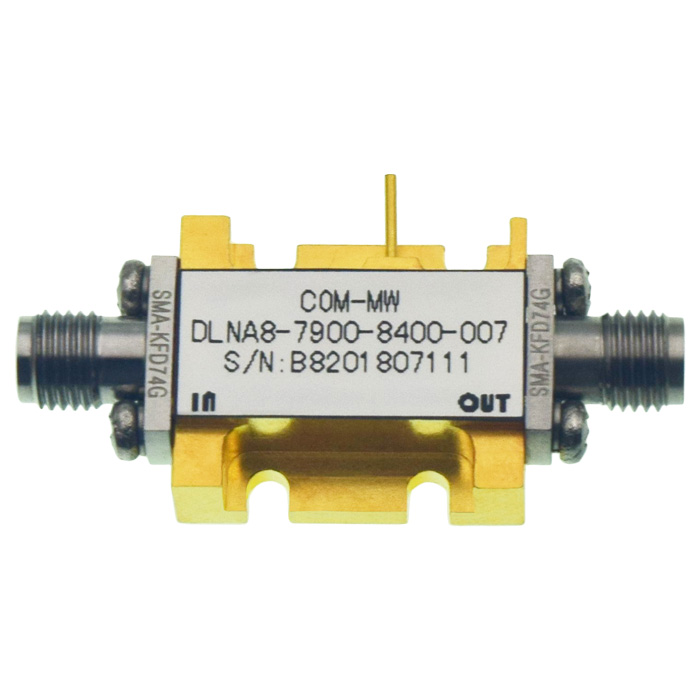

DLNA8-7900-8400-007 LNA

LNA DLNA8-7900-8400-007

7900~8400MHz, Gain45dB, Noise figure1.2dB, P-1dB10dBm, SMA
View Details →
DLNA8-700-2400-3619 LNA

LNA DLNA8-700-2400-3619

700~2400MHz, Gain14.5dB, Noise figure3dB, P-1dB23dBm, SMA
View Details →
DLNA8-6-9G-3012 LNA

LNA DLNA8-6-9G-3012

6000~9000MHz, Gain21dB, Noise figure1.5dB, P-1dB12dBm, SMA
View Details →
DLNA8-5000-11000-3618 LNA

LNA DLNA8-5000-11000-3618

5000~11000MHz, Gain21.4dB, Noise figure1.9dB, P-1dB13dBm, SMA
View Details →
DLNA8-50-10000-3617 LNA

LNA DLNA8-50-10000-3617

50~10000MHz, Gain22dB, Noise figure1.5dB, P-1dB21dBm, SMA
View Details →
DLNA8-30-1000-3655 LNA

LNA DLNA8-30-1000-3655

30~1000MHz, Gain30dB, Noise figure1.4dB, P-1dB15dBm, SMA
View Details →
DLNA8-18-40G-2970 LNA

LNA DLNA8-18-40G-2970

18~40GHz, Gain30dB, Noise figure4.5dB, P-1dB10dBm, 2.92
View Details →

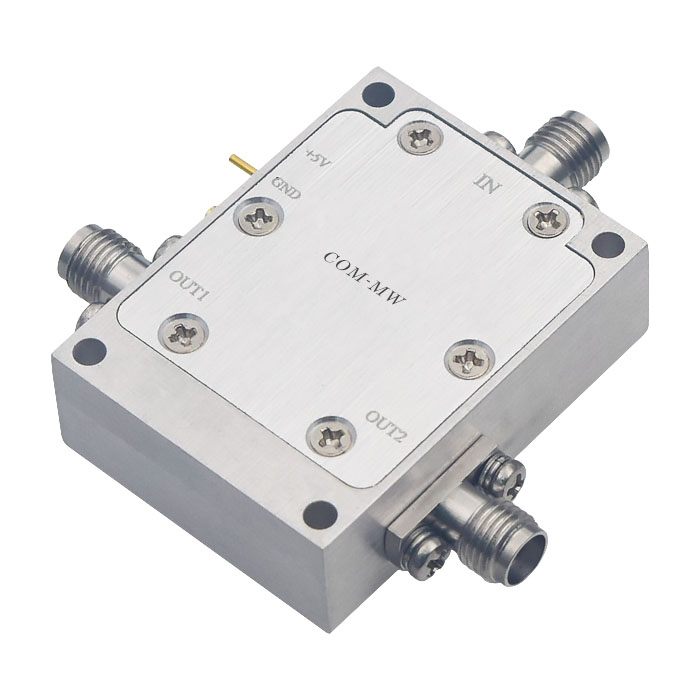

DLNA8-1000-2000-1626 LNA

LNA DLNA8-1000-2000-1626

1~2GHz, Gain13dB, Noise figure1dB, P-1dB2dBm, SMA, Dual output
View Details →

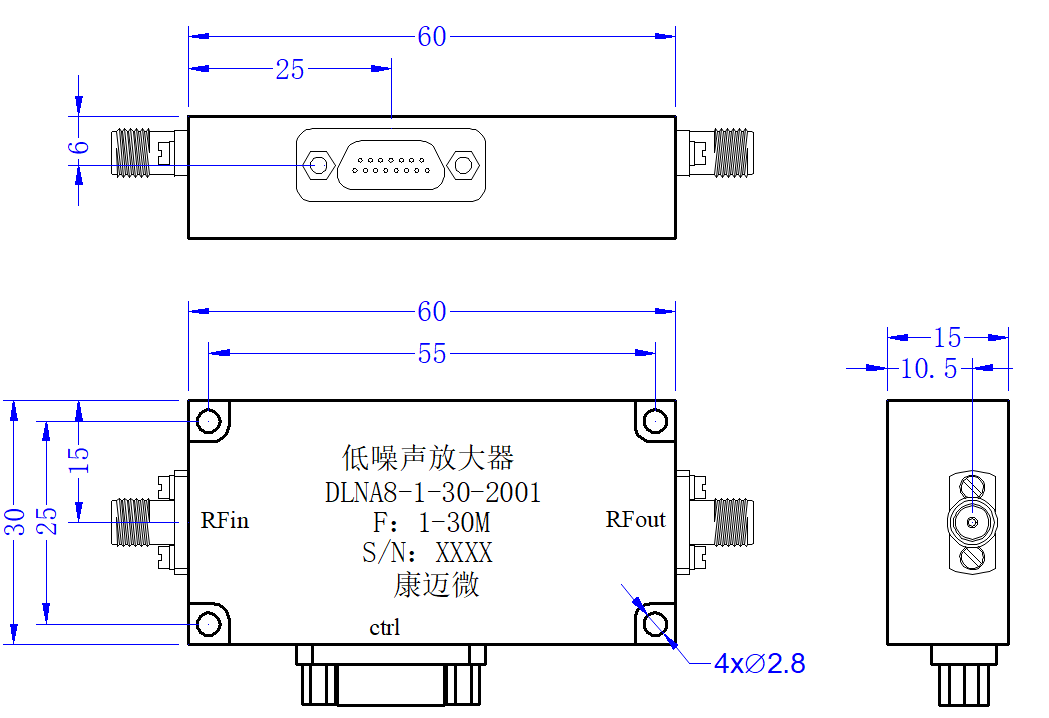

DLNA8-1-30-2001 LNA

LNA DLNA8-1-30-2001

1~30MHz, Gain44dB, P-1dB10dBm, SMA, Adjustable gain
View Details →
DLNA8-0.1-3G-9139 LNA

LNA DLNA8-0.1-3G-9139

100~3000MHz, Gain30dB, Noise figure3dB, P-1dB15dBm, SMA
View Details →

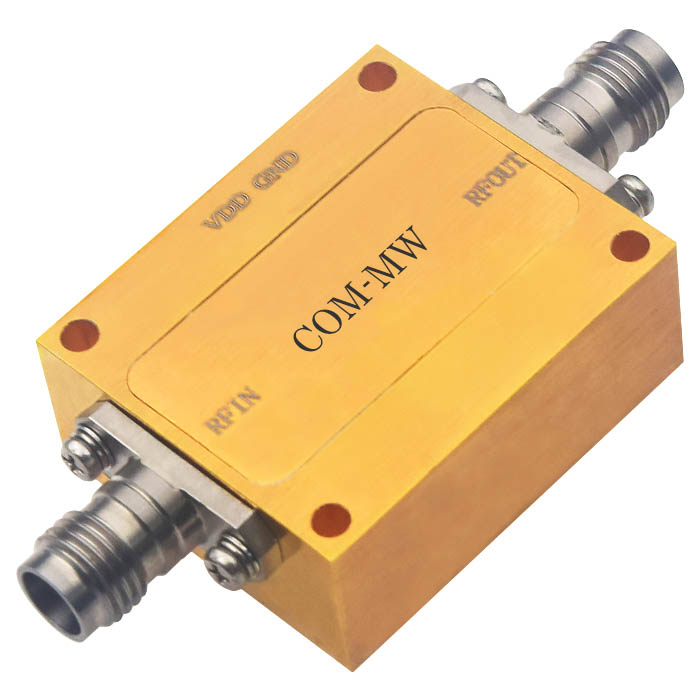

DLNA12-1-32G-221 LNA

LNA DLNA12-1-32G-221

1~32GHz, GaindB, Noise figure8dB, P-1dB13dBm, 2.92-K
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
