Main specifications

Parameters	Min	Typical	Max	Units
Frequency	15	~	50	GHz
Gain		38		dB
Gain flatness		±3		dB
Noise figure		5		dB
VSWR		2
P-1dB		17		dBm

Other parameters

Connector	2.4-F or K可拆
Connector material	Stainless steel
Impedance	50Ω
Surface	Gold-plating
Working voltage	+5V
Working current	400mA
Reverse isolation	60dB
Operation Temp.	-40~+65℃ Design assurance

Typical test data

Frequency GHz	S11 VSWR	S22 VSWR	Gain dB	Noise dB	P-1 dBm	Psat dBm
13.00	2.50	1.17	36.52	2.97	10.04	12.40
15.64	2.22	1.11	42.12	2.68	14.93	17.08
18.29	1.60	1.24	42.41	2.82	17.54	18.79
20.93	1.10	1.43	41.80	3.13	18.81	19.30
23.57	1.12	1.35	40.71	3.66	19.05	19.60
26.21	1.26	1.19	40.59	3.65	19.18	19.87
28.86	1.60	1.12	40.60	3.76	18.65	19.50
31.50	1.76	1.28	41.35	4.04	17.83	19.27
34.14	1.46	1.34	41.39	4.02	17.43	18.77
36.79	1.56	1.18	41.43	3.95	16.31	18.02
39.43	1.84	1.45	41.64	3.81	16.41	18.17
42.07	1.67	1.57	42.47	4.03	17.53	19.10
44.71	1.17	1.29	43.42	4.79	18.09	19.13
47.36	1.23	1.61	43.25	4.64	17.94	19.03
50.00	1.26	1.93	43.32	6.27	19.57	20.10

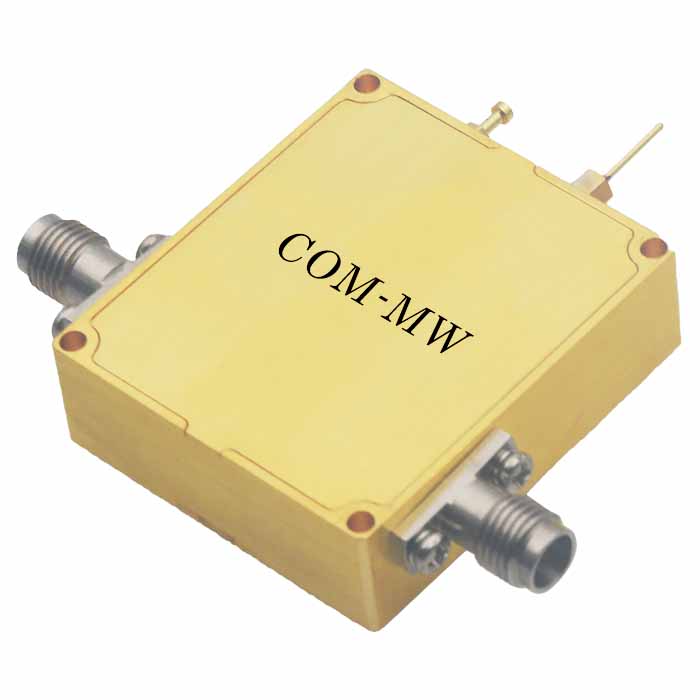

Reference picture

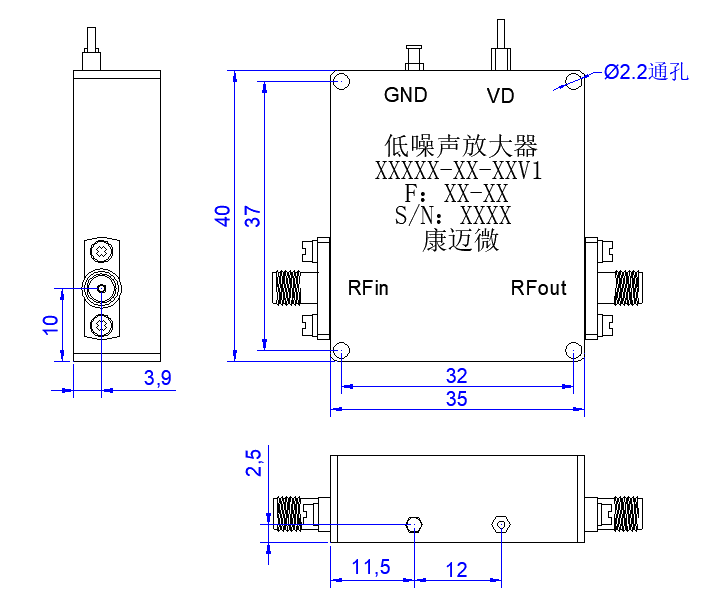

Configuration(mm)

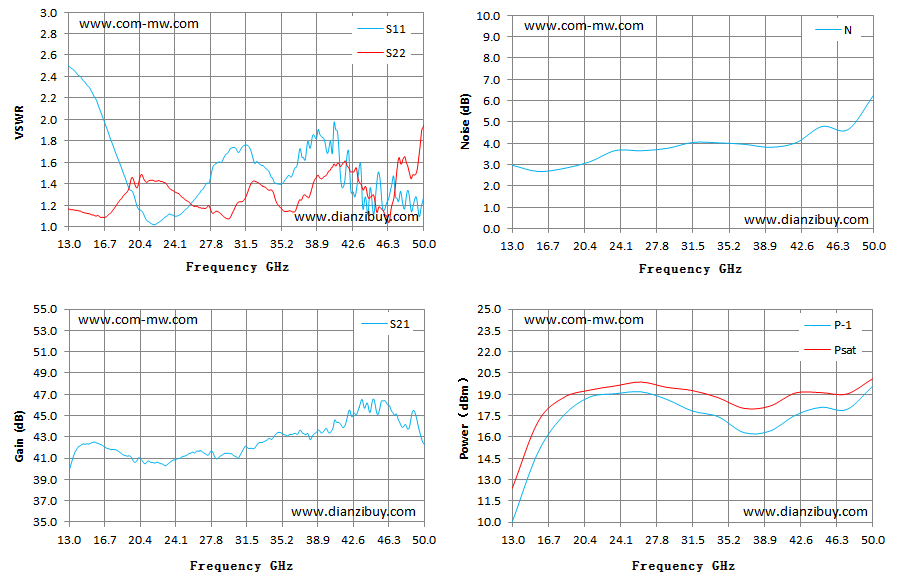

Typical test curve

Note

Store in an environment with humidity less than 25%, pay attention to dust and static electricity prevention;

Please pay attention to the power consumption of the product and consider the issue of amplifier heat dissipation during design;

If the amplifier is directly connected to the antenna, electrostatic protection or limiter protection should be applied.

Working or storage temperature less than 125 ℃;

Clean the surface of the product, do not soak the product in cleaning solution for cleaning.

LNA DLNA8-15-50G-9196
