Downloads

↓ Datasheet ↓ S-Parameters 245 KB

Main specifications

Parameters	Min	Typical	Max	Units
Frequency	0.01	~	67	GHz
Gain		27		dB
Noise figure		7.5		dB
VSWR		2.2	2.8
P-1dB		13		dBm

Other parameters

Connector	1.85-F or K
Impedance	50Ω
Working voltage	+8V
Working current	400mA
Operation Temp.	-30~+65℃ Design assurance

Typical test data

Frequency GHz	S11 VSWR	S22 VSWR	S21 Gain dB	S21 P-1 dbm	S21 Psat dbm
0.01	1.12	1.41	35.55	16.85	19.31
0.1	1.11	1.36	35.05	16.07	19.37
0.5	1.11	1.55	32.64	14.87	18.60
1	1.09	1.53	32.63	15.06	18.64
4.5	1.14	1.40	30.89	15.49	18.67
8	1.26	1.71	31.80	15.60	19.29
11.5	1.46	1.70	32.88	16.44	19.77
15	1.61	1.22	34.60	16.47	19.57
18.5	1.82	1.95	33.05	16.03	19.43
22	1.32	1.50	33.11	15.48	19.49
25.5	1.52	1.26	30.71	15.43	19.09
29	1.94	2.11	30.55	14.42	18.27
32.5	1.71	1.73	32.21	14.82	18.44
36	2.35	1.25	33.17	13.60	18.30
39.5	1.92	2.31	33.42	13.28	18.60
43	1.40	2.04	31.76	12.89	18.90
46.5	1.38	1.63	29.14	14.35	18.10
50	1.85	2.04	32.36	14.79	18.20

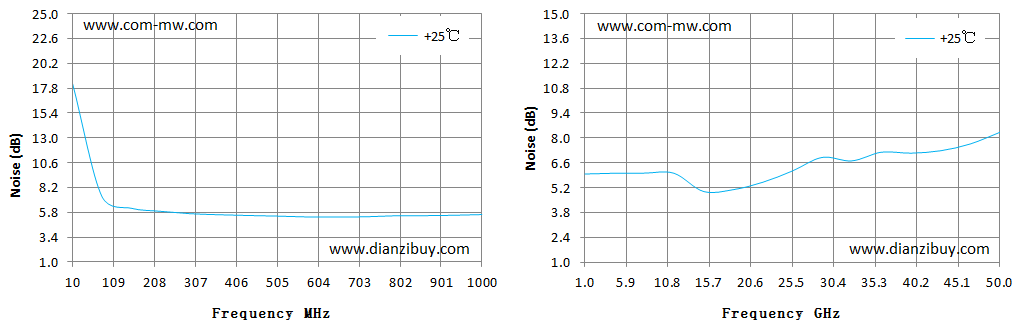

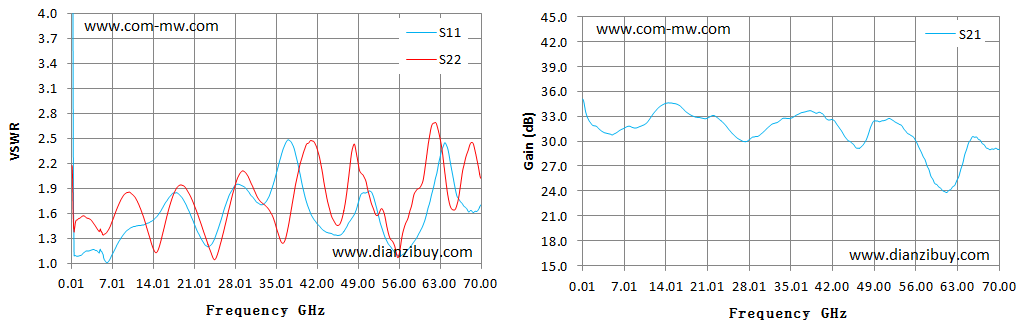

Typical test curve

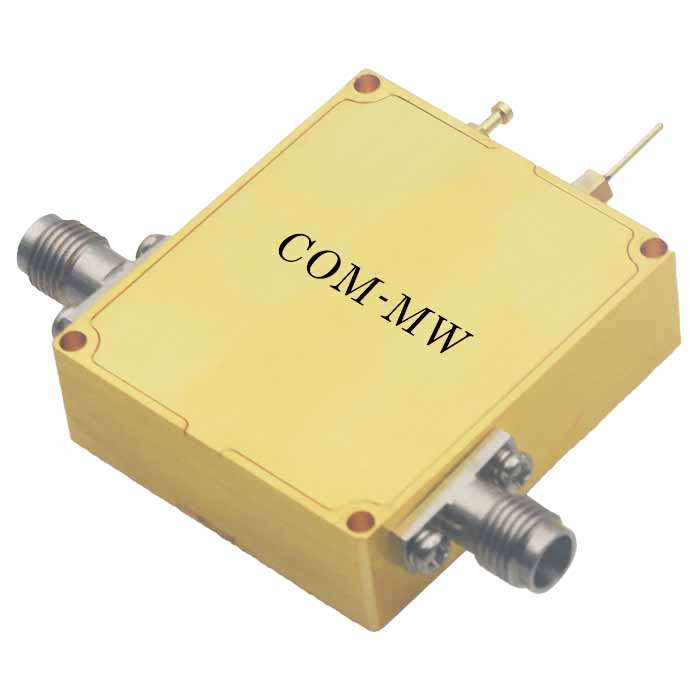

Reference picture

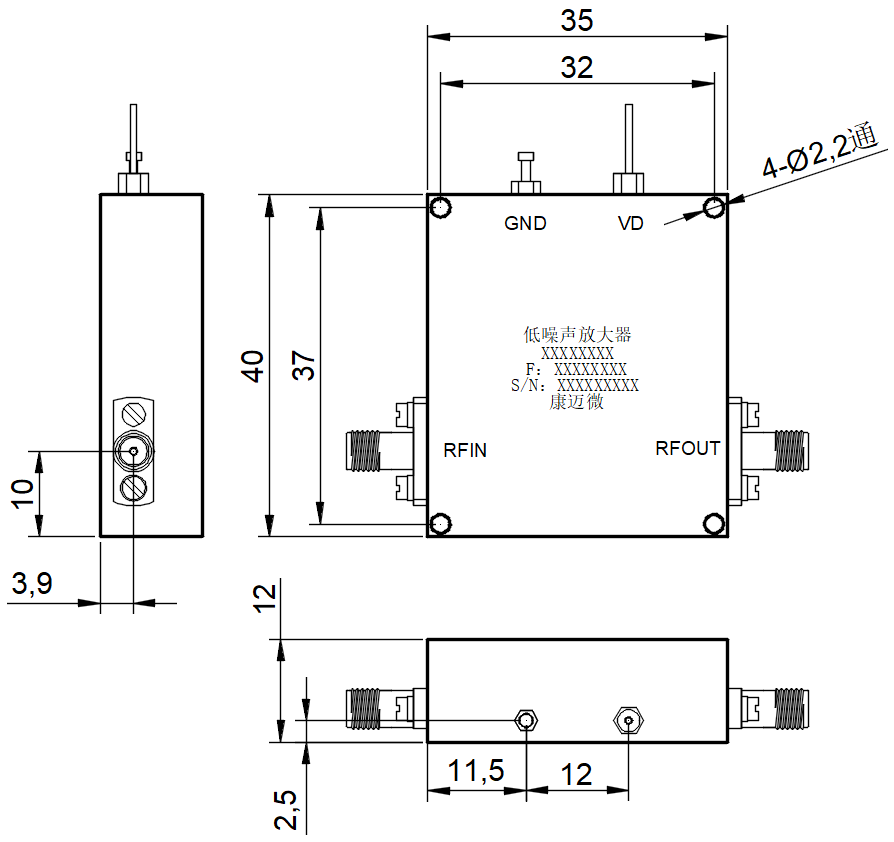

Configuration(mm)

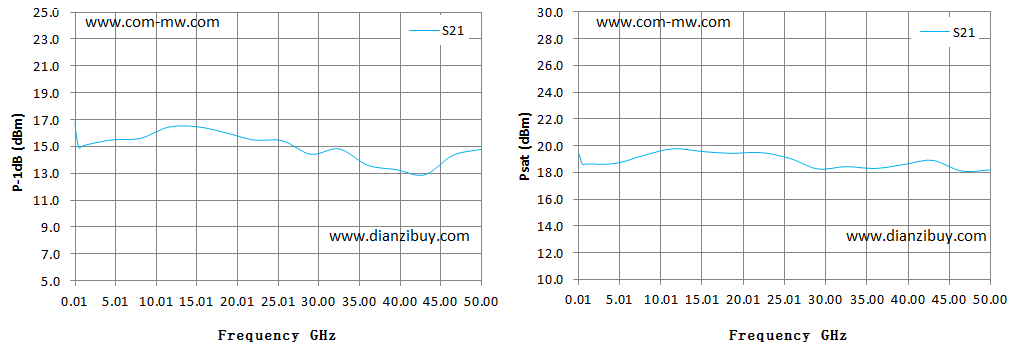

Typical test curve

Note

Store in an environment with humidity less than 25%, pay attention to dust and static electricity prevention;

Please pay attention to the power consumption of the product and consider the issue of amplifier heat dissipation during design;

If the amplifier is directly connected to the antenna, electrostatic protection or limiter protection should be applied.

Working or storage temperature less than 125 ℃;

Clean the surface of the product, do not soak the product in cleaning solution for cleaning.

LNA DLNA8-0.01-67G-9192
