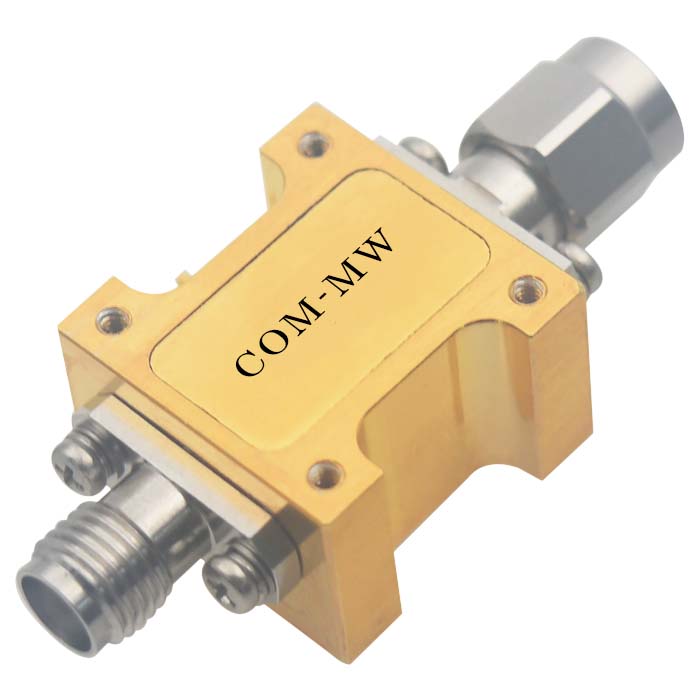

100~3000MHz, Gain30dB, Noise figure3dB, P-1dB15dBm, SMA
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 100 | ~ | 3000 | MHz |
| Gain | 30 | dB | ||
| Gain flatness | ±2 | dB | ||
| Noise figure | 3 | dB | ||
| VSWR | 2 | |||
| P-1dB | 15 | dBm | ||
| Max input power | 10 | dBm |
| Connector | SMA |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Working voltage | +5-6V |
| Working current | 200mA |
| Operation Temp. | -40~+70℃ Design assurance |

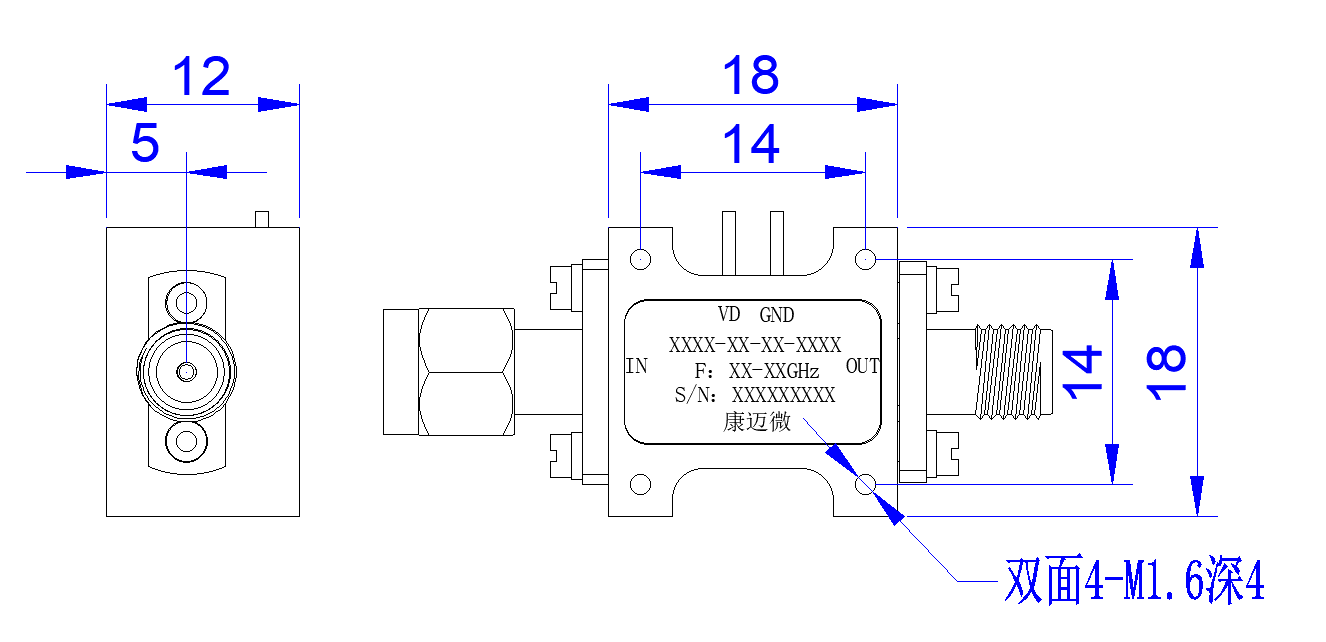

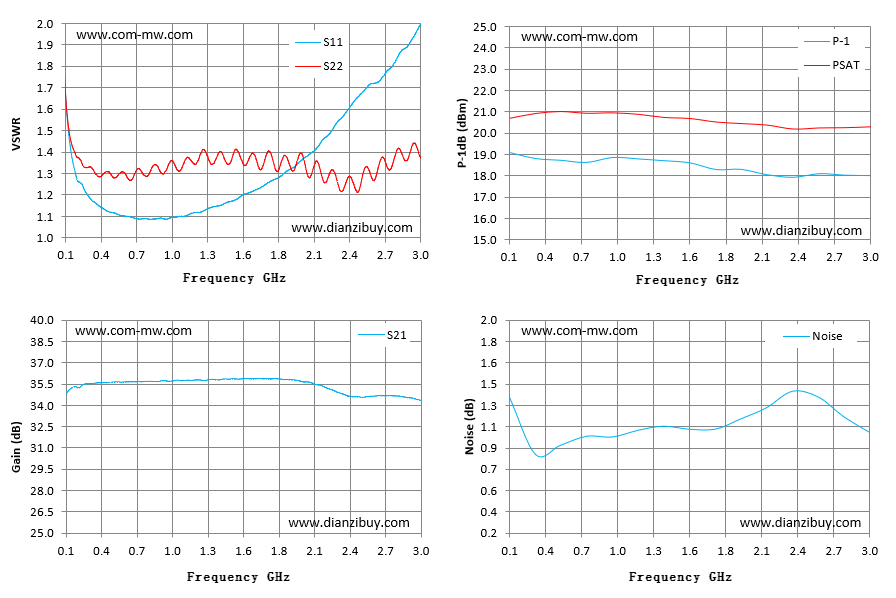

| Frequency GHz | S11 VSWR | S22 VSWR | S21 gain | S21 P-1dB | P-1dB | Noise 噪声 dB |
|---|---|---|---|---|---|---|
| 0.10 | 1.65 | 1.65 | 34.71 | 19.10 | 20.68 | 1.35 |
| 0.31 | 1.18 | 1.33 | 35.52 | 18.82 | 20.90 | 0.87 |
| 0.51 | 1.11 | 1.28 | 35.63 | 18.74 | 20.99 | 0.94 |
| 0.72 | 1.09 | 1.31 | 35.66 | 18.64 | 20.91 | 1.02 |
| 0.93 | 1.09 | 1.33 | 35.69 | 18.87 | 20.93 | 1.01 |
| 1.14 | 1.12 | 1.35 | 35.75 | 18.80 | 20.86 | 1.07 |
| 1.34 | 1.15 | 1.38 | 35.77 | 18.72 | 20.72 | 1.11 |
| 1.55 | 1.20 | 1.34 | 35.86 | 18.62 | 20.67 | 1.08 |
| 1.76 | 1.26 | 1.41 | 35.85 | 18.31 | 20.51 | 1.08 |
| 1.96 | 1.33 | 1.31 | 35.77 | 18.32 | 20.44 | 1.17 |
| 2.17 | 1.43 | 1.34 | 35.42 | 18.07 | 20.37 | 1.26 |
| 2.38 | 1.58 | 1.24 | 34.73 | 17.95 | 20.19 | 1.40 |
| 2.59 | 1.72 | 1.30 | 34.62 | 18.12 | 20.24 | 1.35 |
| 2.79 | 1.82 | 1.38 | 34.65 | 18.05 | 20.25 | 1.19 |
| 3.00 | 2.00 | 1.37 | 34.33 | 18.03 | 20.29 | 1.05 |
, When designing, consider the issue of amplifier heat dissipation.
If the amplifier is directly connected to the antenna, electrostatic protection or limiter protection should be applied.
