Filters
Filters 1
F High MHz
6000 1 12400 1 18000 45 26500 4
–
Connector
SMA 50 N 1
Power Handling
80 50 90 1
–
F Low MHz
0 51
–
Control
TTL Control 29 Voltage control 7 Program control 14
Category
Reflective 43 Absorption 8
Ways 路
2 - 4 29 5 - 7 8 8 - 10 9 11 - 16 4 18 1
–
Insertion loss dB
0.3 - 0.4 13 0.5 - 0.6 26 0.8 - 1 11 1.5 1
–
Isolation dB
50 1 60 4 70 46
–
Switching time ns
15000000 50 20000000 1
–
Power Handling：80 - 90× Clear all
matches 51 models Default Newest
DSW9-8R0-18G-2641 Switch

Switch DSW9-8R0-18G-2641

DC~18GHz, SP8T, TTL Control, Reflective, 15ms, SMA, 12V, 2 million Cycles
In Stock View Details →
DSW9-2R0-18G-2572 Switch

Switch DSW9-2R0-18G-2572

DC~18GHz, SPDT, Reflective, 15ms, SMA, 24V, 2 million Cycles
In Stock View Details →
DSW9-2R0-18G-2570 Switch

Switch DSW9-2R0-18G-2570

DC~18GHz, SPDT, TTL Control, Reflective, 15ms, SMA, 24V, 2 million Cycles
In Stock View Details →
DSW9-6R0-18G-2890 Switch

Switch DSW9-6R0-18G-2890

DC~18GHz, SP6T, TTL Control, Reflective, 15ms, SMA, 24V, 2 million Cycles, Port indication
In Stock View Details →
DSW9-2R0-18G-2576 Switch

Switch DSW9-2R0-18G-2576

DC~18GHz, SPDT, Reflective, 15ms, SMA, 24V, 2 million Cycles, Port indication
In Stock View Details →
DSW9-8R0-18G-2035 Switch

Switch DSW9-8R0-18G-2035

DC~18000MHz, SP8T, programmed switch, SMA, RJ-45, RS-232, GPIB control
In Stock View Details →
DSW9-6R0-12.4G-1975 Switch

Switch DSW9-6R0-12.4G-1975

DC~12.4GHz, SP6T, Reflective, 15ms, N
In Stock View Details →
DSW9-10R0-18G-2650 Switch

Switch DSW9-10R0-18G-2650

DC~18GHz, SP10T, TTL Control, Reflective, 15ms, SMA, 24V, 2 million Cycles
In Stock View Details →
DSW9-9R0-18G-2648 Switch

Switch DSW9-9R0-18G-2648

DC~18GHz, SP9T, TTL Control, Reflective, 15ms, SMA, 24V, 2 million Cycles
View Details →
DSW9-8R0-18G-2642 Switch

Switch DSW9-8R0-18G-2642

DC~18GHz, SP8T, TTL Control, Reflective, 15ms, SMA, 24V, 2 million Cycles
View Details →
DSW9-7R0-18G-2636 Switch

Switch DSW9-7R0-18G-2636

DC~18GHz, SP7T, TTL Control, Reflective, 15ms, SMA, 24V, 2 million Cycles
View Details →

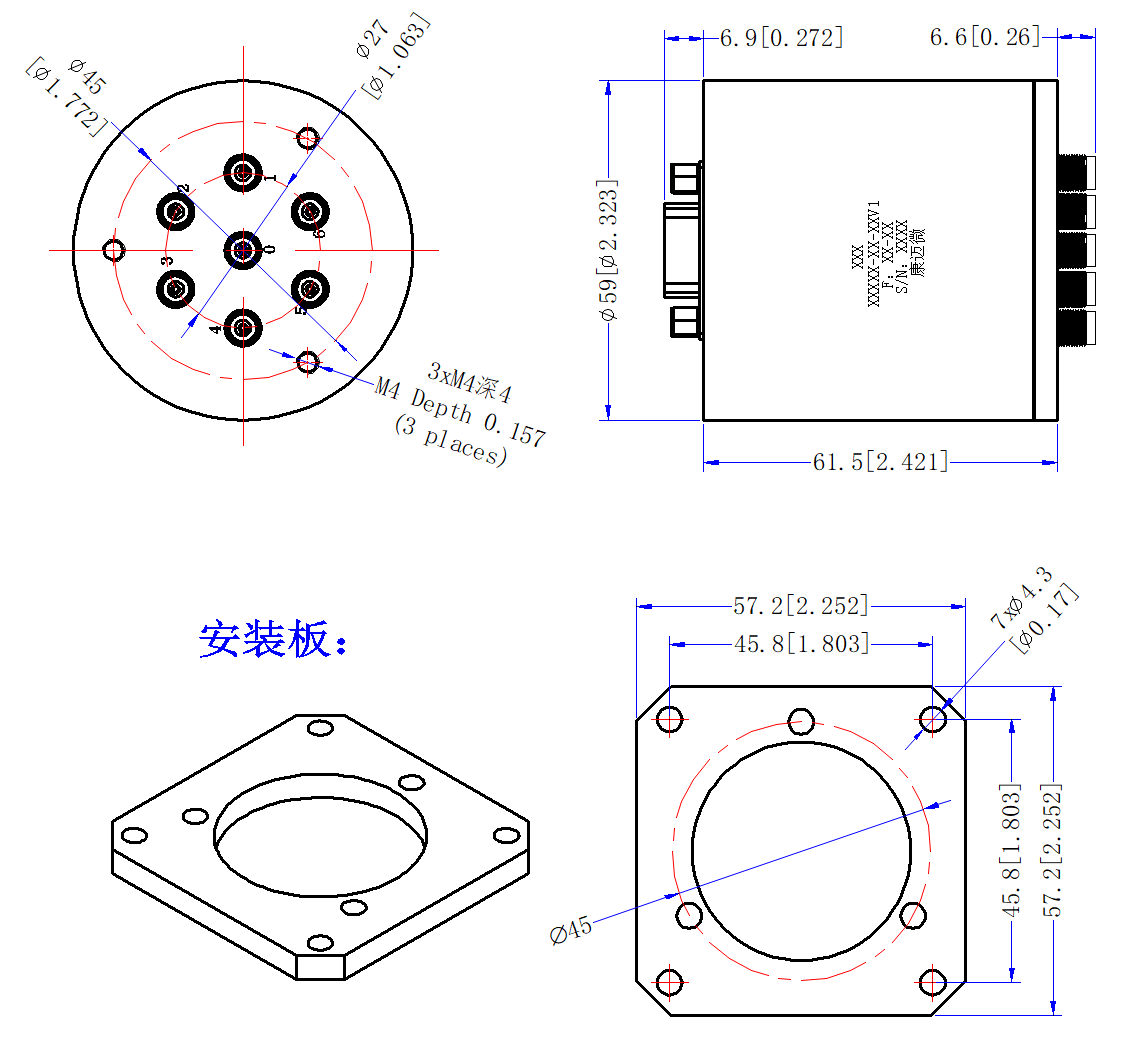

DSW9-6R0-18G-2895 Switch

Switch DSW9-6R0-18G-2895

DC~18GHz, SP6T, TTL Control, Absorption, 15ms, SMA, 24V, 2 million Cycles
View Details →

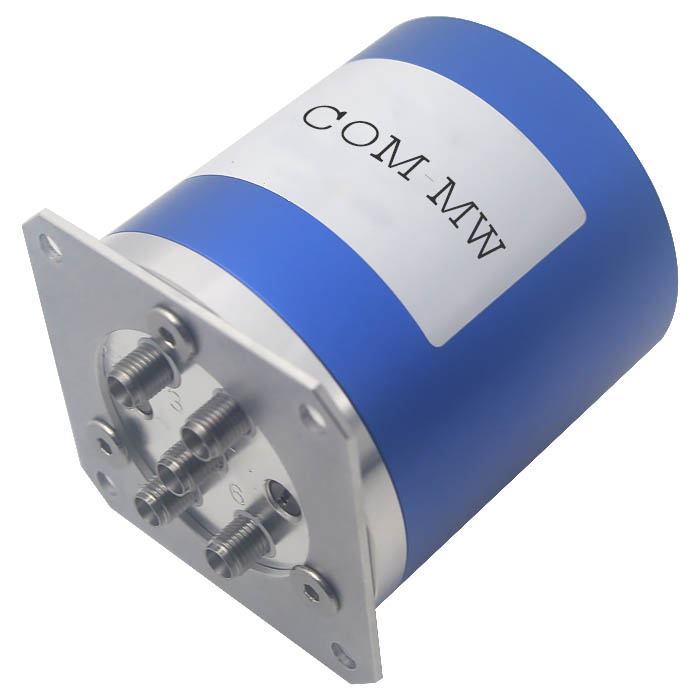

DSW9-4R0-18G-2894 Switch

Switch DSW9-4R0-18G-2894

DC~18GHz, SP4T, TTL Control, Absorption, 15ms, SMA, 24V, 2 million Cycles
View Details →
DSW9-4R0-18G-2889 Switch

Switch DSW9-4R0-18G-2889

DC~18GHz, SP4T, TTL Control, Reflective, 15ms, SMA, 24V, 2 million Cycles, Port indication
View Details →
DSW9-4R0-18G-2887 Switch

Switch DSW9-4R0-18G-2887

DC~18GHz, DPDT, TTL Control, Reflective, 15ms, SMA, 12V, 2 million Cycles
View Details →

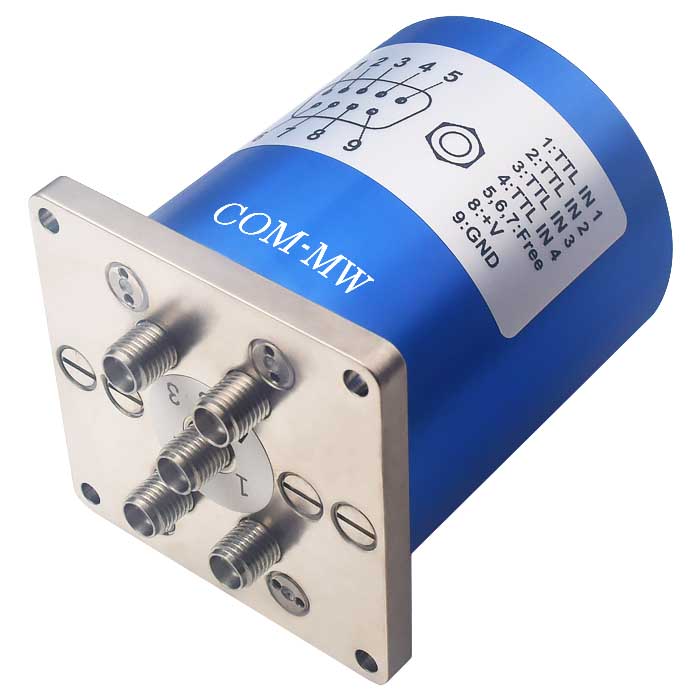

DSW9-4R0-18G-2720 Switch

Switch DSW9-4R0-18G-2720

DC~18GHz, SP4T, TTL Control, Absorption, 15ms, SMA, 24V, 2 million Cycles
View Details →
DSW9-4R0-18G-2658 Switch

Switch DSW9-4R0-18G-2658

DC~18GHz, DPDT, Reflective, 15ms, SMA, 24V, 2 million Cycles
View Details →
DSW9-4R0-18G-2657 Switch

Switch DSW9-4R0-18G-2657

DC~18GHz, DPDT, Reflective, 15ms, SMA, 12V, 2 million Cycles
View Details →
DSW9-4R0-18G-2656 Switch

Switch DSW9-4R0-18G-2656

DC~18GHz, DPDT, TTL Control, Reflective, 15ms, SMA, 24V, 2 million Cycles
View Details →
DSW9-4R0-18G-2655 Switch

Switch DSW9-4R0-18G-2655

DC~18GHz, DPDT, TTL Control, Reflective, 15ms, SMA, 12V, 2 million Cycles
View Details →

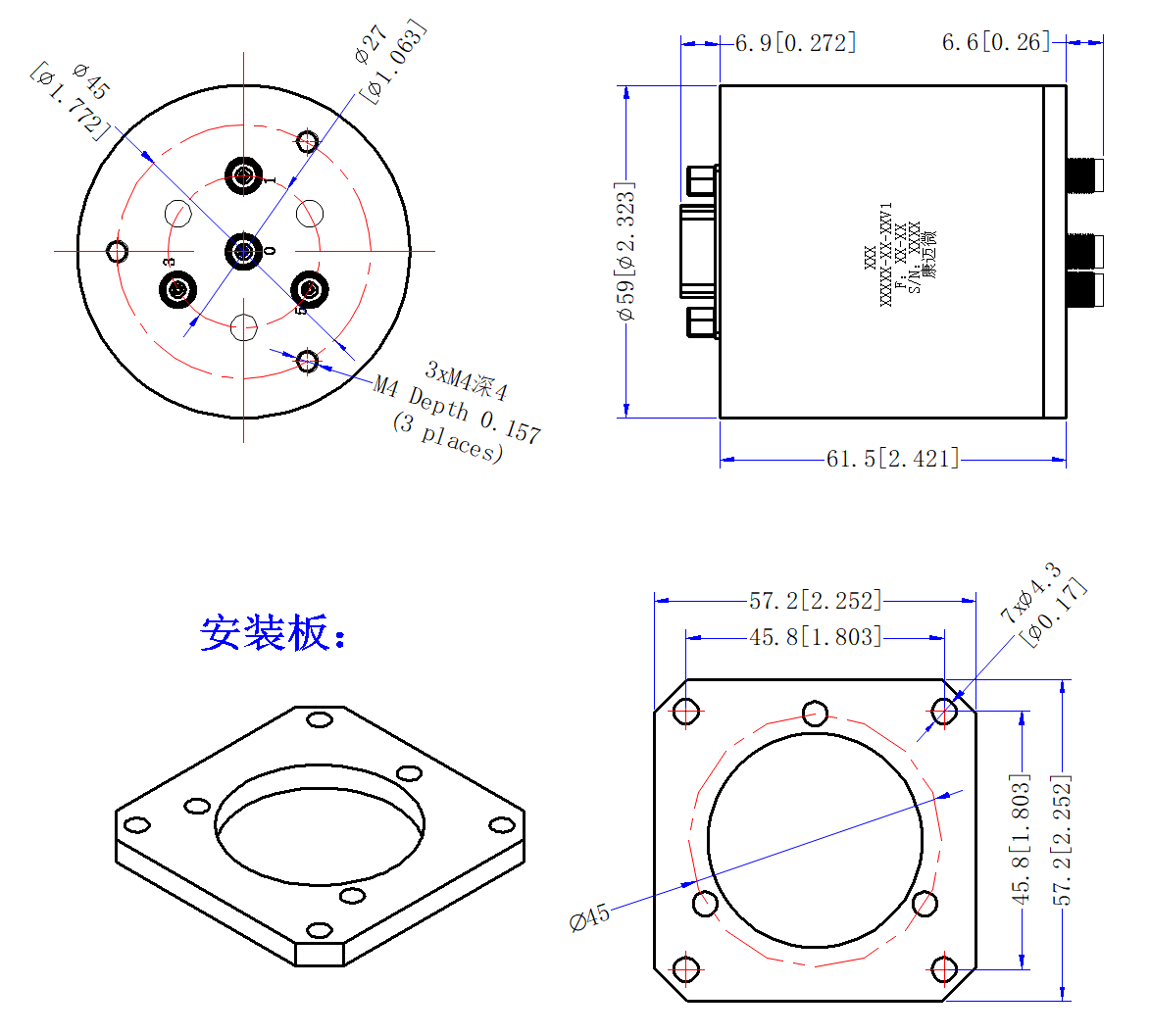

DSW9-3R0-18G-2893 Switch

Switch DSW9-3R0-18G-2893

DC~18GHz, SP3T, TTL Control, Absorption, 15ms, SMA, 24V, 2 million Cycles, Port indication
View Details →
DSW9-3R0-18G-2888 Switch

Switch DSW9-3R0-18G-2888

DC~18GHz, SP3T, TTL Control, Reflective, 15ms, SMA, 24V, 2 million Cycles, Port indication
View Details →
DSW9-2R0-18G-2983 Switch

Switch DSW9-2R0-18G-2983

DC~18GHz, SPDT, TTL Control, Reflective, 15ms, SMA, 12V, 2 million Cycles, Latching
View Details →
DSW9-2R0-18G-2891 Switch

Switch DSW9-2R0-18G-2891

DC~18GHz, SPDT, TTL Control, Reflective, 15ms, SMA, 12V, 2 million Cycles, Port indication
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
