DC~18000MHz, SP8T, programmed switch, SMA, RJ-45, RS-232, GPIB control
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
Broadband, high-power.
The switching life of the switch is greater than 1 million cycles.
Touch screen display, supporting /uploads/kmw-media/dsw9-8r0-18g-2035/manual/DSW9-8R0-18G-2035@2025-07-20-10-21-19.pdf channel switching.

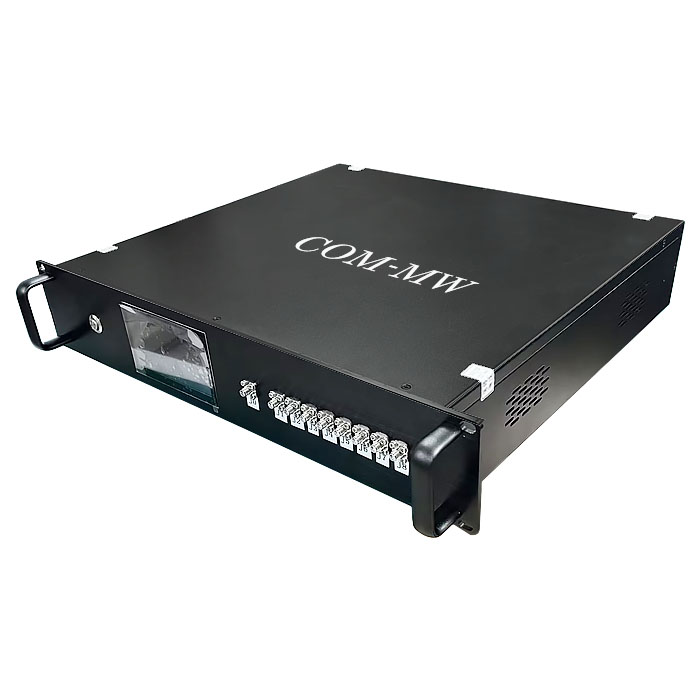

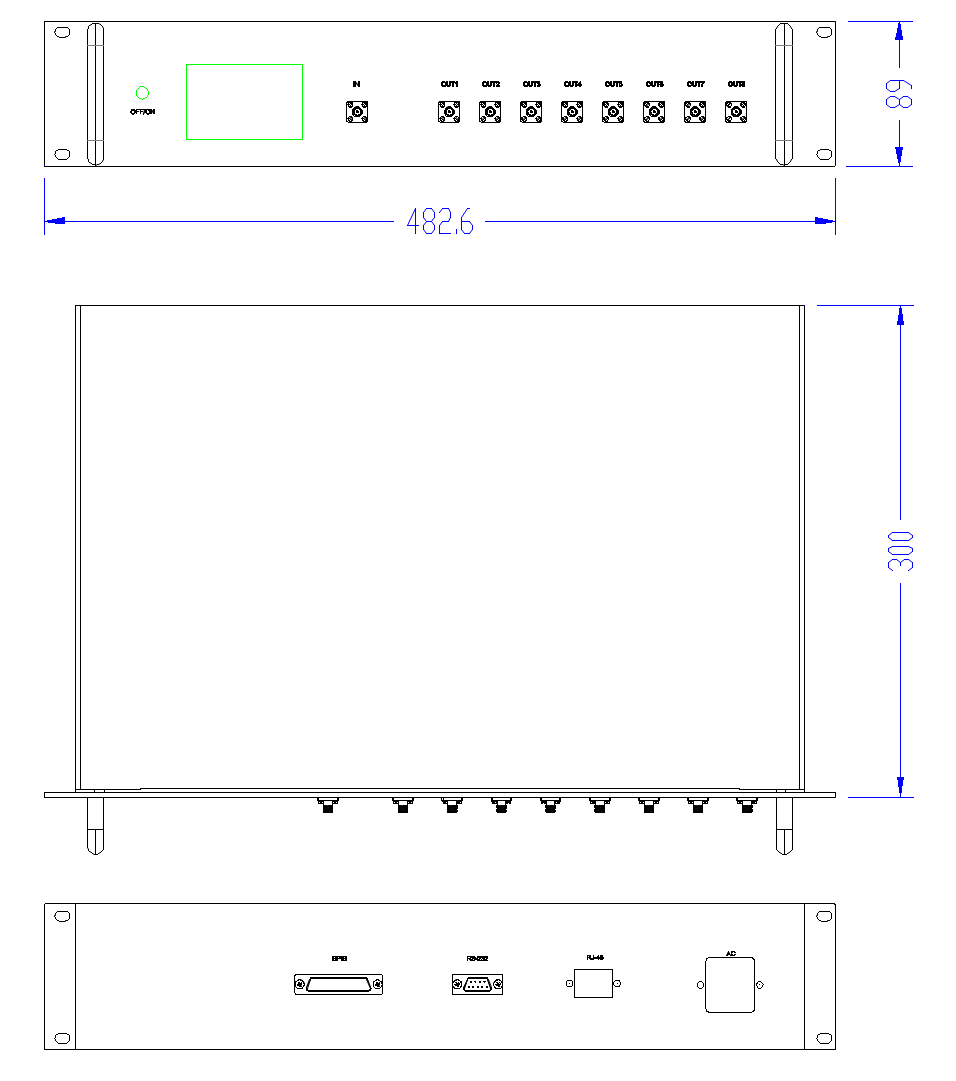

Standard 19 inch chassis.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | DC | ~ | 18000 | MHz |
| IL | 0.8 | 1.5 | dB | |
| Isolation | 60 | 70 | dB | |
| VSWR | 1.5 |
| Switch way | SP8T |
| Switching characteristic | Mechanical reflective programmable switch |
| Switch time | 15ms |
| Connector | SMA-K |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Power Capacity | 80W@3GHz；60W@6GHz；20W@18GHz |
| Working voltage | +220V |
| Operation Temp. | -30~+70℃ Design assurance |
| Storage Temp. | -40~+85℃ Design assurance |
| Quality Grade | Industrial grade |
| Other | RJ-45, RS-232, GPIB control |
| Common port | COM |
| Branching port | 1，2，3，4，5，6，7，8 |

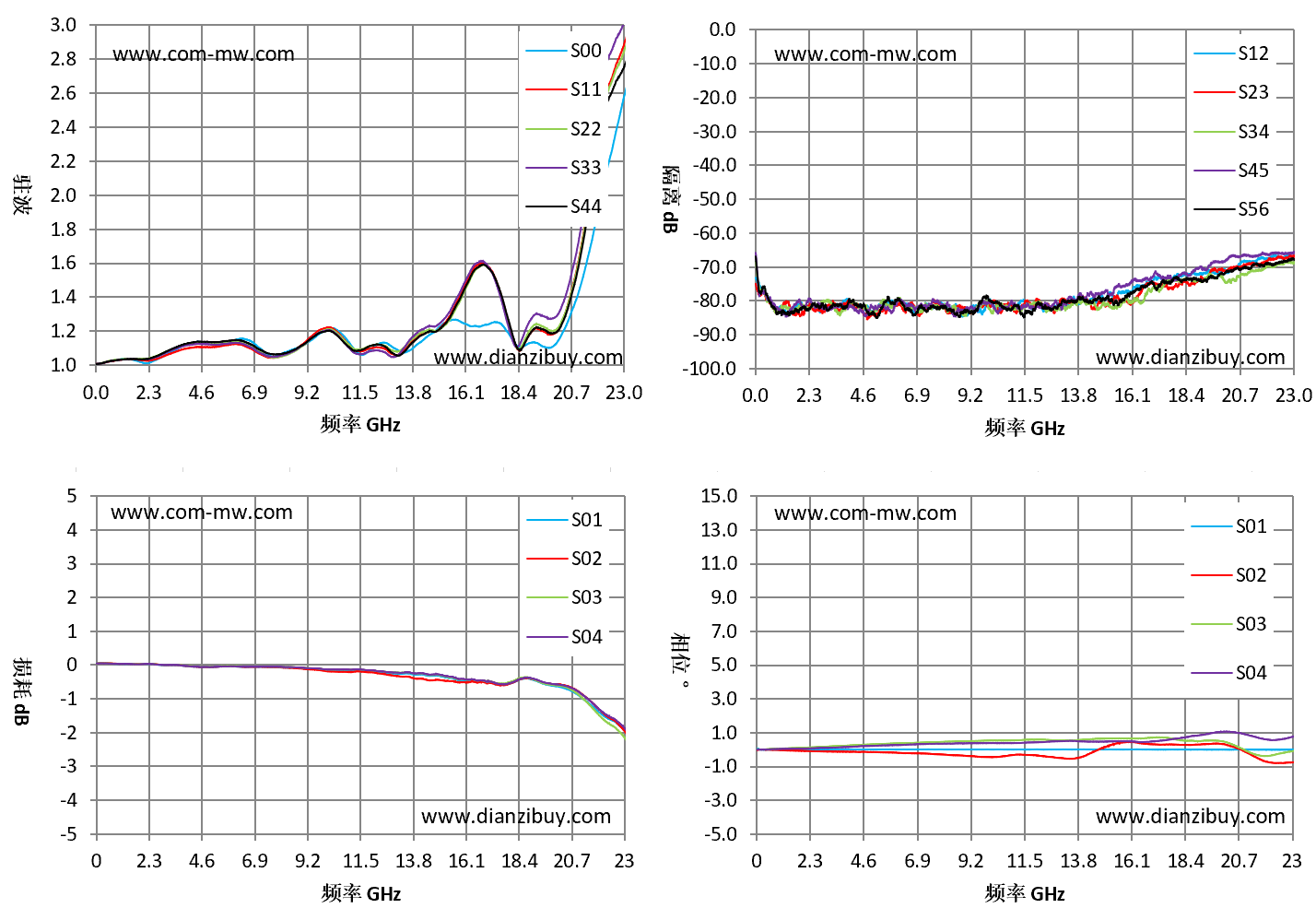

| Frequency(GHz) | S00 VSWR | S11 VSWR | S01 IL dB | S12 ISO dB | S04 Phase |
|---|---|---|---|---|---|
| 0.01 | 1.01 | 1.01 | -0.01 | -73.16 | 0.01 |
| 3.29 | 1.08 | 1.07 | -0.33 | -81.72 | 0.12 |
| 6.57 | 1.15 | 1.11 | -0.46 | -81.69 | 0.3 |
| 9.86 | 1.2 | 1.21 | -0.54 | -81.43 | 0.38 |
| 13.14 | 1.09 | 1.06 | -0.76 | -81.72 | 0.5 |
| 16.43 | 1.23 | 1.57 | -0.96 | -75.73 | 0.44 |
| 18.07 | 1.17 | 1.2 | -1.23 | -72.36 | 0.66 |
| 21.36 | 1.6 | 1.88 | -1.89 | -68.28 | 0.76 |
| 22.4 | 2.58 | 2.89 | -2.45 | -67.39 | 0.96 |
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
| 2 | If the temperature is higher than 125℃, consult with us before ordering. |
