DC~18GHz, SP6T, TTL Control, Absorption, 15ms, SMA, 24V, 2 million Cycles
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | DC | ~ | 18 | GHz |
| IL | 0.3 | dB@6G | ||
| IL | 0.5 | dB@18G | ||
| Isolation | 70 | dB@6G | ||
| Isolation | 50 | dB@18G | ||
| VSWR | 1.3 | @6G | ||
| VSWR | 1.5 | @18G | ||
| Power Capacity | 80 | W@6G | ||
| Power Capacity | 50 | W@18G |
| Switch way | SP6T |
| Control | TTL Control |
| Switching characteristic | Mechanical absorption switch |
| Switch time | 15ms |
| Connector | SMA-K |
| Impedance | 50Ω |
| Working voltage | +24V |
| Working current | 200mA |
| Operation Temp. | -25~+65℃ Design assurance |
| Storage Temp. | -55~+85℃ Design assurance |
| Switching Lifetime | 2 million Cycles |
| Control port | D-SUB15 Male |
| Switching sequence | First disconnect and then close |
| Drive mode | Normally open |

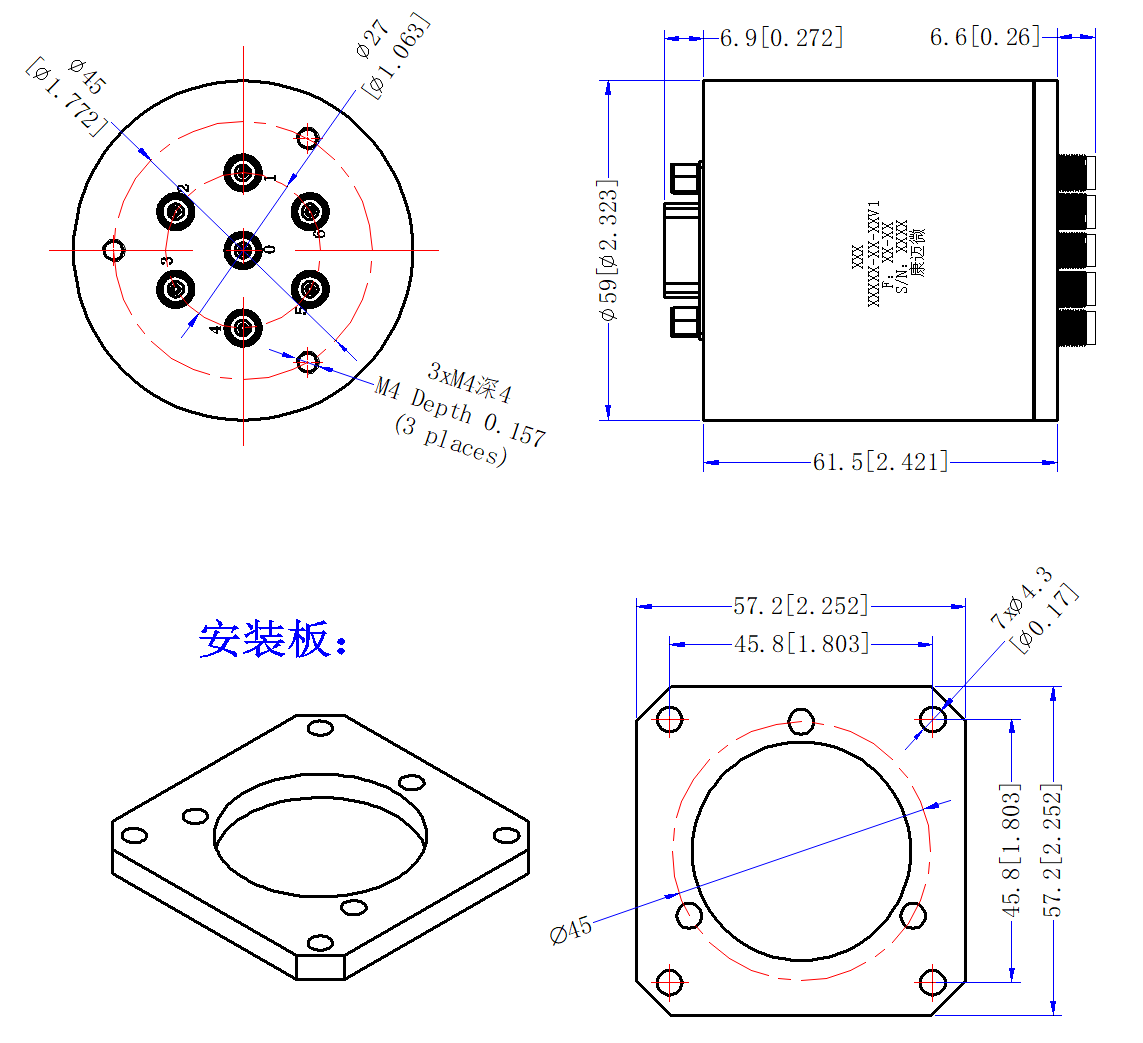

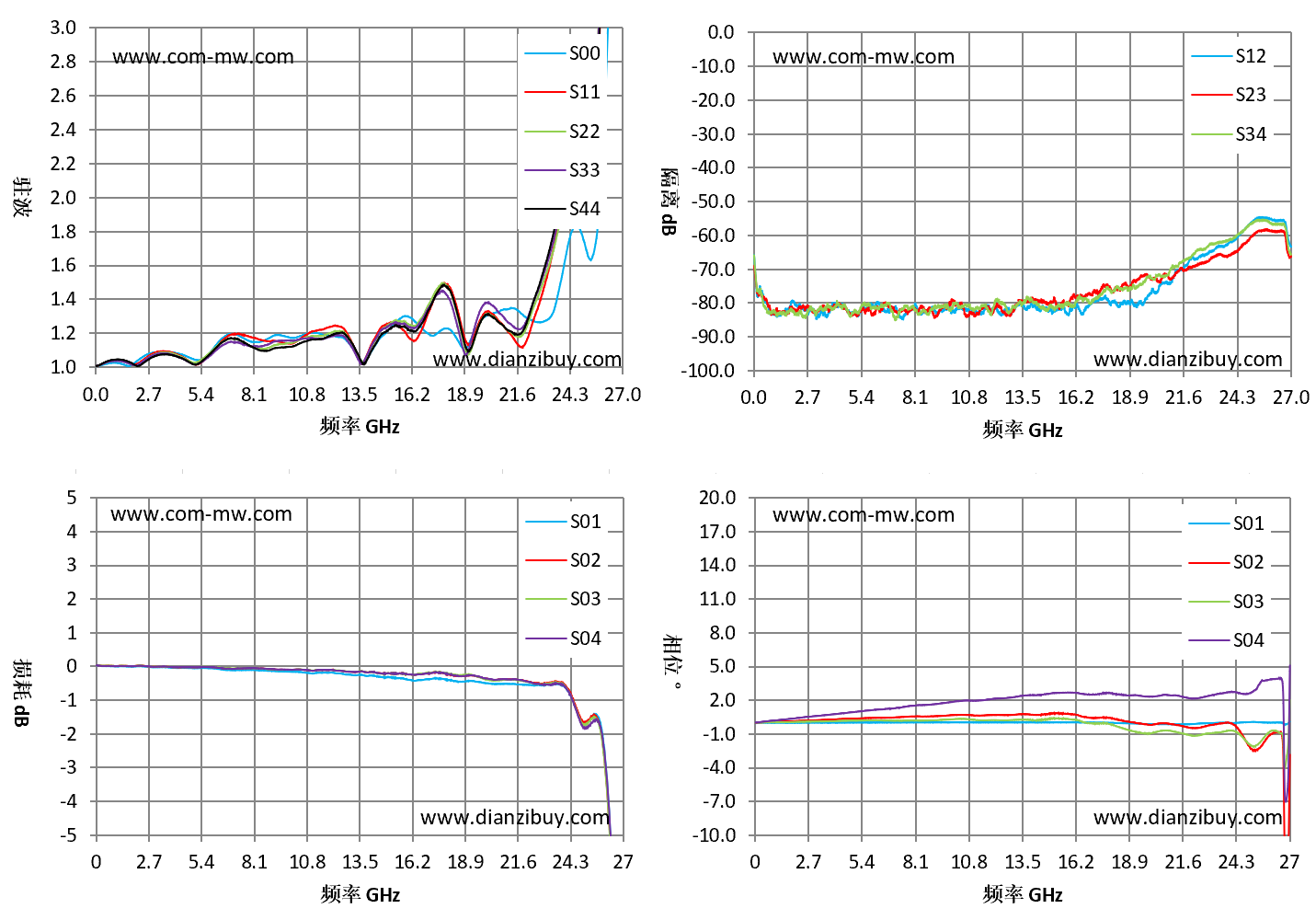

| Frequency(GHz) | S00 VSWR | S11 VSWR | S01 IL dB | S12 ISO dB | S04 Phase |
|---|---|---|---|---|---|
| 0.1 | 1.01 | 1.01 | -0.01 | -65.76 | 0.01 |
| 3.86 | 1.09 | 1.09 | -0.04 | -81.08 | 0.73 |
| 5.79 | 1.08 | 1.07 | -0.05 | -80.94 | 1.11 |
| 9.64 | 1.18 | 1.14 | -0.15 | -81.32 | 1.77 |
| 13.5 | 1.05 | 1.05 | -0.25 | -80.84 | 2.41 |
| 17.36 | 1.19 | 1.41 | -0.35 | -78.64 | 2.54 |
| 19.29 | 1.18 | 1.16 | -0.44 | -80.56 | 2.44 |
| 23.14 | 1.28 | 1.55 | -0.54 | -64.26 | 2.48 |
| Pin 1 | TTL high level (3~5V) | RF 0-1 |
|---|---|---|
| Pin 2 | TTL high level (3~5V) | RF 0-2 |
| Pin 3 | TTL high level (3~5V) | RF 0-3 |
| Pin 4 | TTL high level (3~5V) | RF 0-4 |
| Pin 5 | TTL high level (3~5V) | RF 0-5 |
| Pin 6 | TTL high level (3~5V) | RF 0-6 |
| Pin 7 | +24V | / |
| Pin 8 | GND | / |
| Pin 9 | Port indication | RF 0-1 |
| Pin 10 | Port indication | RF 0-2 |
| Pin 11 | Port indication | RF 0-3 |
| Pin 12 | Port indication | RF 0-4 |
| Pin 13 | Port indication | RF 0-5 |
| Pin 14 | Port indication | RF 0-6 |
| Pin 15 | Port indication | Common port |
