RF Filter

Total 89 models
Categories
Categories RF Filter
RF Filter16049
RF Filter15377 Diplexer468 Combiner52 Filter bank148 Active Filter4
Power Distribution1709
Divider&Hybrid1047 Coupler559 Balun103
Antenna1230
Antenna1174 Antenna accessories7 Tripod35 Antenna Box14
Signal Amplification605
RF Amplifier605
Connector1428
RF Connector13 RF Coaxial Adapter184 Bias Tee37 Coaxial Cable774 DC Block11 Waveguide adapter193 Waveguide Connection214 Lightning arrester1 Impedance transformer1
Controller642
Limiter77 RF Switch359 Equalizer45 Switching filter63 Mixer26 Detector34 Digital attenuator1 Phase shifter13 Delayer24
Other devices1491
Load228 Attenuator886 Isolator228 Circulator139 Frequency multiplier10
Module and test system48
RF Switch Matrix20 Mobile RF Test Matrix1 RF Module18 Frequency source9
Accessories40
Chip Capacitor18 glass insulator15
Filters
Filters 1
Feature
Bandpass 43 Highpass 8 Notch 38
F Low MHz
75 - 76.5 9 77.5 - 80 17 81 - 83.33 7 85 - 89 46 90 - 92 10
–
Center frequency MHz
75 - 81.5 9 82 - 93 6 93.3 - 100 16 102 - 114 7 132.5 - 177.5 6
–
F High MHz
75 - 85 12 86.83 - 105 12 108 - 140 47 160 - 610 10 960 - 3000 8
–
IL on center frequency dB
0.3 - 0.5 2 1 - 2 31 3 - 4 6 5 - 6 3 10 1
–
Maximum loss of side frequency dB
0.7 - 1.1 7 1.2 - 1.8 13 2 - 3.5 59 4 - 6 6 7 - 12 4
–
Rejection dB
20 - 30 19 32 - 40 39 50 - 55 19 60 - 95 12
–
Connector
SMD 17 SMA 41 N 10 Microstrip needle 21
Power Handling
0.01 - 0.5 4 1 - 3 61 5 - 20 15 25 - 240 9
–
Filter type
LC 84 Cavity&waveguide 2 stripline 1 Crystal 2
F Low：75 - 92 MHz× Clear all
matches 89 models Default Newest
HF020 Filter

Filter HF020

Passband81~1000MHz, 65MHz≥20dB, DC-62MHz≥30dB, SMD, Replace SXHP-76+
In Stock View Details →
BF040 Filter

Filter BF040

Passband87~117MHz, 66MHz≥20dB, 143MHz≥20dB, SMD, Replace SXBP-100+
In Stock View Details →
ZHPF5-L85-2000-3077 Filter

Filter ZHPF5-L85-2000-3077

Passband85~2000MHz, RejectionDC-50MHz≥40dB, SMD
In Stock View Details →
ZHPF5-L75-1500-3097 Filter

Filter ZHPF5-L75-1500-3097

Passband78~1500MHz, RejectionDC-45MHz≥40dB, SMD
In Stock View Details →
HF031 Filter

Filter HF031

Passband90~2000MHz, 40-55MHz≥20dB, DC-40MHz≥40dB, SMA
In Stock View Details →

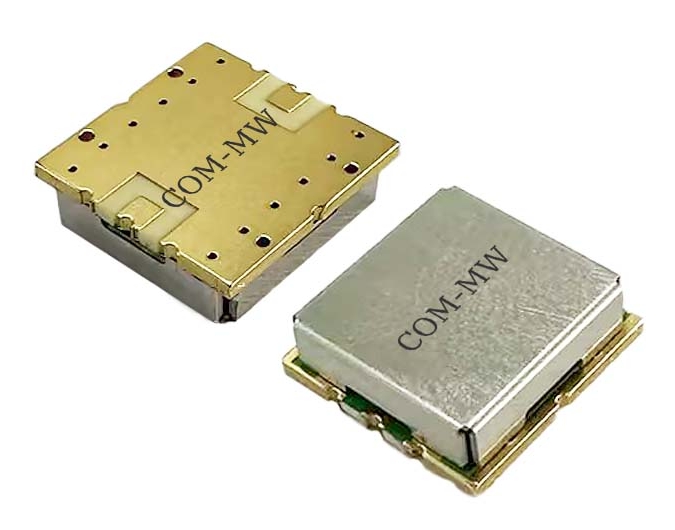

BF013 Band pass filter

Band pass filter BF013

Passband75~131MHz, DC-45MHz≥35dB, 55MHz≥20dB, 170MHz≥20dB, 210-2000MHz≥35dB, /
In Stock View Details →
ZBF-L93.3-10-3053B2C Filter

Filter ZBF-L93.3-10-3053B2C

Passband88.3~98.3MHz, DC-75.8MHz≥40dB, 110.8-500MHz≥40dB, Pin
In Stock View Details →
ZBF14-L100-40-740 Filter

Filter ZBF14-L100-40-740

Passband80~120MHz, DC-65MHz≥40dB, 150-900MHz≥40dB, SMA
In Stock View Details →
ZBF9-Q75-0-3233 Filter

Filter ZBF9-Q75-0-3233

Center Frequency75MHz, -3dB BW12.5KHz, -60dB BW≤25KHz, Pin
In Stock View Details →
ZBF8-Q75.8-0.08-3653 Filter

Filter ZBF8-Q75.8-0.08-3653

Center Frequency75.8MHz, -3dB BW80KHz, Pin
In Stock View Details →
ZBF-1L93.3-10-S2212 Filter

Filter ZBF-1L93.3-10-S2212

Passband88.3~93.3MHz, DC-75.8MHz≥40dBc, 110-500MHz≥40dBc, SMD
In Stock View Details →
ZBSF3-2C98-892-D30 限波器

限波器 ZBSF3-2C98-892-D30

Stopband F188~108MHz, Stopband F2825~960MHz, ≥30dB, PassbandDC~70MHz, 128~750MHz, 1010~1350MHz, N
In Stock View Details →
ZBSF13-L88-108-3595 Filter

Filter ZBSF13-L88-108-3595

Stopband F88~108MHz, ≥35dBc, PassbandDC~80MHz, 120~1300MHz, SMA
In Stock View Details →
ZBF15-L97.5-25-1449 Filter

Filter ZBF15-L97.5-25-1449

Passband85~110MHz, DC-70MHz≥20dB, 150-160MHz≥20dB, SMD
In Stock View Details →

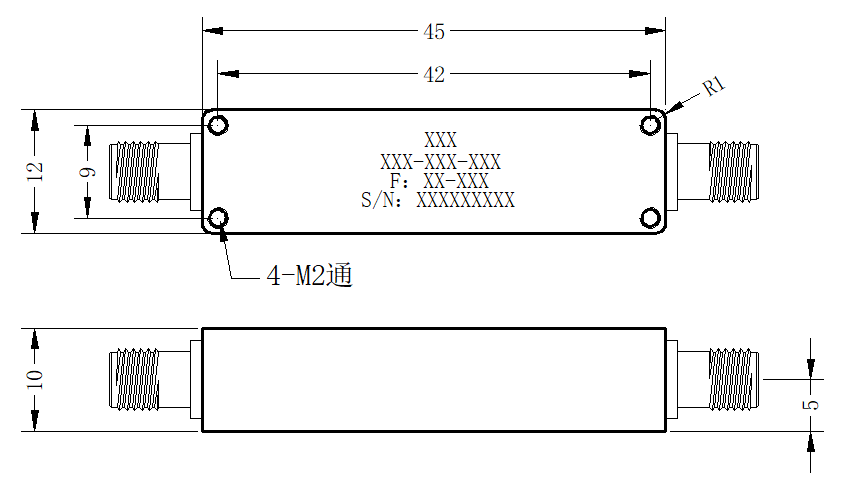

ZBF2-L97-10-3308 Filter

Filter ZBF2-L97-10-3308

Passband92~102MHz, DC-70MHz≥55dBc, 135-194MHz≥60dBc, SMA
In Stock View Details →

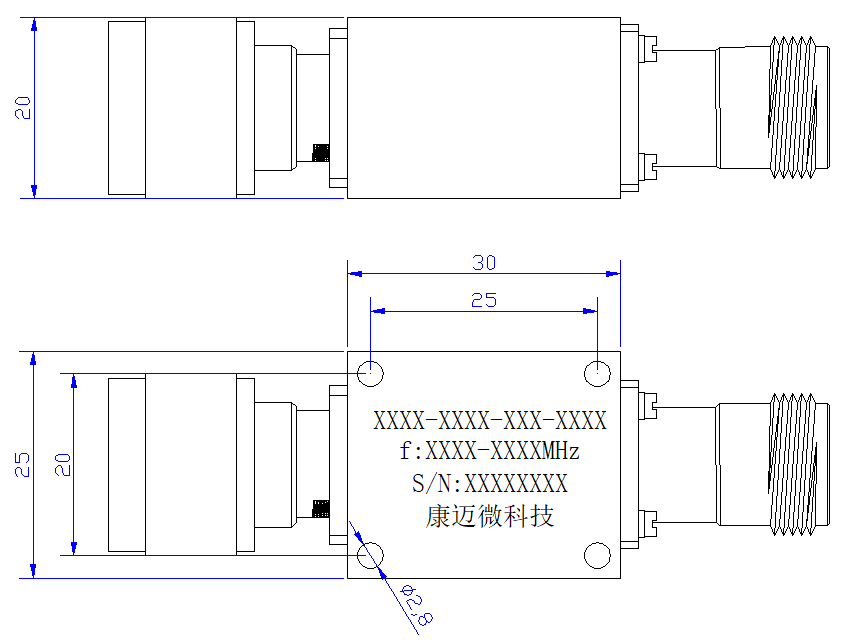

ZHPF5-L80-300-2676 Filter

Filter ZHPF5-L80-300-2676

Passband80~300MHz, DC-40MHz≥50dB, N
View Details →
ZHPF20-L85-600-190 Filter

Filter ZHPF20-L85-600-190

Passband85~600MHz, DC-50MHz≥60dB, dB, SMA
View Details →

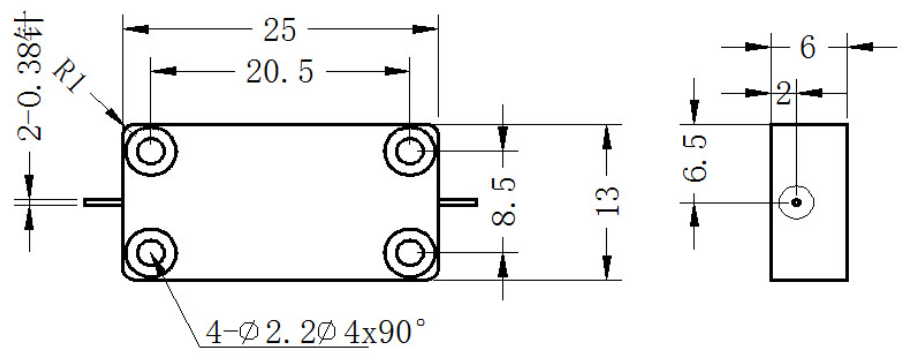

ZHPF2-L80-2000-1314 Filter

Filter ZHPF2-L80-2000-1314

Passband80~2000MHz, DC-30MHz≥50dBc, dB, Pin
View Details →
ZHPF15-L80-1000-1407 Filter

Filter ZHPF15-L80-1000-1407

Passband80~1000MHz, DC-55MHz≥40dB, dB, SMA
View Details →

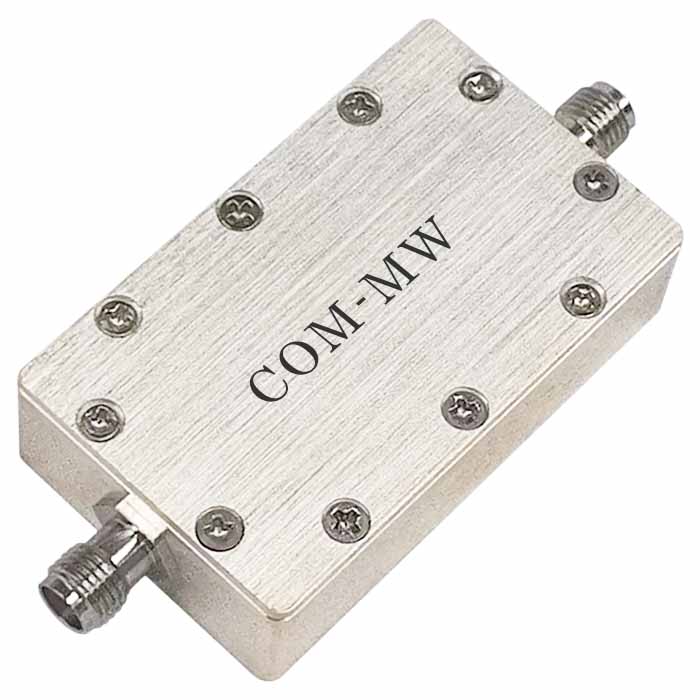

ZBSF6-L75-75-4906 Filter

Filter ZBSF6-L75-75-4906

Stopband F75MHz, ≥40dB, PassbandDC~65MHz, 85~700MHz, SMA
View Details →

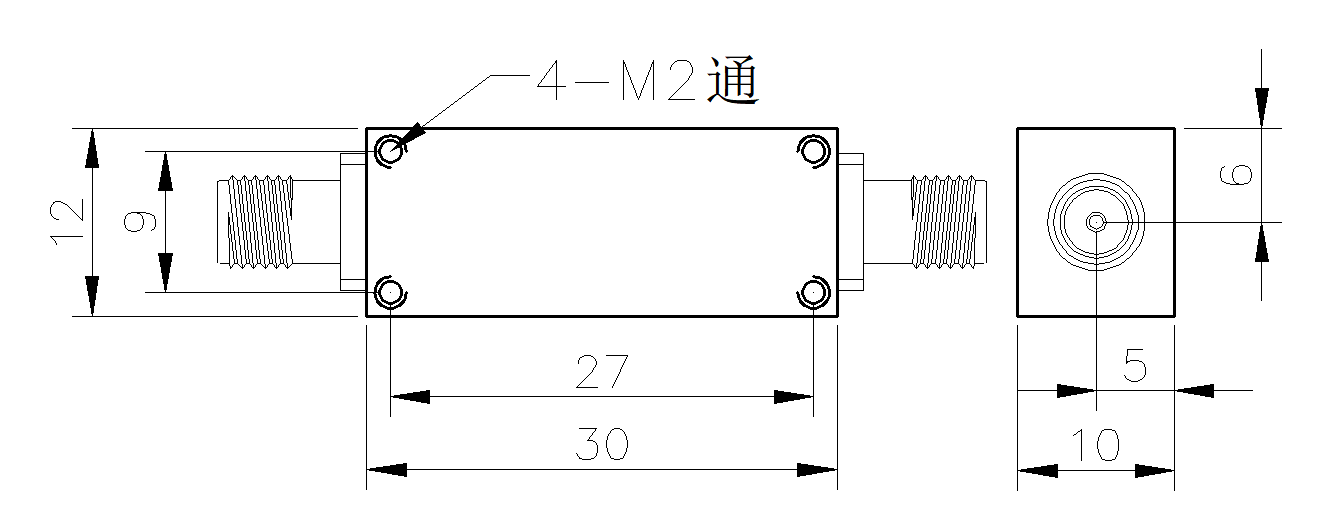

ZBSF6-L75-0-2805 Notch filter

Notch filter ZBSF6-L75-0-2805

Stopband F75MHz, ≥20dB, PassbandDC~63MHz, 85~1200MHz, SMA
View Details →

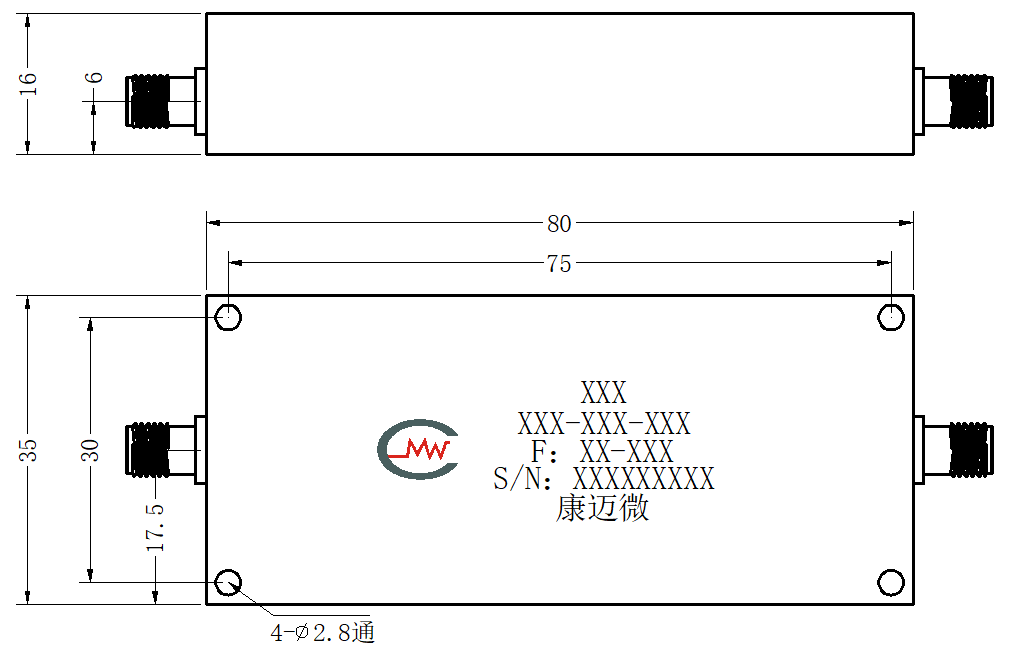

ZBSF4-L87-108-1166 Filter

Filter ZBSF4-L87-108-1166

Stopband F87~108MHz, ≥40dB, PassbandDC~62MHz, 135~1000MHz, SMA
View Details →

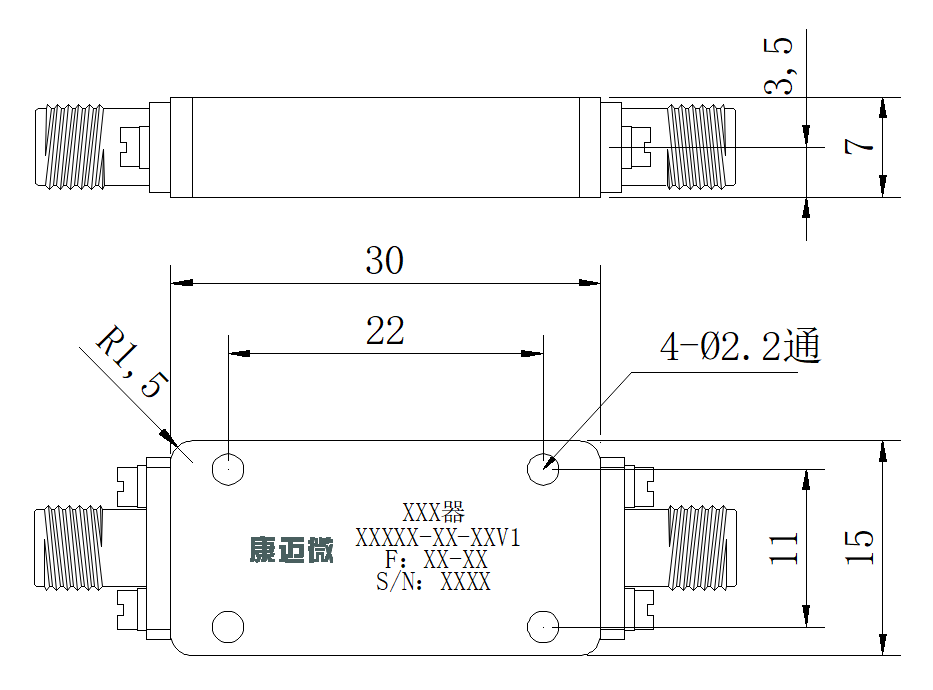

ZBSF3-L88-108-4257 Filter

Filter ZBSF3-L88-108-4257

Stopband F88~108MHz, ≥35dB, PassbandDC~50MHz, 150~6000MHz, SMA
View Details →
ZBSF3-L88-108-3640 Filter

Filter ZBSF3-L88-108-3640

Stopband F88~108MHz, ≥30dB, PassbandDC~78MHz, 118~1350MHz, Pin
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
