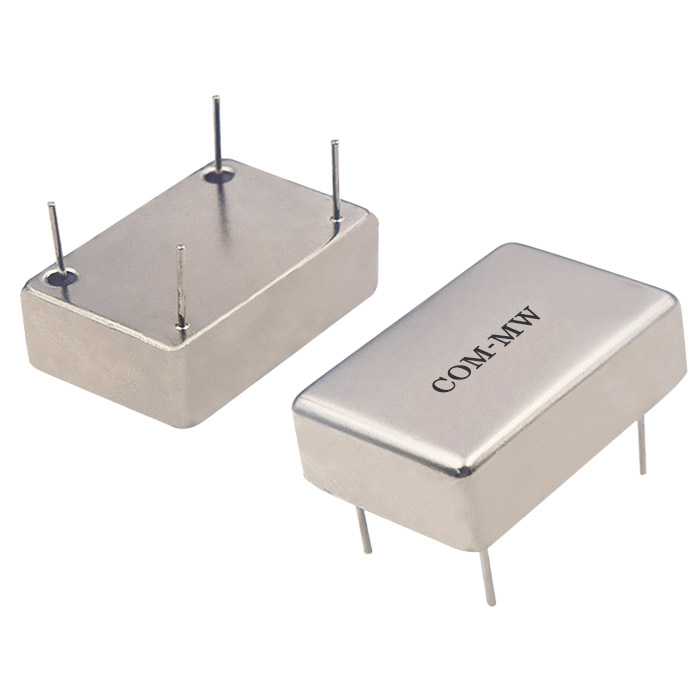

Center Frequency75.8MHz, -3dB BW80KHz, Pin
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
Narrow band, low loss
| Parameters | Frequency | / | Min | Typical | Max | Units |
|---|---|---|---|---|---|---|
| Center Frequency | / | / | 75.8 | MHz | ||
| -3dB BW | / | / | 80 | KHz | ||
| Passband IL | / | / | 5 | dB | ||
| Ripple | / | / | 1 | dB | ||
| Rejection | F0±125 | KHz≥ | 50 | dB | ||
| Rejection | F0±200 | KHz≥ | 70 | dB | ||
| Rejection | F0±1 | MHz≥ | 75 | dB |

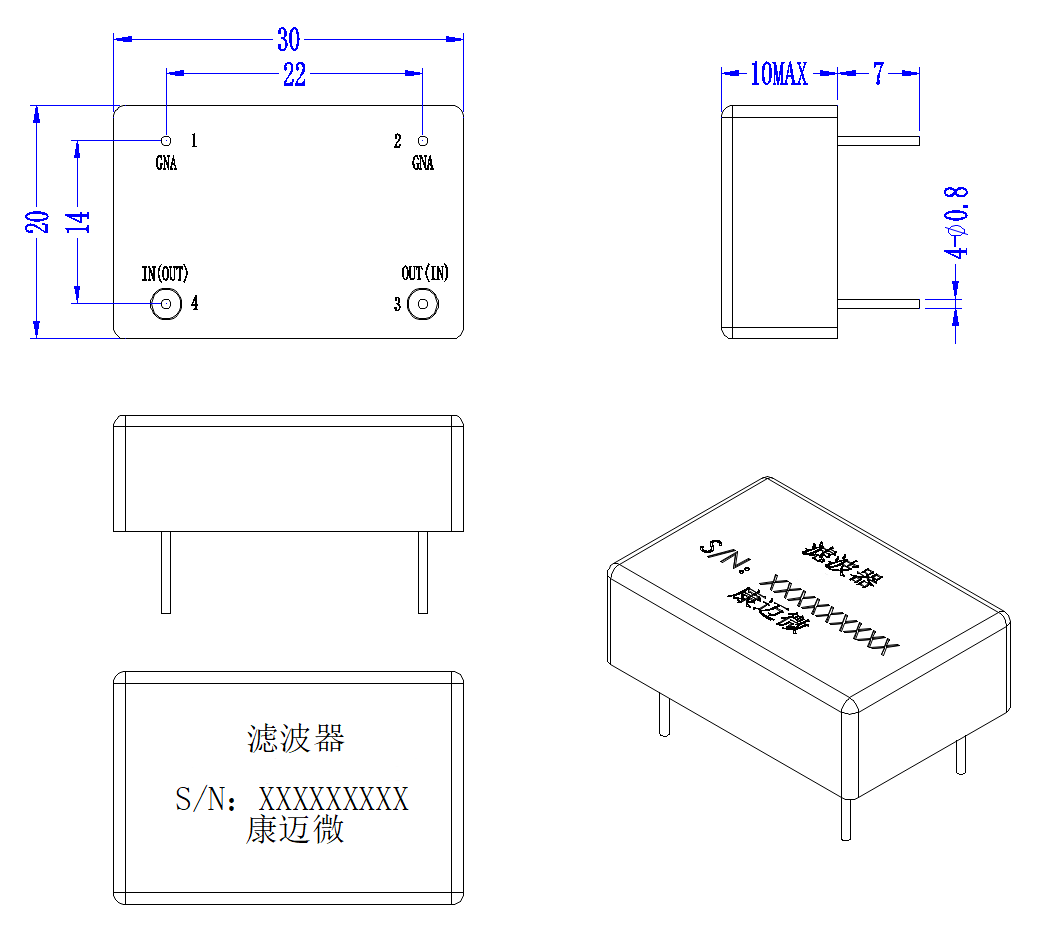

| Connector | Pin |
| Impedance | 50Ω |
| Power Capacity | 10dBm Design assurance |
| Delay ripple | ＜15us@80KHz BW |
| Operation Temp. | -55~+85℃ Design assurance |
| Storage Temp. | -55~+85℃ Design assurance |
| Quality Grade | Industrial grade |
| I/O Port | 3，4 |
| GND | 1，2 |

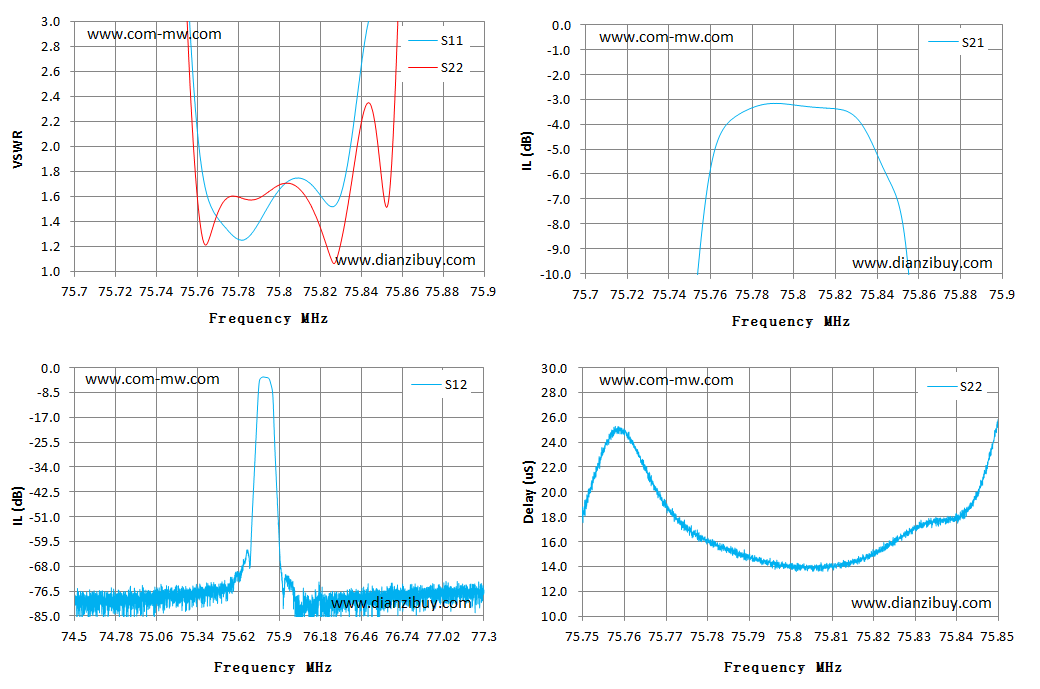

| Frequency MHz | S11 VSWR | IL dB | IL dB | S22 VSWR | Delay us |
|---|---|---|---|---|---|
| 75.60 | 19.94 | -72.71 | -72.87 | 22.29 | / |
| 75.70 | 16.34 | -76.28 | -74.15 | 20.67 | -79.10 |
| 75.75 | 5.09 | -13.68 | -13.67 | 5.34 | 18.20 |
| 75.76 | 2.09 | -5.76 | -5.75 | 1.55 | 24.54 |
| 75.77 | 1.42 | -3.81 | -3.80 | 1.48 | 18.75 |
| 75.78 | 1.25 | -3.33 | -3.32 | 1.59 | 16.14 |
| 75.79 | 1.39 | -3.15 | -3.15 | 1.59 | 14.68 |
| 75.80 | 1.65 | -3.22 | -3.21 | 1.69 | 13.98 |
| 75.81 | 1.74 | -3.31 | -3.31 | 1.65 | 13.89 |
| 75.82 | 1.61 | -3.37 | -3.37 | 1.35 | 15.16 |
| 75.83 | 1.62 | -3.74 | -3.73 | 1.23 | 16.92 |
| 75.84 | 2.65 | -5.23 | -5.21 | 2.19 | 17.98 |
| 75.85 | 3.17 | -7.14 | -7.13 | 1.73 | 24.84 |
| 75.90 | 20.89 | -59.07 | -59.46 | 14.80 | -11.53 |
| 76.00 | 22.37 | -77.34 | -83.71 | 18.14 | / |
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
| 2 | If the temperature is higher than 125℃, consult with us before ordering. |
