Filters
Filters 1
Feature
Bandpass 17
F Low MHz
69 8 69.5 4 69.6 2 69.8 2 69.9 1
–
Center frequency MHz
70 14 80 2 90 1
–
F High MHz
70.1 - 70.2 3 70.4 - 70.5 6 71 - 91 7 111 1
–
IL on center frequency dB
1 - 2 5 3 - 4 7 6 - 14 2 17 - 18 3
–
Maximum loss of side frequency dB
1.6 - 3 5 4 - 5 5 5.5 - 15 4 18 - 21 3
–
Rejection dB
40 - 45 7 50 - 55 6 60 - 75 4
–
Connector
SMD 7 SMA 6 Microstrip needle 4
Power Handling
0.01 1 0.1 5 1 8 2 2 5 1
–
Filter type
LC 11 SAW 6
F Low：69 - 69.9 MHz× Clear all
matches 17 models Default Newest
ZBF15-L90-42-546 Filter

Filter ZBF15-L90-42-546

Passband69~111MHz, DC-45MHz≥65dBc, dB, SMD
In Stock View Details →
ZBF9-S70-0.2-2142 Filter

Filter ZBF9-S70-0.2-2142

Center Frequency70MHz, -1dB BW0.24MHz, -40dB BW1.54MHz, SMD
In Stock View Details →
ZBF9-S70-1.5-1101A Filter

Filter ZBF9-S70-1.5-1101A

Passband69.6~70.4MHz, 40dB BW4.5MHz, Drop-in
In Stock View Details →
ZBF9-S70-0.6-1100 Filter

Filter ZBF9-S70-0.6-1100

Passband69.8~70.2MHz, -40dB BW1.8MHz, Pin
In Stock View Details →
ZBF9-S70-1.6-2143 Filter

Filter ZBF9-S70-1.6-2143

Center Frequency70MHz, -1dB BW1.7MHz, -40dB BW6.9MHz, SMD
In Stock View Details →
ZBF2-L70-1-1007 Filter

Filter ZBF2-L70-1-1007

Passband69.5~70.5, DC-64MHz≥40dB, 76-500MHz≥40dB, SMA
In Stock View Details →
ZBF3-L80-22-4317 Filter

Filter ZBF3-L80-22-4317

Passband69~91MHz, DC-45MHz≥50dB, 140-180MHz≥50dB, SMD
In Stock View Details →

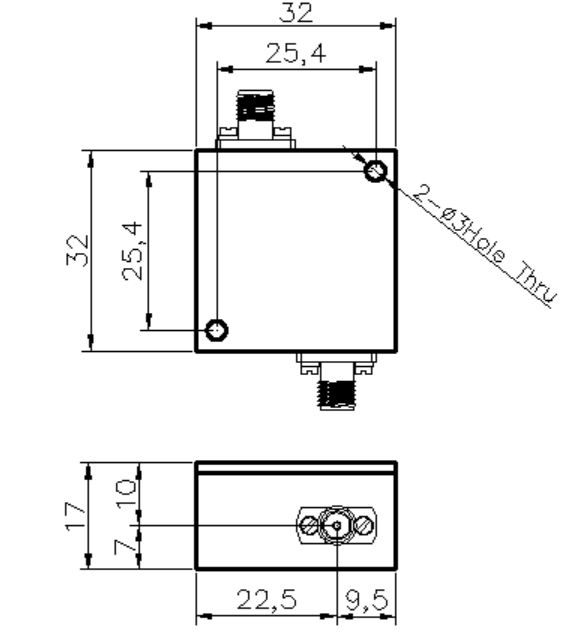

ZBF6-L70-2-855 Band pass filter

Band pass filter ZBF6-L70-2-855

Passband69~71MHz, 50-60MHz≥15dB, 80-95MHz≥15dB, SMA
View Details →
ZBF3-L80-22-4303 Filter

Filter ZBF3-L80-22-4303

Passband69~91MHz, DC-45MHz≥50dB, 140-180MHz≥50dB, SMD
View Details →
ZBF20-L70-2-276 Filter

Filter ZBF20-L70-2-276

Passband69~71MHz, DC-60MHz≥50dB, 80-200MHz≥50dB, SMD
View Details →
ZBF20-L70-1-272 Filter

Filter ZBF20-L70-1-272

Passband69.5~70.5MHz, DC-60MHz≥50dB, 80-200MHz≥50dB, SMD
View Details →
ZBF20-L70-0.8-020 Filter

Filter ZBF20-L70-0.8-020

Passband69.6~70.4MHz, -40dB BW4.5MHz, Rejection40dB, SMA
View Details →
ZBF20-L70-0.4-019 Filter

Filter ZBF20-L70-0.4-019

Passband69.8~70.2MHz, -40dB BW1.8MHz, Rejection55dB, SMA
View Details →
ZBF2-M70-1-1880 Filter

Filter ZBF2-M70-1-1880

Passband69.5~70.5MHz, f0±1.5MHz≥40dB, dB, SMA
View Details →
ZBF15-L70-2-997 Filter

Filter ZBF15-L70-2-997

Passband69~71MHz, DC-39MHz≥60dB, 101-2000MHz≥60dB, Pin
View Details →
ZBF15-L70-1-1824 Filter

Filter ZBF15-L70-1-1824

Passband69.5~70.5MHz, DC-45MHz≥75dB, 65.5MHz≥20dB, 75.5MHz≥20dB, 90-15MHz≥75dB, SMA
View Details →
ZBF13-L70-2-2722 Filter

Filter ZBF13-L70-2-2722

Passband69~71MHz, DC-55MHz≥60dBc, 55-60MHz≥50dBc, Pin
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
