Center Frequency70MHz, -1dB BW1.7MHz, -40dB BW6.9MHz, SMD
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.

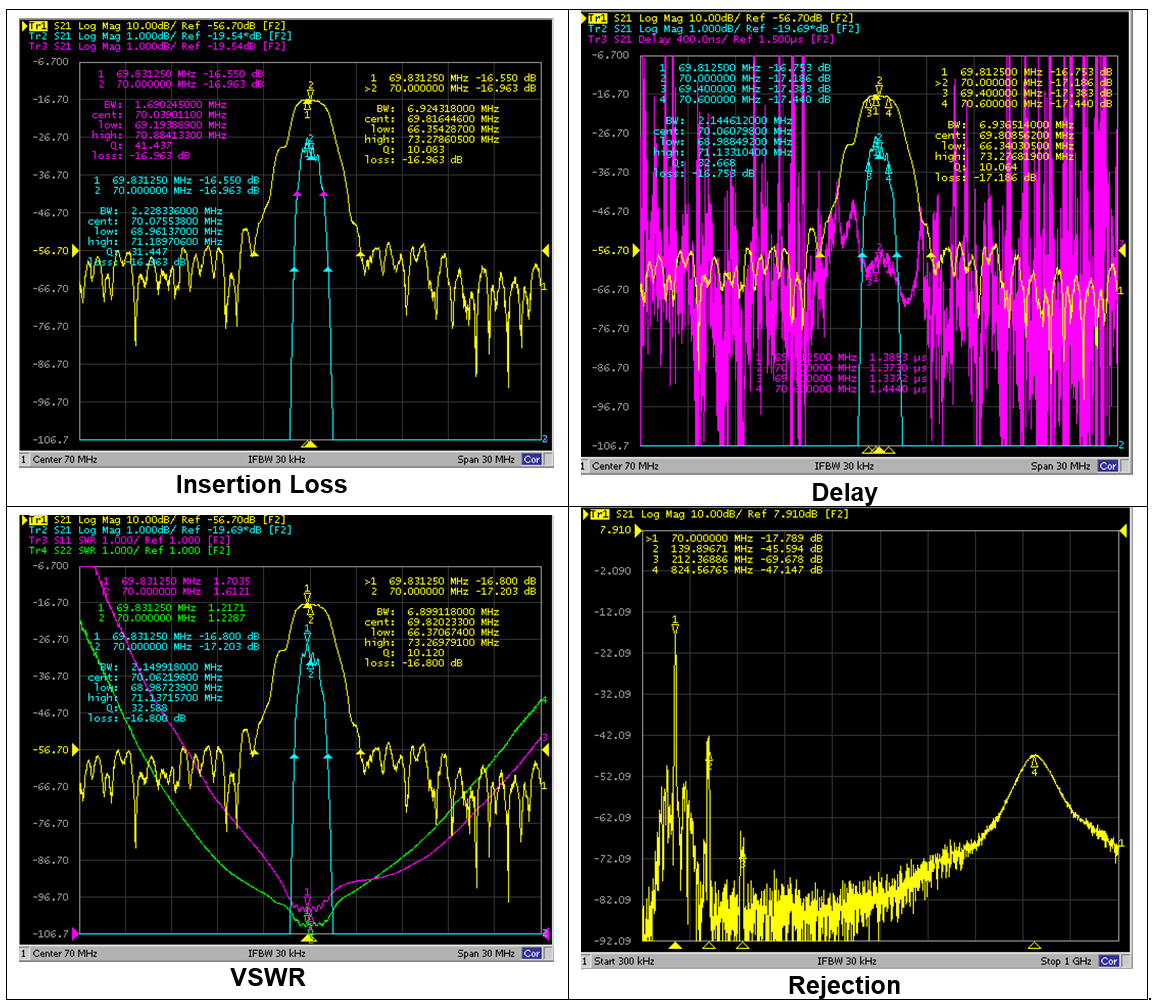

| Parameters | Frequency | / | Min | Typical | Max | Units |
|---|---|---|---|---|---|---|
| Center Frequency | / | / | 70 | MHz | ||
| Passband IL | / | / | 17 | 19 | dB | |
| Ripple | / | / | 0.5 | 1 | dB | |
| -1dBBW | 1.6 | 1.7 | MHz | |||
| -3dBBW | 2 | 2.2 | MHz | |||
| -40dBBW | 6.9 | 8.5 | MHz | |||
| Rejection | 40 | dB |
| Connector | SMD |
| Impedance | 50Ω |
| Power | 10dBm |
| Work Temp. | -40~+85℃ Design assurance |
| Quality Grade | Industrial grade |

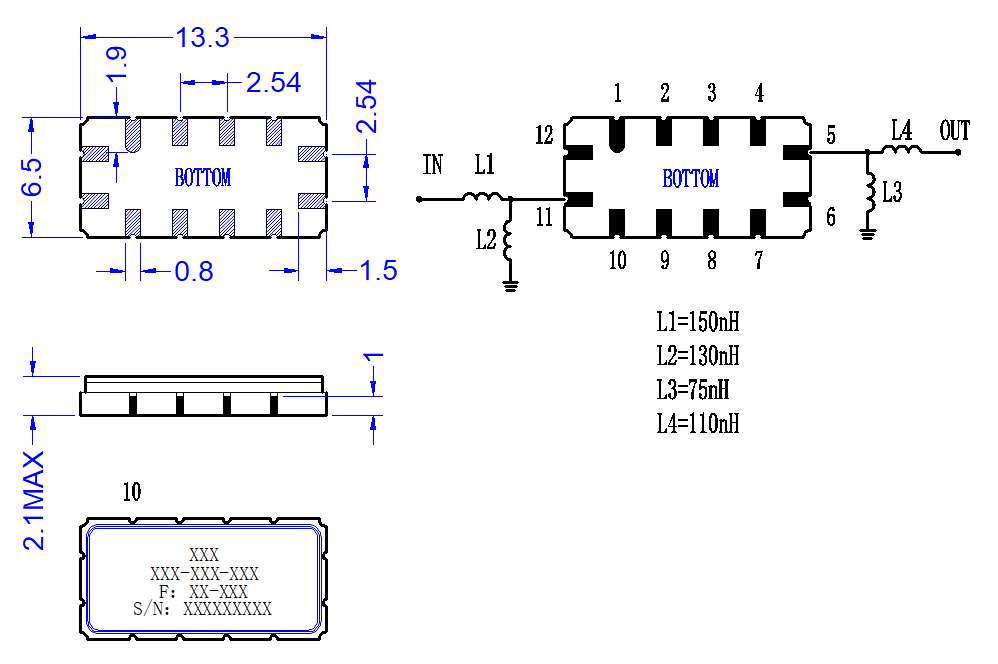

| I/O Port | 5，11 |
| GND | 1，2，3，4，6，7，8，9，10，12 |
| 2 | The product supports 220 ℃ reflow soldering. |
