F High：71.2 - 79.5 MHz× Clear all
matches 84 models Default Newest
ZBF9-S70-16-2147 Filter

Filter ZBF9-S70-16-2147

Center Frequency70MHz, -1dB BW15.3MHz, -40dB BW19.5MHz, SMD
In Stock View Details →
ZBF9-S70-4.4-2145 Filter

Filter ZBF9-S70-4.4-2145

Center Frequency70MHz, -3dB BW4.3MHz, -40dB BW6.85MHz, SMD
In Stock View Details →
BF077 Filter

Filter BF077

Passband68~72MHz, DC-53MHz≥40dB, 87-1000MHz≥40dB, SMD
In Stock View Details →
BF036 Filter

Filter BF036

Passband61.9~76.5MHz, DC-55MHz≥20dB, 87-3200MHz≥20dB, SMD, Replace SXBP-69+
In Stock View Details →
BF039 Filter

Filter BF039

Passband68~76MHz, DC-60MHz≥30dB, 90-3000MHz≥20dB, SMD, Replace SXBP-72+
In Stock View Details →
ZBF9-S70-6.8-2154 Filter

Filter ZBF9-S70-6.8-2154

Center Frequency70MHz, -3dB BW6.8MHz, -40dB BW10.8MHz
In Stock View Details →
ZBF9-S70-3.52-1102 Filter

Filter ZBF9-S70-3.52-1102

Passband68.5~71.5MHz, 40dB BW4.88MHz, Pin
In Stock View Details →
ZBF9-S70-18.66-1105 Filter

Filter ZBF9-S70-18.66-1105

Passband61.4~78.6MHz, -40dB BW23.1MHz, Pin
In Stock View Details →
BF078 Filter

Filter BF078

Passband65~75MHz, DC-52MHz≥40dB, 88-1000MHz≥40dB, SMD
In Stock View Details →
ZBF9-S70-2.4-2144 Filter

Filter ZBF9-S70-2.4-2144

Center Frequency70MHz, -1dB BW2.4MHz, -40dB BW6.8MHz, SMD
In Stock View Details →
ZBF9-S70-4.64-1103 Filter

Filter ZBF9-S70-4.64-1103

Passband67.8~72.2MHz, -40dB BW5.5MHz, Pin
In Stock View Details →
ZBF14-L70-10-710 Filter

Filter ZBF14-L70-10-710

Passband65~75MHz, DC-58MHz≥40dB, 82-700MHz≥40dB, SMA-K
In Stock View Details →
ZBF9-S70-9.2-2146 Filter

Filter ZBF9-S70-9.2-2146

Center Frequency70MHz, -1dB BW8.55MHz, -40dB BW10.9MHz, SMD
In Stock View Details →
ZBF2-L70-6-1008 Filter

Filter ZBF2-L70-6-1008

Passband67~73MHz, DC-62MHz≥40dB, 79-500MHz≥40dB, SMA
In Stock View Details →
ZBF14-L70-16-711 Filter

Filter ZBF14-L70-16-711

Passband62~78MHz, DC-55MHz≥40dB, 85-700MHz≥40dB, SMA-K
In Stock View Details →
ZBF9-Q75-0-3233 Filter

Filter ZBF9-Q75-0-3233

Center Frequency75MHz, -3dB BW12.5KHz, -60dB BW≤25KHz, Pin
In Stock View Details →
ZBF8-Q75.8-0.08-3653 Filter

Filter ZBF8-Q75.8-0.08-3653

Center Frequency75.8MHz, -3dB BW80KHz, Pin
In Stock View Details →
ZBF-L70-4-C5041 Filter

Filter ZBF-L70-4-C5041

Passband68~72MHz, DC-60MHz≥40dB, 80-300MHz≥40dB, SMA
In Stock View Details →
BF037 Filter

Filter BF037

Passband63~77MHz, 50MHz≥20dB, 95MHz≥20dB, SMD, Replace SXBP-70+
In Stock View Details →
ZBF20-L70-5-329 Filter

Filter ZBF20-L70-5-329

Passband67.5~72.5MHz, DC-62.5MHz≥40dB, 78-500MHz≥40dB, SMA
In Stock View Details →

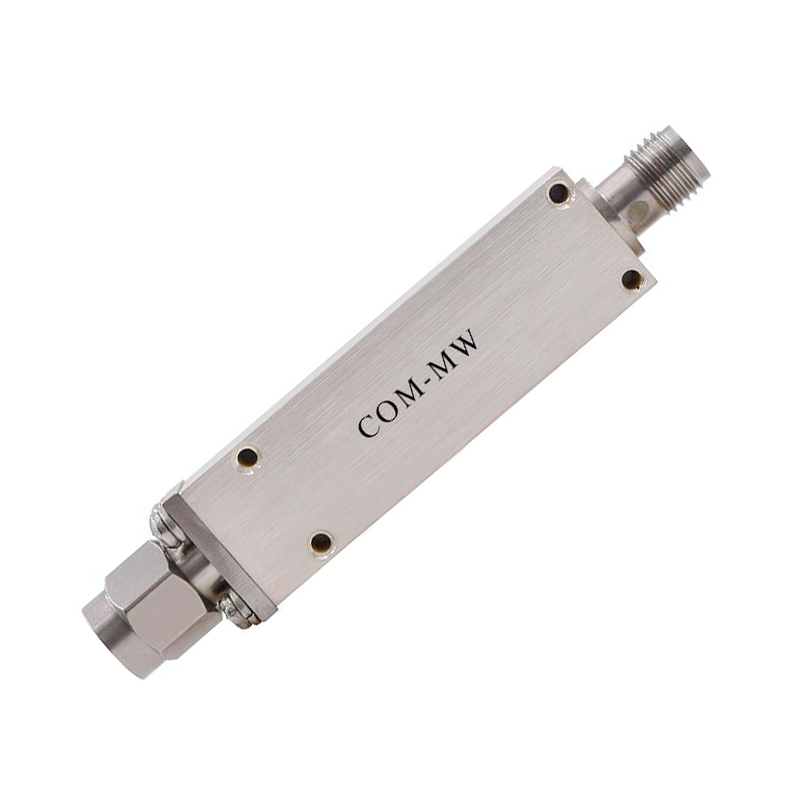

ZBF-L70-4-C4853 Filter

Filter ZBF-L70-4-C4853

Passband68~72MHz, DC-60MHz≥40dB, 80-500MHz≥40dB, SMA
In Stock View Details →
ZLPF5-L51-76-784 Filter

Filter ZLPF5-L51-76-784

PassbandDC~76MHz, 102-228MHz≥55dB, SMA
View Details →
ZLPF3-L72.12-72.88-3095 Filter

Filter ZLPF3-L72.12-72.88-3095

Passband72.12~72.88MHz, 144.24-500MHz≥70dB, dB, SMA
View Details →
ZLPF3-L71.12-72.88-3103 Filter

Filter ZLPF3-L71.12-72.88-3103

Passband72.12~72.88MHz, 144.24-500MHz≥70dBc, MHz≥dBc, N
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
