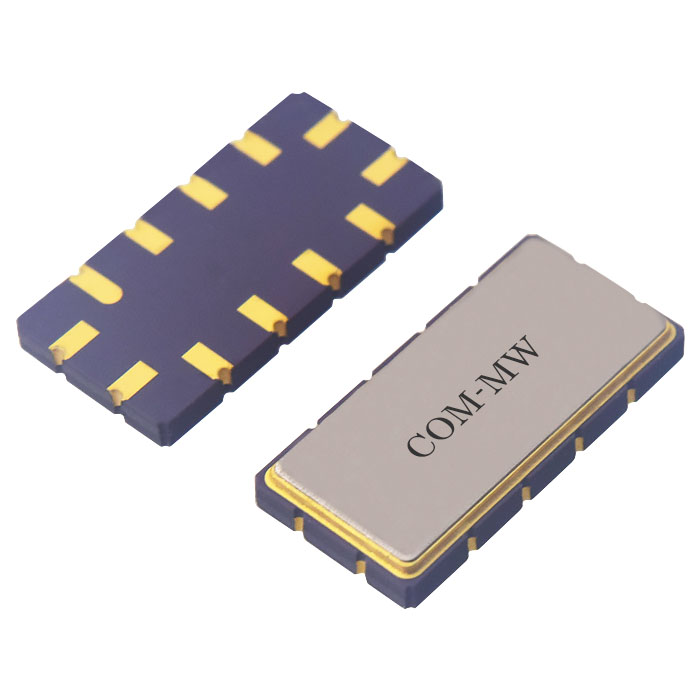

Center Frequency70MHz, -3dB BW6.8MHz, -40dB BW10.8MHz
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Frequency | / | Min | Typical | Max | Units |
|---|---|---|---|---|---|---|
| Center Frequency | / | / | 69.85 | 70 | 70.15 | MHz |
| Center loss | / | / | 8.53 | 9.8 | dB | |
| Ripple | / | / | 1 | 1.3 | dB | |
| Rejection | 38 | 42 | dB | |||
| 1dB BW | 6 | 6.25 | MHz | |||
| -3dB BW | 6.35 | 6.8 | MHz | |||
| -40dB BW | 9.95 | 10.8 | MHz | |||
| Group delay ripple | 100 | 150 | nsec | |||
| Group delay | 940 | nsec | ||||
| VSWR | / | / | 1.2 |
| Connector | SMD |
| Power | 10dBm Design assurance |
| Substrate Material | YZ-LiNbO3 |
| Work Temp. | -40~+80℃ Design assurance |
| Quality Grade | Industrial grade |

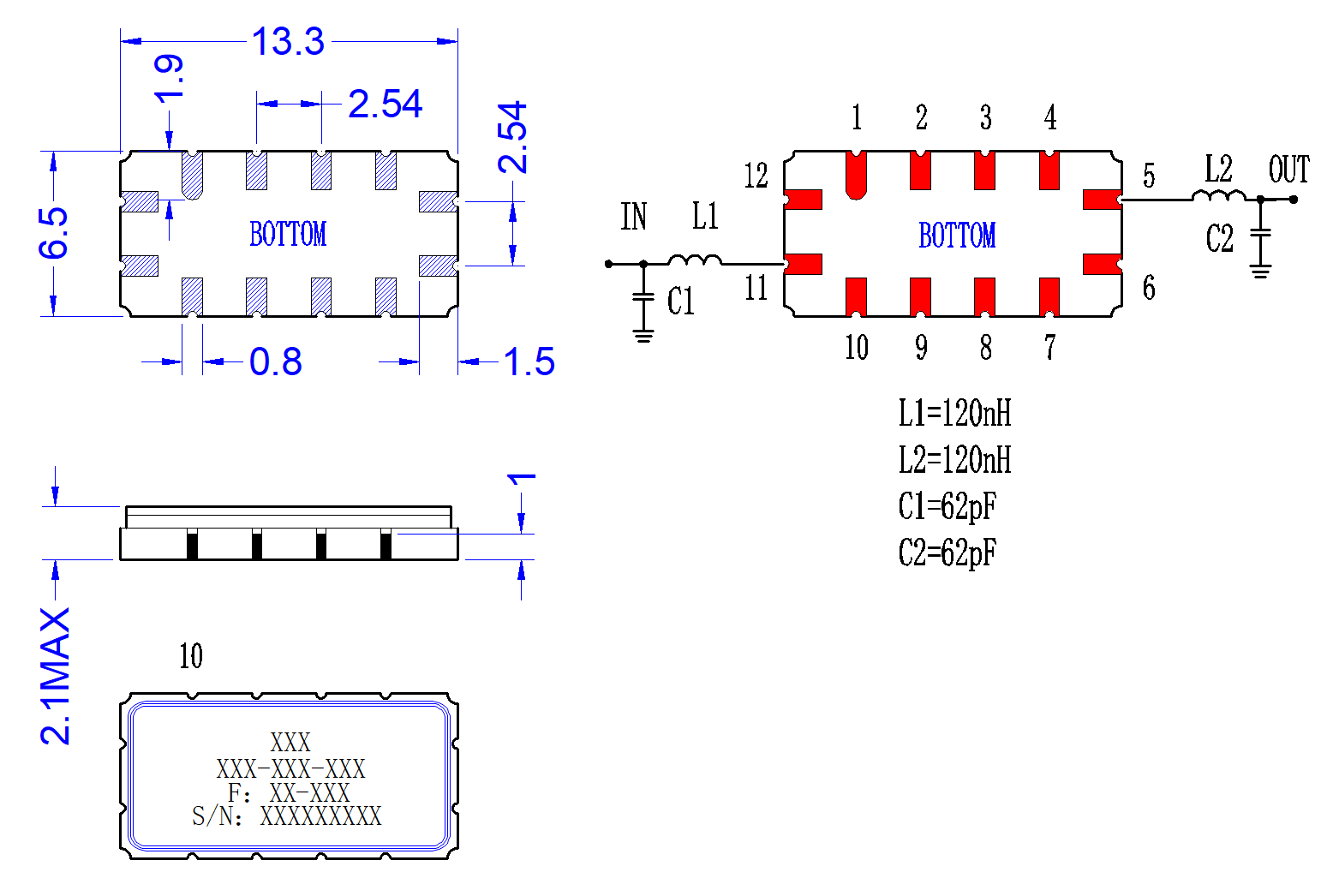

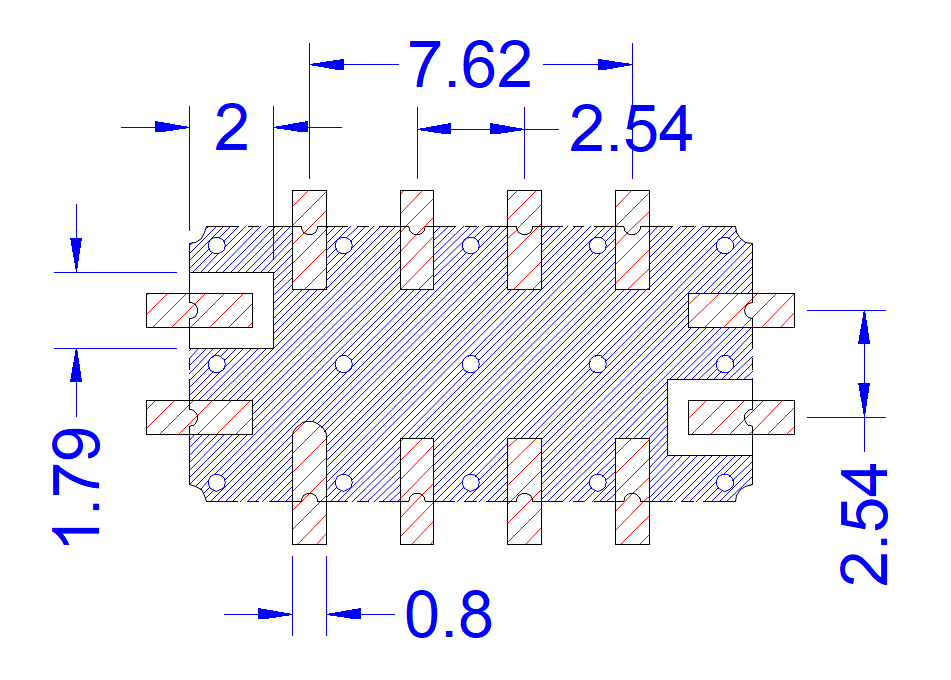

| I/O Port | 5，11 |
| GND | 1，2，3，4，6，7，8，9，10，12 |

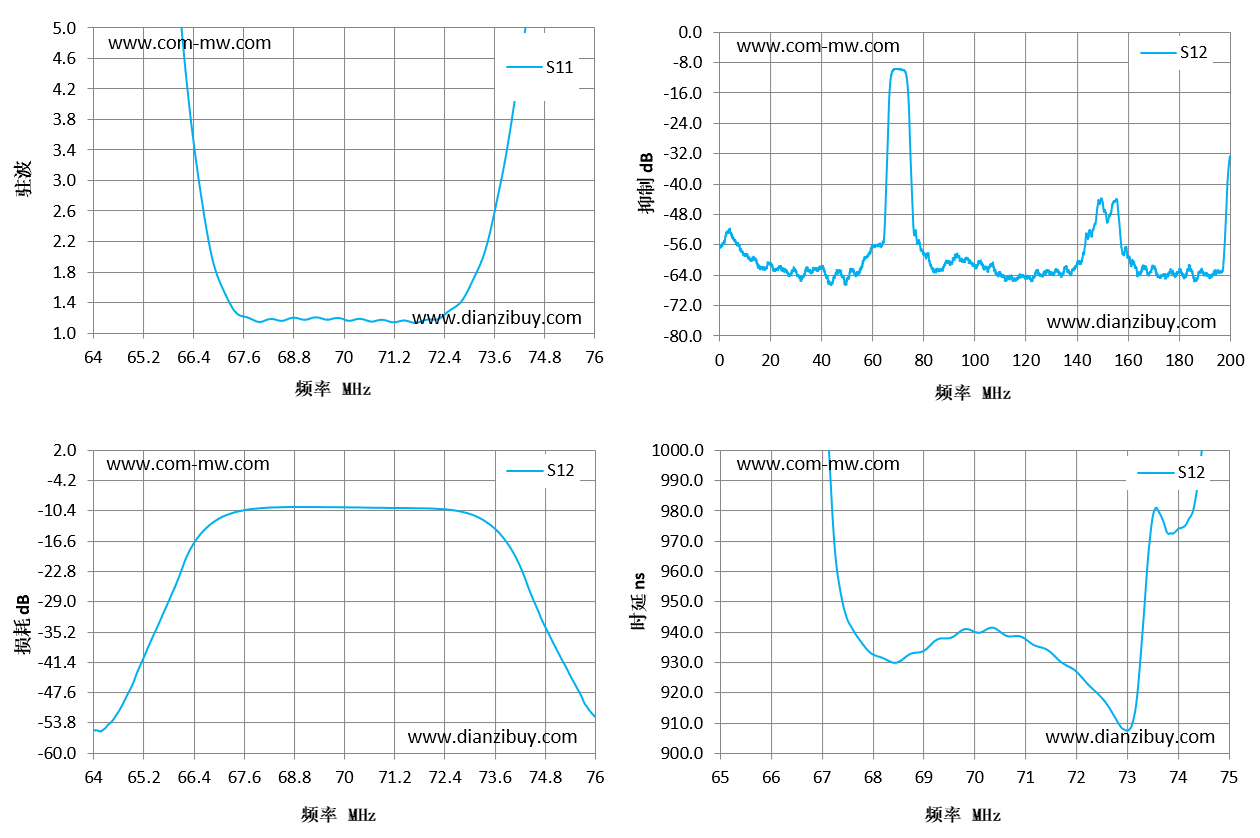

| Frequency(MHz) | S11 VSWR | S12 IL dB | S12 Rej. | S12 Delay nS |
|---|---|---|---|---|
| 64 | 15.13 | -55.19 | -55.19 | 1109.92 |
| 65 | 11.87 | -45.03 | -45.03 | 1108.61 |
| 66 | 5.84 | -25.36 | -25.36 | 1099.94 |
| 67 | 1.75 | -12.09 | -12.09 | 1056.51 |
| 67 | 1.75 | -12.09 | -12.09 | 1056.51 |
| 68 | 1.14 | -9.84 | -9.84 | 932.89 |
| 69 | 1.18 | -9.58 | -9.58 | 933.54 |
| 70 | 1.18 | -9.64 | -9.64 | 940.24 |
| 71 | 1.17 | -9.76 | -9.76 | 937.95 |
| 72 | 1.17 | -9.86 | -9.86 | 927.35 |
| 73 | 1.56 | -10.93 | -10.93 | 907.56 |
| 73 | 1.56 | -10.93 | -10.93 | 907.56 |
| 74 | 3.62 | -17.97 | -17.97 | 973.49 |
| 75 | 7.21 | -37 | -37 | 1059.34 |
| 76 | 9.39 | -52.3 | -52.3 | 1117.04 |
| 1 | The product supports 220 ℃ reflow soldering |
