Signal Amplification

Total 81 models
Categories
Categories Signal Amplification
RF Filter16049
RF Filter15377 Diplexer468 Combiner52 Filter bank148 Active Filter4
Power Distribution1709
Divider&Hybrid1047 Coupler559 Balun103
Antenna1230
Antenna1174 Antenna accessories7 Tripod35 Antenna Box14
Signal Amplification605
RF Amplifier605
Connector1428
RF Connector13 RF Coaxial Adapter184 Bias Tee37 Coaxial Cable774 DC Block11 Waveguide adapter193 Waveguide Connection214 Lightning arrester1 Impedance transformer1
Controller642
Limiter77 RF Switch359 Equalizer45 Switching filter63 Mixer26 Detector34 Digital attenuator1 Phase shifter13 Delayer24
Other devices1491
Load228 Attenuator886 Isolator228 Circulator139 Frequency multiplier10
Module and test system48
RF Switch Matrix20 Mobile RF Test Matrix1 RF Module18 Frequency source9
Accessories40
Chip Capacitor18 glass insulator15
Filters
Filters 1
F Low MHz
0.05 - 100 7 200 - 6000 15 8000 - 20000 43 22000 - 27000 13 29000 - 32000 3
–
F High MHz
27 - 22000 5 24000 - 26500 13 27000 - 31000 8 31500 - 38000 5 40000 - 50000 50
–
Category
Other 1 LNA 57 LLNA 2 PA 21
Max gain dB
13 - 20 8 21 - 30 32 33 - 42 24 44 - 50 14 51 - 55 3
–
Noise figure dB
1.8 - 2.5 9 3 - 3.6 16 4 - 4.5 17 4.6 - 5.5 16 6 - 8 5
–
Connector
Other 8 SMA 352 N 124 2.92 81 2.4 20 Waveguide 10 3.5 1 SSMA 1
Output power dBm
0 - 11 36 13 - 17 18 18 - 28 12 29 - 35 14 39 1
–
Voltage V
6 - 10 3 12 - 15 48 18 - 24 8 28 - 220 21
–
Connector：2.92× Clear all
matches 81 models Default Newest
DLNA8-18-40G-4063 LNA

LNA DLNA8-18-40G-4063

18000~40000MHz, Gain50dB, Noise figure3.5dB, P-1dB10dBm, 2.92
In Stock View Details →
DLNA8-18-32G-3529 LNA

LNA DLNA8-18-32G-3529

18~32GHz, Gain30dB, Noise figure3dB, P-1dB10dBm, 2.92-K
In Stock View Details →
DLNA8-1-4000000M-9189 LNA

LNA DLNA8-1-4000000M-9189

50kHz~40GHz, Gain30dB, Noise figure6dB, P-1dB20dBm, 2.92
In Stock View Details →
DLNA8-0.1-40G-3837 LNA

LNA DLNA8-0.1-40G-3837

0.1~40GHz, Gain36dB, Noise figure5dB, P-1dB20dBm, 2.92-F
In Stock View Details →
DLNA8-0.05-31G-3926 LNA

LNA DLNA8-0.05-31G-3926

0.05~31GHz, Gain30dB, P-1dB15dBm, 2.92-K
In Stock View Details →
DLNA8-0.01-43G-9195 LNA

LNA DLNA8-0.01-43G-9195

0.01~43GHz, Gain45dB, Noise figure6dB, P-1dB18dBm, 2.92
In Stock View Details →
DLNA7-18-40G-758 LNA

LNA DLNA7-18-40G-758

18~40GHz, Gain50dB, Noise figure4dB, P-1dB10dBm, 2.92
In Stock View Details →
DPA8-4-26.5G-3793 Power amplifier

Power amplifier DPA8-4-26.5G-3793

4~26.5GHz, Gain30dB, Psat30dBm, 2.92
View Details →
DPA8-29.5-31.5G-9507 Power amplifier

Power amplifier DPA8-29.5-31.5G-9507

29.5~31.5GHz, Gain26dB, 2.92
View Details →
DPA8-27-31G-3493 Power amplifier

Power amplifier DPA8-27-31G-3493

27~31GHz, Gain30dB, Psat31dBm, 2.92
View Details →
DPA8-24-34-3142 Power amplifier

Power amplifier DPA8-24-34-3142

24~34GHz, Gain14dB, P-1dB24dBm, Psat29dBm, 2.92
View Details →
DPA8-19-21G-3492 Power amplifier

Power amplifier DPA8-19-21G-3492

19~21GHz, Gain30dB, Psat31dBm, 2.92
View Details →

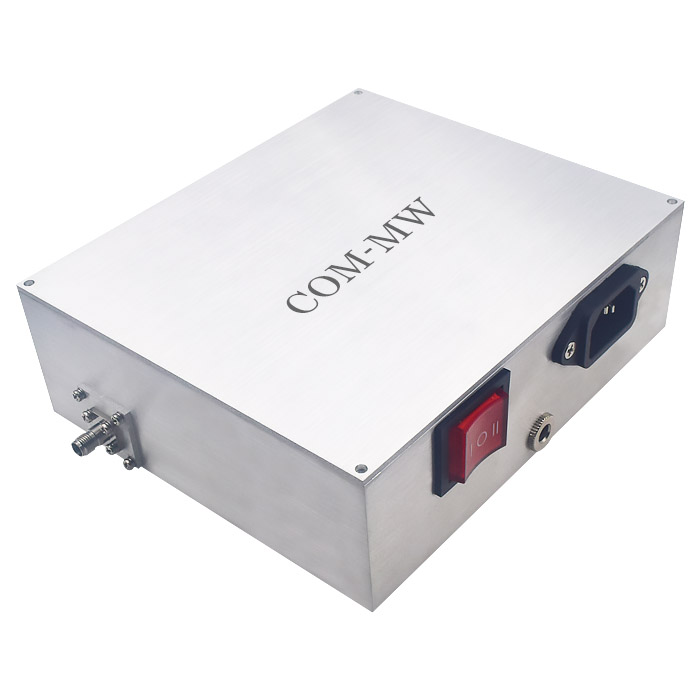

DPA8-18000-40000-1757 Power amplifier

Power amplifier DPA8-18000-40000-1757

18~40GHz, Gain30dB, Psat30dBm, 2.92, Support 220V AC power supply
View Details →
DPA8-18000-40000-1013 Power amplifier

Power amplifier DPA8-18000-40000-1013

18~40GHz, Gain55dB, Noise figure4.6dB, P-1dB15dBm, 2.92
View Details →
DPA8-18-43G-3087 Power amplifier

Power amplifier DPA8-18-43G-3087

18~43GHz, Gain35dB, Psat28dBm, 2.92
View Details →

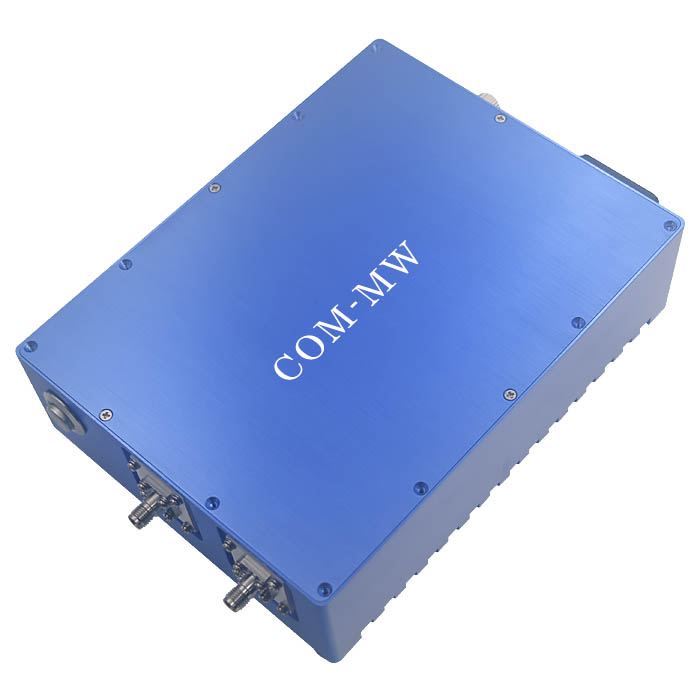

DPA8-18-40G-3695 Power amplifier

Power amplifier DPA8-18-40G-3695

Frequency18~40GHz, Gain30dB, P-1dB output power27dBm, 2.92
View Details →

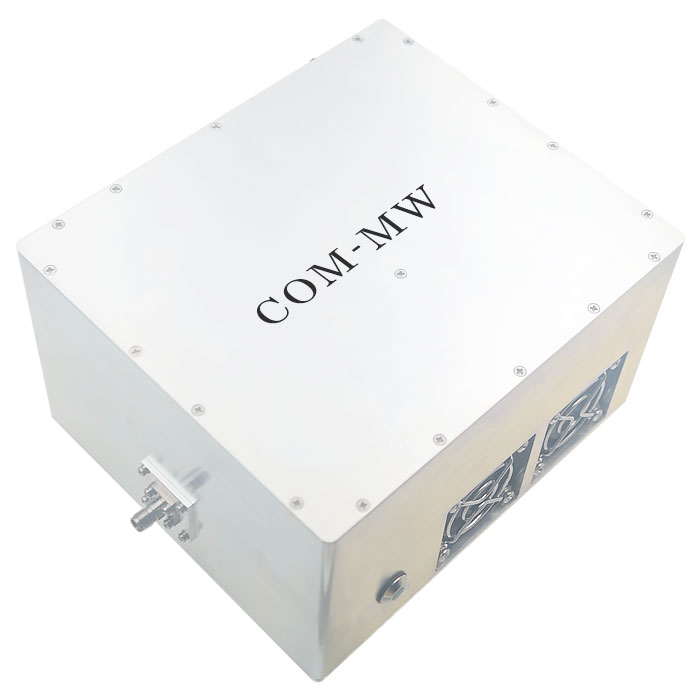

DPA8-18-40G-3624 Power amplifier

Power amplifier DPA8-18-40G-3624

Frequency18~40GHz, Gain30dB, Psat28dB
View Details →
DPA8-18-40G-2853 Power amplifier

Power amplifier DPA8-18-40G-2853

18~40GHz, Gain25dB, Psat33dBm, 2.92
View Details →
DPA8-18-40-3143 Power amplifier

Power amplifier DPA8-18-40-3143

18~40GHz, Gain18dB, P-1dB29dBm, 2.92
View Details →

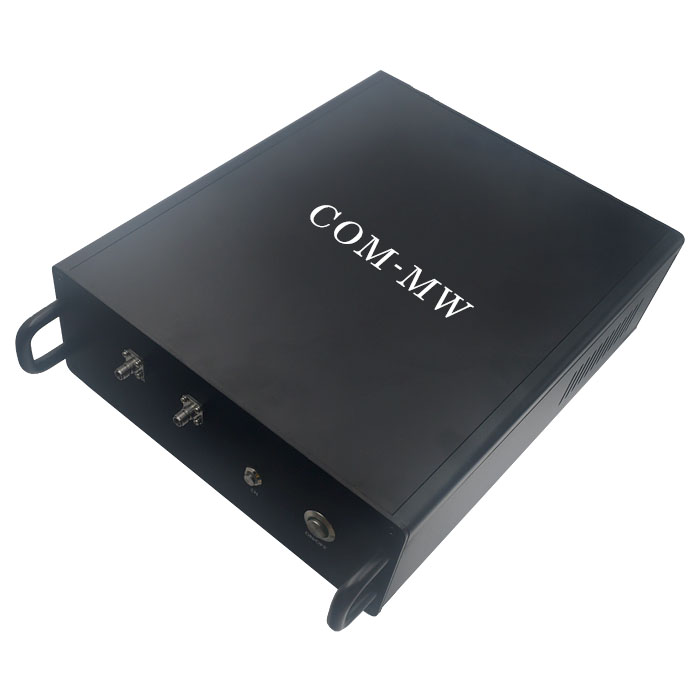

DPA8-18-38G-9567 Power amplifier

Power amplifier DPA8-18-38G-9567

Frequency18~38GHz, Gain30, Pout（SAT）35dBm, Adapter power supply
View Details →

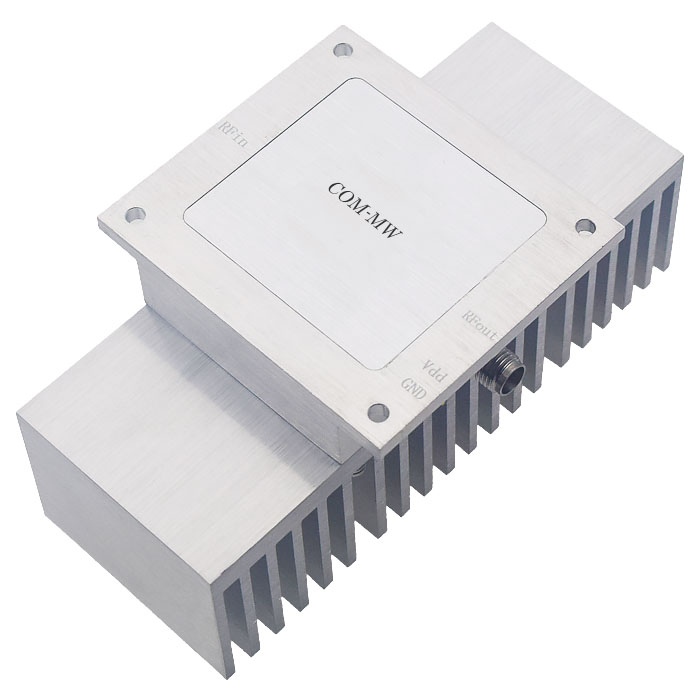

DPA8-18-26.5-3243 Power amplifier

Power amplifier DPA8-18-26.5-3243

18~26.5GHz, Gain35dB, Psat39dBm, 2.92
View Details →
DLNA8-8000-28000-3648 LNA

LNA DLNA8-8000-28000-3648

8000~28000MHz, Gain30dB, Noise figure2dB, P-1dB10dBm, 2.92
View Details →
DLNA8-6-40G-3787 LNA

LNA DLNA8-6-40G-3787

6~40GHz, Gain25dB, Noise figure6dB, P-1dB18dBm, 2.92
View Details →
DLNA8-4-26.5G-3795 LNA

LNA DLNA8-4-26.5G-3795

4~26.5GHz, Gain30dB, Noise figure4dB, P-1dB10dBm, 2.92
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
