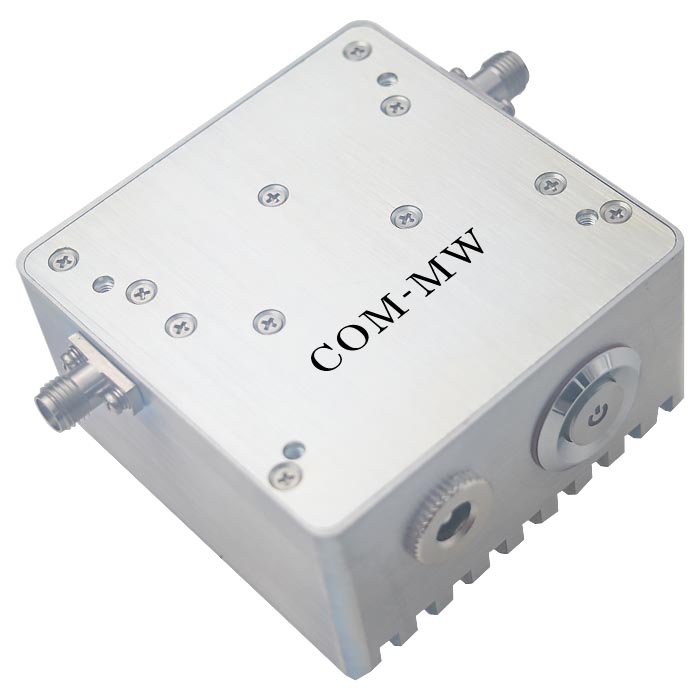

26.5~40GHz, Gain55dB, Noise figure3dB, P-1dB13dBm, 2.92
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
Broadband, low noise.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 26.5 | ~ | 40 | GHz |
| Gain | 55 | dB | ||
| Gain flatness | ±2 | dB | ||
| Noise figure | 3 | dB | ||
| VSWR | 2 | |||
| P-1dB | 13 | dBm | ||
| Max input power | 15 | dBm |
| Connector | 2.92-K |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Conductive oxidation |
| Working voltage | +12V |
| Working current | 160mA |
| Reverse isolation | 50dB |
| Operation Temp. | -40~+70℃ Design assurance |
| DC power | DC interface DC5.5mm (outer diameter) * 2.5mm (inner diameter), powered by 220V power adapter |

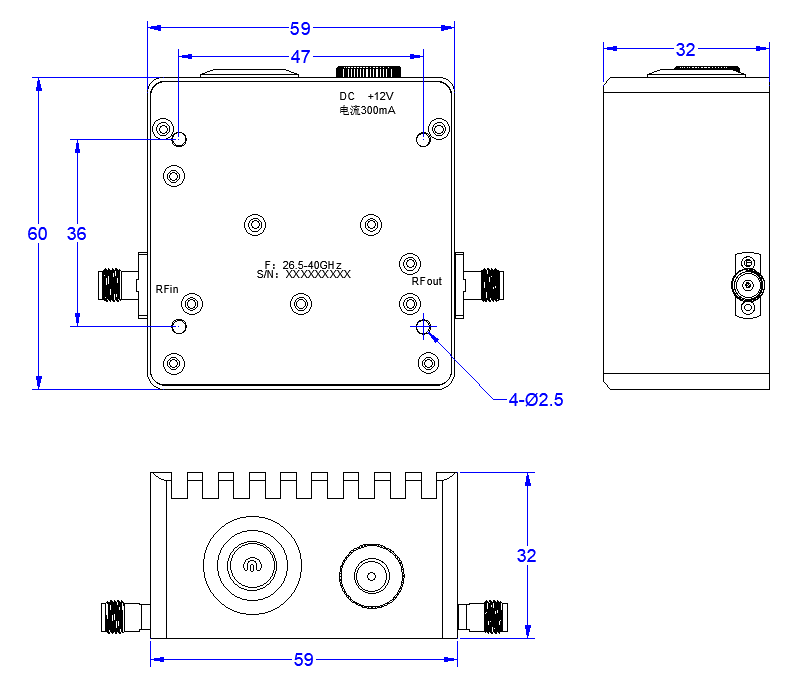

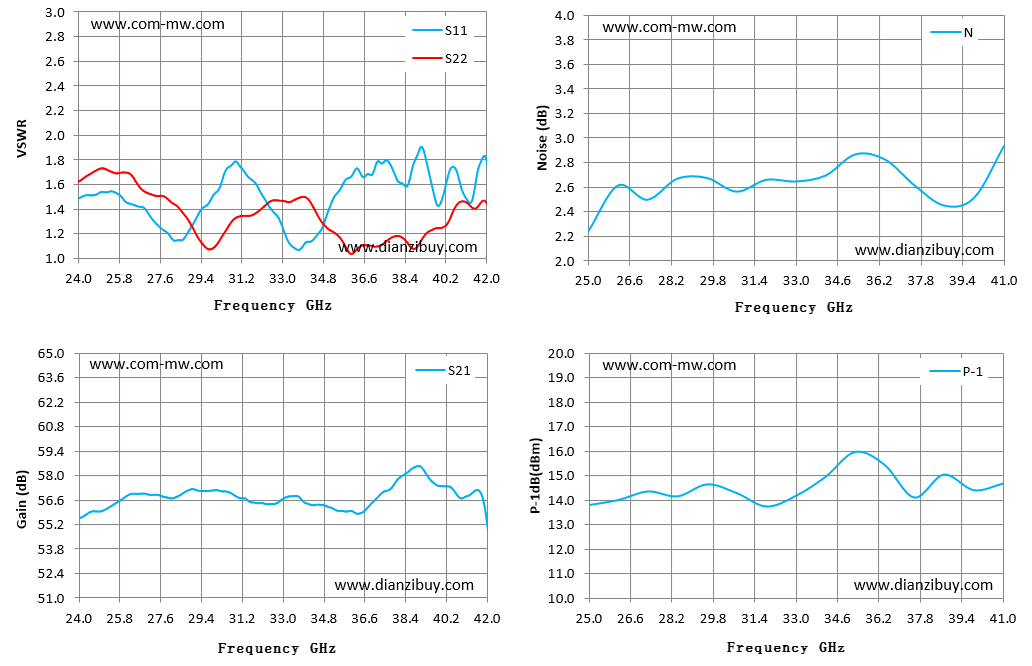

| Frequency GHz | S11 VSWR | S22 VSWR | S21 Gain | S21 Noise | P-1 dB dBm |
|---|---|---|---|---|---|
| 25 | 1.54 | 1.73 | 56 | 2.23 | 13.79 |
| 26.14 | 1.45 | 1.7 | 56.9 | 2.61 | 14 |
| 27.29 | 1.31 | 1.51 | 56.9 | 2.49 | 14.35 |
| 28.43 | 1.15 | 1.41 | 56.9 | 2.66 | 14.15 |
| 29.57 | 1.42 | 1.1 | 57.1 | 2.67 | 14.64 |
| 30.71 | 1.75 | 1.29 | 57 | 2.56 | 14.28 |
| 31.86 | 1.59 | 1.37 | 56.4 | 2.66 | 13.73 |
| 33 | 1.25 | 1.47 | 56.7 | 2.64 | 14.17 |
| 34.14 | 1.14 | 1.48 | 56.4 | 2.69 | 14.95 |
| 35.29 | 1.5 | 1.21 | 56.1 | 2.86 | 15.97 |
| 36.43 | 1.68 | 1.1 | 55.8 | 2.82 | 15.44 |
| 37.57 | 1.8 | 1.14 | 57.1 | 2.61 | 14.1 |
| 38.71 | 1.74 | 1.08 | 58.4 | 2.44 | 15.04 |
| 39.88 | 1.43 | 1.25 | 57.4 | 2.51 | 14.4 |
| 41 | 1.51 | 1.46 | 56.7 | 2.93 | 14.67 |
