26~40GHz, Gain15dB, Noise figure4dB, P-1dB10dBm, 2.92-KDetachable
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 26 | ~ | 40 | GHz |
| Gain | 15 | dB | ||
| Gain flatness | ± 0.5 (any 1.2GHz bandwidth) | dB | ||
| Noise figure | 4 | dB | ||
| VSWR | 2 | |||
| P-1dB | 10 | dBm | ||
| Max input power | 10 | dBm |
| Connector | 2.92-F detachable, Pin 0.3mm |
|---|---|
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | Gold-plating |
| Working voltage | +12V |
| Working current | 100mA |
| Operation Temp. | -40~+70℃ Design assurance |
| Storage Temp. | -55~+85℃ Design assurance |

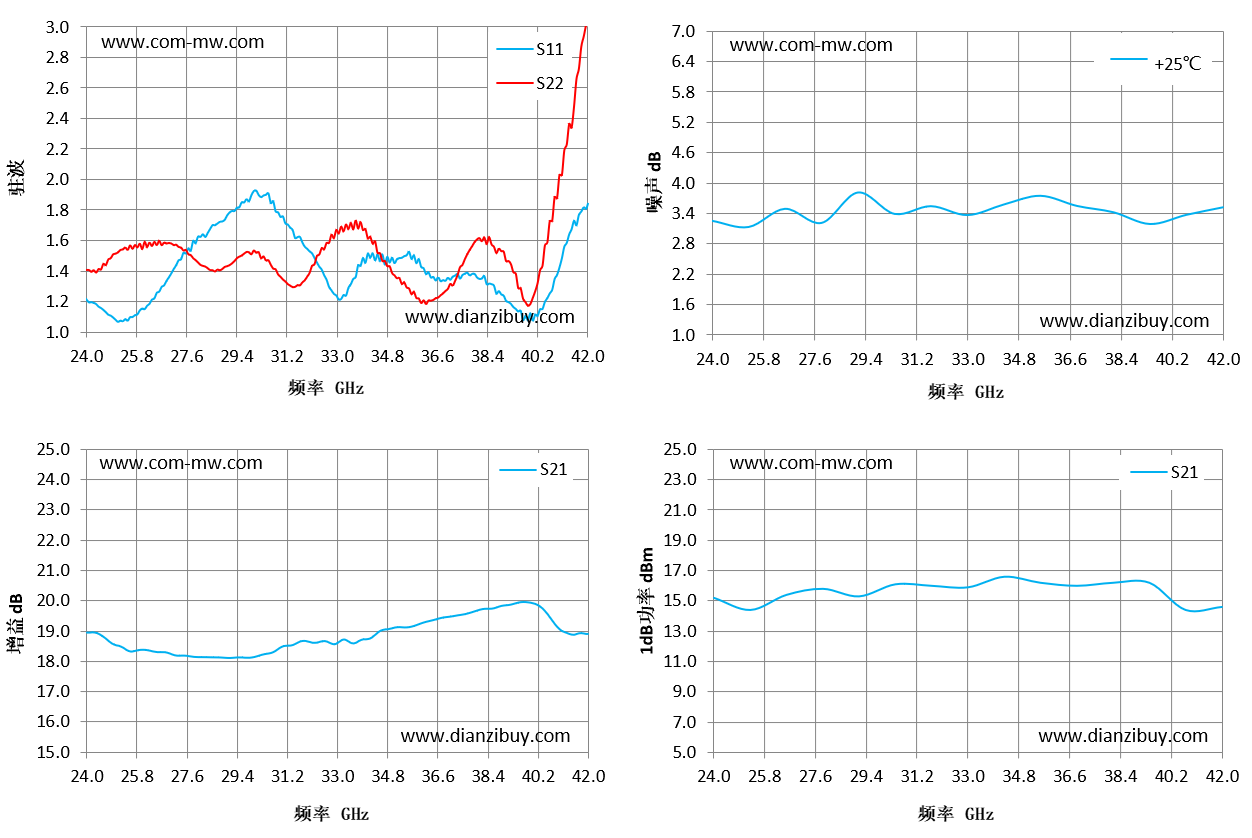

| Frequency(GHz) | S11 VSWR | S22 VSWR | S21 gain | S21 Noise | S21 P-1dB |
|---|---|---|---|---|---|
| 24 | 1.22 | 1.4 | 18.95 | 3.25 | 15.2 |
| 25.29 | 1.07 | 1.54 | 18.48 | 3.12 | 14.4 |
| 26.57 | 1.25 | 1.57 | 18.3 | 3.49 | 15.4 |
| 27.86 | 1.6 | 1.48 | 18.15 | 3.21 | 15.8 |
| 29.14 | 1.77 | 1.43 | 18.11 | 3.81 | 15.3 |
| 30.43 | 1.9 | 1.49 | 18.24 | 3.38 | 16.1 |
| 31.71 | 1.62 | 1.3 | 18.66 | 3.54 | 16 |
| 33 | 1.24 | 1.67 | 18.59 | 3.36 | 15.9 |
| 34.29 | 1.51 | 1.58 | 18.82 | 3.57 | 16.6 |
| 35.57 | 1.5 | 1.29 | 19.12 | 3.74 | 16.2 |
| 36.86 | 1.34 | 1.25 | 19.45 | 3.54 | 16 |
| 38.14 | 1.35 | 1.61 | 19.7 | 3.42 | 16.2 |
| 39.43 | 1.15 | 1.38 | 19.92 | 3.18 | 16.2 |
| 40.71 | 1.25 | 1.73 | 19.46 | 3.37 | 14.4 |
| 42 | 1.84 | 3.03 | 18.91 | 3.52 | 14.6 |
Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.
If the amplifier is directly connected to the antenna, electrostatic protection or limiter protection should be applied.
