RF Amplifier

Total 23 models
Categories
Categories RF Amplifier
RF Filter16049
RF Filter15377 Diplexer468 Combiner52 Filter bank148 Active Filter4
Power Distribution1709
Divider&Hybrid1047 Coupler559 Balun103
Antenna1230
Antenna1174 Antenna accessories7 Tripod35 Antenna Box14
Signal Amplification605
RF Amplifier605
Connector1428
RF Connector13 RF Coaxial Adapter184 Bias Tee37 Coaxial Cable774 DC Block11 Waveguide adapter193 Waveguide Connection214 Lightning arrester1 Impedance transformer1
Controller642
Limiter77 RF Switch359 Equalizer45 Switching filter63 Mixer26 Detector34 Digital attenuator1 Phase shifter13 Delayer24
Other devices1491
Load228 Attenuator886 Isolator228 Circulator139 Frequency multiplier10
Module and test system48
RF Switch Matrix20 Mobile RF Test Matrix1 RF Module18 Frequency source9
Accessories40
Chip Capacitor18 glass insulator15
Filters
Filters 1
F Low MHz
30 - 800 3 1000 - 4000 5 8000 - 20000 9 22000 - 27000 5 29000 1
–
F High MHz
26500 10 27000 4 28000 2 30000 1 31000 6
–
Category
LNA 16 PA 7
Max gain dB
12 - 13 2 15 - 20 5 25 - 30 7 33 - 35 4 40 - 50 5
–
Noise figure dB
2 - 2.3 3 2.5 - 3.5 7 4 - 5 6 5.5 - 8 2
–
Connector
SMA 8 2.92 14 Waveguide 1
Output power dBm
10 - 15 12 16 - 17 4 22 - 25 2 29 - 30 3 31 - 39 2
–
Voltage V
12 13 18 1 24 1 28 2 220 6
–
F High：26500 - 31000 MHz× Clear all
matches 23 models Default Newest
DLNA8-18000-26500-011 LNA

LNA DLNA8-18000-26500-011

18~26.5GHz, Gain40dB, Noise figure2.4dB, P-1dB10dBm, SMA
In Stock View Details →
DLNA8-18-26.5G-3016 LNA

LNA DLNA8-18-26.5G-3016

18~26.5GHz, Gain40dB, Noise figure2.5dB, P-1dB10dBm, 2.92
In Stock View Details →
DPA8-1-30G-3537 Power amplifier

Power amplifier DPA8-1-30G-3537

1~27GHz, Gain25dB, Psat22dBm, 2.92
In Stock View Details →
DLNA8-1-30G-2876 LNA

LNA DLNA8-1-30G-2876

1~30GHz, Gain13dB, P-1dB17dBm, 2.92
In Stock View Details →
DLNA8-0.05-31G-3926 LNA

LNA DLNA8-0.05-31G-3926

0.05~31GHz, Gain30dB, P-1dB15dBm, 2.92-K
In Stock View Details →
DPA8-4-26.5G-3793 Power amplifier

Power amplifier DPA8-4-26.5G-3793

4~26.5GHz, Gain30dB, Psat30dBm, 2.92
View Details →
DPA8-27-31G-3913 Power amplifier

Power amplifier DPA8-27-31G-3913

27000~31000MHz, Gain30dB, Noise figure5dB, P-1dB25dBm, SMA
View Details →
DPA8-27-31G-3493 Power amplifier

Power amplifier DPA8-27-31G-3493

27~31GHz, Gain30dB, Psat31dBm, 2.92
View Details →

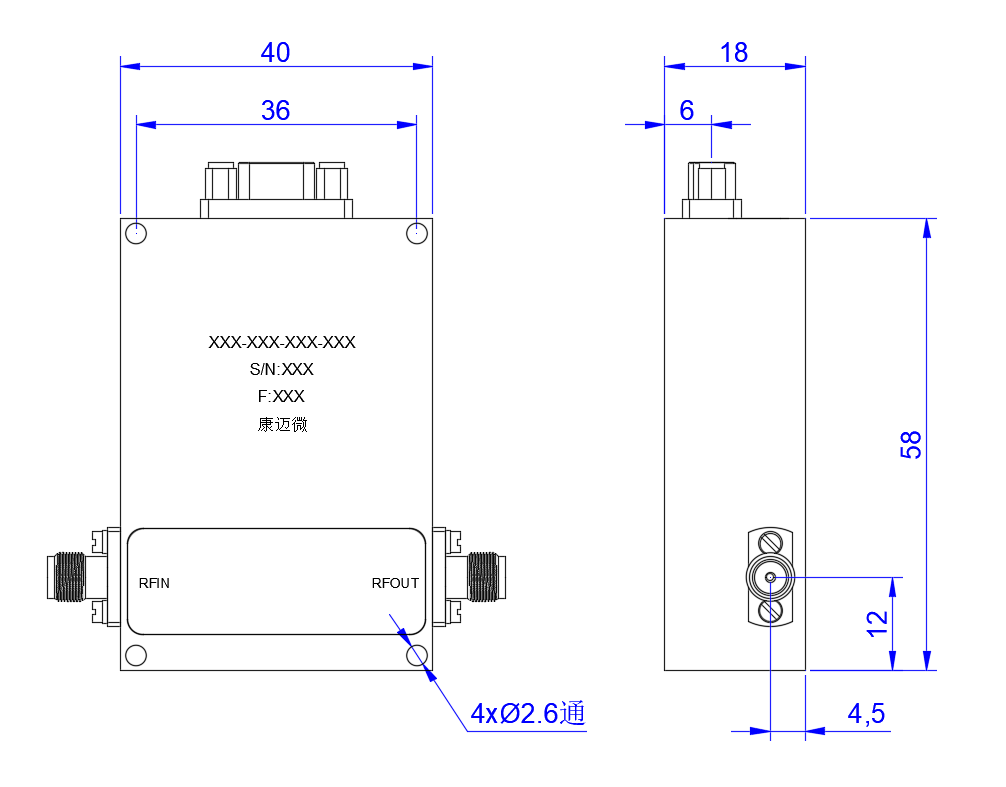

DPA8-18000-26500-3251 Power amplifier

Power amplifier DPA8-18000-26500-3251

18000~26500MHz, Psat31dBm, 2.92
View Details →
DPA8-18-28G-3140 Power amplifier

Power amplifier DPA8-18-28G-3140

18~28GHz, Gain12dB, P-1dB29dBm, 2.92
View Details →
DPA8-18-26.5-3243 Power amplifier

Power amplifier DPA8-18-26.5-3243

18~26.5GHz, Gain35dB, Psat39dBm, 2.92
View Details →
DLNA8-8000-28000-3648 LNA

LNA DLNA8-8000-28000-3648

8000~28000MHz, Gain30dB, Noise figure2dB, P-1dB10dBm, 2.92
View Details →
DLNA8-4-26.5G-3795 LNA

LNA DLNA8-4-26.5G-3795

4~26.5GHz, Gain30dB, Noise figure4dB, P-1dB10dBm, 2.92
View Details →
DLNA8-30-26500-3983 LNA

LNA DLNA8-30-26500-3983

30~26500MHz, Gain15dB, Noise figure5.5dB, P-1dB16dBm, 2.92
View Details →
DLNA8-29-31G-1176 LNA

LNA DLNA8-29-31G-1176

29~31GHz, Gain20dB, Noise figure3dB, P-1dB10dBm, 2.92
View Details →
DLNA8-27-31G-3908 LNA

LNA DLNA8-27-31G-3908

27000~31000MHz, Gain20dB, Noise figure5dB, P-1dB5dBm, SMA
View Details →
DLNA8-25.5-27G-4060 LNA

LNA DLNA8-25.5-27G-4060

25.5~27GHz, GaindB, Noise figure2.2dB, P-1dB10dBm, OIP315dBm, Max input power0dBm, 2.92
View Details →
DLNA8-22-27G-3893 LNA

LNA DLNA8-22-27G-3893

Frequency22~27GHz, Gain20dB, P-1dB output power16dBm, 2.92
View Details →
DLNA8-2-26.5G-3504 LNA

LNA DLNA8-2-26.5G-3504

2000~26500MHz, Gain15dB, Noise figure3.0dB, P-1dB10dBm, SMA-K
View Details →
DLNA8-18000-26500-1260 LNA

LNA DLNA8-18000-26500-1260

18~26.5GHz, Gain33dB, Noise figure3.5dB, P-1dB17dBm, SMA
View Details →
DLNA8-18-30G-1542 LNA

LNA DLNA8-18-30G-1542

18~31GHz, Gain50dB, Noise figure4dB, P-1dB10dBm, 2.92, Input with filter
View Details →
DLNA8-0.8-26.5G-3808 LNA

LNA DLNA8-0.8-26.5G-3808

Frequency0.8~26.5GHz, Gain33dB, P-1dB output power10dBm, 2.92
View Details →
DCLNA2027-40C-S Broadband LNA

Broadband LNA DCLNA2027-40C-S

20~27GHz, Gain40dB, Noise figure3dB, P-1dB10dBm, 2.92
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
