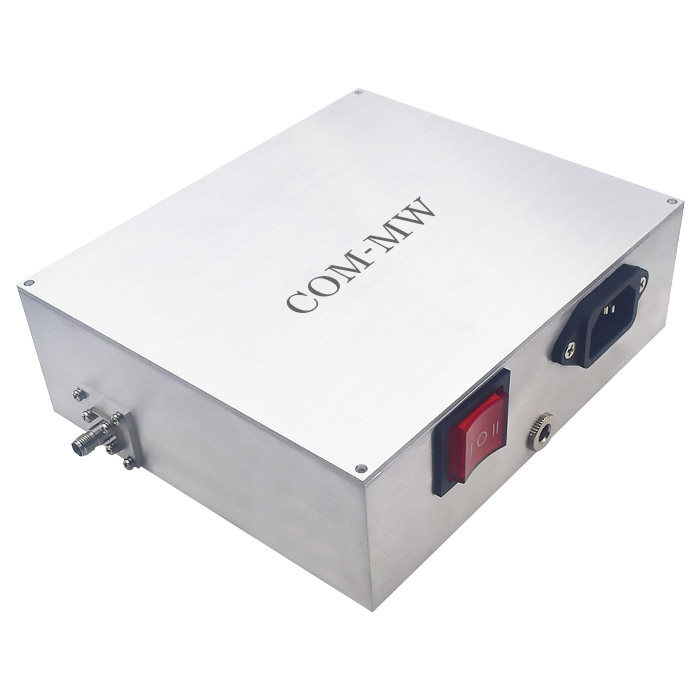

18~26.5GHz, Gain33dB, Noise figure3.5dB, P-1dB17dBm, SMA
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 18 | ~ | 26.5 | GHz |
| Gain | 33 | dB | ||
| Gain flatness | ±2 | dB | ||
| Noise figure | 3.5 | dB | ||
| VSWR | 2 | |||
| P-1dB | 17 | dBm | ||
| Max input power | 15 | dBm |
| Connector | SMA-K |
| Connector material | Stainless steel |
| Impedance | 50Ω |
| Surface | White |
| Working voltage | +220V&12V |
| Operation Temp. | -20~+60℃ Design assurance |
| Quality Grade | Industrial grade |
| Other | 1. The battery powered working time is approximately 6-10 hours, depending on the battery capacity and amplifier power consumption. 2. The DC power supply voltage is determined by the amplifier. 3. The switch can only control 220V and the battery box, and there is no switch for DC power supply. 4. Battery replacement requires removing the battery cover screws. |
| Power supply method 1 | 220V power supply, standard AC interface, 12-15V/5W output |
| Power supply method 2 | 10 units, powered by No. 5 battery, with a 12-15V output. |
| Power supply method 3 | DC power supply, interface 2.5mm (inner aperture) |
Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.
If the amplifier is directly connected to the antenna, electrostatic protection or limiter protection should be applied.
