20~27GHz, Gain40dB, Noise figure3dB, P-1dB10dBm, 2.92
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Min | Typical | Max | Units |
|---|---|---|---|---|
| Frequency | 20 | ~ | 27 | GHz |
| Gain | 40 | dB | ||
| Gain flatness | ±3 | dB | ||
| Noise figure | 3 | dB | ||
| VSWR | 2.5 | |||
| P-1dB | 10 | dBm |
| Connector | 2.92-K |
| Impedance | 50Ω |
| Surface | Grey |
| Working voltage | +5VUSB Type-C interface charging |
| Working current | 500mA |
| Operation Temp. | -10~+50℃ Design assurance |
| Other | 1. Equipped with power on/off indication, charging indication (including full charge), undervoltage indication, and (normal) working indication |
| 3. Lithium battery power supply (3 hours) | |
| 4. Configure charger (adapter) | |
| / | |
| 6. Charging environment temperature: 0~+50 ℃ | |
| 7. Charging interface: USB Type-C, with dust-proof silicone pad |

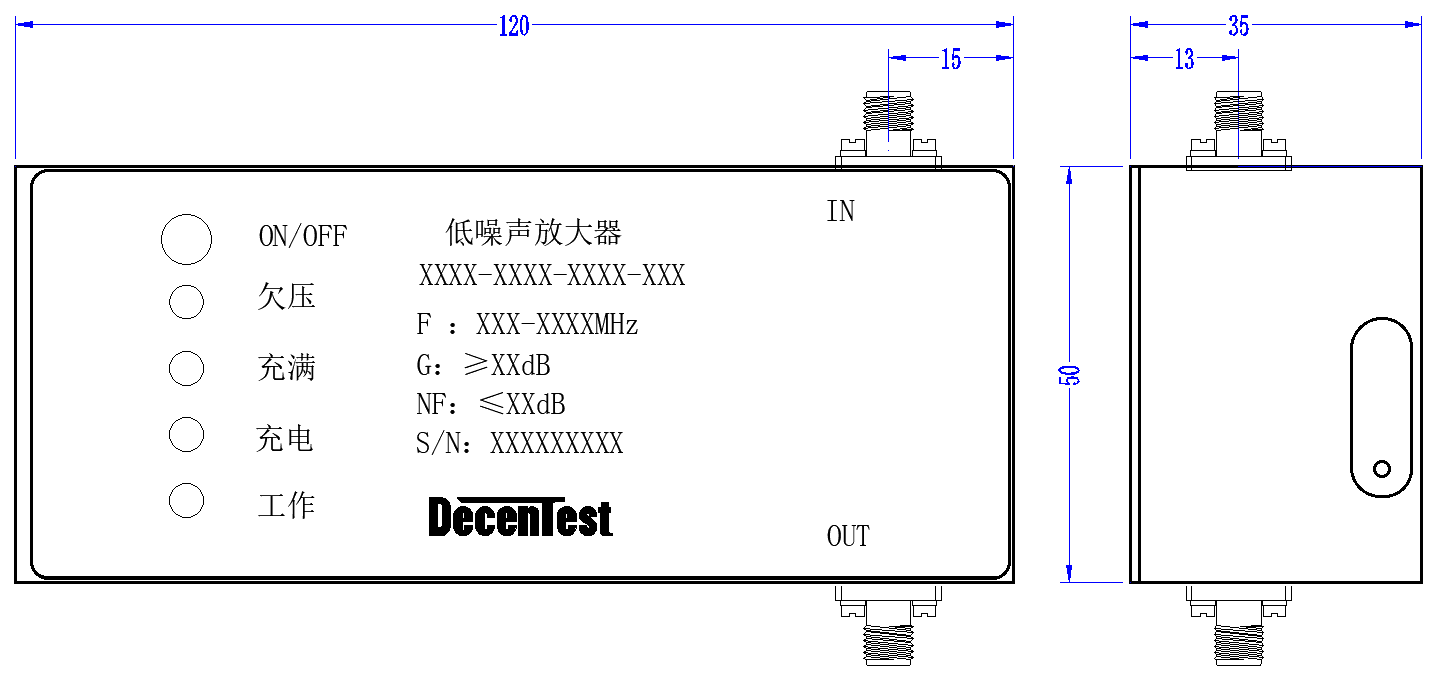

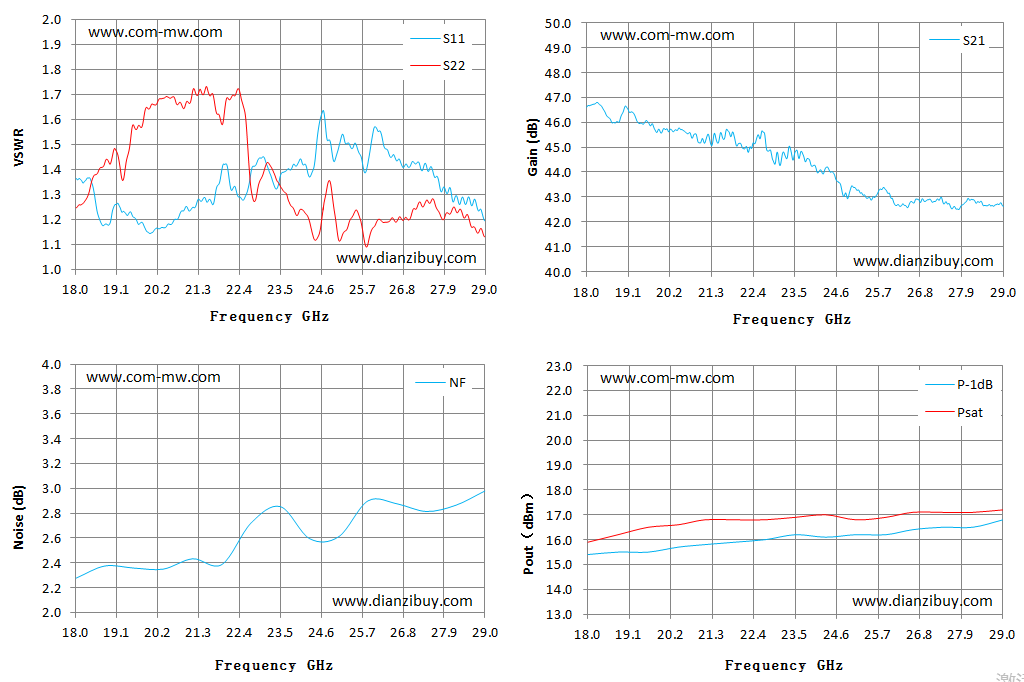

| Frequency | S11 VSWR | S22 VSWR | NF | Gain | P-1dB out | Psat |
|---|---|---|---|---|---|---|
| GHz | / | / | dB | dB | dBm | dBm |
| 18 | 1.37 | 1.25 | 2.28 | 46.61 | 15.4 | 15.9 |
| 18.79 | 1.18 | 1.44 | 2.37 | 46.02 | 15.5 | 16.2 |
| 19.57 | 1.21 | 1.57 | 2.36 | 46.07 | 15.5 | 16.5 |
| 20.36 | 1.17 | 1.69 | 2.35 | 45.7 | 15.7 | 16.6 |
| 21.14 | 1.25 | 1.72 | 2.43 | 45.24 | 15.8 | 16.8 |
| 21.93 | 1.41 | 1.58 | 2.39 | 45.21 | 15.9 | 16.8 |
| 22.71 | 1.39 | 1.32 | 2.72 | 45.44 | 16 | 16.8 |
| 23.5 | 1.38 | 1.33 | 2.85 | 44.79 | 16.2 | 16.9 |
| 24.29 | 1.37 | 1.19 | 2.6 | 44.11 | 16.1 | 17 |
| 25.07 | 1.49 | 1.12 | 2.61 | 43.38 | 16.2 | 16.8 |
| 25.86 | 1.44 | 1.11 | 2.9 | 43.36 | 16.2 | 16.9 |
| 26.64 | 1.44 | 1.2 | 2.87 | 42.76 | 16.4 | 17.1 |
| 27.43 | 1.41 | 1.28 | 2.81 | 42.72 | 16.5 | 17.1 |
| 28.21 | 1.3 | 1.24 | 2.86 | 42.89 | 16.5 | 17.1 |
| 29 | 1.2 | 1.13 | 2.98 | 42.62 | 16.8 | 17.2 |
Store in an environment with a humidity of less than 25% and pay attention to dust and static electricity prevention.
If the amplifier is directly connected to the antenna, electrostatic protection or limiter protection should be applied.
