F Low：947 - 1254.8 MHz× Clear all
matches 810 models Default Newest
ZBF5-L1550-1200-2277 Filter

Filter ZBF5-L1550-1200-2277

Passband950~2150MHz, DC-760MHz≥40dB, 2600-3600MHz≥40dB, SMD
In Stock View Details →
ZBF15-L1250-600-1171 Filter

Filter ZBF15-L1250-600-1171

Passband950~1550MHz, DC-800MHz≥40dBc, 1.8-4GHz≥40dBc, SMD
In Stock View Details →
ZBF9-D1060-140-1940 Filter

Filter ZBF9-D1060-140-1940

Passband990~1130MHz, DC-950MHz≥25dB, 1170-1250MHz≥25dB, Microstrip pad
In Stock View Details →
HF016 Filter

Filter HF016

Highpass F1200~3400MHz, DC-350MHz≥40dB, 550MHz≥20dB, SMD, Replace RHP-755+
In Stock View Details →
ZBF3-L1500-500-3212 Filter

Filter ZBF3-L1500-500-3212

Passband1250~1750MHz, 1150MHz≥30dB, DC-1000MHz≥45dB, Pin
In Stock View Details →
ZBF14-L1200-100-764 Filter

Filter ZBF14-L1200-100-764

Passband1150~1250MHz, DC-1050MHz≥40dB, 1350-3000MHz≥40dB, SMD
In Stock View Details →
ZBF15-L1357.5-515-1294 Filter

Filter ZBF15-L1357.5-515-1294

Passband1100~1620MHz, DC-900MHz≥40dBc, 1800-6000MHz≥40dB, SMD
In Stock View Details →
ZBF15-L1200-500-865 Filter

Filter ZBF15-L1200-500-865

Passband950~1450MHz, DC-0.7MHz≥50dBc, 1.7-4GHz≥50dBc, SMD
In Stock View Details →
ZHPF5-L1.1-6G-3110 Filter

Filter ZHPF5-L1.1-6G-3110

Passband1.1~6GHz, RejectionDC-830MHz≥40dB, SMD
In Stock View Details →
ZHPF5-L1-6G-3109 Filter

Filter ZHPF5-L1-6G-3109

Passband1~6GHz, RejectionDC-750MHz≥40dB, SMD
In Stock View Details →
ZHPF5-L0.95-6G-3108 Filter

Filter ZHPF5-L0.95-6G-3108

Passband0.95~6GHz, RejectionDC-700MHz≥40dB, SMD
In Stock View Details →
WLD013015K Filter

Filter WLD013015K

Passband1250~1450MHz, 800MHz≥30dBc, 2000MHz≥30dBc, Microstrip pad, MMIC
In Stock View Details →
WLD010080-HK Filter

Filter WLD010080-HK

Passband1050~8000MHz, 600MHz≥38dBc, Microstrip pad, MMIC
In Stock View Details →
WLD010033K Filter

Filter WLD010033K

Passband950~3300MHz, 400MHz≥40dBc, 6000MHz≥40dBc, Microstrip pad, MMIC
In Stock View Details →
HF025 Filter

Filter HF025

Highpass F1225~4000MHz, DC-675MHz≥30dB, 720MHz≥20dB, SMD, Industrial grade, /
In Stock View Details →
HF024 Filter

Filter HF024

Highpass F1050~4000MHz, DC-500MHz≥30dB, 620MHz≥20dB, SMD, Industrial grade, /
In Stock View Details →

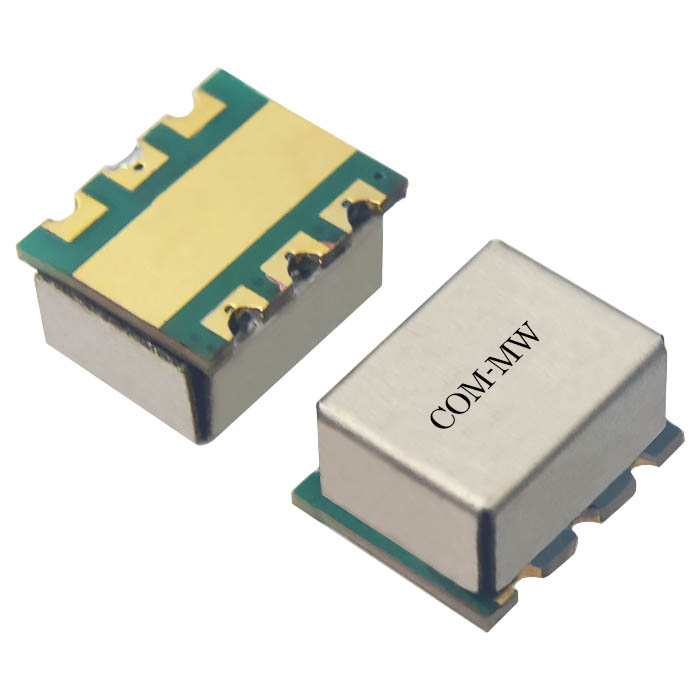

BF071 Filter

Filter BF071

Passband1250~1560MHz, DC-910MHz≥20dB, 2000-5000MHz≥20dB, Industrial grade, Substitutes SYBP-1420+
In Stock View Details →
BF063 Filter

Filter BF063

Passband1000~1200MHz, DC-700MHz≥30dB, 1400-3500MHz≥40dB, SMD, Replace SXBP-1100+
In Stock View Details →
ZBF5-L1550-1200-3708 Filter

Filter ZBF5-L1550-1200-3708

Passband950~2150MHz, DC-750MHz≥40dB, 2.35-5.5GHz≥40dB, SMD
In Stock View Details →
ZBF5-L1092.5-265-2338 Filter

Filter ZBF5-L1092.5-265-2338

Passband960~1225MHz, DC-800MHz≥40dB, 1400-3000MHz≥45dB, SMD
In Stock View Details →

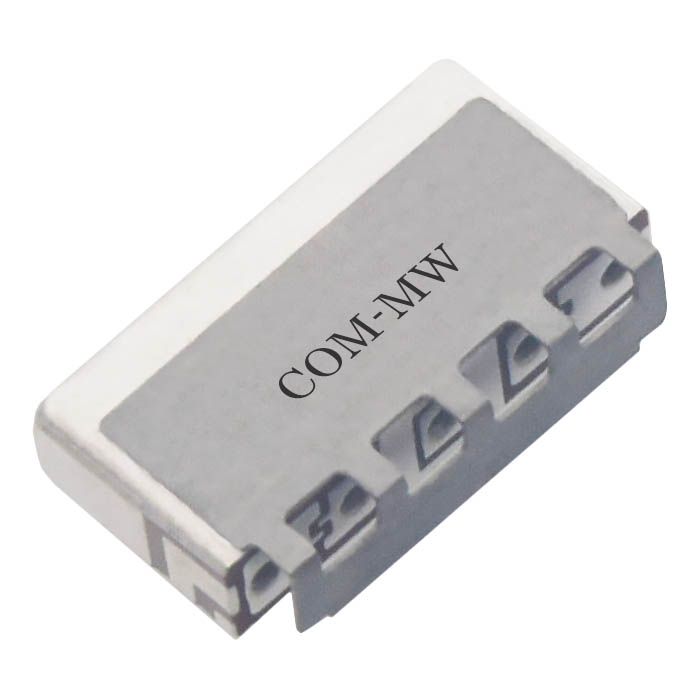

ZBF9-D1300-90-2038 Filter

Filter ZBF9-D1300-90-2038

Passband1210~1390MHz, DC-1GHz≥45dB, 1.6GHz≥45dB, Microstrip pad
In Stock View Details →
BF070 Filter

Filter BF070

Passband1100~1450MHz, 500-600MHz≥20dB, 2050-3700MHz≥20dB, Industrial grade, Replace SYBP-1275+
In Stock View Details →
ZBF15-L1230-260-1160 Filter

Filter ZBF15-L1230-260-1160

Passband1100~1360MHz, DC-950MHz≥40dBc, 1.6-4GHz≥40dBc, SMD
In Stock View Details →
ZBF15-L1150-100-640 Filter

Filter ZBF15-L1150-100-640

Passband1100~1200MHz, DC-1000MHz≥40dBc, 1300-3000MHz≥40dBc, SMD
In Stock View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
