ZBF9-S70-4.4-2145 Filter

Filter ZBF9-S70-4.4-2145

Center Frequency70MHz, -3dB BW4.3MHz, -40dB BW6.85MHz, SMD
In Stock View Details →
ZBF9-S70-6.8-2154 Filter

Filter ZBF9-S70-6.8-2154

Center Frequency70MHz, -3dB BW6.8MHz, -40dB BW10.8MHz
In Stock View Details →
ZBF9-S70-2.4-2144 Filter

Filter ZBF9-S70-2.4-2144

Center Frequency70MHz, -1dB BW2.4MHz, -40dB BW6.8MHz, SMD
In Stock View Details →
ZBF5-L1030-20-2340 Filter

Filter ZBF5-L1030-20-2340

Passband1020~1040MHz, DC-970MHz≥40dB, 1090-3000MHz≥40dB, SMD
In Stock View Details →
ZBF14-L1090-20-762 Filter

Filter ZBF14-L1090-20-762

Passband1080~1100MHz, DC-1030MHz≥35dB, 1150-3000MHz≥35dB, SMD
In Stock View Details →
ZBF14-L1090-20-763 Filter

Filter ZBF14-L1090-20-763

Passband1080~1100MHz, DC-1030MHz≥40dB, 1150-5000MHz≥40dB, SMA
In Stock View Details →
STBP193-0R0-M715 Thin film filter

Thin film filter STBP193-0R0-M715

Center Frequency19.3GHz, Rejection30@DC-18.6GHz, 40@20.0-27.0GHz
In Stock View Details →
ZBF8-C21000-10-1994 Filter

Filter ZBF8-C21000-10-1994

Passband20995~21005MHz, DC-20950MHz≥35dBc, 21050MHz≥35dBc, SMA
In Stock View Details →

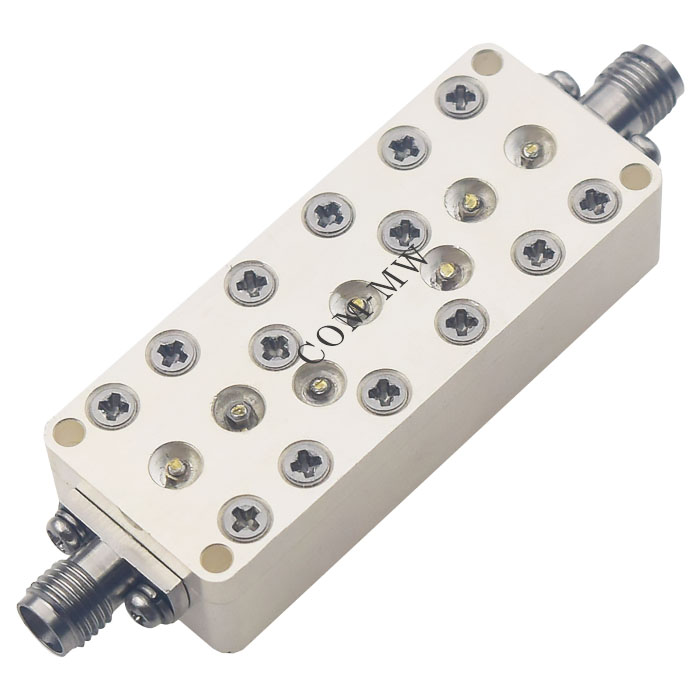

ZBF25-C25000-0-3520 Filter

Filter ZBF25-C25000-0-3520

Passband24995~25005MHz, DC-24950MHz≥35dBc, 25050-30000MHz≥35dBc, SMA
In Stock View Details →
ZBF9-S75-20-3331 Filter

Filter ZBF9-S75-20-3331

Passband65~85MHz, -1dB BW20.2MHz, -40dB BW26.6MHz, SMD,
View Details →
ZBF9-Q70-0-2537 Filter

Filter ZBF9-Q70-0-2537

Center Frequency70MHz, -3dB BW3KHz, -50dB BW6KHz, Pin
View Details →
ZBF5-C22-0.07G-3648 Filter

Filter ZBF5-C22-0.07G-3648

Passband21.964~22.036GHz, DC-21.88GHz≥65dB, 22.12-22.5GHz≥65dB, Pin
View Details →
ZBF3-L660-10-2622 Filter

Filter ZBF3-L660-10-2622

Passband655~665MHz, DC-645MHz≥40dB, 675-1500MHz≥40dB, SMD
View Details →
ZBF25-C8.85-0G-3590 Filter

Filter ZBF25-C8.85-0G-3590

Passband8.85~8.85GHz, DC-8.83GHz≥40dBc, 8.87-10GHz≥40dBc, SMA
View Details →
ZBF16-C16200-50-2115 Filter

Filter ZBF16-C16200-50-2115

Passband16175~16225MHz, F0±30MHz≥3dB, F0±50MHz≥30dB, SMA
View Details →
ZBF16-C15800-50-2114 Filter

Filter ZBF16-C15800-50-2114

Passband15775~15825MHz, F0±30MHz≥3dB, F0±50MHz≥30dB, SMA
View Details →
ZBF15-L500-10-1283 Filter

Filter ZBF15-L500-10-1283

Passband495~505MHz, DC-465MHz≥60dBc, 535-1000MHz≥60dBc, SMA
View Details →
ZBF15-L470-0-437 Filter

Filter ZBF15-L470-0-437

Passband470MHz, f0±30MHz≥80（常温）dBc, f0±30MHz≥75（极限温度）dBc, Pin
View Details →
ZBF15-L450-0-436 Filter

Filter ZBF15-L450-0-436

Passband450MHz, f0±30MHz≥80（常温）dBc, f0±30MHz≥75（极限温度）dBc, Pin
View Details →

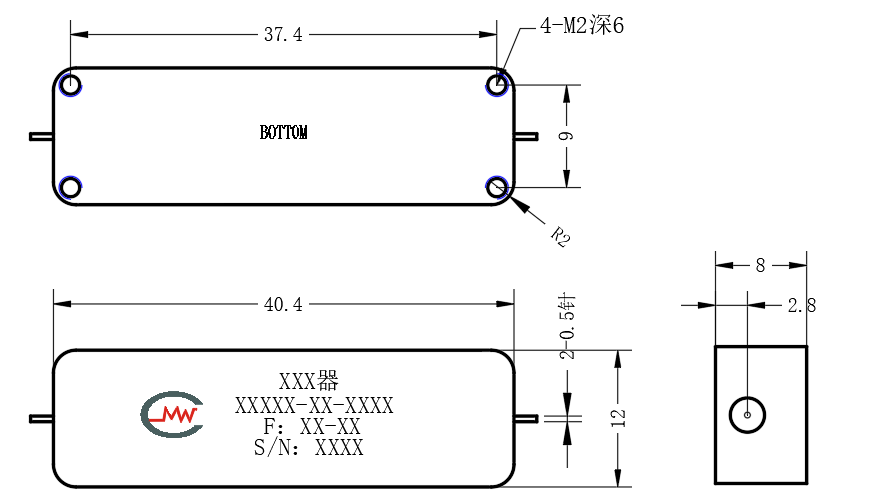

ZBF15-L430-0-435 Filter

Filter ZBF15-L430-0-435

Passband430MHz, f0±30MHz≥80（常温）dBc, f0±30MHz≥75（极限温度）dBc, Pin
View Details →
ZBF15-L175-2-1188 Filter

Filter ZBF15-L175-2-1188

Passband174~176MHz, DC-150MHz≥60dBc, 200-500MHz≥60dBc, SMD
View Details →
ZBF13-L1350-21-3593 Filter

Filter ZBF13-L1350-21-3593

Center Frequency1350MHz, DC-1.25MHz≥40dBc, 4.85-5.15MHz≥55dBc, SMD
View Details →
