Feature：Notch× Clear all
matches 2580 models Default Newest

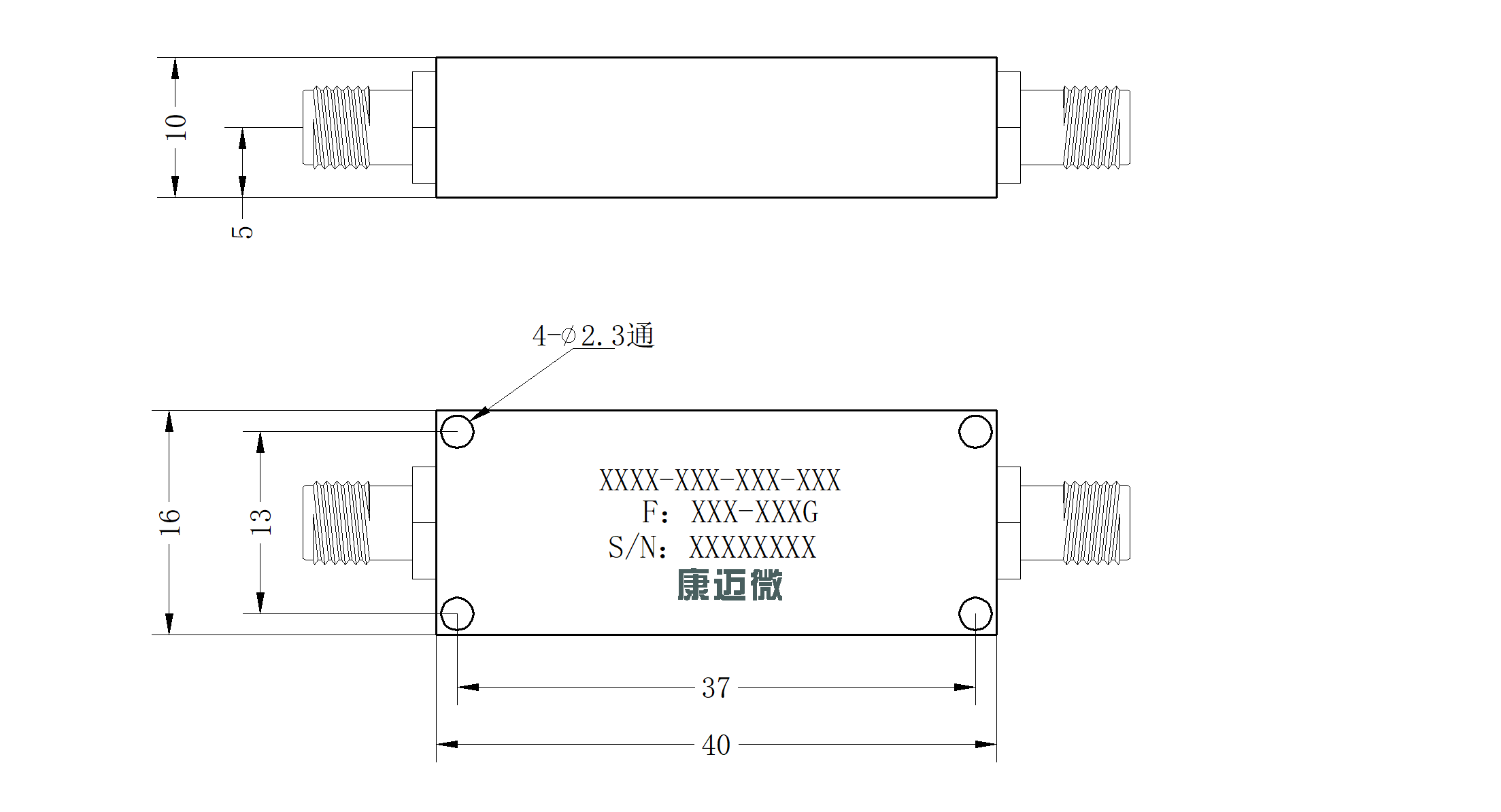

ZBSF14-L465-505-617 Filter

Filter ZBSF14-L465-505-617

Stopband F465~505MHz, ≥25dB, PassbandDC~400MHz, 570~2500MHz, SMA
In Stock View Details →
ZBSF-C2441.75-83.5-3121 Filter

Filter ZBSF-C2441.75-83.5-3121

Stopband F2400~2483.5MHz, ≥50dB, PassbandDC~2310MHz, 2573.5~8000MHz, SMA
In Stock View Details →
K6-902.2-902.6-1.4S45100-001 Filter

Filter K6-902.2-902.6-1.4S45100-001

Stopband F902.2~902.6MHz, ＞45dB, PassbandDC~900.8MHz, 904~2500MHz, SMA
In Stock View Details →

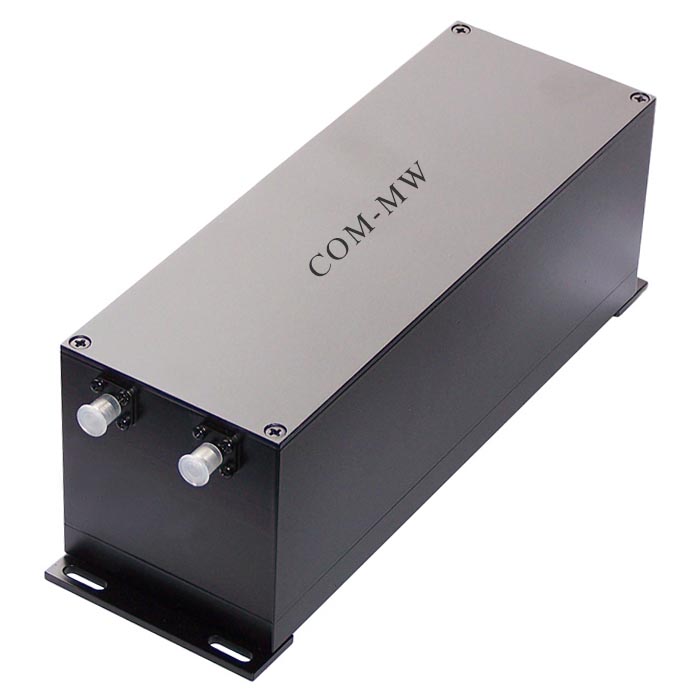

K6-880-915-10S60100-001 Notch filter

Notch filter K6-880-915-10S60100-001

Stopband F880~915MHz, ≥60dB, PassbandDC~870MHz, 925~3000MHz, SMA
In Stock View Details →
K6-824-849-30S5050-005 Filter

Filter K6-824-849-30S5050-005

Stopband F824~849MHz, ≥50dB, PassbandDC~794MHz, 879~3500MHz, SMA
In Stock View Details →
K6-617-652-10S60100-003 Filter

Filter K6-617-652-10S60100-003

Stopband F617~652MHz, ≥60dB, PassbandDC~607MHz, 662~2200MHz, SMA
In Stock View Details →
K6-2400-2483.5-10S50100-005 Filter

Filter K6-2400-2483.5-10S50100-005

Stopband F2400~2483.5MHz, ≥50dB, PassbandDC~2390MHz, 2493.5~6000MHz, SMA
In Stock View Details →

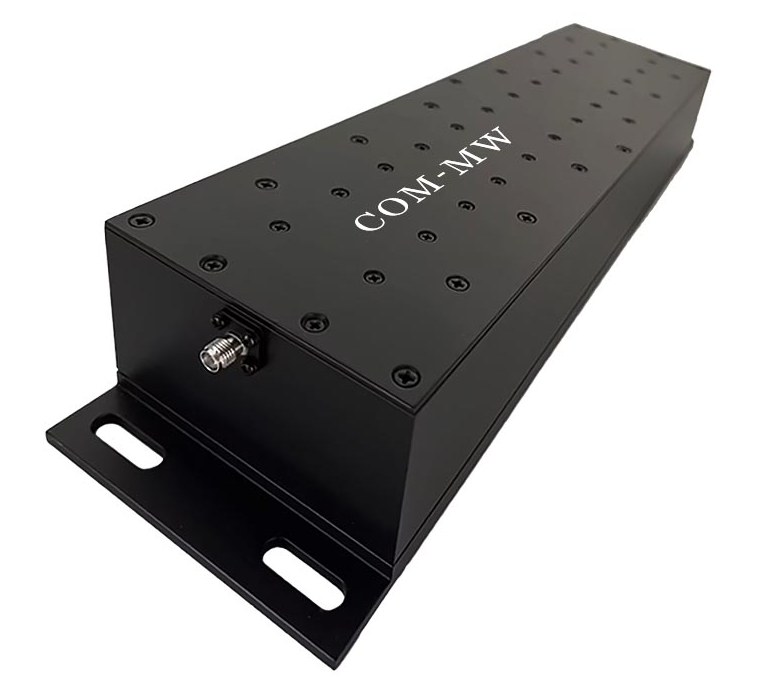

K6-1747.2-1747.6-1.4S45100-001 Filter

Filter K6-1747.2-1747.6-1.4S45100-001

Stopband F1747.2~1747.6MHz, ≥45dB, PassbandDC~1745.8MHz, 1749~4000MHz, SMA
In Stock View Details →
K6-1432-1517-10S50100-001 Filter

Filter K6-1432-1517-10S50100-001

Stopband F1432~1517MHz, ≥50dB, PassbandDC~1422MHz, 1527~4000MHz, SMA
In Stock View Details →
K6-1164-1300-30N50100-001 Filter

Filter K6-1164-1300-30N50100-001

Stopband F1164~1300MHz, ≥50dB, PassbandDC~1134MHz, 1330~4000MHz, N
In Stock View Details →
HBTE-BSF-0.758-0.803-N-200 Notch filter

Notch filter HBTE-BSF-0.758-0.803-N-200

Stopband F758~803MHz, ≥60dB, PassbandDC~738MHz, 823~3000MHz, N
In Stock View Details →

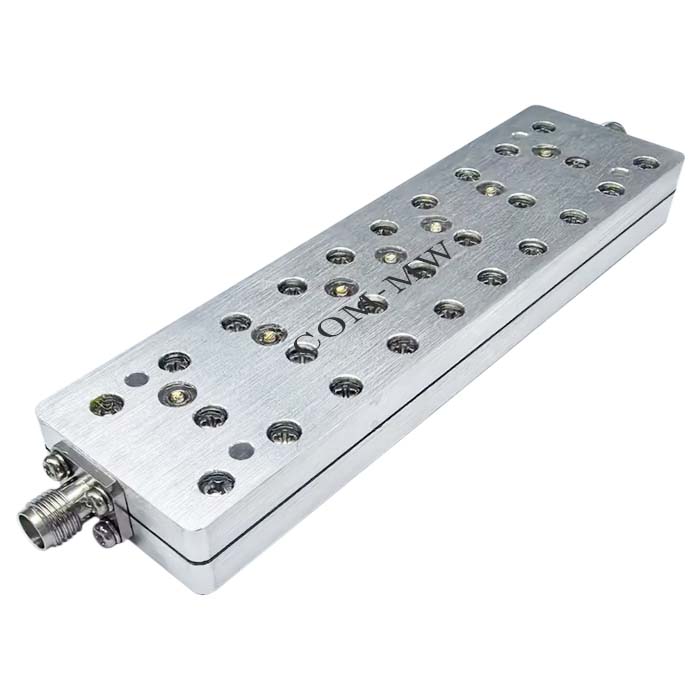

BSF3300-3800-L2 Filter

Filter BSF3300-3800-L2

Stopband F3300~3800MHz, ≥50dB, PassbandDC~3100MHz, 4000~6000MHz, SMA
In Stock View Details →

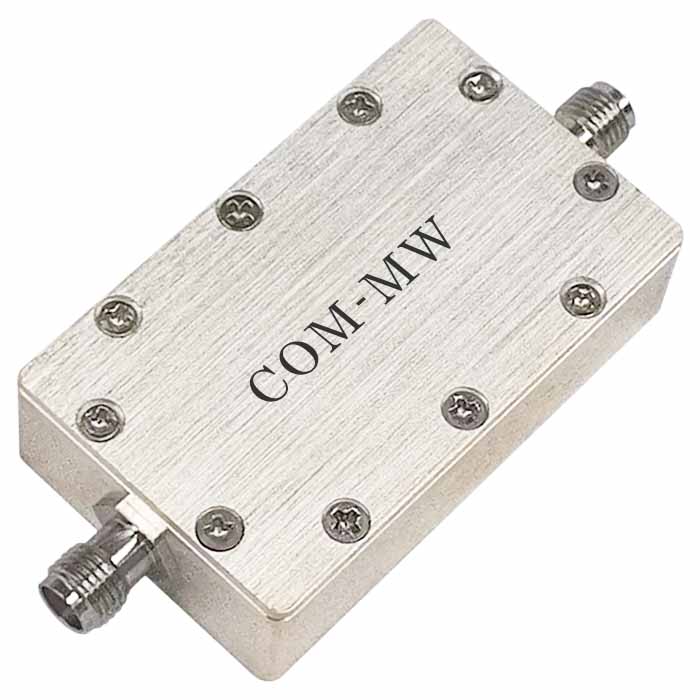

ZHPF6-L410-458-5515 Filter

Filter ZHPF6-L410-458-5515

Stopband F410~458MHz, ≥50dB, PassbandDC~360MHz, 508~1000MHz, SMA
View Details →
ZHPF6-C5725-5850-487 Filter

Filter ZHPF6-C5725-5850-487

Stopband F5725~5850MHz, ≥40dB, PassbandDC~5700MHz, 5875~7000MHz, SMA
View Details →

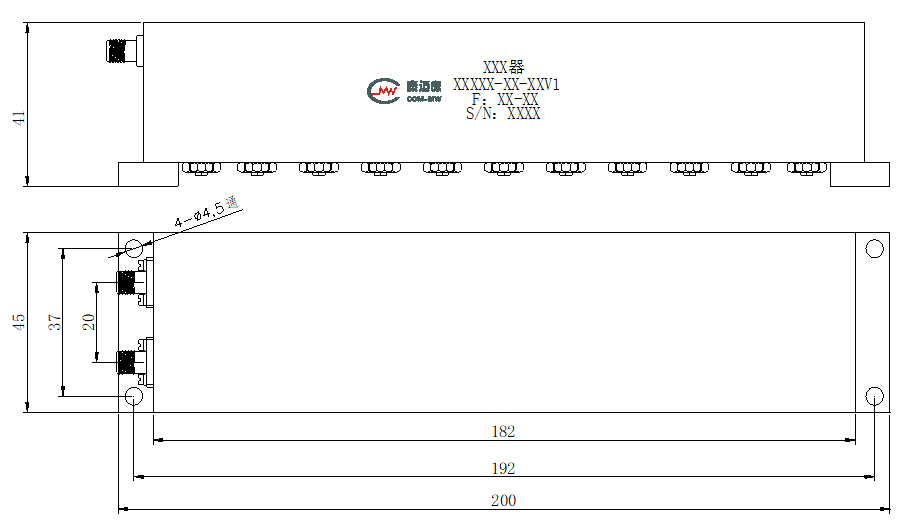

ZBSF7-C3795-3800-1041 Filter

Filter ZBSF7-C3795-3800-1041

Stopband F3795~3800MHz, ≥40dB, PassbandDC~3790MHz, 3805~6000MHz, SMA
View Details →
ZBSF7-C3780-3800-1042 Filter

Filter ZBSF7-C3780-3800-1042

Stopband F3780~3800MHz, ≥40dB, PassbandDC~3775MHz, 3805~6000MHz, SMA
View Details →
ZBSF7-C3697.5-3702.5-1039 Filter

Filter ZBSF7-C3697.5-3702.5-1039

Stopband F3697.5~3702.5MHz, ≥40dB, PassbandDC~3692.5MHz, 3707.5~6000MHz, SMA
View Details →
ZBSF7-C3690-3710-1040 Filter

Filter ZBSF7-C3690-3710-1040

Stopband F3690~3710MHz, ≥40dB, PassbandDC~3685MHz, 3715~6000MHz, SMA
View Details →
ZBSF7-C3600-3620-1038 Filter

Filter ZBSF7-C3600-3620-1038

Stopband F3600~3620MHz, ≥40dB, PassbandDC~3595MHz, 3625~6000MHz, SMA
View Details →
ZBSF7-C3600-3605-1037 Filter

Filter ZBSF7-C3600-3605-1037

Stopband F3600~3605MHz, ≥40dB, PassbandDC~3595MHz, 3610~6000MHz, SMA
View Details →
ZBSF7-C3595-3600-904 Filter

Filter ZBSF7-C3595-3600-904

Stopband F3595~3600MHz, ≥40dB, PassbandDC~3590MHz, 3605~6000MHz, SMA
View Details →
ZBSF7-C3580-3600-905 Filter

Filter ZBSF7-C3580-3600-905

Stopband F3580~3600MHz, ≥40dB, PassbandDC~3575MHz, 3605~6000MHz, SMA
View Details →
ZBSF7-C3497.5-3502.5-902 Filter

Filter ZBSF7-C3497.5-3502.5-902

Stopband F3497.5~3502.5MHz, ≥40dB, PassbandDC~3492.5MHz, 3507.5~6000MHz, SMA
View Details →
ZBSF7-C3490-3510-903 Filter

Filter ZBSF7-C3490-3510-903

Stopband F3490~3510MHz, ≥40dB, PassbandDC~3485MHz, 3515~6000MHz, SMA
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
