RF Filter

Total 27 models
Categories
Categories RF Filter
RF Filter16040
RF Filter15368 Diplexer468 Combiner52 Filter bank148 Active Filter4
Power Distribution1709
Divider&Hybrid1047 Coupler559 Balun103
Antenna1228
Antenna1172 Antenna accessories7 Tripod35 Antenna Box14
Signal Amplification605
RF Amplifier605
Connector1428
RF Connector13 RF Coaxial Adapter184 Bias Tee37 Coaxial Cable774 DC Block11 Waveguide adapter193 Waveguide Connection214 Lightning arrester1 Impedance transformer1
Controller642
Limiter77 RF Switch359 Equalizer45 Switching filter63 Mixer26 Detector34 Digital attenuator1 Phase shifter13 Delayer24
Other devices1491
Load228 Attenuator886 Isolator228 Circulator139 Frequency multiplier10
Module and test system48
RF Switch Matrix20 Mobile RF Test Matrix1 RF Module18 Frequency source9
Accessories40
Chip Capacitor18 glass insulator15
Filters
Filters 1
Feature
Bandpass 26 Notch 1
F Low MHz
985 2 989 1 990 15 994 1 995 8
–
Center frequency MHz
1000 13 1014 1 1060 8 1125 1 1200 1
–
F High MHz
1005 - 1006 7 1010 - 1015 7 1039 - 1130 10 1135 - 1255 2 1410 1
–
IL on center frequency dB
0.3 - 0.4 2 1 - 2 12 2.5 - 3 5 4 - 5 5 6 1
–
Maximum loss of side frequency dB
0.5 - 1.8 5 2 - 3 9 3.5 - 4.2 7 5 - 7.5 6
–
Rejection dB
20 - 25 3 30 - 35 2 40 - 45 10 50 - 55 10 65 - 70 2
–
Connector
SMD 8 SMA 11 Microstrip needle 7 TNC 1
Power Handling
1 9 2 12 5 2 10 3 50 1
–
Filter type
LC 20 Cavity&waveguide 4 Dielectric 2
F Low：985 - 995 MHz× Clear all
matches 27 models Default Newest
ZBF9-D1060-140-1940 Filter

Filter ZBF9-D1060-140-1940

Passband990~1130MHz, DC-950MHz≥25dB, 1170-1250MHz≥25dB, Microstrip pad
In Stock View Details →
ZBF15-L1060-140-801 Filter

Filter ZBF15-L1060-140-801

Passband990~1130MHz, DC-800MHz≥50dBc, 1280-6000MHz≥50dBc, SMD
In Stock View Details →
ZBF13-L1000-20-1532 Filter

Filter ZBF13-L1000-20-1532

Passband990~1010MHz, DC-0.9GHz≥48dBc, 1.1-3GHz≥50dBc, SMA
In Stock View Details →
ZBF13-L1000-20-1531 Filter

Filter ZBF13-L1000-20-1531

Passband990~1010MHz, DC-900MHz≥40dB, 1.1-3GHz≥40dB, SMD
In Stock View Details →
ZBF15-L1000-10-2802 Filter

Filter ZBF15-L1000-10-2802

Passband995~1005MHz, DC-915MHz≥40dBc, 1085-3000MHz≥45dB, SMA
In Stock View Details →
ZBF14-L1060-140-759 Filter

Filter ZBF14-L1060-140-759

Passband990~1130MHz, DC-825MHz≥40dB, 1295-3000MHz≥40dB, SMA
In Stock View Details →
ZBF3-L1005-20-2917 Filter

Filter ZBF3-L1005-20-2917

Passband995~1015MHz, DC-965MHz≥35dBc, 1045-2000MHz≥35dBc, Pin
In Stock View Details →
ZHPF15-L995-1005-843 Filter

Filter ZHPF15-L995-1005-843

View Details →
ZBF9-D1060-140-3125 Filter

Filter ZBF9-D1060-140-3125

Passband990~1130MHz, DC-960MHz≥25dB, 1160MHz≥25dB, Microstrip pad
View Details →
ZBF6-C1014-50-1215 Filter

Filter ZBF6-C1014-50-1215

Passband989~1039MHz, DC-936MHz≥50dB, 1092-1500MHz≥50dB, SMA
View Details →
ZBF5-L1060-140-218 Filter

Filter ZBF5-L1060-140-218

Passband990~1130MHz, DC-820MHz≥30dBc, 1300-1500MHz≥30dBc, Pin
View Details →
ZBF5-L1000-10-695 Filter

Filter ZBF5-L1000-10-695

Passband995~1005MHz, DC-900MHz≥20dBc, 1100-2000MHz≥20dBc, SMA
View Details →
ZBF3-L1060-140-455 Filter

Filter ZBF3-L1060-140-455

Passband990~1130MHz, DC-825MHz≥35dB, 1295-1600MHz≥30dB, Pin
View Details →
ZBF3-L1000-12-354 Filter

Filter ZBF3-L1000-12-354

Passband994~1006MHz, 988MHz≥5dB, 1012MHz≥5dB, 880MHz≥65dB, 1120MHz≥65dB, 3600-3800MHz≥65dB, Pin
View Details →
ZBF3-L1000-10-2664 Filter

Filter ZBF3-L1000-10-2664

Passband995~1005MHz, DC-880MHz≥70dBc, 1100-1600MHz≥45dBc, Pin
View Details →
ZBF2-L1125-260-1659 Filter

Filter ZBF2-L1125-260-1659

Passband995~1255MHz, DC-735MHz≥50dBc, 1515-4000MHz≥50dBc, Pin
View Details →

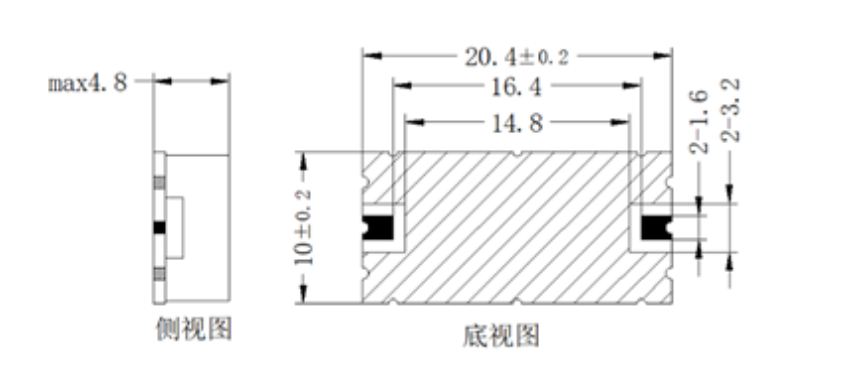

ZBF2-L1000-30-2382 Filter

Filter ZBF2-L1000-30-2382

Passband985~1015MHz, DC-930MHz≥50dB, 1070-2000MHz≥50dB, SMD
View Details →
ZBF15-L1000-20-416 Filter

Filter ZBF15-L1000-20-416

Passband990~1010MHz, fc±130MHz≥40dB, dB, SMA
View Details →
ZBF13-L1200-420-3580 Filter

Filter ZBF13-L1200-420-3580

Passband990~1410MHz, DC-880MHz≥40dBc, 1520-4000MHz≥40dBc, SMD
View Details →
ZBF13-L1060-140-3380 Filter

Filter ZBF13-L1060-140-3380

Passband990~1130MHz, DC-770MHz≥35dBc, 1330-6000MHz≥35dBc, Pin
View Details →
ZBF13-L1060-140-3379 Filter

Filter ZBF13-L1060-140-3379

Passband990~1130MHz, DC-820MHz≥55dBc, 1280-6000MHz≥55dBc, Pin
View Details →
ZBF13-L1000-20-2273 Filter

Filter ZBF13-L1000-20-2273

Passband990~1010MHz, DC-0.9GHz≥48dBc, 1.1-3GHz≥50dBc, SMA
View Details →
ZBF13-C1060-140-2931 Filter

Filter ZBF13-C1060-140-2931

Passband990~1130MHz, DC-0.95GHz≥40dB, 1.17-3.5GHz≥40dB, TNC
View Details →

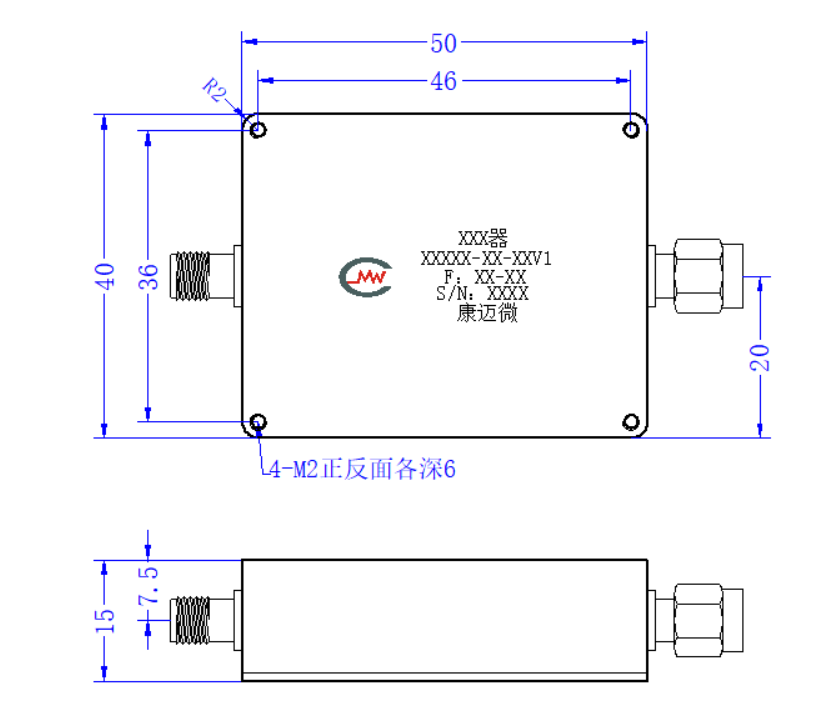

ZBF13-C1000-20-2255 Filter

Filter ZBF13-C1000-20-2255

Passband990~1010MHz, DC-850MHz≥50dBc, 1.15-3GHz≥50dBc, SMA
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
