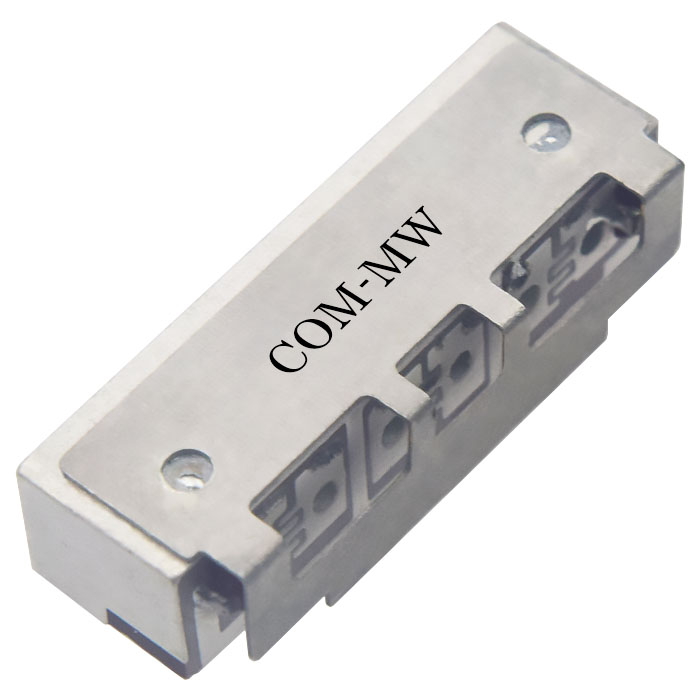

Passband990~1130MHz, DC-960MHz≥25dB, 1160MHz≥25dB, Microstrip pad
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
Low loss, small volume.

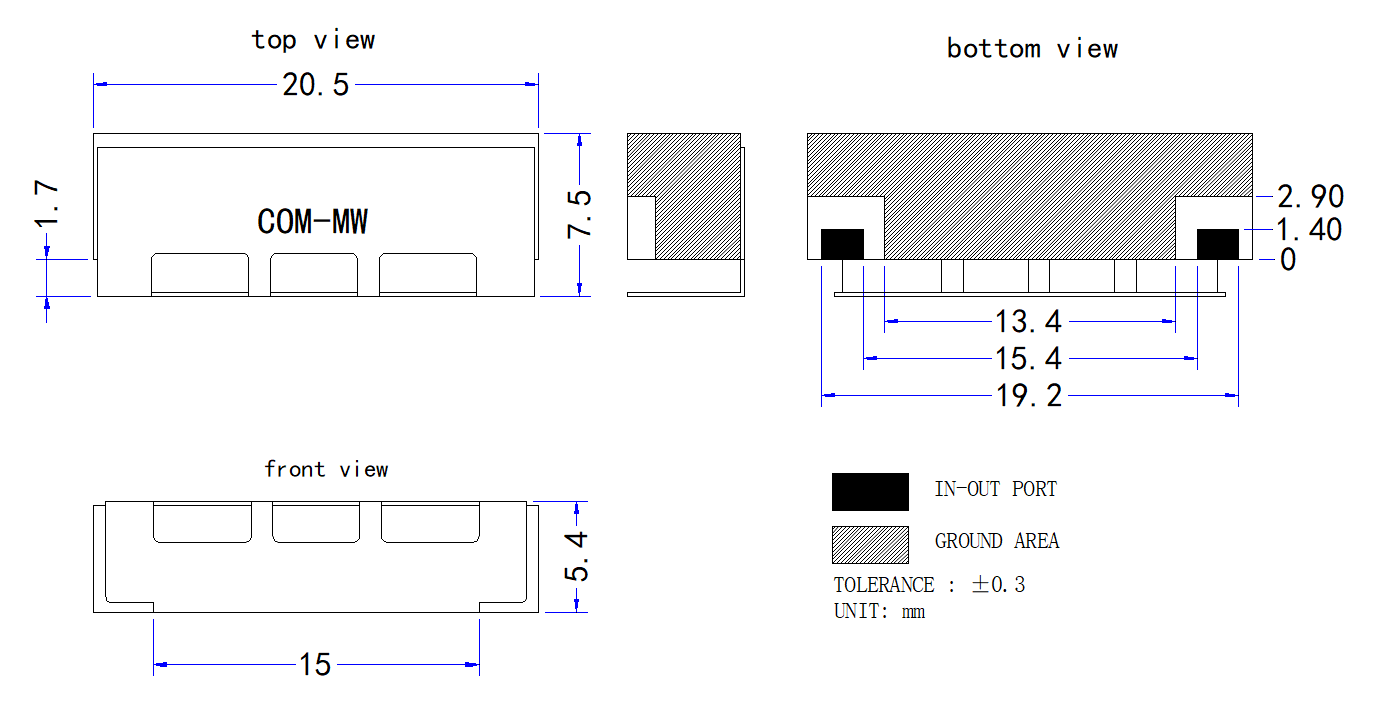

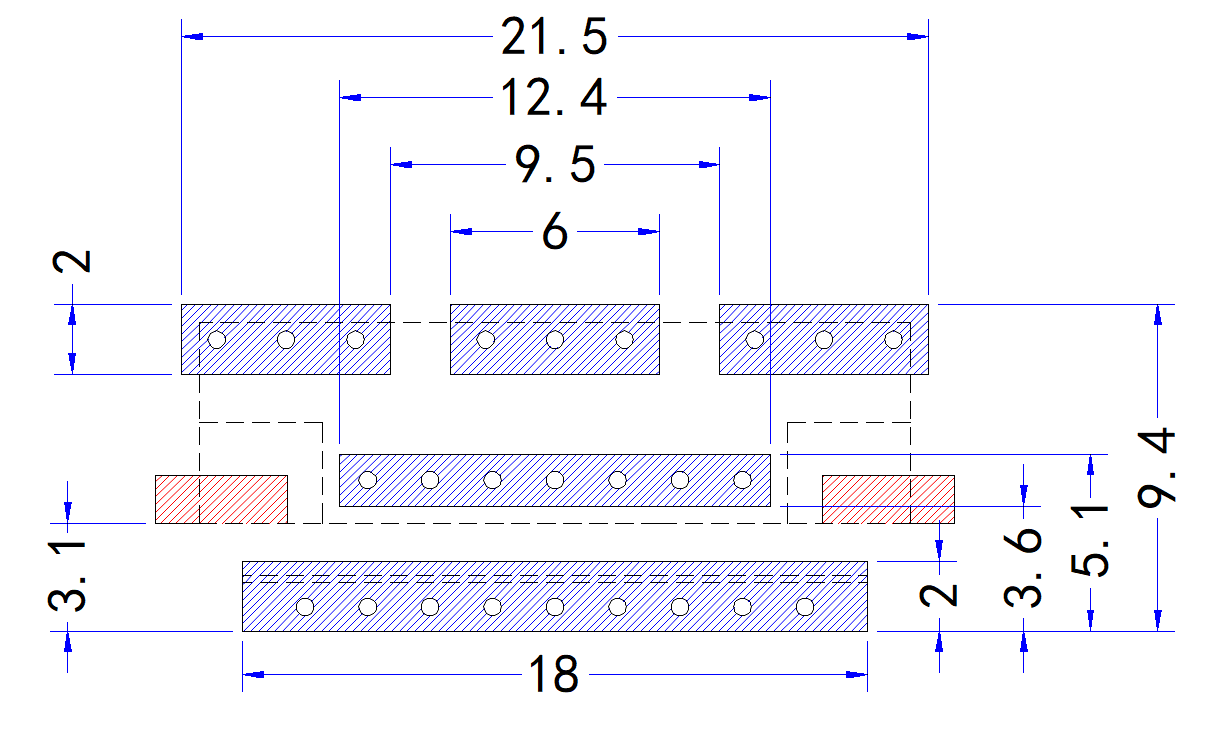

| Parameters | Frequency | / | Min | Typical | Max | Units |
|---|---|---|---|---|---|---|
| Passband | / | / | 990 | ~ | 1130 | MHz |
| Passband IL | / | / | 3.5 | dB | ||
| Ripple | / | / | 1.5 | dB | ||
| Rejection | DC-960 | MHz≥ | 25 | dB | ||
| Rejection | 1160 | MHz≥ | 25 | dB | ||
| Passband VSWR | / | / | 1.6 | |||
| Return loss | / | / | dB |
| Connector | Microstrip pad |
| Impedance | 50Ω |
| Power Capacity | 2W Design assurance |
| Bandwidth | -1dB≥140MHz |
| Delay ripple | ≤13ns |
| Delay | ≤25ns |
| Group Delay Consistency | ≤10ns |
| Operation Temp. | -55~+85℃ Design assurance |
| Storage Temp. | -55~+100℃ Design assurance |
| Other | Weight less than 20g |
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
| 2 | The product supports 220 ℃ reflow soldering. |
