F Low：868.6 - 875 MHz× Clear all
matches 35 models Default Newest
ZBF13-L915-90-1529 Filter

Filter ZBF13-L915-90-1529

Passband870~960MHz, DC-700MHz≥40dB, 1.15-3GHz≥40dB, SMD
In Stock View Details →
ZBF13-L915-90-1530 Filter

Filter ZBF13-L915-90-1530

Passband870~960MHz, DC-800MHz≥40dB, 1040-4000MHz≥40dB, SMA
In Stock View Details →
ZBF5-L1000-250-3538 Filter

Filter ZBF5-L1000-250-3538

Passband875~1125MHz, DC-700MHz≥38dB, SMD
In Stock View Details →
ZBSF2-L500-1660-1497 Filter

Filter ZBSF2-L500-1660-1497

Stopband F870~960MHz, ≥30dBc, Passband500~780MHz, 1030~1660MHz, Pin
In Stock View Details →
ZBSF6-C875-885-6120 Filter

Filter ZBSF6-C875-885-6120

Stopband F875~885MHz, ≥40dB, PassbandDC~865MHz, 895~3000MHz, SMA
View Details →
ZBSF6-C873-915-3900 Filter

Filter ZBSF6-C873-915-3900

Stopband F873~915MHz, ≥60dB, PassbandDC~863MHz, 925~3000MHz, SMA
View Details →
ZBSF6-C870-880-1725 Filter

Filter ZBSF6-C870-880-1725

Stopband F870~880MHz, ≥50dB, Passband885~960MHz, 930~934MHz, 7/16
View Details →
ZBSF6-C869-894-5463 Filter

Filter ZBSF6-C869-894-5463

Stopband F869~894MHz, ≥70dB, PassbandDC~859MHz, 904~3000MHz, N
View Details →
ZBSF6-C869-894-3480 Filter

Filter ZBSF6-C869-894-3480

Stopband F869~894MHz, ≥40dB, PassbandDC~849MHz, 914~4000MHz, SMA
View Details →
ZBSF6-C869-894-3401 Filter

Filter ZBSF6-C869-894-3401

Stopband F869~894MHz, ≥50dB, PassbandDC~839MHz, 924~4000MHz, SMA
View Details →
ZBSF6-C869-885-3412 Filter

Filter ZBSF6-C869-885-3412

Stopband F869~885MHz, ≥60dB, PassbandDC~864MHz, 886~3000MHz, L29
View Details →
ZBSF6-C869-880-4957 Filter

Filter ZBSF6-C869-880-4957

Stopband F869~880MHz, ≥60dB, PassbandDC~859MHz, 890~4000MHz, N
View Details →
ZBSF6-C868.6-884.01-5167 Filter

Filter ZBSF6-C868.6-884.01-5167

Stopband F868.6~884.01MHz, ≥60dB, PassbandDC~858.6MHz, 894~4000MHz, SMA
View Details →
ZBSF6-C868.6-884.01-3947 Filter

Filter ZBSF6-C868.6-884.01-3947

Stopband F868.6~884.01MHz, ≥70dB, PassbandDC~858.6MHz, 894.01~3000MHz, N
View Details →
ZBSF6-C868.6-884.01-3849 Filter

Filter ZBSF6-C868.6-884.01-3849

Stopband F868.6~884.01MHz, ≥70dB, PassbandDC~858.6MHz, 894.01~3000MHz, N
View Details →
ZBSF6-C868.6-884.01-3847 Filter

Filter ZBSF6-C868.6-884.01-3847

Stopband F868.6~884.01MHz, ≥70dB, PassbandDC~858.6MHz, 894.01~3000MHz, N
View Details →

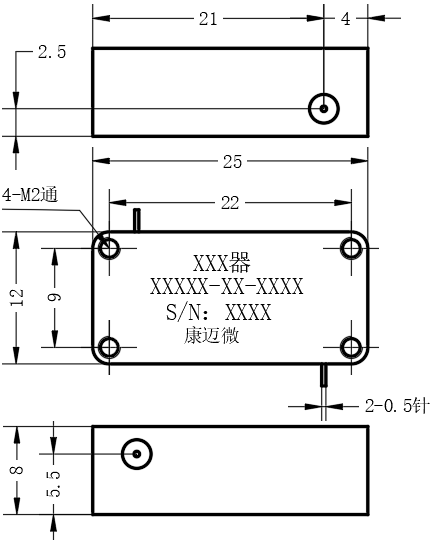

ZBSF15-L770-2000-593 Filter

Filter ZBSF15-L770-2000-593

Stopband F870~960MHz, ≥35dBc, PassbandDC~770MHz, 1060~2000MHz, Pin
View Details →

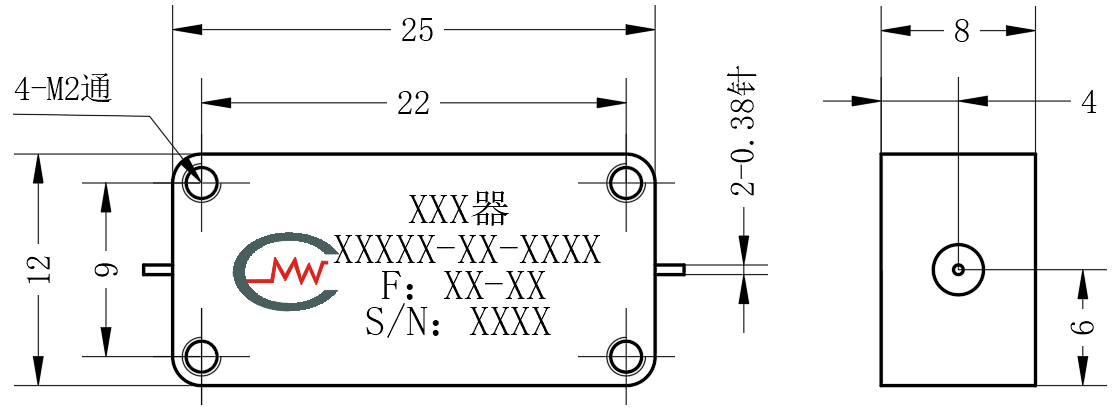

ZBSF15-L770-2000-484 Filter

Filter ZBSF15-L770-2000-484

Stopband F870~960MHz, ≥35dBc, PassbandDC~770MHz, 1060~2000MHz, Pin
View Details →
ZBSF15-L225-1350-466 Filter

Filter ZBSF15-L225-1350-466

Stopband F870~960MHz, ≥30dBc, Passband225~790MHz, 1040~1350MHz, Pin
View Details →
ZBSF14-L870-930-515 Filter

Filter ZBSF14-L870-930-515

Stopband F870~930MHz, ≥10dB, DCMHz, 1710MHz, ≥22dB, Passband736~842MHz, 960~1600MHz, Pin
View Details →
ZBF6-L962.5-175-2311 Filter

Filter ZBF6-L962.5-175-2311

Passband875~1050MHz, DC-525MHz≥70dB, 1315-4000MHz≥70dB, 微带针 Ø0.5mm
View Details →

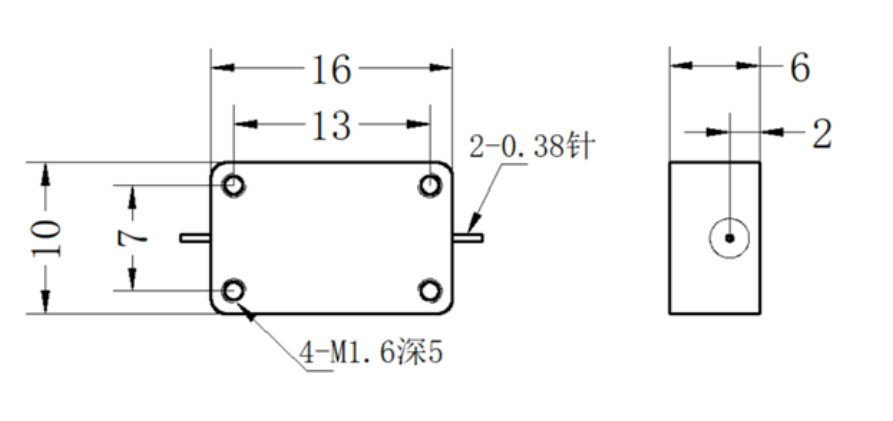

ZBF2-L915-90-1692 Filter

Filter ZBF2-L915-90-1692

Passband870~960MHz, DC-530MHz≥55dB, 1.2-3GHz≥55dB, Pin
View Details →
ZBF2-L875-10-2058 Filter

Filter ZBF2-L875-10-2058

Passband870~880MHz, DC-690MHz≥50dBc, 0.93-1GHz≥20dBc, Pin
View Details →
ZBF15-L890-30-1659 Filter

Filter ZBF15-L890-30-1659

Passband875~905MHz, DC-822.5MHz≥40dBc, 935-1000MHz≥8dBc, Pin
View Details →
