Stopband F870~930MHz, ≥10dB, DCMHz, 1710MHz, ≥22dB, Passband736~842MHz, 960~1600MHz, Pin
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | / | Min | Typical | Max | Units |
|---|---|---|---|---|---|
| Stopband F | 870 | ~ | 930 | MHz | |
| Stopband Rej. | ≥ | 10 | dB | ||
| Stopband F | DC | - | 450 | MHz | |
| Stopband F | 1710 | - | 5000 | MHz | |
| Stopband Rej. | ≥ | 22 | dB | ||
| Passband | 736 | ~ | 842 | MHz | |
| Passband | 960 | ~ | 1600 | MHz | |
| Passband IL | 3.0 | dB | |||
| Passband ripple | 2.0 | dB | |||
| Passband VSWR | 1.8 |

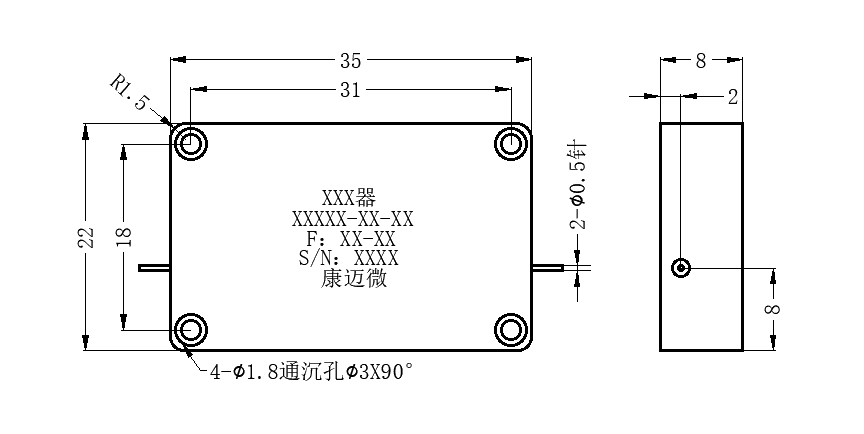

| Connector | Pin 0.5mm |
| Impedance | 50Ω |
| Surface | silver-plate |
| Power Capacity | 2W Design assurance |
| Phase balance | ±5°设计保证 |
| Operation Temp. | -40~+70℃ Design assurance |
| Storage Temp. | -55~+85℃ Design assurance |
| Quality Grade | Industrial grade |
