RF Filter

Total 50 models
Categories
Categories RF Filter
RF Filter16049
RF Filter15377 Diplexer468 Combiner52 Filter bank148 Active Filter4
Power Distribution1709
Divider&Hybrid1047 Coupler559 Balun103
Antenna1230
Antenna1174 Antenna accessories7 Tripod35 Antenna Box14
Signal Amplification605
RF Amplifier605
Connector1428
RF Connector13 RF Coaxial Adapter184 Bias Tee37 Coaxial Cable774 DC Block11 Waveguide adapter193 Waveguide Connection214 Lightning arrester1 Impedance transformer1
Controller642
Limiter77 RF Switch359 Equalizer45 Switching filter63 Mixer26 Detector34 Digital attenuator1 Phase shifter13 Delayer24
Other devices1491
Load228 Attenuator886 Isolator228 Circulator139 Frequency multiplier10
Module and test system48
RF Switch Matrix20 Mobile RF Test Matrix1 RF Module18 Frequency source9
Accessories40
Chip Capacitor18 glass insulator15
Filters
Filters 1
Feature
Bandpass 45 Highpass 2 Notch 2
F Low MHz
59 8 59.77 1 59.9 1 60 39 60.5 1
–
Center frequency MHz
60 7 64 2 70 36 75 2
–
F High MHz
60 - 61 7 63 - 69 3 80 - 81 36 90 - 600 3 2200 1
–
IL on center frequency dB
0.5 - 1 26 1.5 - 2 12 2.5 - 3 6 6 - 23.5 2
–
Maximum loss of side frequency dB
1 - 1.5 7 2 - 3 36 3.5 - 4.5 5 7 - 26.9 2
–
Rejection dB
20 - 35 6 40 - 50 27 55 - 63 12 64.999 - 80 5
–
Connector
SMD 17 SMA 10 N 1 Microstrip needle 22
Power Handling
0.1 - 0.5 2 1 - 2 38 4 - 5 7 10 - 30 2 100 1
–
Filter type
LC 48 Coaxial 1 SAW 1
F Low：59 - 60.5 MHz× Clear all
matches 50 models Default Newest
BF012 Filter

Filter BF012

Passband60~90MHz, DC-30MHz≥35dB, 37MHz≥20dB, 122MHz≥20dB, 155-2000MHz≥dB, /
In Stock View Details →
BF079 Filter

Filter BF079

Passband60~80MHz, DC-48MHz≥40dB, 92-500MHz≥40dB, SMD
In Stock View Details →
ZBF15-L70-20-376 Filter

Filter ZBF15-L70-20-376

Passband60~80, 50MHz≥25dB, 90MHz≥18dB, SMD
In Stock View Details →
ZBF9-S60-5.1-1097 Filter

Filter ZBF9-S60-5.1-1097

Passband57.8~62.2MHz, 40dB BW7.2MHz, Pin
In Stock View Details →
ZBF15-L70-20-568 Filter

Filter ZBF15-L70-20-568

Passband60~80MHz, DC-40MHz≥60dBc, 90MHz≥40dB, SMA
In Stock View Details →
ZHPF20-L60-600-222 Filter

Filter ZHPF20-L60-600-222

Passband60~600MHz, DC-52MHz≥40dB, SMA-MF
In Stock View Details →
ZBF14-L70-20-156 Filter

Filter ZBF14-L70-20-156

Passband60~80MHz, DC-52MHz≥40dB, 88-500MHz≥40dB, SMA
In Stock View Details →
ZBF5-L70-20-3467 Filter

Filter ZBF5-L70-20-3467

Passband60~80MHz, DC-40MHz≥40dB, SMD
In Stock View Details →
ZBF15-L70-20-767 Filter

Filter ZBF15-L70-20-767

Passband60~80MHz, 120MHz≥50dB, 130-180MHz≥60dB, Pin
In Stock View Details →
ZHPF13-L60-2200-2327 Filter

Filter ZHPF13-L60-2200-2327

Passband60~2200MHz, DC-40MHz≥63dB, 40-50MHz≥50dB, TNC
View Details →
ZBSF3-L60-63-4564 Filter

Filter ZBSF3-L60-63-4564

Stopband F60~63MHz, 60-63MHz≥28dBc, 61.4MHz≥50dBc, PassbandDC~53.4MHz, 70.4~400MHz, N
View Details →
ZBSF3-L60-60-2532 Filter

Filter ZBSF3-L60-60-2532

Stopband F60~60.01MHz, ≥40dB, PassbandDC~55MHz, 63.5~100MHz, SMD
View Details →
ZBF5-L70-20-3129 Filter

Filter ZBF5-L70-20-3129

Passband60~80MHz, SMD
View Details →
ZBF5-L70-20-2243 Filter

Filter ZBF5-L70-20-2243

Passband60~80MHz, DC-45MHz≥35dBc, 95-500MHz≥35dBc, Pin
View Details →
ZBF5-L70-20-1879 Filter

Filter ZBF5-L70-20-1879

Passband60~80MHz, DC-46MHz≥40dBc, 94-500MHz≥40dBc, Pin
View Details →
ZBF5-L60-1-1794 Filter

Filter ZBF5-L60-1-1794

Passband60MHz, 1dB BW1~2MHz, DC-56MHz≥20dBc, 64MHz≥20dBc, SMD
View Details →
ZBF5-L60-0-2049 Filter

Filter ZBF5-L60-0-2049

Passband60MHz, 20-40MHz≥70dBc, 80-200MHz≥70dBc, SMA-K
View Details →

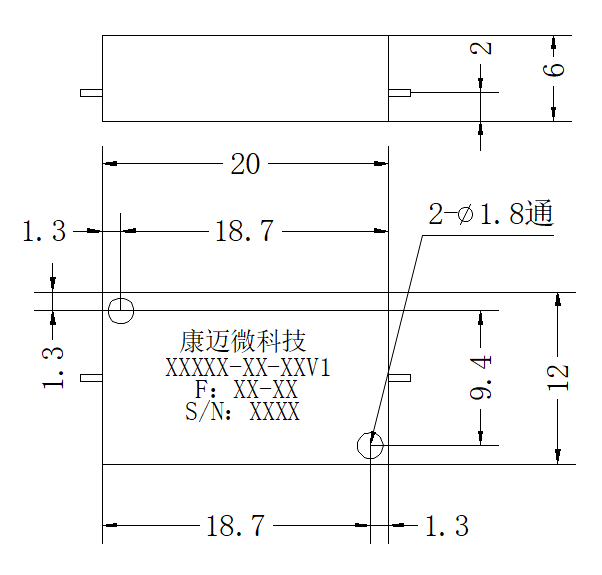

ZBF3-L70-20-565 Filter

Filter ZBF3-L70-20-565

Passband60~80MHz, DC-30MHz≥45dB, 120-1100MHz≥50dB, Pin
View Details →
ZBF3-L70-20-4603 Filter

Filter ZBF3-L70-20-4603

Passband60~80MHz, DC-50MHz≥50dBc, 100-200MHz≥50dBc, SMD
View Details →

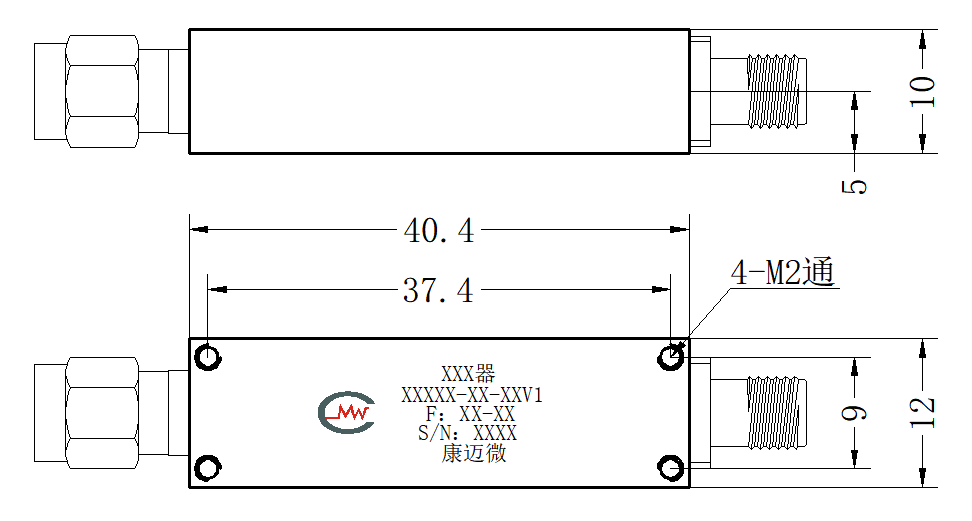

ZBF3-L70-20-3614 Filter

Filter ZBF3-L70-20-3614

Passband60~80MHz, DC-40MHz≥40dB, 100-2000MHz≥40dB, SMA
View Details →

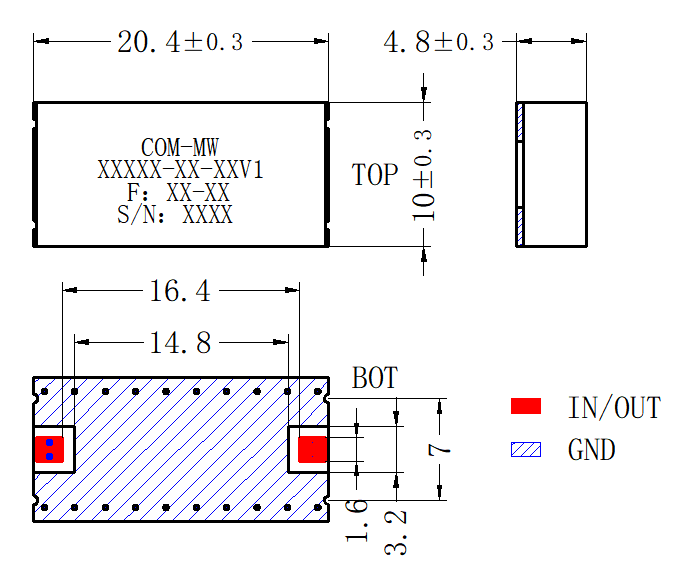

ZBF3-L70-20-2672 Filter

Filter ZBF3-L70-20-2672

Passband60~80MHz, DC-45MHz≥40dB, 95-1000MHz≥40dB, SMD
View Details →
ZBF3-L70-20-2366 Filter

Filter ZBF3-L70-20-2366

Passband60~80MHz, DC-40MHz≥55dB, 105-500MHz≥55dB, SMD
View Details →
ZBF3-L70-20-1575 Filter

Filter ZBF3-L70-20-1575

Passband60~80MHz, DC-50MHz≥35dBc, 90MHz≥35dBc, Pin
View Details →
ZBF3-L64-7-1149 Filter

Filter ZBF3-L64-7-1149

Passband60.5~67.5MHz, DC-48MHz≥30dBc, 80-500MHz≥30dBc, SMA
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
