Passband60~80MHz, 120MHz≥50dB, 130-180MHz≥60dB, Pin
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Frequency | / | Min | Typical | Max | Units |
|---|---|---|---|---|---|---|
| Passband | / | / | 60 | ~ | 80 | MHz |
| Passband IL | / | / | 2.0 | dB | ||
| -0.5dB BW | ＞ | 20MHz | ||||
| -3dB BW | ≥ | 26MHz | ||||

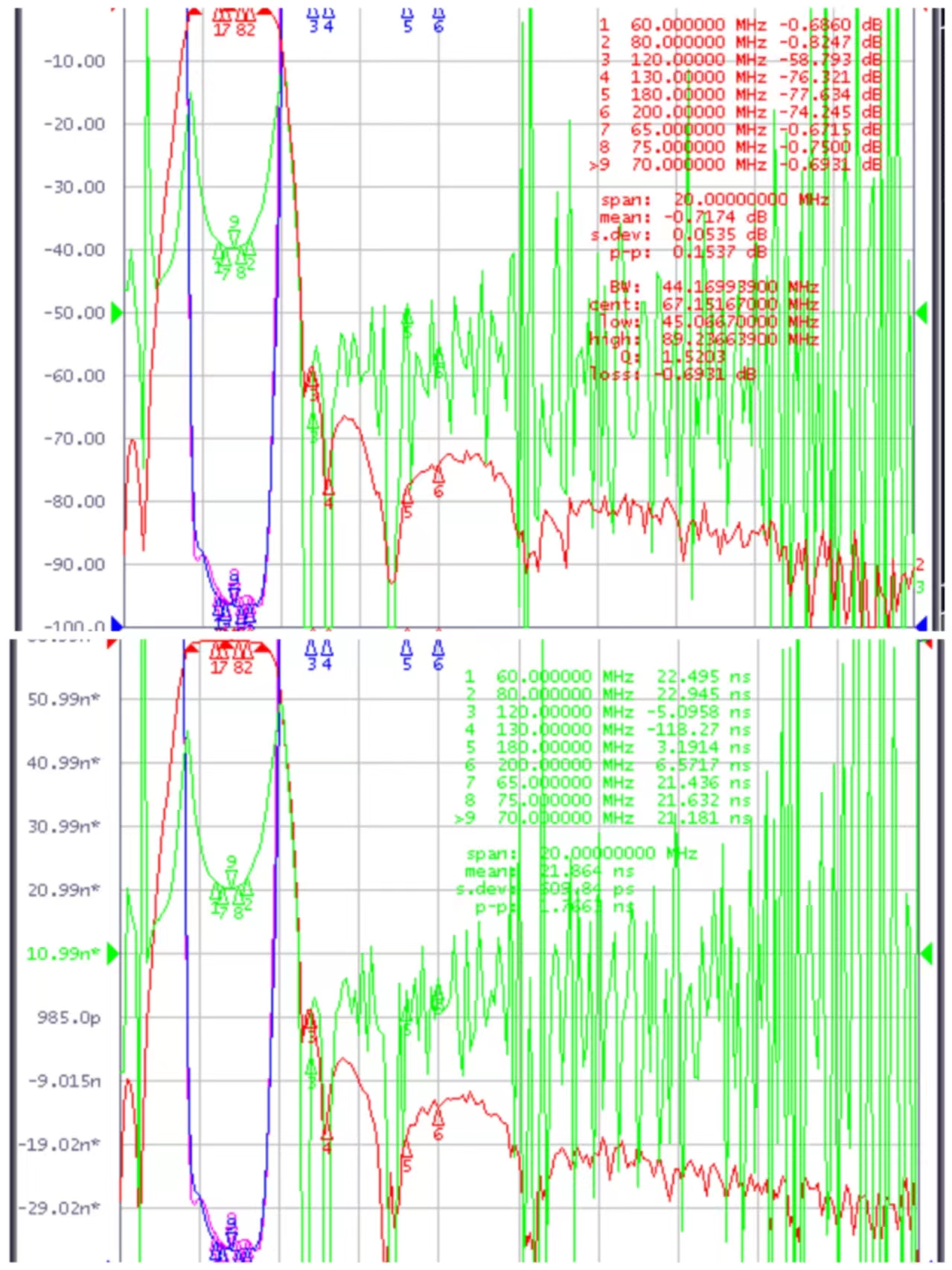

| Rejection | 120 | MHz≥ | 50 | dB | ||
| Rejection | 130-180 | MHz≥ | 60 | dB | ||
| Rejection | 200-1800 | MHz≥ | 50 | dB | ||
| Passband VSWR | / | / | 1.35 | 1.5 |

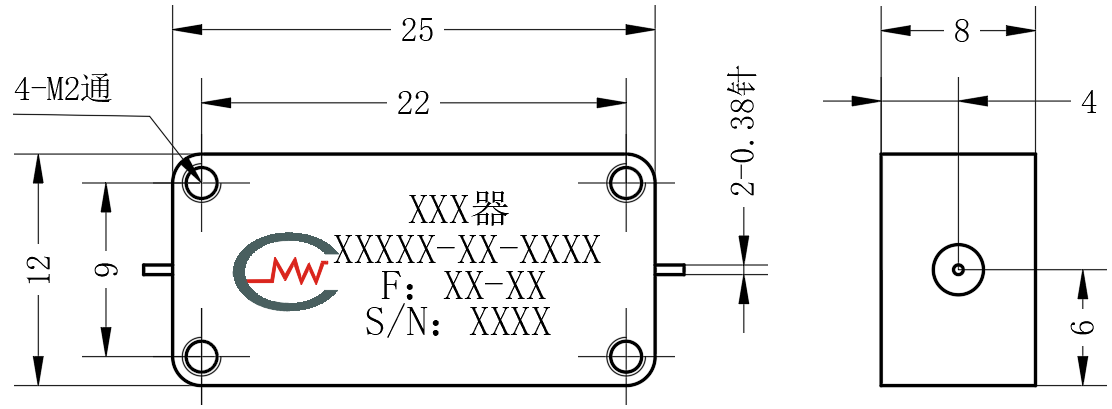

| Connector | Pin 0.38mm |
| Impedance | 50Ω |
| Surface | silver-plate |
| Power Capacity | 5W Design assurance |
| absolute delay | ≤40ns60-80MHz |
| Delay ripple | ≤2ns65-75MHz |
| Delay ripple | ≤8ns60-80MHz |
| Operation Temp. | -55~+85℃ Design assurance |
| Storage Temp. | -55~+85℃ Design assurance |
