Filters
Filters 1
Feature
Bandpass 17 Notch 23
F Low MHz
2504 1 2510 4 2515 28 2520 2 2525 5
–
Center frequency MHz
2535 - 2545 2 2565 - 2585 3 2595 - 2600 7 2602.5 - 2650 2 2780 - 2854 2
–
F High MHz
2545 - 2570 7 2594 - 2620 3 2655 - 2690 26 2790 - 3204 3 5000 1
–
IL on center frequency dB
0.5 1 1 9 2 3 3 2 4 1
–
Maximum loss of side frequency dB
1 - 1.5 4 1.8 - 2.5 15 3 - 3.5 18 4 - 5 3
–
Rejection dB
30 - 40 8 45 - 50 13 55 - 60 14 65 - 70 3 75 - 80 2
–
Connector
SMD 2 SMA 17 N 17 Microstrip needle 4
Power Handling
1 - 5 8 10 - 20 7 30 - 100 21 150 - 200 4
–
Filter type
LC 5 Cavity&waveguide 32 Coaxial 1 Dielectric 2
F Low：2504 - 2525 MHz× Clear all
matches 40 models Default Newest
ZBF9-D2600-90-2041 Filter

Filter ZBF9-D2600-90-2041

Passband2510~2690MHz, DC-2.3GHz≥45dB, 2.9GHz≥45dB, Microstrip pad
In Stock View Details →
K6-2515-2675-10N60100-002 Notch filter

Notch filter K6-2515-2675-10N60100-002

Stopband F2515~2675MHz, ≥60dB, PassbandDC~2505MHz, 2685~6000MHz, N
In Stock View Details →
K6-2515-2675-10S60100-003 Filter

Filter K6-2515-2675-10S60100-003

Stopband F2515~2675MHz, ≥60dB, PassbandDC~2505MHz, 2685~6000MHz, SMA
In Stock View Details →

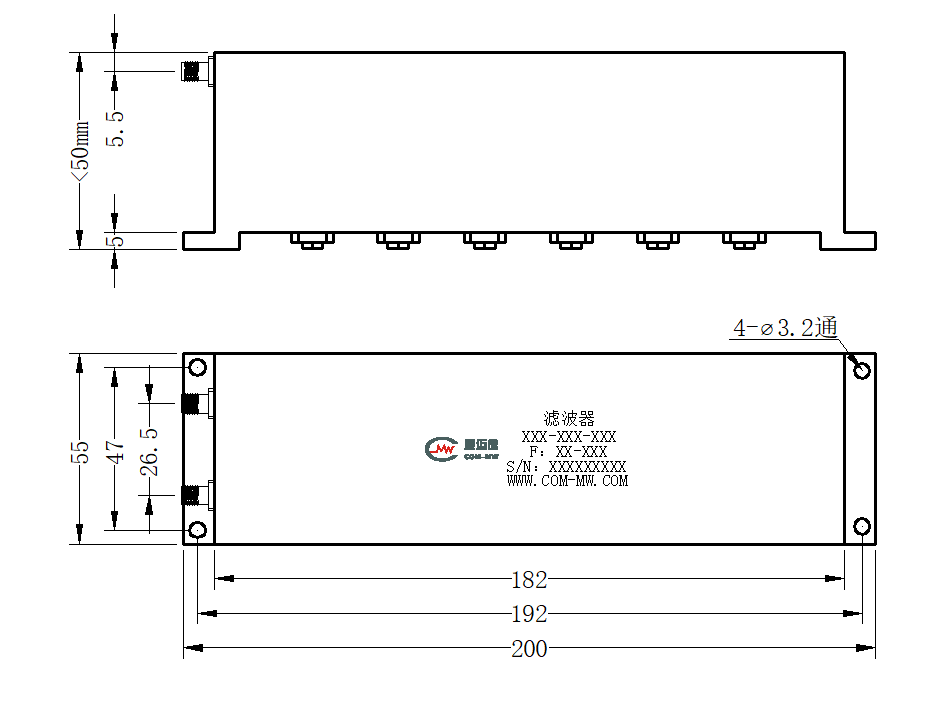

ZBSF6-C2525-2545-4036 Filter

Filter ZBSF6-C2525-2545-4036

Stopband F2525~2545MHz, ≥55dB, PassbandDC~2505MHz, 2565~4200MHz, SMA
View Details →

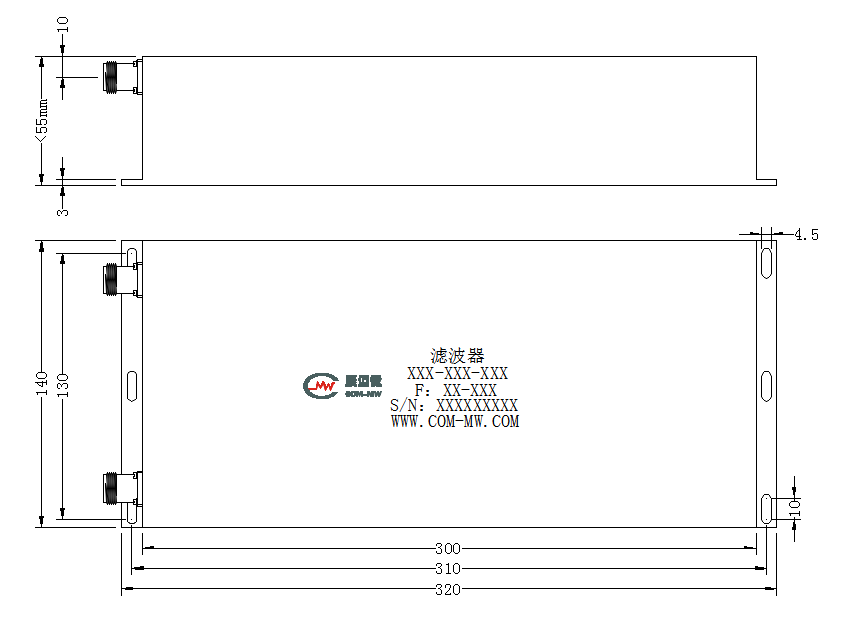

ZBSF6-C2515-5000-6024 Filter

Filter ZBSF6-C2515-5000-6024

Stopband frequency one2515~2675MHz, Stopband frequency two3300~3600MHz, 阻带频率三4800~5000MHz, ≥40dB, PassbandDC~2495MHz, 2695~3280MHz, 3620~4780MHz, 5020~6000MHz, N
View Details →
ZBSF6-C2515-2694-3820 Filter

Filter ZBSF6-C2515-2694-3820

View Details →
ZBSF6-C2515-2675-5339 Filter

Filter ZBSF6-C2515-2675-5339

Stopband F2515~2675MHz, ≥50dB, PassbandDC~2425MHz, 2765~4000MHz, SMA
View Details →
ZBSF6-C2515-2675-4963 Filter

Filter ZBSF6-C2515-2675-4963

Stopband F2515~2675MHz, ≥60dB, PassbandDC~2505MHz, 2685~6000MHz, SMA
View Details →
ZBSF6-C2515-2675-4514 Filter

Filter ZBSF6-C2515-2675-4514

Stopband F2515~2675MHz, ≥50dB, PassbandDC~2500MHz, 2700~6000MHz, N
View Details →
ZBSF6-C2515-2675-4452 Filter

Filter ZBSF6-C2515-2675-4452

Stopband F2515~2675MHz, ≥60dB, PassbandDC~2505MHz, 2685~6000MHz, N
View Details →
ZBSF6-C2515-2675-4185 Filter

Filter ZBSF6-C2515-2675-4185

Stopband F2515~2675MHz, ≥50dB, PassbandDC~2505MHz, 2685~6000MHz, SMA
View Details →
ZBSF6-C2515-2675-3819 Filter

Filter ZBSF6-C2515-2675-3819

View Details →
ZBSF6-C2515-2675-3398 Filter

Filter ZBSF6-C2515-2675-3398

Stopband F2515~2675MHz, ≥75dB, PassbandDC~2495MHz, 2695~5000MHz, N
View Details →
ZBSF6-C2515-2675-3097 Filter

Filter ZBSF6-C2515-2675-3097

Stopband F2515~2675MHz, ≥80dB, PassbandDC~2505MHz, 2685~6000MHz, N
View Details →
ZBSF6-C2515-2575-3617 Filter

Filter ZBSF6-C2515-2575-3617

View Details →
ZBSF5-L2515-2675-3532 Filter

Filter ZBSF5-L2515-2675-3532

Stopband F2515~2675MHz, ≥30dB, Passband1000~2355MHz, 2835~6000MHz, Pin
View Details →
ZBF6-C2595-160-6048 Filter

Filter ZBF6-C2595-160-6048

Passband2515~2675MHz, DC-2495MHz≥50dB, 2695-4500MHz≥50dB, SMA
View Details →
ZBF6-C2595-160-017 Filter

Filter ZBF6-C2595-160-017

Passband2515~2675MHz, DC-2505MHz≥50dB, 2685-6000MHz≥50dB, SMA
View Details →
ZBF5-L2595-160-3345 Filter

Filter ZBF5-L2595-160-3345

Passband2515~2675MHz, DC-2045MHz≥40dB, 3145-3500MHz≥40dB, SMA
View Details →
ZBF4-C2565-100-1187 Filter

Filter ZBF4-C2565-100-1187

Passband2515~2615MHz, 2475MHz≥40dB, 2655MHz≥40dB, SMA
View Details →
ZBF4-C2545-50-204 Filter

Filter ZBF4-C2545-50-204

Passband2520~2570MHz, DC-2500MHz≥60dB, 2590-5000MHz≥60dB, SMA
View Details →
ZBF4-C2535-50-959 Filter

Filter ZBF4-C2535-50-959

Passband2510~2560MHz, 2487MHz≥60dBc, 2583MHz≥60dBc, SMA
View Details →
ZBF3-L2585-140-1854 Filter

Filter ZBF3-L2585-140-1854

Passband2515~2655MHz, DC-2264MHz≥30dB, 2920-5310MHz≥30dB, Pin
View Details →
ZBF3-C2602.5-175-2417 Filter

Filter ZBF3-C2602.5-175-2417

Passband2515~2690MHz, 2498MHz≥40dBc, DC-2458MHz≥50dBc, SMA
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
