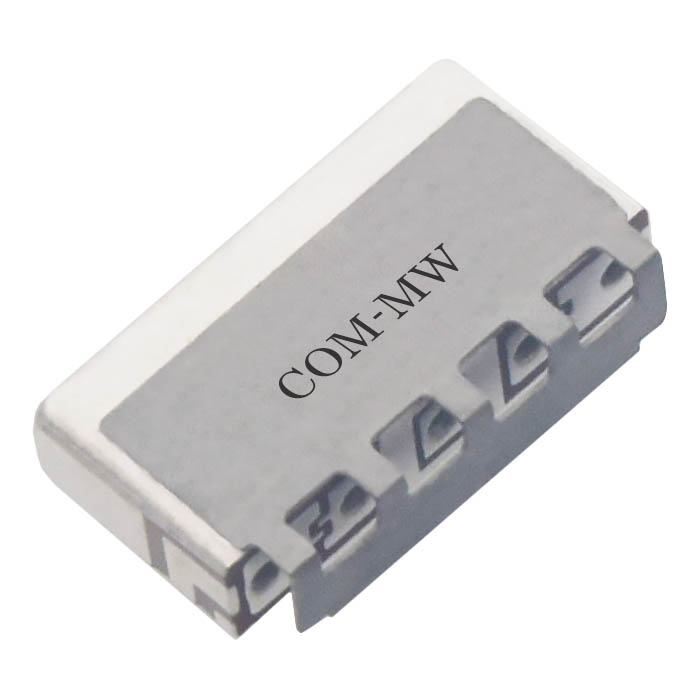

Passband2510~2690MHz, DC-2.3GHz≥45dB, 2.9GHz≥45dB, Microstrip pad
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
Low loss, small volume.
| Parameters | Frequency | / | Min | Typical | Max | Units |
|---|---|---|---|---|---|---|
| Passband | / | / | 2510 | ~ | 2690 | MHz |
| Passband IL | / | / | 5 | dB | ||
| Ripple | / | / | 1 | dB | ||
| Rejection | DC-2.3 | GHz≥ | 45 | dB | ||
| Rejection | 2.9 | GHz≥ | 45 | dB | ||
| Passband VSWR | / | / | 1.5 |
| Connector | Microstrip pad |
| Impedance | 50Ω |
| Power Capacity | 2W Design assurance |
| Operation Temp. | -45~+85℃ Design assurance |
| Quality Grade | Industrial grade |

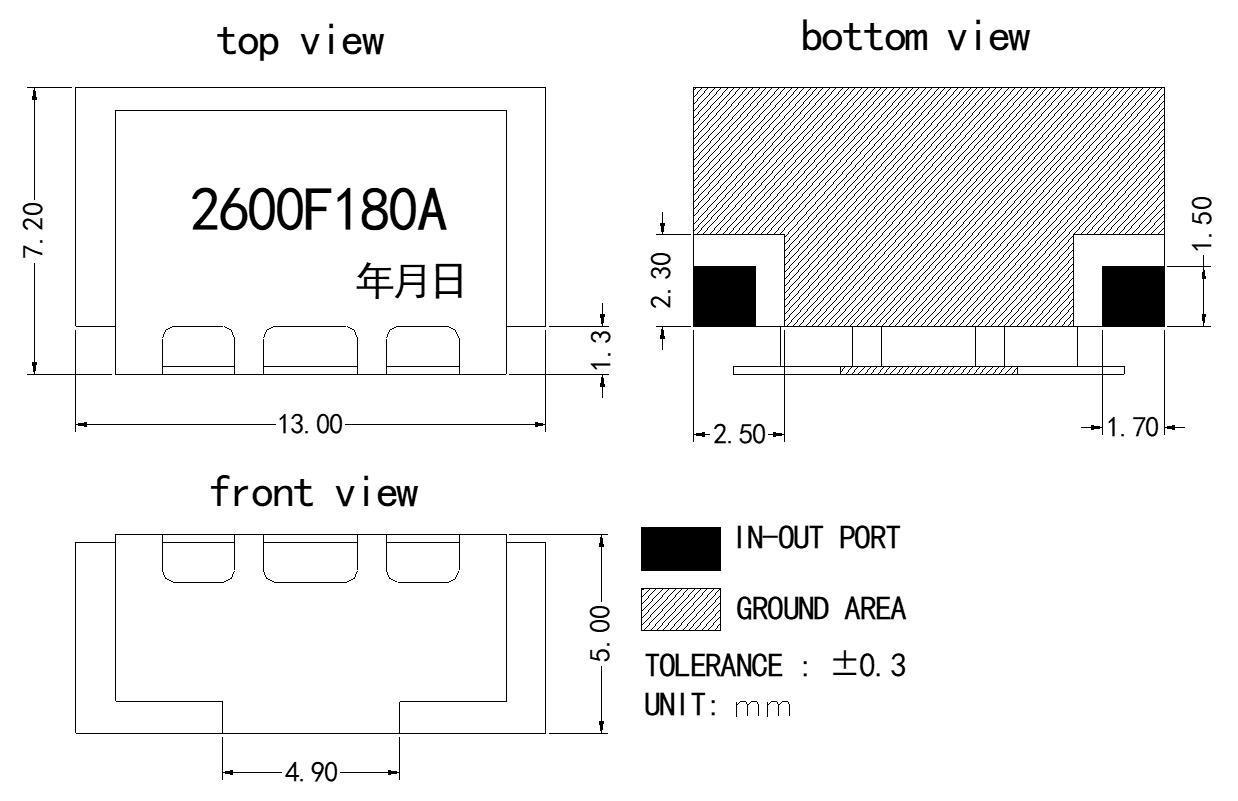

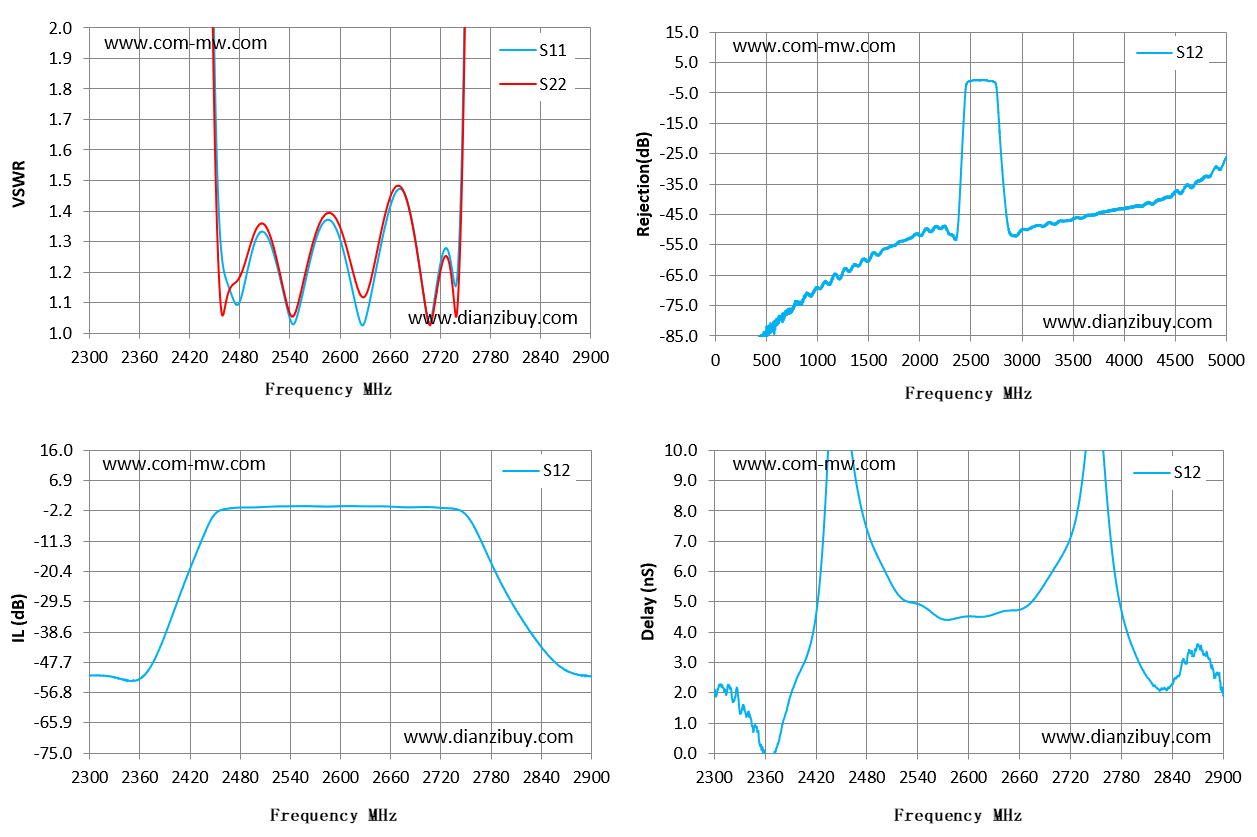

| Frequency MHz | S11 VSWR | S22 VSWR | S12 IL (dB) | S12 Delay (ns) |
|---|---|---|---|---|
| 2300 | 507.1 | 1215.83 | -51.66 | 2.03 |
| 2343 | 138.91 | 269.27 | -53.12 | 1.21 |
| 2386 | 56.84 | 64.51 | -42.27 | 1.43 |
| 2429 | 12.62 | 12.05 | -14.07 | 7.24 |
| 2471 | 1.12 | 1.16 | -1.36 | 8.43 |
| 2514 | 1.31 | 1.34 | -0.95 | 5.37 |
| 2557 | 1.15 | 1.17 | -0.79 | 4.64 |
| 2600 | 1.31 | 1.35 | -0.82 | 4.52 |
| 2643 | 1.2 | 1.24 | -0.83 | 4.7 |
| 2686 | 1.37 | 1.37 | -1.14 | 5.42 |
| 2729 | 1.27 | 1.25 | -1.42 | 8.06 |
| 2771 | 15.99 | 15.32 | -12.73 | 6.26 |
| 2814 | 154 | 101.59 | -33.39 | 2.42 |
| 2857 | 811.92 | 263.66 | -47.71 | 2.96 |
| 2900 | 348.4 | 716.28 | -51.87 | 2.15 |
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
| 2 | The product supports 190 ℃ reflow soldering |
