STBP243-5R0-K260 Thin film filter

Thin film filter STBP243-5R0-K260

Bandwidth21.8-26.8GHz, Rejection40@DC-18.8GHz, 40@28.8-45.0GHz
In Stock View Details →
STBP224-1R2-M470 Thin film filter

Thin film filter STBP224-1R2-M470

Bandwidth21.8-23.0GHz, Rejection35@DC-20.5GHz, 40@24.5-34.0GHz
In Stock View Details →
STBP241-4R6-K548 Thin film filter

Thin film filter STBP241-4R6-K548

Bandwidth21.8-26.4GHz, Rejection40@DC-19.2GHz, 40@29.0-48.0GHz
In Stock View Details →
STBP221-0R6-K647 Thin film filter

Thin film filter STBP221-0R6-K647

Bandwidth21.8-22.4GHz, Rejection40@DC-20.5GHz, 40@23.7-31.0GHz
In Stock View Details →
STBP250-6R4-M534 Thin film filter

Thin film filter STBP250-6R4-M534

Bandwidth21.8-28.2GHz, Rejection40@DC-18.8GHz, 40@32.2-42.0GHz
In Stock View Details →
STBP223-0R8-N201 Thin film filter

Thin film filter STBP223-0R8-N201

Bandwidth21.9-22.7GHz, Rejection40@DC-20.9GHz, 40@23.9-32.0GHz
In Stock View Details →
ZHPF4-M21.8-40G-1628 Filter

Filter ZHPF4-M21.8-40G-1628

Passband21.8~40GHz, DC-18GHz≥50dB, dB, 2.92
In Stock View Details →
ZBF5-C26-8.2G-1511 Filter

Filter ZBF5-C26-8.2G-1511

Passband21.9~30.1GHz, 1dB BW9GHz, 33-34GHz≥45dBc, DC-18GHz≥70dBc, 2.92
View Details →

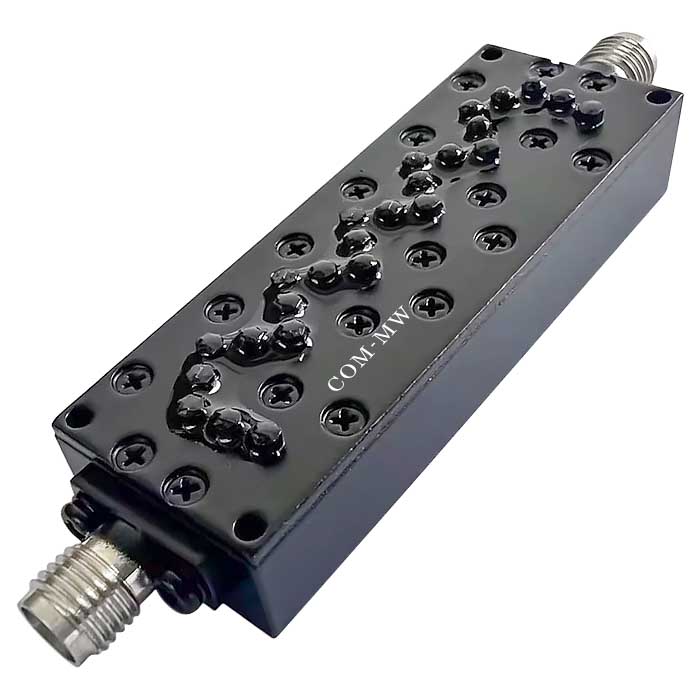

ZBF5-C22-0.4G-2477 Filter

Filter ZBF5-C22-0.4G-2477

Passband21.8~22.2GHz, 21.7GHz≥60dB, 22.3GHz≥60dB, SMA
View Details →

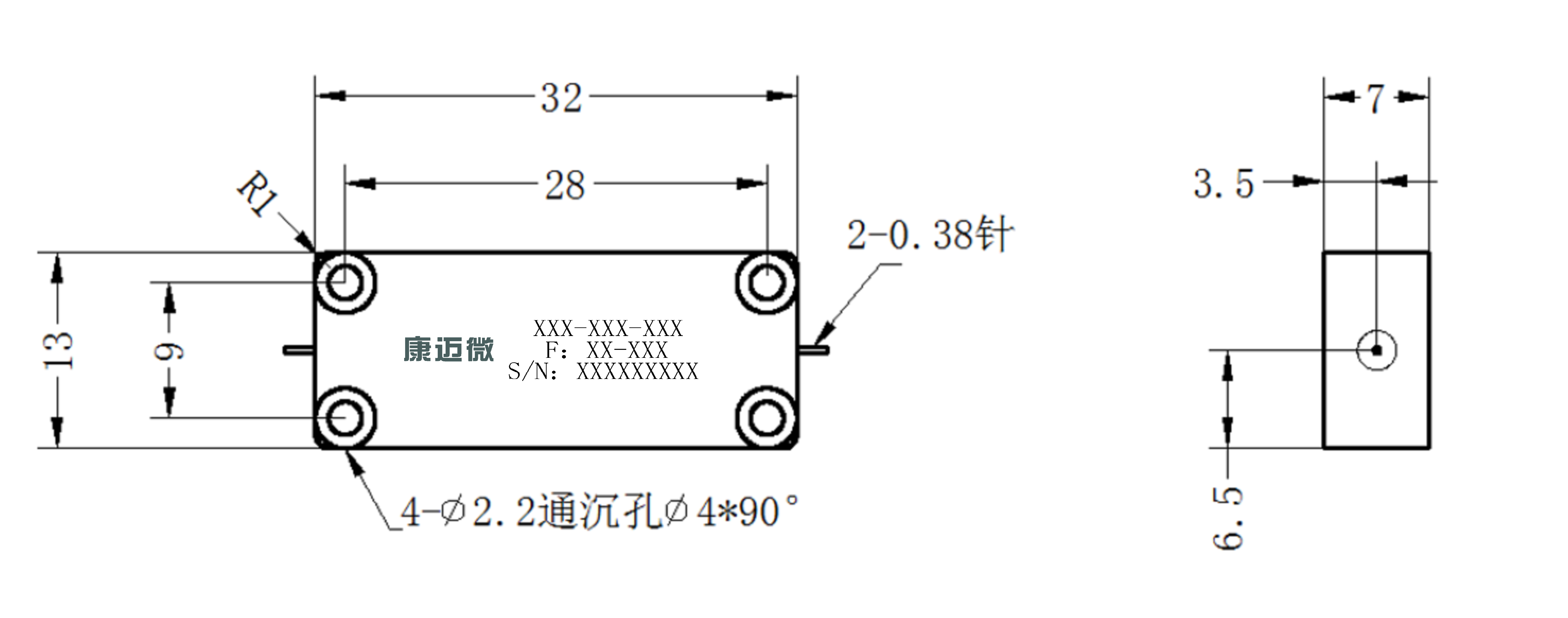

ZBF2-C22.1-0.6G-1777 Filter

Filter ZBF2-C22.1-0.6G-1777

Passband21.8~22.4GHz, DC-20.3GHz≥40dBc, 23.6-42GHz≥40dBc, Pin
View Details →
ZBF2-C22-0.36G-2027 Filter

Filter ZBF2-C22-0.36G-2027

Passband21.82~22.18GHz, DC-20.2GHz≥60dBc, 23.4-40GHz≥50dBc, Pin
View Details →

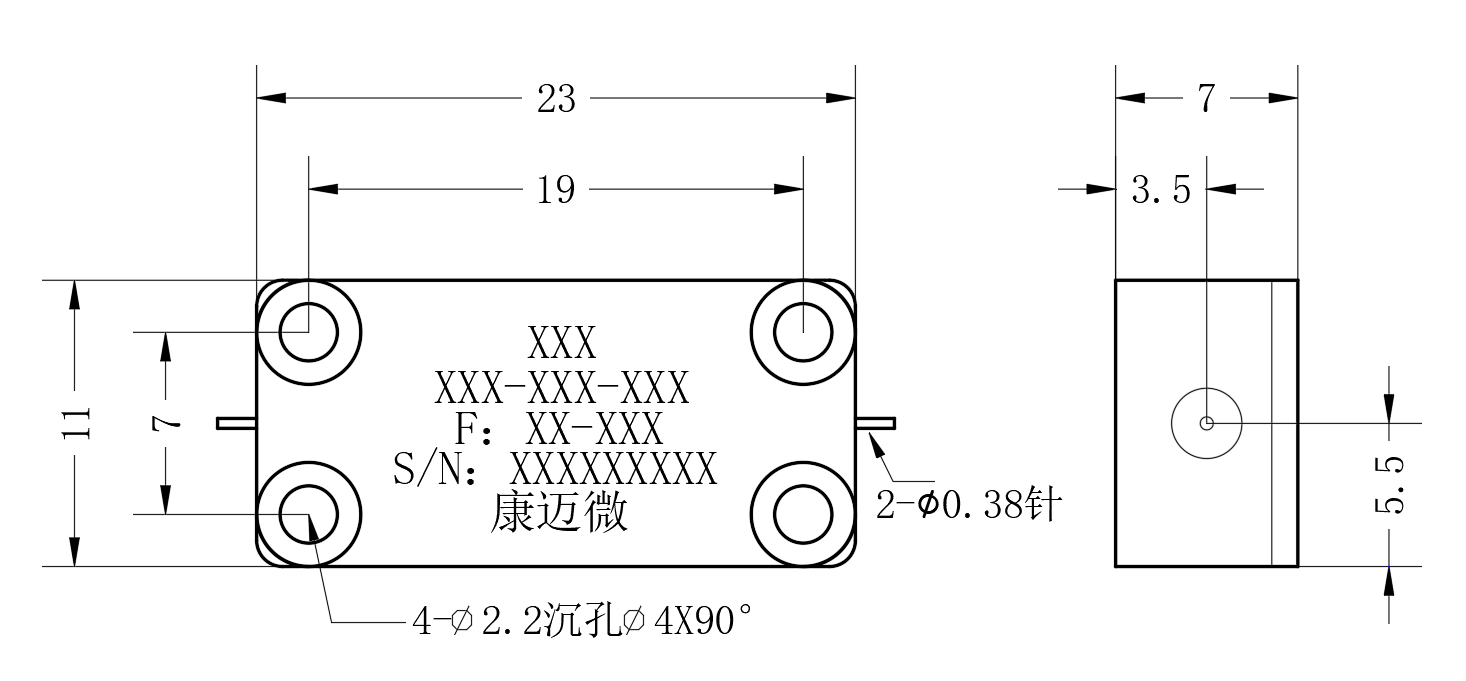

ZBF14-C22-0.24G-681 Filter

Filter ZBF14-C22-0.24G-681

Passband21.88~22.12GHz, 22.38-23GHz≥23dBc, 23.2-40GHz≥55dBc, Pin
View Details →

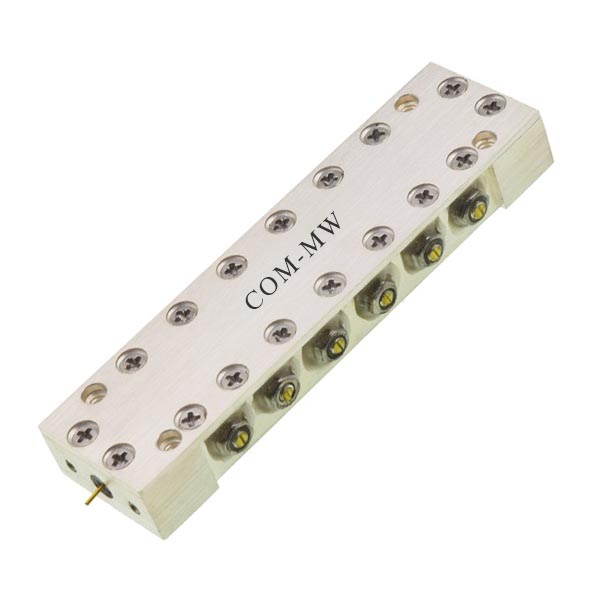

ZBF14-C22-0.1G-667 Filter

Filter ZBF14-C22-0.1G-667

Passband21.95~22.05GHz, DC-18GHz≥55dBc, 24-39GHz≥55dBc, Pin
View Details →
ZBF13-C24.2-4.6G-187 Filter

Filter ZBF13-C24.2-4.6G-187

Passband21.9~26.5GHz, DC-20GHz≥40dBc, 20-20.5GHz≥25dBc, Pin
View Details →
ZBF13-C24-4.2G-191 Filter

Filter ZBF13-C24-4.2G-191

Passband21.9~26.1GHz, DC-20.5GHz≥40dBc, 27.5-40GHz≥40dBc, Pin
View Details →
ZBF13-C22.25-0.9G-294 Filter

Filter ZBF13-C22.25-0.9G-294

Passband21.8~22.7GHz, DC-21GHz≥40dB, 23.5-40GHz≥40dB, SMA
View Details →
ZBF-BC22-0.1G-2416 Filter

Filter ZBF-BC22-0.1G-2416

Passband21.95~22.05GHz, DC-21GHz≥60dBc, 23-40GHz≥60dBc, Pin
View Details →

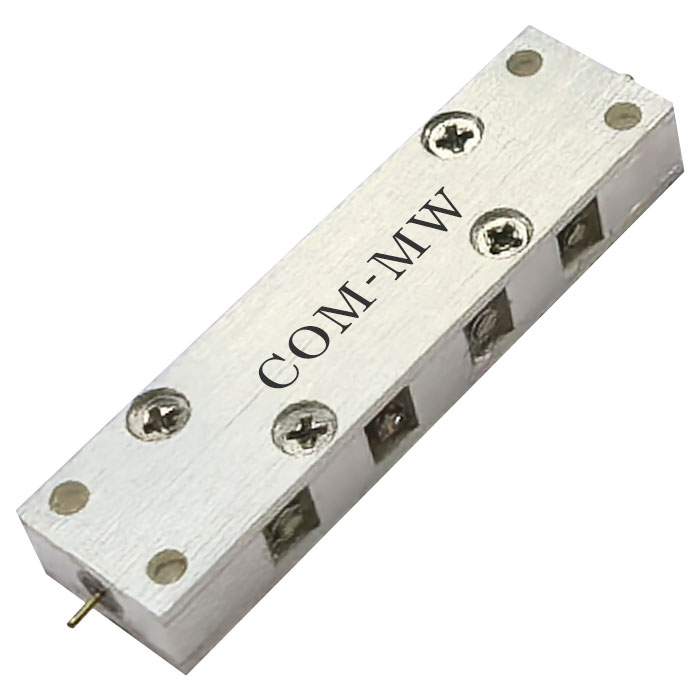

SCBP228-2R0-3049 Cavity filter

Cavity filter SCBP228-2R0-3049

Passband21.8~23.8GHz, DC-20.6GHz≥40dBc, 24-24.2GHz≥40dBc, SMP
View Details →
SCBP228-2R0-3046 Cavity filter

Cavity filter SCBP228-2R0-3046

Passband21.8~23.8GHz, DC-20.8GHz≥50dBc, 24.8-40GHz≥50dBc, Pin
View Details →
