F High：722 - 725 MHz× Clear all
matches 15 models Default Newest
BF060 Filter

Filter BF060

Passband663~723MHz, DC-420MHz≥40dB, 420-565MHz≥27dB, SMD, Replace SXBP-693+
In Stock View Details →
ZBF5-L720-0-2674 Filter

Filter ZBF5-L720-0-2674

Center Frequency720MHz, 1dB BW10MHz, 650-670MHz≥40dB, Pin
View Details →
ZBF3-L710-28-418 Filter

Filter ZBF3-L710-28-418

Passband696~724MHz, DC-670MHz≥30dB, 750-1500MHz≥30dB, SMD
View Details →
ZBF15-L710-30-742 Filter

Filter ZBF15-L710-30-742

Passband695~725MHz, 600MHz≥50dB, 780MHz≥50dB, SMD
View Details →
ZBF15-L710-30-1670 Filter

Filter ZBF15-L710-30-1670

Passband695~725MHz, DC-655MHz≥40dBc, 765-1000MHz≥40dBc, SMD
View Details →
ZBF15-L710-30-1644 Filter

Filter ZBF15-L710-30-1644

Passband695~725MHz, DC-627.5MHz≥40dB, 792.5-1000MHz≥40dB, SMD
View Details →

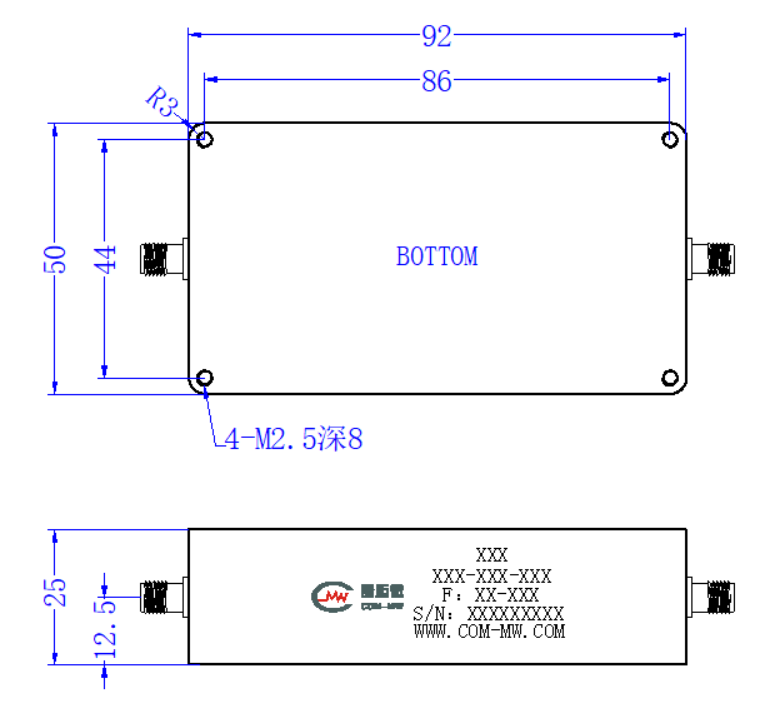

ZBF13-C720-5-1733 Filter

Filter ZBF13-C720-5-1733

Passband717.5~722.5MHz, DC-0.7GHz≥30dBc, 0.74-1GHz≥30dBc, SMA
View Details →
K6-717.5-722.5-30S5050-003 Filter

Filter K6-717.5-722.5-30S5050-003

Stopband F717.5~722.5MHz, ≥50dB, PassbandDC~687.5MHz, 752.5~3000MHz, SMA
View Details →
K6-717.5-722.5-30N5050-004 Filter

Filter K6-717.5-722.5-30N5050-004

Stopband F717.5~722.5MHz, ≥50dB, PassbandDC~687.5MHz, 752.5~3000MHz, N
View Details →

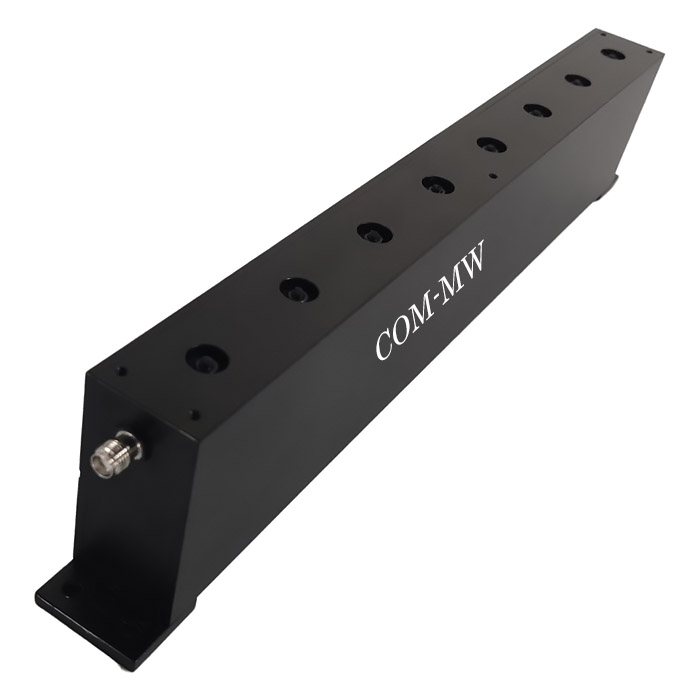

K6-717.5-722.5-10S4050-001 Filter

Filter K6-717.5-722.5-10S4050-001

Stopband F717.5~722.5MHz, ≥40dB, PassbandDC~707.5MHz, 732.5~2500MHz, SMA
View Details →

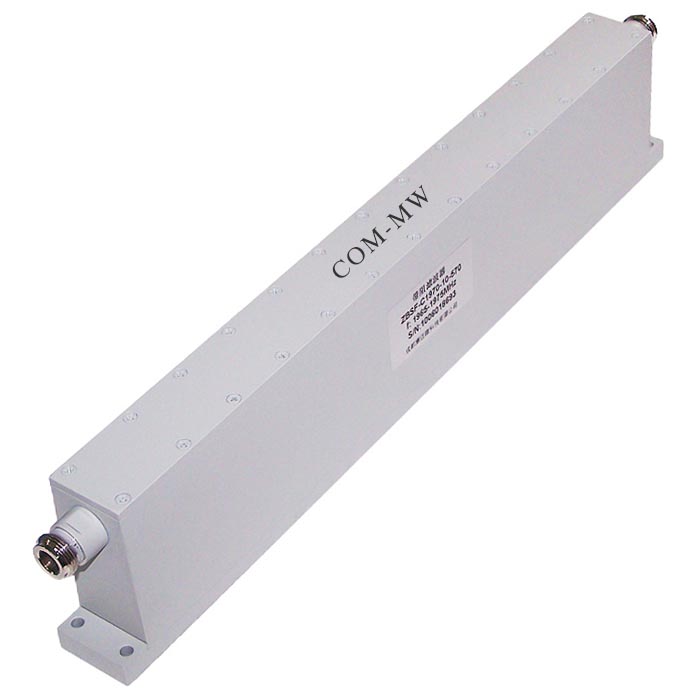

K6-717.5-722.5-10N4050-002 Filter

Filter K6-717.5-722.5-10N4050-002

Stopband F717.5~722.5MHz, ≥40dB, PassbandDC~707.5MHz, 732.5~2500MHz, N
View Details →
K6-716-722-30S5050-003 Filter

Filter K6-716-722-30S5050-003

Stopband F716~722MHz, ≥50dB, PassbandDC~686MHz, 752~3000MHz, SMA
View Details →
K6-716-722-30N5050-004 Filter

Filter K6-716-722-30N5050-004

Stopband F716~722MHz, ≥50dB, PassbandDC~686MHz, 752~3000MHz, N
View Details →
K6-716-722-10S4050-001 Filter

Filter K6-716-722-10S4050-001

Stopband F716~722MHz, ≥40dB, PassbandDC~706MHz, 732~2500MHz, SMA
View Details →

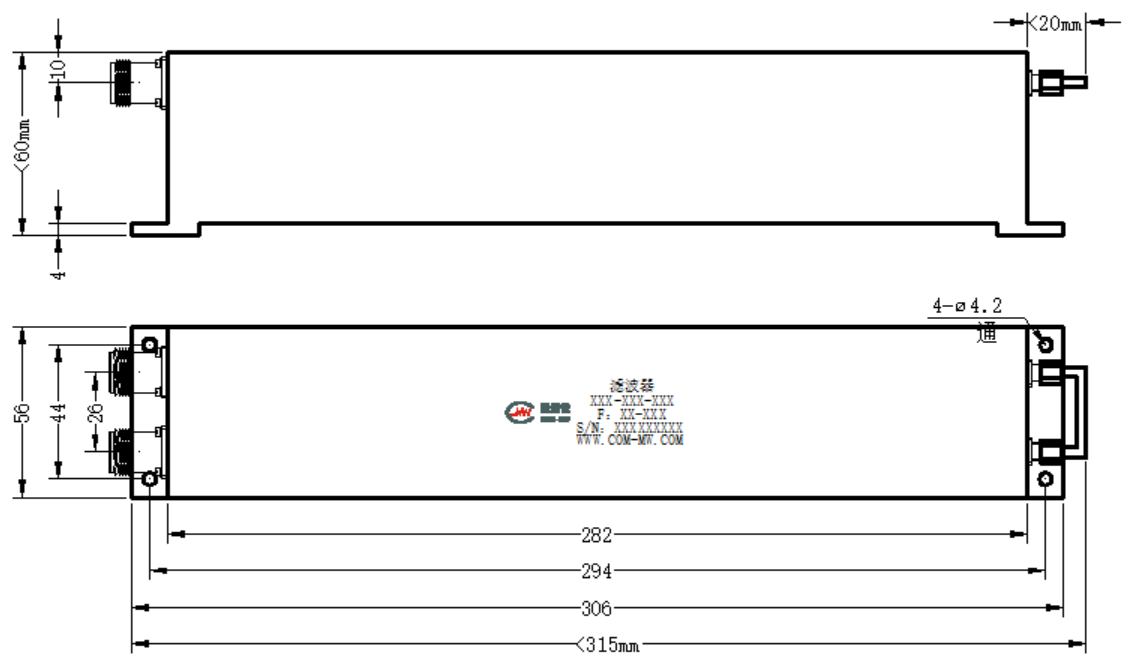

K6-716-722-10N4050-002 Filter

Filter K6-716-722-10N4050-002

Stopband F716~722MHz, ≥60dB, PassbandDC~706MHz, 732~2500MHz, N
View Details →
