Stopband F716~722MHz, ≥60dB, PassbandDC~706MHz, 732~2500MHz, N
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
High rectangular coefficient, low loss, high power
| Parameters | / | Min | Typical | Max | Units |
|---|---|---|---|---|---|
| Stopband F | 716 | ~ | 722 | MHz | |
| Stopband Rej. | ≥ | 60 | dB | ||
| Passband | DC | ~ | 706 | MHz | |
| Passband | 732 | ~ | 2500 | MHz | |
| Passband IL | 3 | dB | |||
| Passband VSWR | 1.8 |
| Connector | N-K |
| Connector material | 外壳铜不锈钢 |
| Impedance | 50Ω |
| Surface | Black baking paint |
| Power | 150W Design assurance |
| Work Temp. | -10~+50℃ Design assurance |

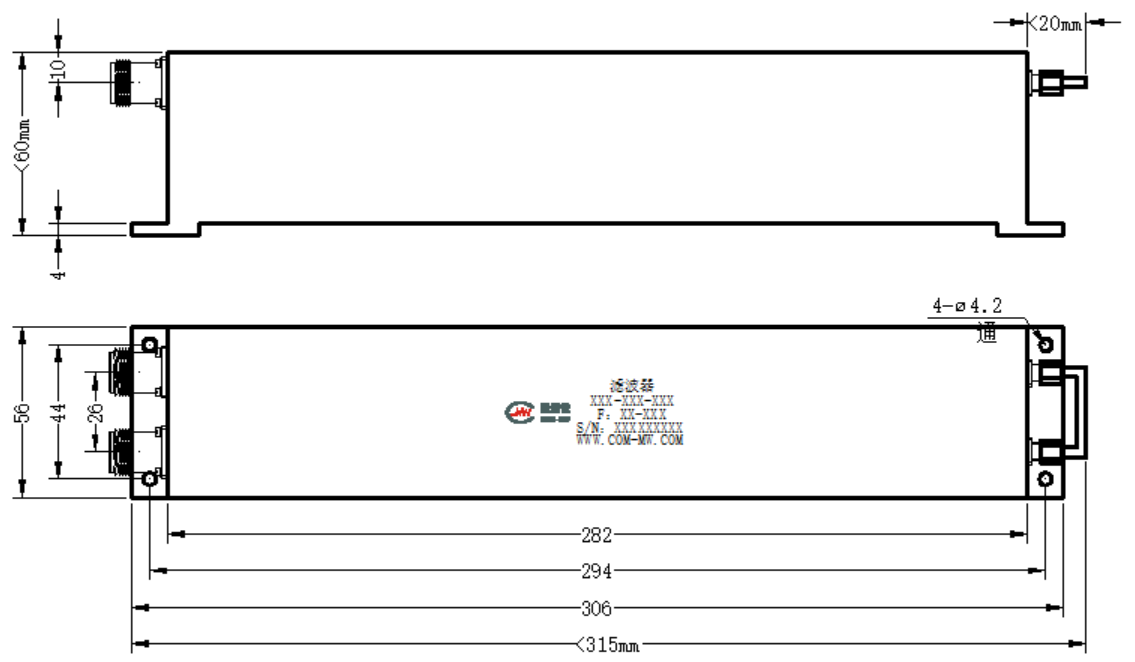

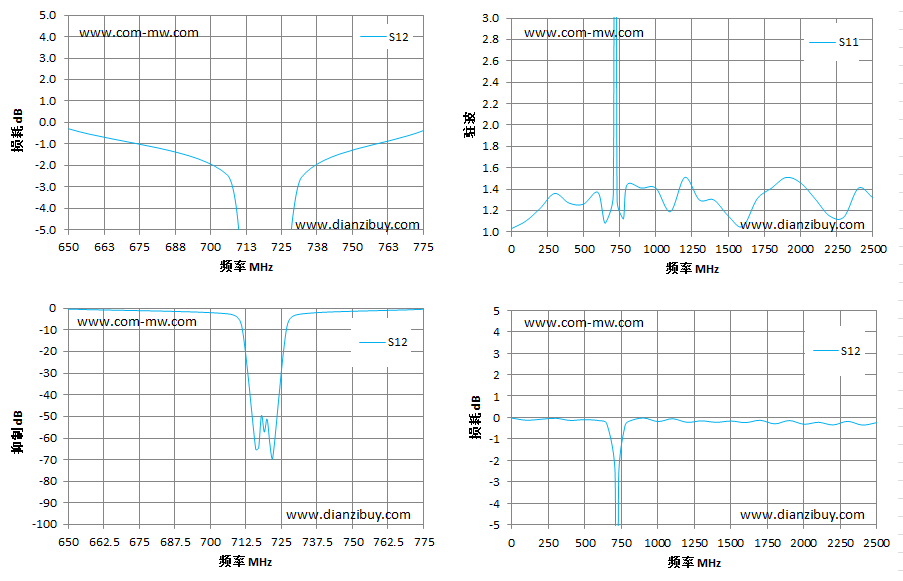

| Frequency(MHz) | S12 IL dB | S11 VSWR |
|---|---|---|
| 650 | -0.29 | 1.08 |
| 706 | -2.45 | 1.35 |
| 711 | -7.78 | 11.78 |
| 716 | -65.17 | 33.43 |
| 717 | -64.56 | 39.25 |
| 718 | -50.56 | 38.34 |
| 719 | -57.11 | 34.84 |
| 720 | -51.19 | 33.81 |
| 721 | -63.08 | 35.09 |
| 722 | -68.94 | 39.68 |
| 727 | -8.31 | 10.46 |
| 732 | -2.55 | 1.29 |
| 775 | -0.37 | 1.12 |
| 1 | Please do not wash the product in the cleaning solution.,Please do not wash the product in the cleaning solution. |
| 2 | If the temperature is higher than 125℃, consult with us before ordering. |
