Filters
Filters 1
Feature
Bandpass 14 low pass 3
F Low MHz
0 - 225 4 245 - 249 7 257.2 - 311 4 335 - 344 2 357 1
–
Center frequency MHz
290 - 300 8 307.2 - 334 4 343 - 347.5 2 357 1
–
F High MHz
351 7 352 2 355 4 357 2 357.2 3
–
IL on center frequency dB
0.4 1 1 8 1.5 1 2 3 3 2
–
Maximum loss of side frequency dB
0.8 - 0.9 3 1 - 1.5 3 2 - 2.5 7 3 - 4 5
–
Rejection dB
40 - 45 6 50 - 55 3 60 - 65 6 70 3
–
Connector
SMD 9 SMA 4 N 1 Microstrip needle 4
Power Handling
1 6 2 8 3 1 20 1 100 2
–
Filter type
LC 16 Cavity&waveguide 2
F High：351 - 357.2 MHz× Clear all
matches 18 models Default Newest
ZBF15-L300-102-1728 Filter

Filter ZBF15-L300-102-1728

Passband249~351MHz, DC-210MHz≥45dBc, 390-500MHz≥45dBc, SMD
In Stock View Details →
ZLPF3-L314-352-3104 Filter

Filter ZLPF3-L314-352-3104

Passband314~352MHz, 628-1500MHz≥70dBc, MHz≥dBc, N
View Details →
ZLPF3-L314-352-3096 Filter

Filter ZLPF3-L314-352-3096

Passband314~352MHz, 628-1200MHz≥70dB, dB, SMA
View Details →

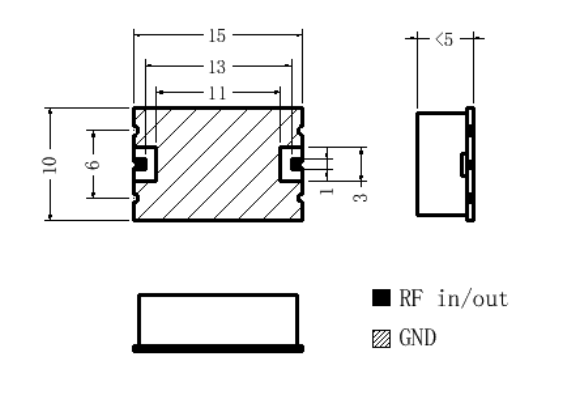

ZLPF3-L250-350-2105 Filter

Filter ZLPF3-L250-350-2105

PassbandDC~355MHz, 500-700MHz≥40dB, dB, SMD
View Details →
ZBF5-L343.2-15.6-2623 Filter

Filter ZBF5-L343.2-15.6-2623

Passband335.4~351MHz, 375-415MHz≥50dB, SMA-K
View Details →
ZBF3-L300-110-477 Filter

Filter ZBF3-L300-110-477

Passband245~355MHz, DC-155MHz≥55dBc, 445-1000MHz≥55dBc, Pin
View Details →
ZBF3-L300-102-3741 Filter

Filter ZBF3-L300-102-3741

Passband249~351MHz, DC-160MHz≥40dBc, 450-1000MHz≥40dBc, SMD
View Details →
ZBF3-L300-102-2861 Filter

Filter ZBF3-L300-102-2861

Passband249~351MHz, 230MHz≥10dBc, 370MHz≥10dBc, SMD
View Details →
ZBF3-L290-130-696 Filter

Filter ZBF3-L290-130-696

Passband225~355MHz, DC-178MHz≥65dB, 450-710MHz≥65dB, Pin
View Details →
ZBF3-C334-46-2747 Filter

Filter ZBF3-C334-46-2747

Passband311~357, 240-301MHz≥45dBc, 367-460MHz≥45dBc, SMA
View Details →
ZBF15-L357-0-1020 Filter

Filter ZBF15-L357-0-1020

Passband357MHz, DC-250MHz≥40dB, 450-1000MHz≥40dB, SMD
View Details →
ZBF15-L307.2-100-315 Filter

Filter ZBF15-L307.2-100-315

Passband257.2~357.2MHz, DC-200MHz≥60dBc, 220MHz≥30dB, SMD
View Details →
ZBF15-L307.2-100-168 Filter

Filter ZBF15-L307.2-100-168

Passband257.2~357.2MHz, DC-200MHz≥60dB, 200-240MHz≥40dB, SMD
View Details →
ZBF15-L307.2-100-065 Filter

Filter ZBF15-L307.2-100-065

Passband257.2~357.2MHz, DC-200MHz≥60dBc, 600-2100MHz≥60dBc, SMD
View Details →
ZBF15-L300-110-338 Filter

Filter ZBF15-L300-110-338

Passband245~355MHz, 110MHz BW, 1500-2200MHz≥dBc, dB, Pin
View Details →
ZBF15-L300-102-2858 Filter

Filter ZBF15-L300-102-2858

Passband249~351MHz, DC-100MHz≥40dBc, 480-2002MHz≥40dBc, SMD
View Details →

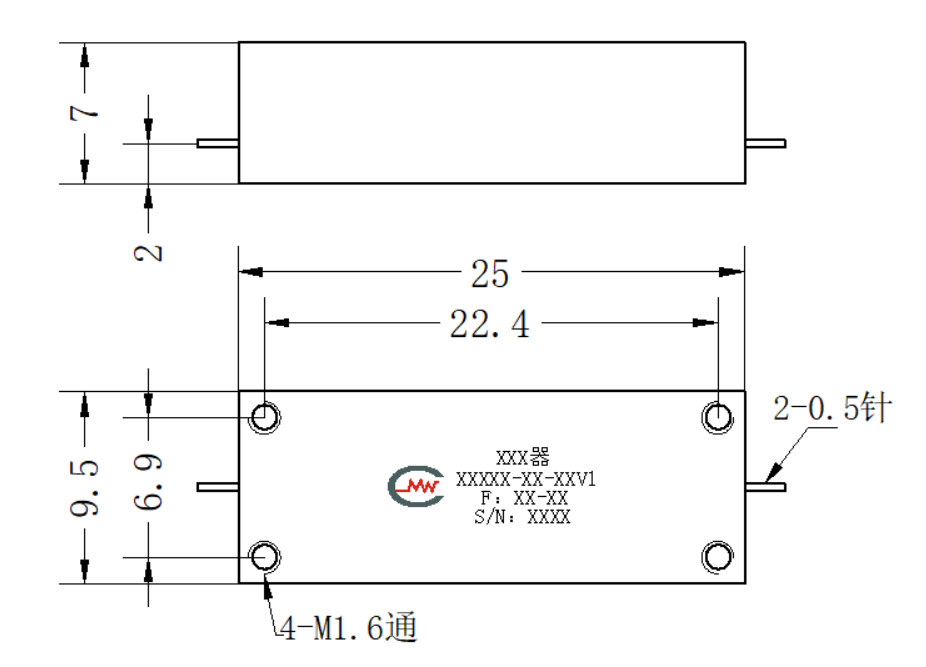

ZBF13-L300-102-1898 Filter

Filter ZBF13-L300-102-1898

Passband249~351MHz, DC-140MHz≥50dBc, 0.5-1.7GHz≥60dBc, Pin
View Details →
ZBF-BC347.5-7-2190 Filter

Filter ZBF-BC347.5-7-2190

Passband344~351MHz, DC-330MHz≥40dBc, 340MHz≥15dBc, SMA
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
