Passband249~351MHz, DC-140MHz≥50dBc, 0.5-1.7GHz≥60dBc, Pin
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Frequency | / | Min | Typical | Max | Units |
|---|---|---|---|---|---|---|
| Passband | / | / | 249 | ~ | 351 | MHz |
| Passband IL | / | / | 3.0 | dB | ||
| Ripple | / | / | 0.4 | dB | ||
| Rejection | DC-140 | MHz≥ | 50 | dBc | ||
| Rejection | 0.5-1.7 | GHz≥ | 60 | dBc | ||
| Rejection | 1.7-2.01 | GHz≥ | 70 | dBc | ||
| Passband VSWR | / | / | 1.35 |

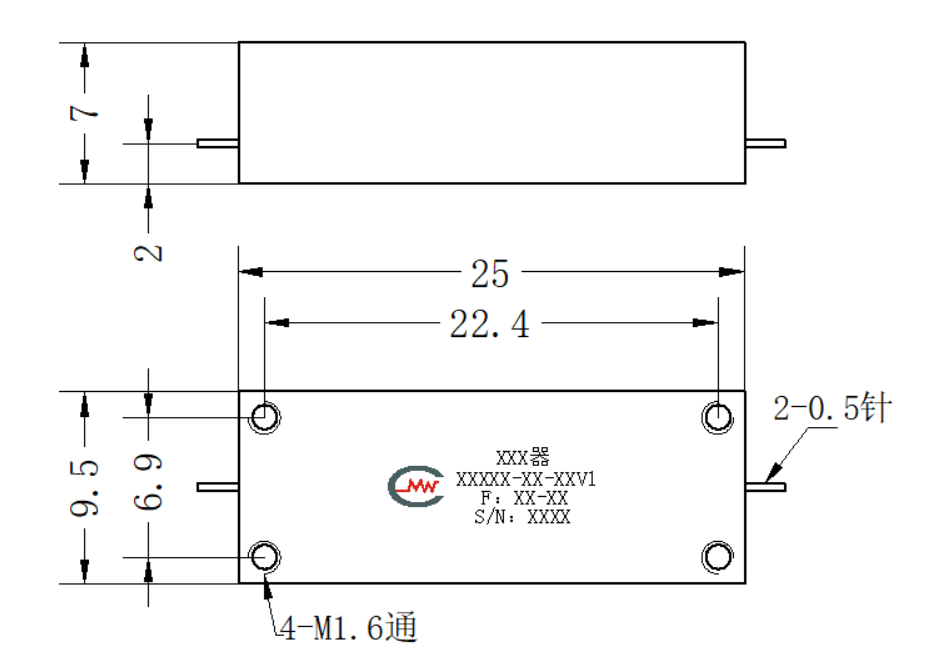

| Connector | Pin 0.5mm |
| Impedance | 50Ω |
| Surface | Silver plating |
| Power | 2W Design assurance |
| Delay ripple | ≤2.0ns@带内任意20MH |
| Delay ripple | ≤2.5ns |
| Work Temp. | -40~+70℃ Design assurance |
| Storage Temp. | -55~+85℃ Design assurance |
| 1 | Please do not wash the product in the cleaning solution.,Please do not wash the product in the cleaning solution. |
