Filters
Filters 1
Feature
Bandpass 9 Notch 7
F Low MHz
2450 - 3050 4 3120 - 3300 3 3450 - 3500 6 3520 - 3535 3
–
Center frequency MHz
3000 - 3300 3 3335 - 3400 2 3500 - 3534 2 3550 - 4280 2
–
F High MHz
3530 2 3550 11 3565 2 3568 1
–
IL on center frequency dB
0.5 3 1 2 1.5 1 2 1 3 2
–
Maximum loss of side frequency dB
1 - 2 5 2.5 - 3 8 3.5 - 4 3
–
Rejection dB
30 - 35 2 40 - 50 7 60 - 75 7
–
Connector
SMD 3 SMA 12 N 1
Power Handling
1 - 5 5 10 - 35 5 50 - 100 5 150 1
–
Filter type
LC 2 Cavity&waveguide 11 stripline 3
F High：3530 - 3568 MHz× Clear all
matches 16 models Default Newest
CA0295-2431 SMD Filter

SMD Filter CA0295-2431

Bandwidth2.45-3.55GHz, Rejection30@DC-2.0GHz, 30@4.1-7.0GHz
In Stock View Details →
ZBSF6-C3535-3565-3754 Filter

Filter ZBSF6-C3535-3565-3754

View Details →

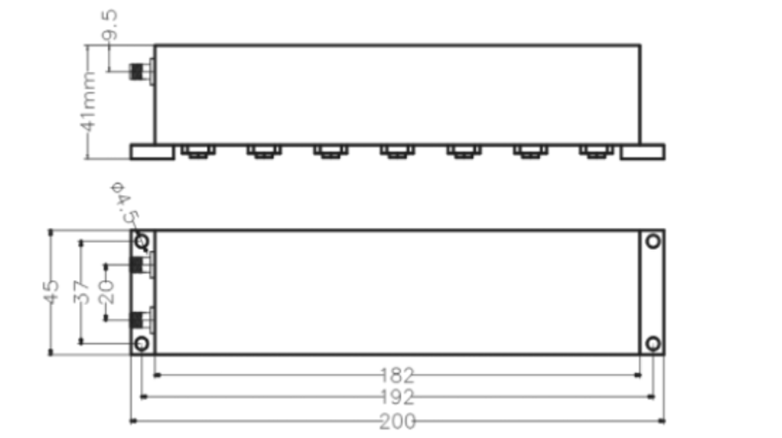

ZBSF4-C3520-3530-938 Filter

Filter ZBSF4-C3520-3530-938

Stopband F3520~3530MHz, ≥60dB, PassbandDC~3500MHz, 3550~5000MHz, SMA
View Details →

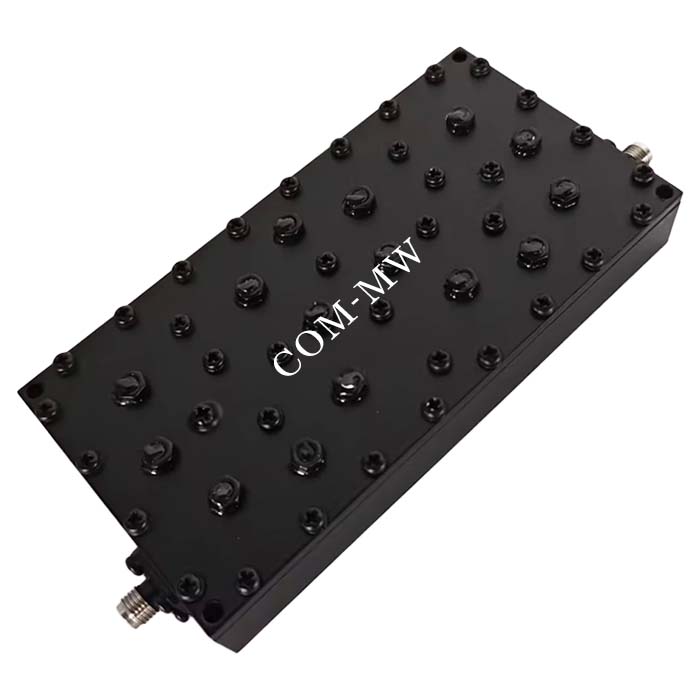

ZBF6-C3550-30-5617 Filter

Filter ZBF6-C3550-30-5617

Passband3535~3565MHz, DC-3495MHz≥40dB, 3605-7100MHz≥40dB, SMA
View Details →

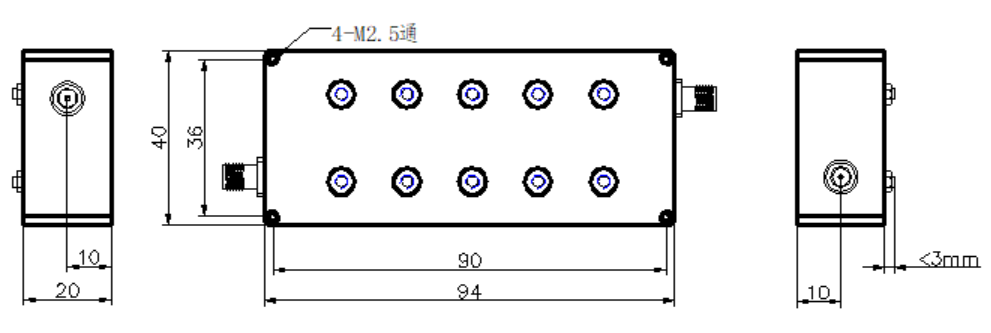

ZBF6-C3.3-0.5G-1449 Filter

Filter ZBF6-C3.3-0.5G-1449

Passband3.05~3.55GHz, DC-2.9GHz≥60dB, 3.7-6GHz≥60dB, SMA
View Details →
ZBF5-L3000-1100-794 Filter

Filter ZBF5-L3000-1100-794

Passband2450~3550MHz, DC-1800MHz≥40dBc, 4200-6000MHz≥40dBc, SMA-K
View Details →
ZBF25-C4.28-2.55G-714 Filter

Filter ZBF25-C4.28-2.55G-714

Passband3~5.55GHz, DC-2.8GHz≥35dB, 5.8-6GHz≥40dB, SMA
View Details →
ZBF13-C3534-50-2919 Filter

Filter ZBF13-C3534-50-2919

Passband3534MHz, DC-3334MHz≥60dBc, 3734-7200MHz≥60dBc, SMA
View Details →
OQ-ZBF6-C3500-60-SMA Filter

Filter OQ-ZBF6-C3500-60-SMA

Passband3470~3530MHz, 6940-10600MHz≥60dB, DC-3170MHz≥60dB, SMA
View Details →

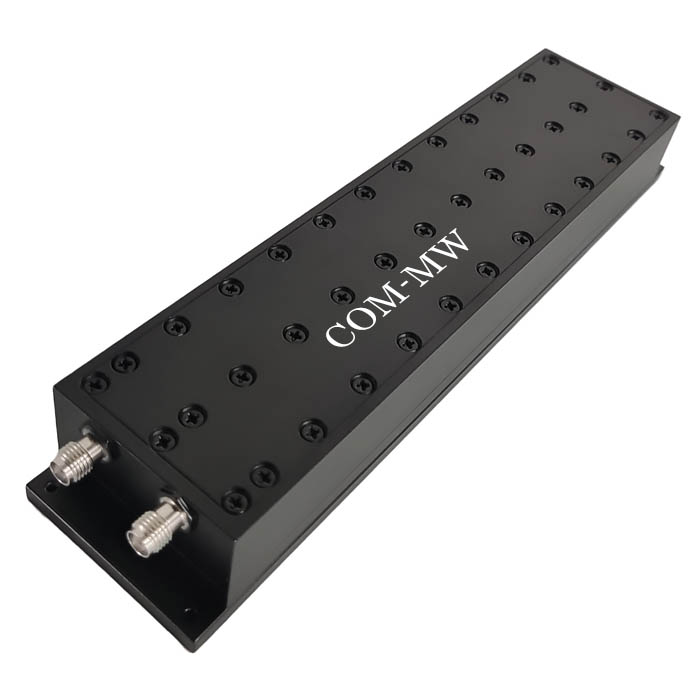

K6-3450-3550-50S5010-005 Filter

Filter K6-3450-3550-50S5010-005

Stopband F3450~3550MHz, ≥50dB, PassbandDC~3400MHz, 3600~8000MHz, SMA
View Details →
K6-3450-3550-20S6050-003 Filter

Filter K6-3450-3550-20S6050-003

Stopband F3450~3550MHz, ≥60dB, PassbandDC~3430MHz, 3570~7000MHz, SMA
View Details →
K6-3450-3550-20N60150-004 Filter

Filter K6-3450-3550-20N60150-004

Stopband F3450~3550MHz, ≥60dB, PassbandDC~3430MHz, 3570~7000MHz, N
View Details →
K6-3450-3550-150S5010-006 Filter

Filter K6-3450-3550-150S5010-006

Stopband F3450~3550MHz, ≥50dB, PassbandDC~3300MHz, 3700~12750MHz, SMA
View Details →

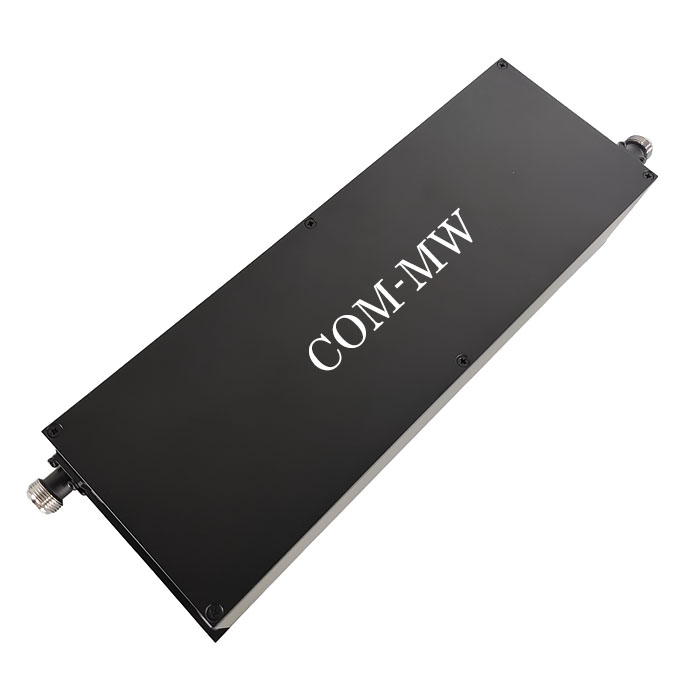

HBTE-BSF-3300-3550-N-100-5322 Notch filter

Notch filter HBTE-BSF-3300-3550-N-100-5322

Stopband F3300~3550MHz, ≥75dB, PassbandDC~3280MHz, 3570~6000MHz, N
View Details →
CA0507 SMD Filter

SMD Filter CA0507

Bandwidth3.12-3.55GHz, Rejection40@DC-2.8GHz, 40@3.95-11.0GHz
View Details →
CA0466 SMD Filter

SMD Filter CA0466

Bandwidth3.25-3.55GHz, Rejection35@DC-2.8GHz, 35@4.1-11.0GHz
View Details →
