Bandwidth3.25-3.55GHz, Rejection35@DC-2.8GHz, 35@4.1-11.0GHz
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
Low temperature drift, high power.
Small size, easy to integrate.
Technical parameters superior to LTCC filters.
Applied in fields such as radar, electronic countermeasures, and mobile communication.

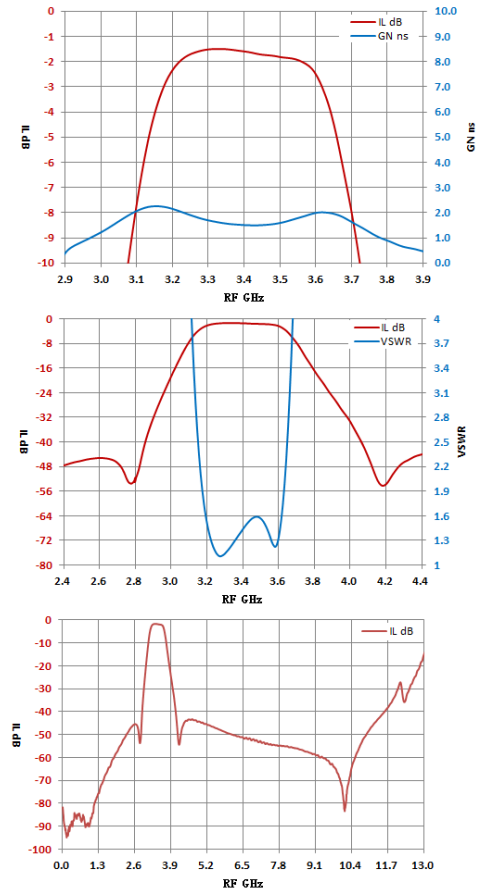

| Items | Parameters | Units |
|---|---|---|
| Center Frequency | 3.4 | GHz |
| Bandwidth | 3.25-3.55 | GHz |
| Center loss | 2.0 | dB |
| Ripple | 1.0 | dB |
| VSWR | 1.8:1 | |
| Rejection | 35@DC-2.8GHz | dBc |
| Rejection | 35@4.1-11.0GHz | dBc |
| power | 5W CW |
| Operation Temp. | -55~+85℃ |
| Storage Temp. | -55~+85℃ |

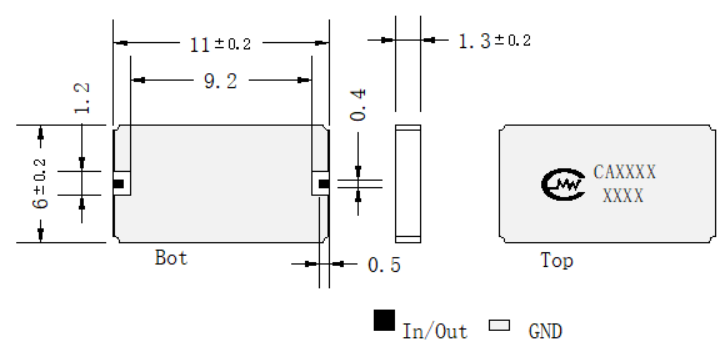

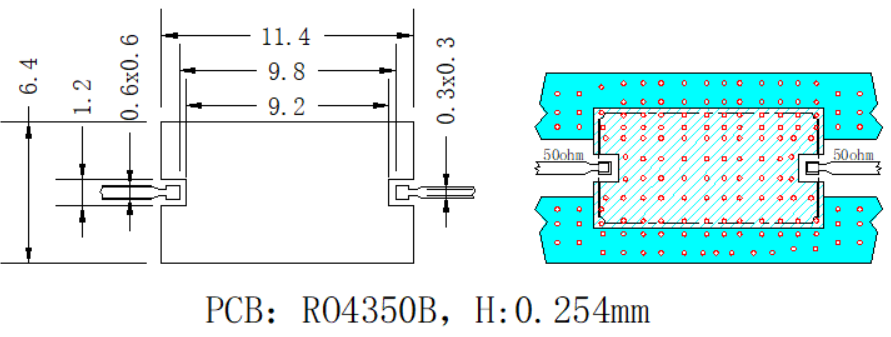

1. It is recommended to use it in separate chambers, with a distance of 1.0mm from the side wall on one side and 2.0mm from the top cover on the surface. It supports reflow soldering at 260 ℃;
2，表贴式滤波器的接地很重要，如果接地效果不理想，会对滤波器的电特性造成影响，尤其是带外抑制指标会明 显变差，只有良好的接地和正常的安装才能发挥滤波器 最佳性能，获得最佳效果;
3. During the cleaning process, the filter should not be immersed in the cleaning solution for a long time
4. Adding absorbing materials on the surface of the filter can achieve better harmonic suppression.
