Filters
Filters 1
Feature
Bandpass 15 low pass 2 Notch 2
F Low MHz
0 - 23500 4 24000 - 25800 3 26500 - 27400 7 27500 - 28250 3 28500 2
–
Center frequency MHz
26200 - 26750 3 27500 - 27750 3 28000 - 28400 4 28450 - 29000 5
–
F High MHz
29250 1 29400 5 29500 13
–
IL on center frequency dB
1 8 2 4 2.5 1 2.6 2
–
Maximum loss of side frequency dB
1.4 - 1.5 2 2 - 3 13 3.5 - 3.6 3 5 1
–
Rejection dB
30 - 32 2 40 - 45 9 50 - 60 7 70 1
–
Connector
SMD 1 SMA 2 2.92 6 Microstrip pad 6 Microstrip needle 4
Power Handling
1 3 2 7 5 4 10 5
–
Filter type
Cavity&waveguide 10 stripline 3 Thin film 6
F High：29250 - 29500 MHz× Clear all
matches 19 models Default Newest
STBP276-3R6-K835 Thin film filter

Thin film filter STBP276-3R6-K835

Bandwidth25.8-29.4GHz, Rejection40@DC-23.7GHz, 40@32.0-44.0GHz
In Stock View Details →
STBP262-6R4-K603 Thin film filter

Thin film filter STBP262-6R4-K603

Bandwidth23.0-29.4GHz, Rejection40@DC-19.6GHz, 40@34.5-44.0GHz
In Stock View Details →
STBP284-2R0-K733 Thin film filter

Thin film filter STBP284-2R0-K733

Bandwidth27.4-29.4GHz, Rejection32@DC-25.9GHz, 32@31.2-38.0GHz
In Stock View Details →
STLP295-K188 Thin film filter

Thin film filter STLP295-K188

BandwidthDC-29.5GHz, Rejection40@36.5-51.0GHz
In Stock View Details →
STBP265-6R0-N291 Thin film filter

Thin film filter STBP265-6R0-N291

Bandwidth23.5-29.5GHz, Rejection40@DC-21.0GHz, 40@32.8-38.0GHz
In Stock View Details →
ZBF13-C29-1G-252 Filter

Filter ZBF13-C29-1G-252

Passband28.5~29.5GHz, 28&30GHz≥35dBc, 26&32GHz≥55dBc, Pin
In Stock View Details →

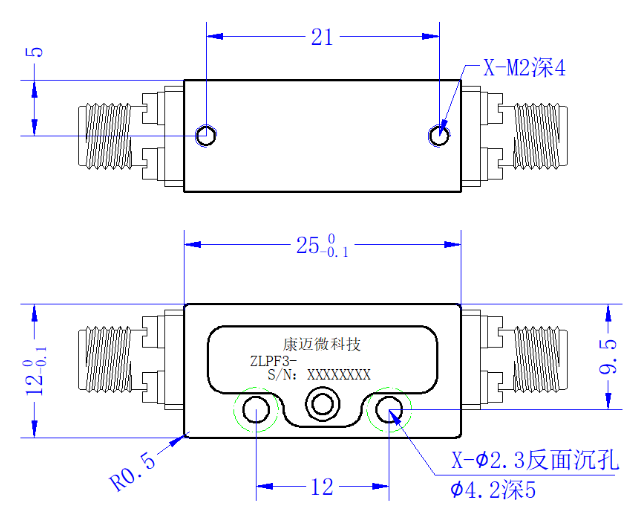

ZLPF3-T0-29.5G-3745 Filter

Filter ZLPF3-T0-29.5G-3745

PassbandDC~29.5GHz, 36.5-51GHz≥40dB, dB, 2.92
View Details →
ZBSF6-M26.5-29.5G-5572 Filter

Filter ZBSF6-M26.5-29.5G-5572

Stopband F26.5~29.5GHz, ≥45dB, PassbandDC~24GHz, 31~40GHz, 2.92
View Details →
ZBSF6-C26.5-29.5G-5613 Filter

Filter ZBSF6-C26.5-29.5G-5613

Stopband F26.5~29.5GHz, ≥60dB, PassbandDC~25GHz, 31~40GHz, 2.92
View Details →
ZBF8-C28.75-1G-3134 Filter

Filter ZBF8-C28.75-1G-3134

Passband28.25~29.25GHz, DC-27.3GHz≥105dB, 27.3-27.75GHz≥50dB, 2.92
View Details →
ZBF6-C27.75-2.5G-2848 Filter

Filter ZBF6-C27.75-2.5G-2848

Passband26.5~29.5GHz, 20-25GHz≥40dB, 30.5-35GHz≥40dB, 2.92
View Details →
ZBF5-C28.75-1.5G-907 Filter

Filter ZBF5-C28.75-1.5G-907

Passband28~29.5GHz, DC-27.34GHz≥60dBc, 30.5-40GHz≥40dBc, Pin
View Details →

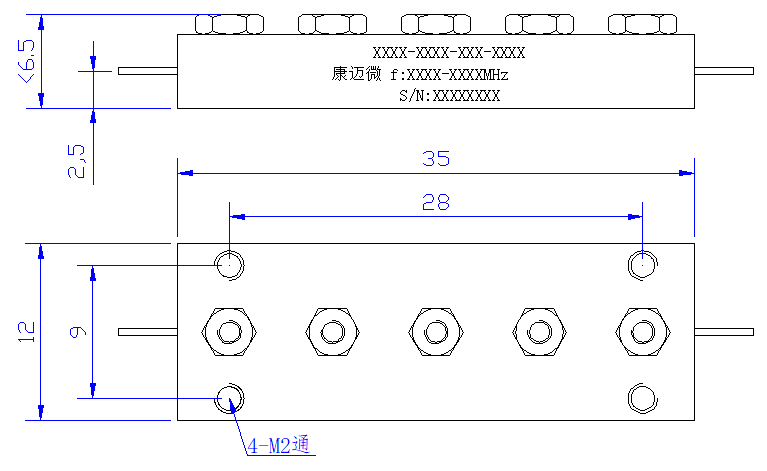

ZBF5-C28-3G-2814 Filter

Filter ZBF5-C28-3G-2814

Passband26.5~29.5GHz, DC-24.95GHz≥60dBc, 31.5-35GHz≥40dBc, Pin
View Details →
ZBF4-C28.45-1.9G-1218 Filter

Filter ZBF4-C28.45-1.9G-1218

Passband27.5~29.4GHz, DC-25.4GHz≥60dB, 30.9GHz≥50dB,
View Details →
ZBF25-C29-1G-217 Filter

Filter ZBF25-C29-1G-217

Passband28.5~29.5GHz, DC-27.4GHz≥50dB, 27.4-28GHz≥30dB, 2.92
View Details →
ZBF25-C27.5-4G-291 Filter

Filter ZBF25-C27.5-4G-291

Passband25.5~29.5GHz, DC-24GHz≥40dBc, 30-40GHz≥30dBc, 2.92
View Details →

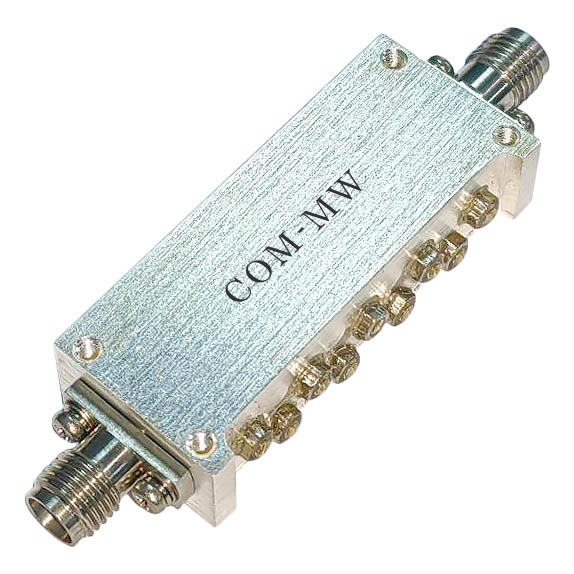

ZBF2-C26.75-5.5G-2179 Filter

Filter ZBF2-C26.75-5.5G-2179

Passband24~29.5GHz, 15-22GHz≥40dB, 32-42GHz≥40dB, SMA
View Details →

陶瓷滤波器 STBP284-2R0-G733

Bandwidth27.4-29.4GHz, Rejection30@DC-25.9GHz, 30@31.2-38.0GHz
View Details →
CA0386-2501 SMD Filter

SMD Filter CA0386-2501

Bandwidth26.8-29.5GHz, Rejection40@DC-23.4GHz, 20@33.5-44.0GHz
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
