Bandwidth25.8-29.4GHz, Rejection40@DC-23.7GHz, 40@32.0-44.0GHz
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
High precision machining technology
Low temperature drift, high power.
Ceramic substrate, 50 Ω coplanar waveguide
Gold wire bonding
| Items | Parameters | Units |
|---|---|---|
| Center Frequency | 27.6 | GHz |
| Bandwidth | 25.8-29.4 | GHz |
| Center loss | 2.0 | dB |
| Ripple | 1.0 | dB |
| VSWR | 1.7:1 | |
| Group delay ripple | 0.4 | ns |
| Rejection | 40@DC-23.7GHz | dBc |
| Rejection | 40@32.0-44.0GHz | dBc |
| power | 2W CW |
|---|---|
| Operation Temp. | -55 ~ +85℃ |
| Storage Temp. | -55 ~ +125℃ |

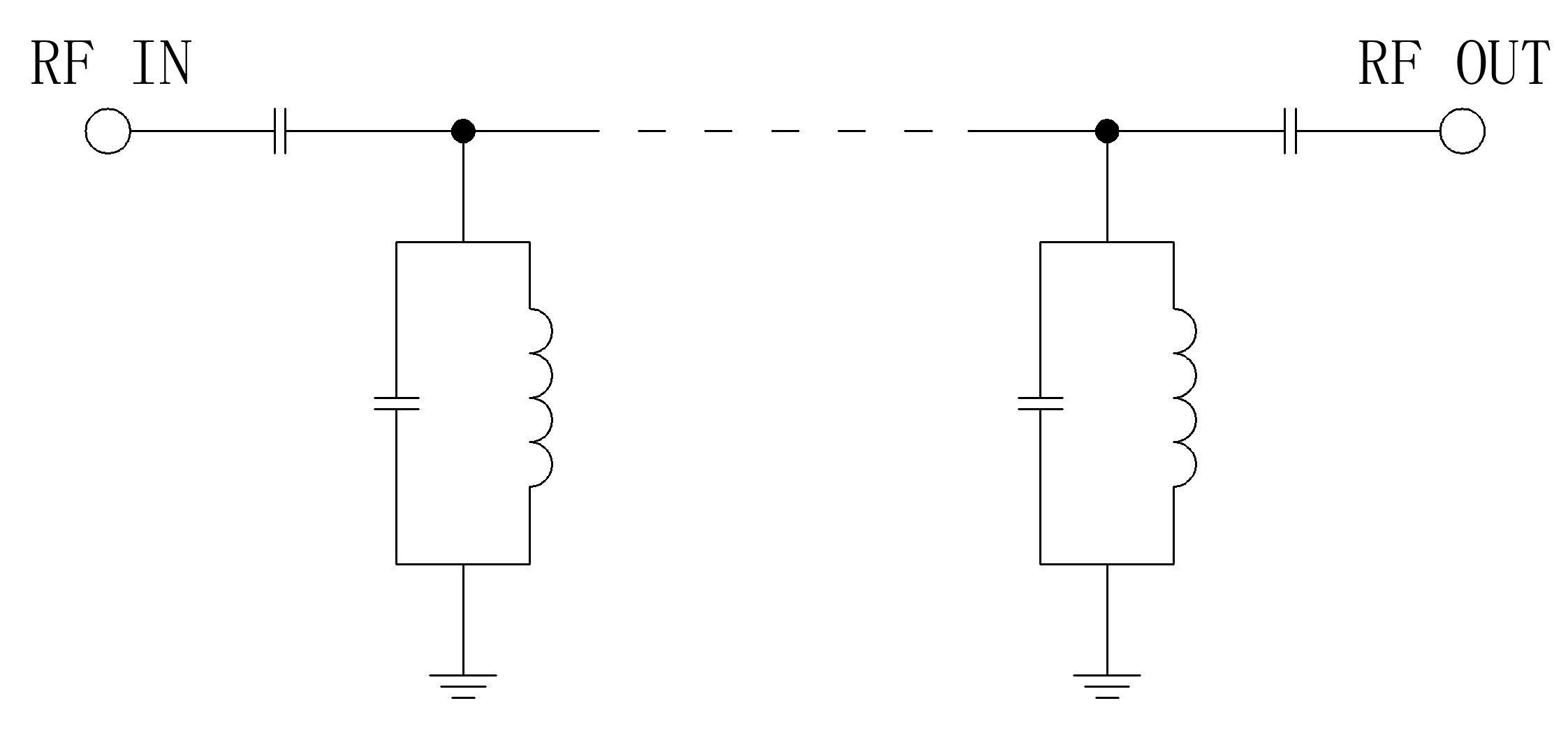

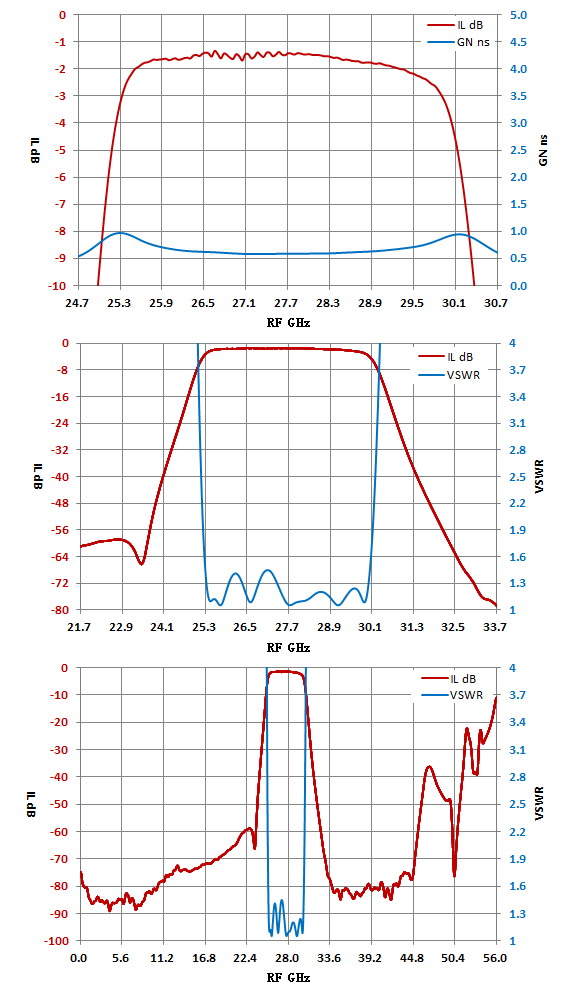

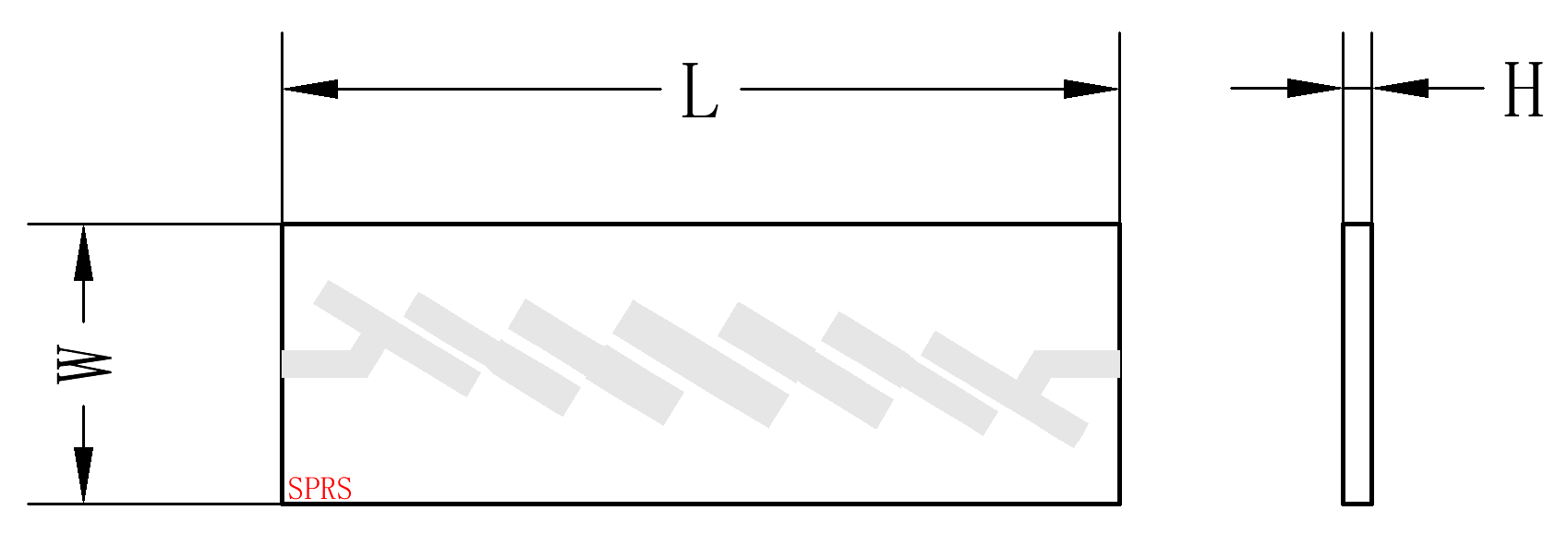

| Outline size | L：7.0，W：2.5，h：0.26 |

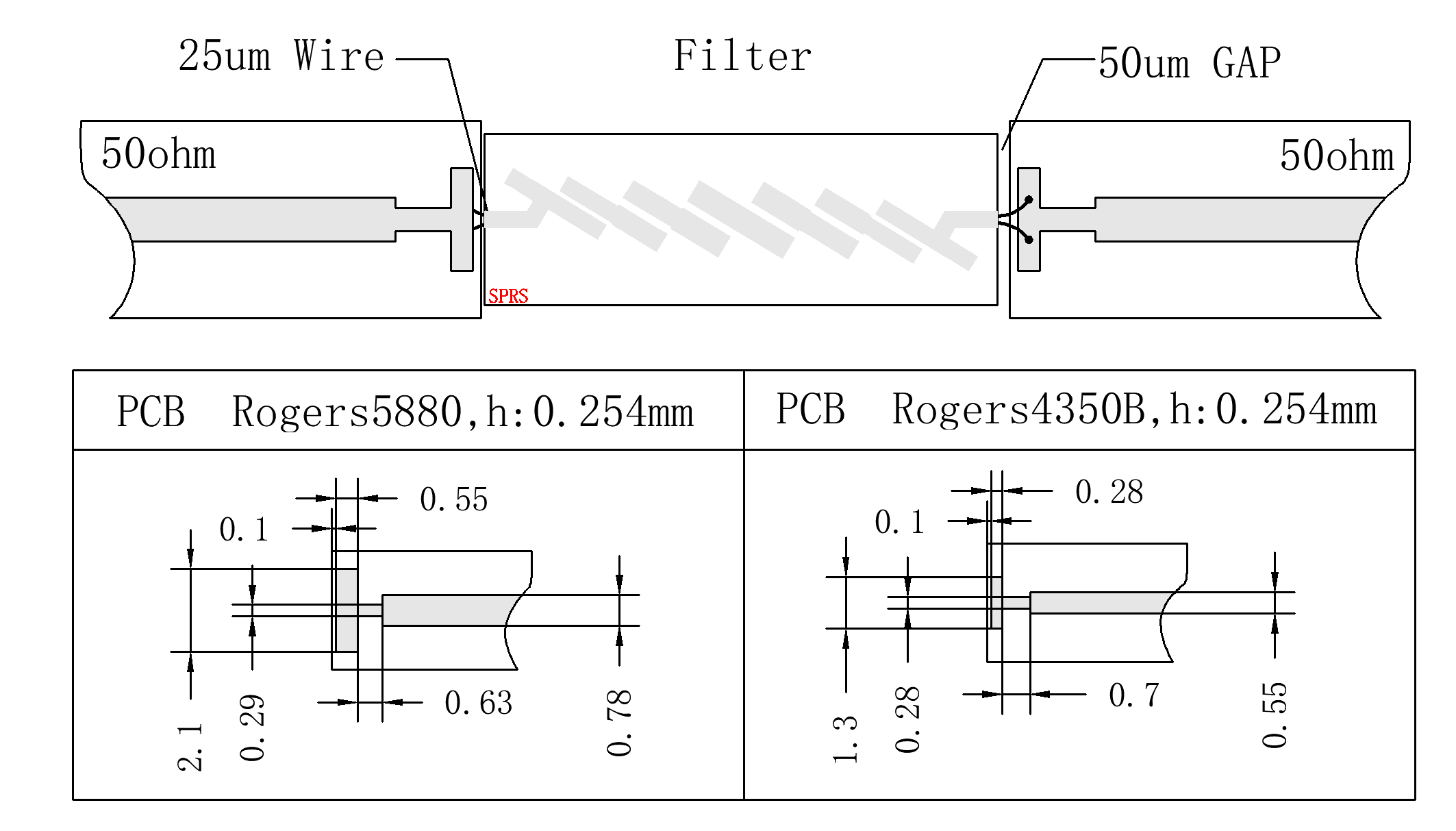

1: The chip is recommended to be used in separate chambers, with one side 0.1mm away from the side wall and the surface 1.74mm away from the top cover. The ports are interchangeable;
2：芯片推荐使用低应力导电胶(如 ME8456)粘接；
3: The chip should be installed on materials such as Kovar (recommended) or copper with a thermal expansion coefficient similar to that of ceramics (6.7ppm/C), and the carrier thickness should be ≥ 0.2mm;
4：微带线与芯片键合连接时，建议微带键合处采用T型结构进行匹配;
