Filters
Filters 1
Feature
Bandpass 13 low pass 1 Notch 1
F Low MHz
0 - 122 6 122.5 - 123 3 132 - 142.5 2 147 - 148 2 148.6 - 151.12 2
–
Center frequency MHz
140 9 150 1 153 1 153.6 1 155 1
–
F High MHz
157 1 157.5 3 158 9 158.6 1 158.87 1
–
IL on center frequency dB
1 - 2 7 2.5 - 3 2 5 - 17 3 29 1
–
Maximum loss of side frequency dB
1.5 - 2 6 2.5 - 3 3 4 - 5 2 6 - 18 3 30 1
–
Rejection dB
40 3 45 1 50 5 55 1 60 5
–
Connector
SMD 6 SMA 3 Microstrip needle 6
Power Handling
0.1 - 0.5 3 1 - 2 9 5 - 10 3
–
Filter type
LC 13 SAW 2
F High：157 - 158.87 MHz× Clear all
matches 15 models Default Newest
LF018 Filter

Filter LF018

PassbandDC~158MHz, 220-255MHz≥20dB, 255-1000MHz≥40dB, SMD, Replace RLP-158+
In Stock View Details →
ZBF9-S140-37.5-1114 Filter

Filter ZBF9-S140-37.5-1114

Passband132~158MHz, -40dB BW43.2MHz, Pin
In Stock View Details →
ZBF5-L153-10-3741 Filter

Filter ZBF5-L153-10-3741

Passband148~158MHz, DC-120MHz≥40dB, 178-1500MHz≥50dB, SMD
In Stock View Details →
ZBF15-L140-34-034 Filter

Filter ZBF15-L140-34-034

Passband123~157MHz, DC-90MHz≥45dBc, 190-1000MHz≥45dBc, Pin
In Stock View Details →
ZBSF6-L147.2-158.2-4642 Filter

Filter ZBSF6-L147.2-158.2-4642

Stopband F147.2~158.2MHz, ≥50dB, PassbandDC~120MHz, 180~800MHz, SMA
View Details →
ZBF9-S140-35-2306 Filter

Filter ZBF9-S140-35-2306

Center Frequency140MHz, -3dB BW35MHz, -40dB BW47MHz
View Details →

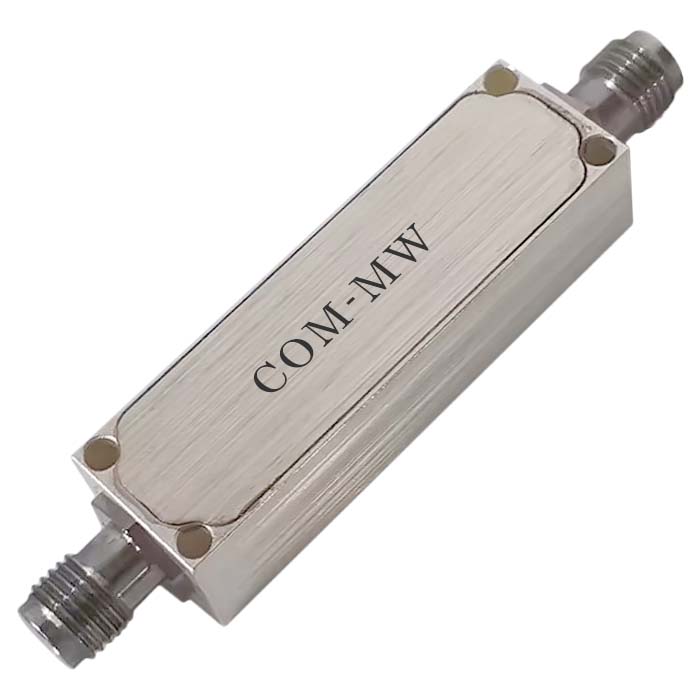

ZBF6-L155-7.75-4427 Filter

Filter ZBF6-L155-7.75-4427

Passband151.125~158.875MHz, DC-95MHz≥50dB, 302.25-476.6MHz≥50dB, SMA
View Details →
ZBF5-L140-36-525 Filter

Filter ZBF5-L140-36-525

Center Frequency140MHz, -3dB BW34~38MHz, DC-90MHz≥50dBc, 190-300MHz≥50dBc, Pin
View Details →
ZBF5-L140-36-2095 Filter

Filter ZBF5-L140-36-2095

Passband122~158MHz, 86MHz≥60dB, Pin
View Details →
ZBF3-L140-36-2343 Filter

Filter ZBF3-L140-36-2343

Passband122~158MHz, DC-104MHz≥55dB, 176-1000MHz≥55dB, SMA
View Details →

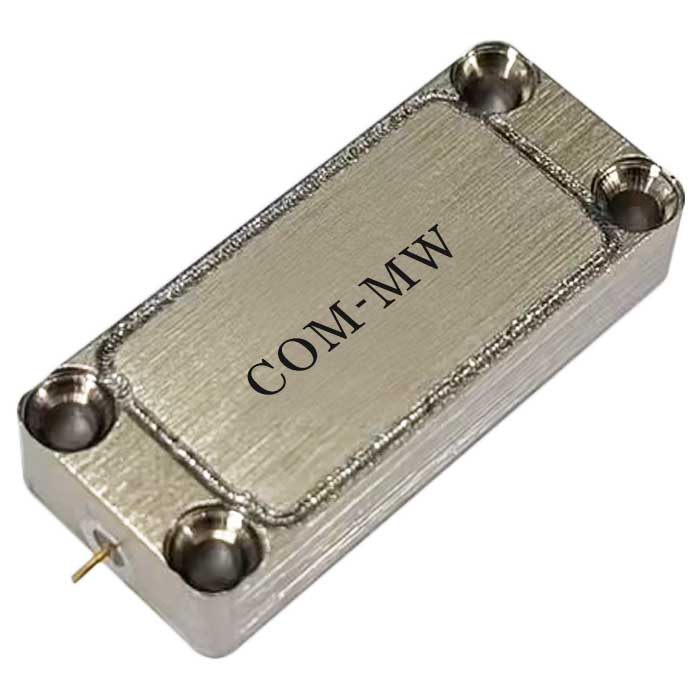

ZBF20-L140-35-232 Filter

Filter ZBF20-L140-35-232

Passband122.5~157.5MHz, DC-85MHz≥60dB, 205-1000MHz≥60dB, Pin
View Details →
ZBF13-L153.6-10-528 Filter

Filter ZBF13-L153.6-10-528

Center Frequency153.6MHz, Passband148.6~158.6MHz, BW-60dB/BW-3dBdB, dB, SMD
View Details →
ZBF13-L150-15-484 Filter

Filter ZBF13-L150-15-484

Passband142.5~157.5MHz, BW-60dB/BW-3dBdB, dB, SMD
View Details →

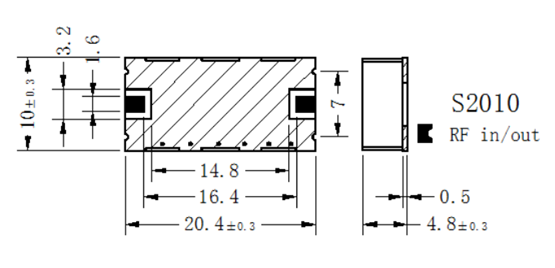

ZBF-L140-36-S2010 Filter

Filter ZBF-L140-36-S2010

Passband122~158MHz, 86MHz≥40dB, 226MHz≥40dB, SMD
View Details →

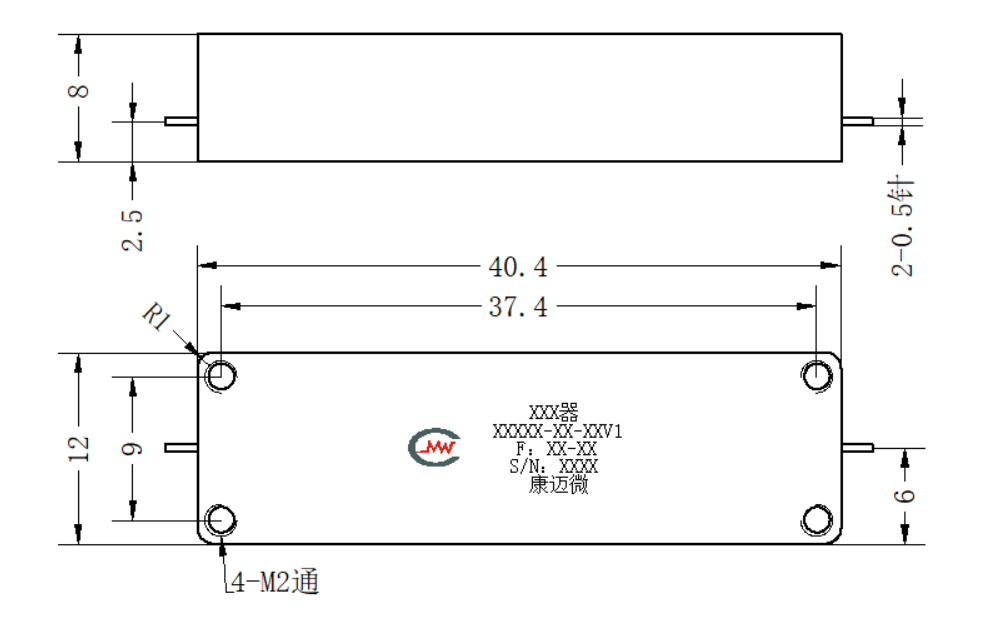

XPF-L140M36M-Z Filter

Filter XPF-L140M36M-Z

Passband122~158MHz, DC-104MHz≥60dBc, 176-1000MHz≥60dBc, Pin
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
