Center Frequency140MHz, -3dB BW35MHz, -40dB BW47MHz
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
Small volume, surface mount.
| Parameters | Frequency | / | Min | Typical | Max | Units |
|---|---|---|---|---|---|---|
| Center Frequency | / | / | 140 | MHz | ||
| Center loss | / | / | 17 | 18.5 | dB | |
| Ripple | / | / | 0.8 | 1.5 | dB | |
| Rejection | 40 | 42 | dB | |||
| 1dB BW | 31 | 33 | MHz | |||
| -3dB BW | 35 | 37 | MHz | |||
| -40dB BW | 47 | 51 | MHz | |||
| VSWR F0 | / | / | 2 |
| Connector | SMD |
| Power | 10dBm Design assurance |
| Work Temp. | -40~+80℃ Design assurance |
| Quality Grade | Industrial grade |

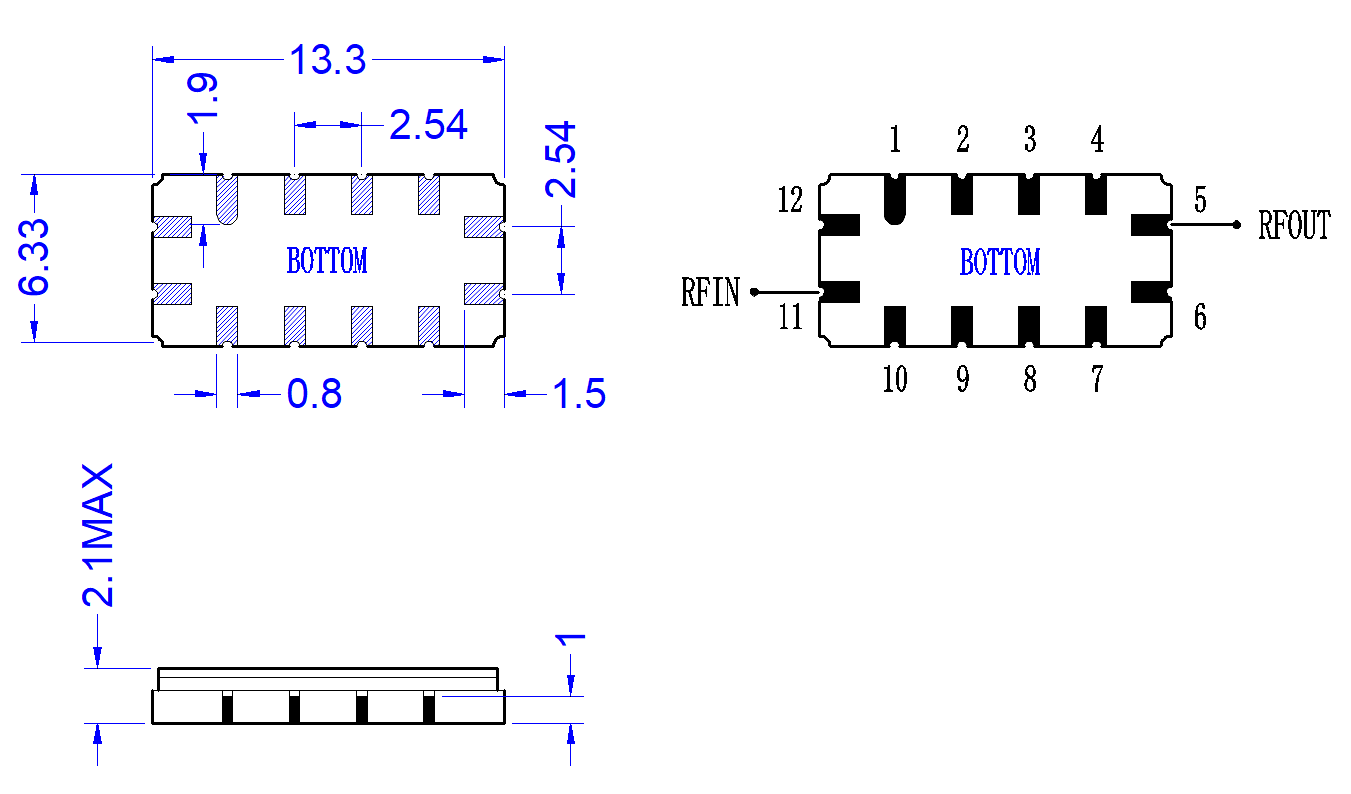

| I/O Port | 5，11 |
| GND | 1，2，3，4，6，7，8，9，10，12 |
| 1 | The product supports 220 ℃ reflow soldering |
