F High：110 - 140 MHz× Clear all
matches 75 models Default Newest
LF052 Filter

Filter LF052

PassbandDC~135MHz, 210-300MHz≥20dB, 300-1600MHz≥40dB, SMD, Replace SXLP-135+
In Stock View Details →
BF040 Filter

Filter BF040

Passband87~117MHz, 66MHz≥20dB, 143MHz≥20dB, SMD, Replace SXBP-100+
In Stock View Details →
ZLPF5-L0-120-3050 Filter

Filter ZLPF5-L0-120-3050

PassbandDC~120MHz, Rejection180-1100MHz≥30dB, SMD
In Stock View Details →
LF016 Filter

Filter LF016

PassbandDC~120MHz, 170-205MHz≥20dB, 205-1000MHz≥40dB, SMD, Substitutes RLP-120+
In Stock View Details →

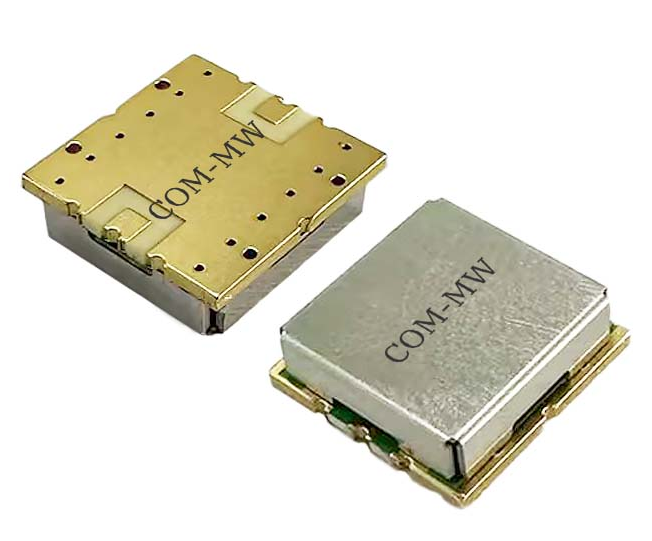

LF020 Filter

Filter LF020

PassbandDC~190MHz, 264-300MHz≥20dB, 300-1000MHz≥40dB, SMD, Substitutes RLP-190+
In Stock View Details →

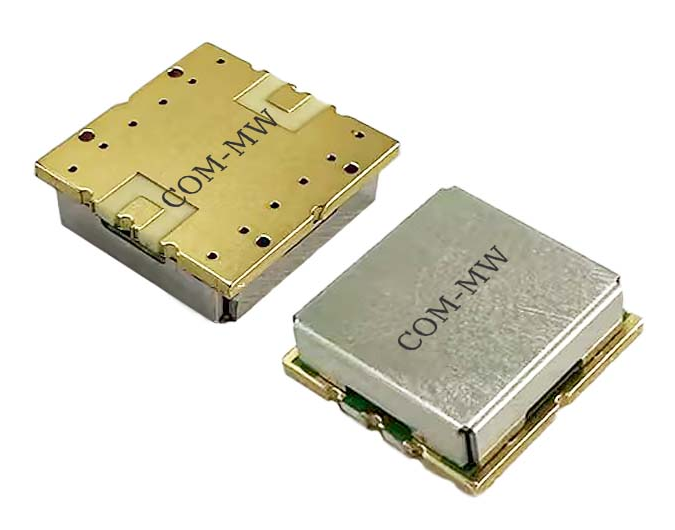

LF017 Filter

Filter LF017

PassbandDC~137MHz, 195-215MHz≥20dB, 215-1000MHz≥40dB, SMD, Substitutes RLP-137+
In Stock View Details →
ZBF15-L90-42-546 Filter

Filter ZBF15-L90-42-546

Passband69~111MHz, DC-45MHz≥65dBc, dB, SMD
In Stock View Details →
BF004 Filter

Filter BF004

Passband108~118MHz, DC-98MHz≥27dB, 132-2000MHz≥28dB, Replace BPF-B113+
In Stock View Details →
ZBF15-L90-40-184 Filter

Filter ZBF15-L90-40-184

Passband70-110MHz, DC-50MHz≥40dBc, 145-500MHz≥30dBc, SMD
In Stock View Details →
LF077 Filter

Filter LF077

PassbandDC~140MHz, 210-300MHz≥55dB, 300-600MHz≥65dB, SMA
In Stock View Details →
BF013 Band pass filter

Band pass filter BF013

Passband75~131MHz, DC-45MHz≥35dB, 55MHz≥20dB, 170MHz≥20dB, 210-2000MHz≥35dB, /
In Stock View Details →
15F0004 Filter

Filter 15F0004

Passband70~110MHz, DC-20MHz≥45dBc, 180-360MHz≥50dBc, SMD
In Stock View Details →
ZLPF5-L0-140-3491 Filter

Filter ZLPF5-L0-140-3491

PassbandDC~140MHz, 3dB cut-off frequency155MHz, 210-300MHz≥35dB, SMD
In Stock View Details →
ZBF5-L127.5-19-2307 Filter

Filter ZBF5-L127.5-19-2307

Passband118~137MHz, DC-95MHz≥40dB, 167-1500MHz≥40dB, SMA
In Stock View Details →
ZLPF2-L0-110-3238 Filter

Filter ZLPF2-L0-110-3238

PassbandDC~110MHz, 130-500MHz≥40dB, dB, SMA
In Stock View Details →
ZBF14-L100-40-740 Filter

Filter ZBF14-L100-40-740

Passband80~120MHz, DC-65MHz≥40dB, 150-900MHz≥40dB, SMA
In Stock View Details →
ZBF5-L127.5-19-2328 Filter

Filter ZBF5-L127.5-19-2328

Passband118~137MHz, DC-95MHz≥40dB, 167-1500MHz≥40dB, SMD
In Stock View Details →
ZBF9-S137.5-2.2-2155 Filter

Filter ZBF9-S137.5-2.2-2155

Center Frequency137.5MHz, -3dB BW1.65MHz, -40dB BW4.4MHz
In Stock View Details →
ZBF-L120-40-1239B7 Filter

Filter ZBF-L120-40-1239B7

Passband100~140MHz, DC-80MHz≥40dB, 160MHz≥40dB, Pin
In Stock View Details →
ZBF15-L97.5-25-1449 Filter

Filter ZBF15-L97.5-25-1449

Passband85~110MHz, DC-70MHz≥20dB, 150-160MHz≥20dB, SMD
In Stock View Details →
ZLPF2-L30-110-2578 Filter

Filter ZLPF2-L30-110-2578

PassbandDC~110MHz, 0.2-2.5GHz≥40dBc, dB, SC-50K
In Stock View Details →
ZLPF5-L0-110-3270 Filter

Filter ZLPF5-L0-110-3270

PassbandDC~110MHz, 150-1000MHz≥70dB, N
View Details →

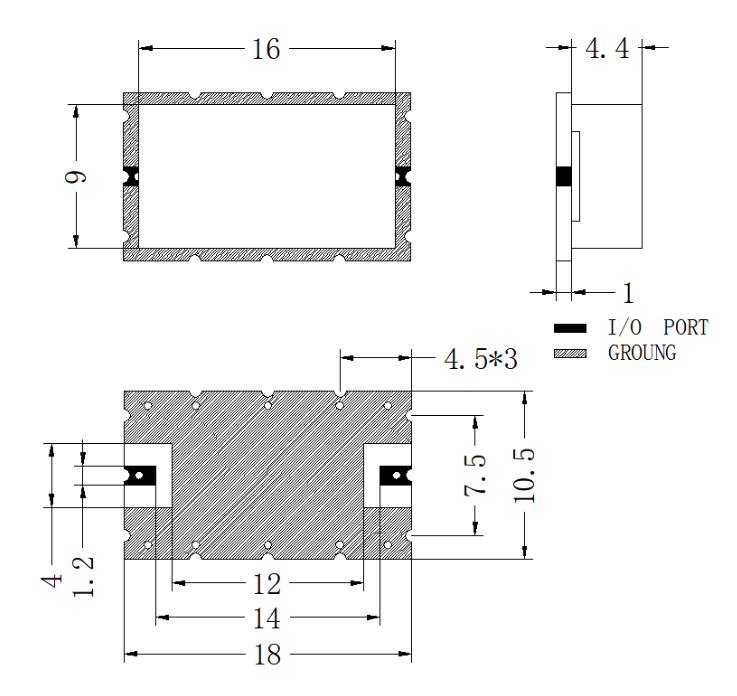

ZLPF2-L70-115-2164 Filter

Filter ZLPF2-L70-115-2164

Passband70~115MHz, 156-1000MHz≥45dBc, dB, SMD
View Details →
ZLPF15-L0-110-1792 Filter

Filter ZLPF15-L0-110-1792

PassbandDC~110MHz, 122.88-6000MHz≥40dB, dB, Pin
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
