Filters
Filters 1
Feature
Bandpass 14 low pass 1 Notch 1
F Low MHz
0 - 750 3 810 - 950 4 1015 - 1070 3 1075 - 1105 6
–
Center frequency MHz
720 - 937.5 2 960 - 1000 3 1037.5 - 1060 2 1080 - 1090 4 1100 - 1115 3
–
F High MHz
1105 4 1110 7 1120 1 1125 4
–
IL on center frequency dB
0.5 1 1 6 2 4 4 2 6 1
–
Maximum loss of side frequency dB
1 - 1.5 2 1.6 - 2 6 2.5 - 3 4 3.5 - 5 3 8 1
–
Rejection dB
30 1 38 1 40 7 50 5 60 2
–
Connector
SMD 5 SMA 4 N 1 Microstrip needle 6
Power Handling
1 5 2 6 10 4 20 1
–
Filter type
LC 13 Cavity&waveguide 3
F High：1105 - 1125 MHz× Clear all
matches 16 models Default Newest
ZBF5-L1000-250-3538 Filter

Filter ZBF5-L1000-250-3538

Passband875~1125MHz, DC-700MHz≥38dB, SMD
In Stock View Details →
RJF6M1090C25P1 Filter

Filter RJF6M1090C25P1

Passband1075~1105MHz, DC-1050MHz≥40dB, 1130-1800MHz≥40dB, Pin
In Stock View Details →
ZLPF20-L0-1110-297 Filter

Filter ZLPF20-L0-1110-297

PassbandDC~1110MHz, 1210-2300MHz≥40dBc, dB, SMD
View Details →
ZBF6-C1090-30-4777 Filter

Filter ZBF6-C1090-30-4777

Passband1075~1105MHz, DC-1050MHz≥50dB, 1130-3000MHz≥50dB, SMA
View Details →
ZBF5-L720-800-2462 Filter

Filter ZBF5-L720-800-2462

Passband320~1120MHz, DC-150MHz≥60dB, Pin
View Details →

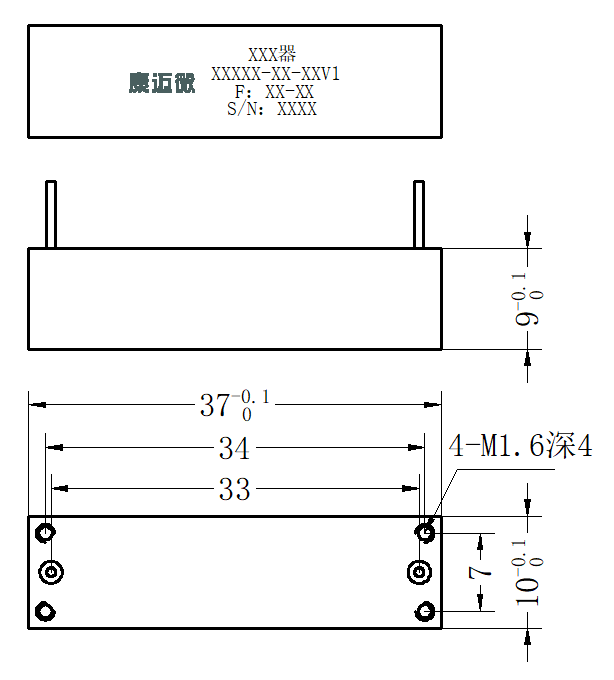

ZBF3-L1115-20-2922 Filter

Filter ZBF3-L1115-20-2922

Passband1105~1125MHz, DC-1075MHz≥35dBc, 1155-2000MHz≥35dBc, Pin
View Details →

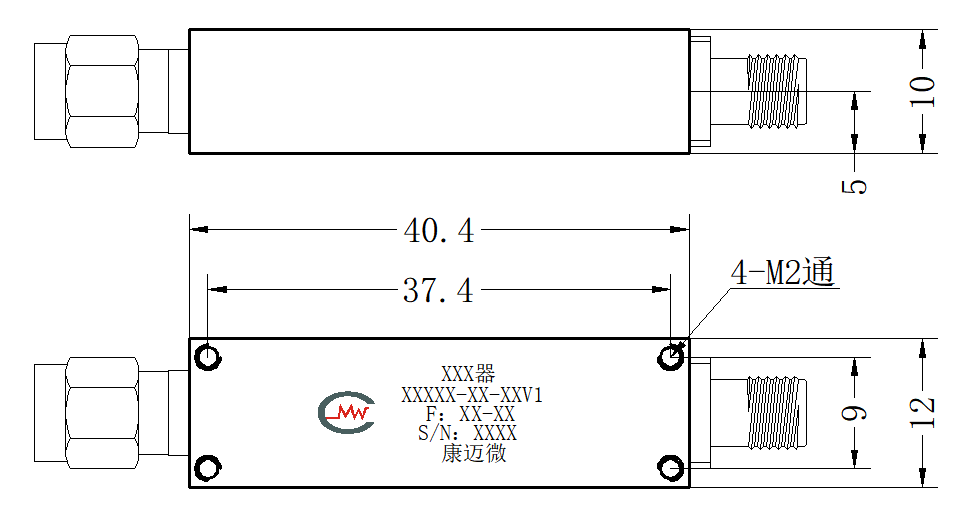

ZBF3-L1100-20-3617 Filter

Filter ZBF3-L1100-20-3617

Passband1090~1110MHz, DC-1000MHz≥40dB, 1200-3000MHz≥40dB, SMA
View Details →
ZBF3-L1090-40-1139 Filter

Filter ZBF3-L1090-40-1139

Passband1070~1110MHz, DC-990MHz≥40dBc, 1190-3000MHz≥40dBc, SMA
View Details →

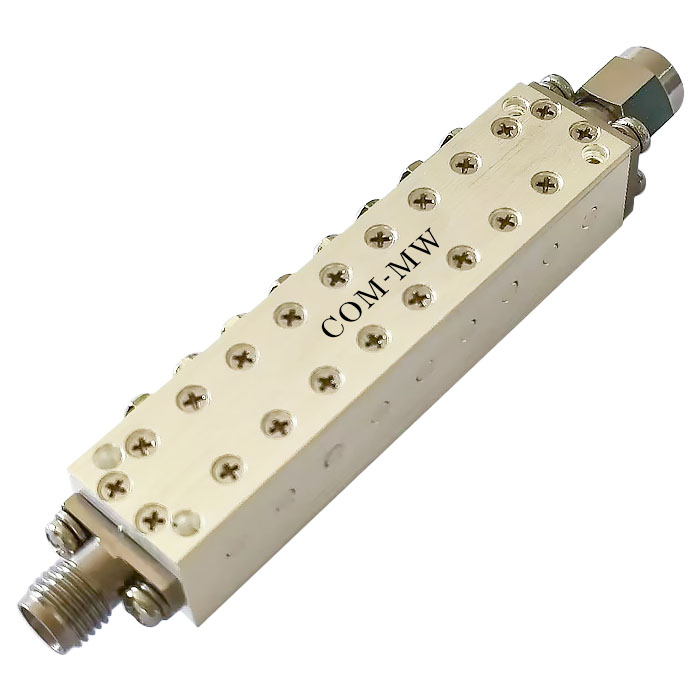

ZBF3-C1100-20-3357 Filter

Filter ZBF3-C1100-20-3357

Passband1090~1110MHz, DC-1040MHz≥40dB, 1160-4000MHz≥40dB, SMA
View Details →

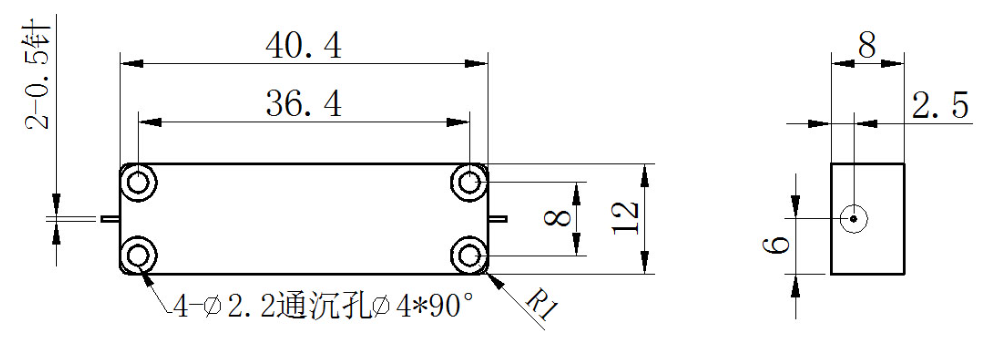

ZBF2-L1080-60-2022 Filter

Filter ZBF2-L1080-60-2022

Passband1050~1110MHz, DC-900MHz≥50dBc, 1.26-7GHz≥50dBc, Pin
View Details →

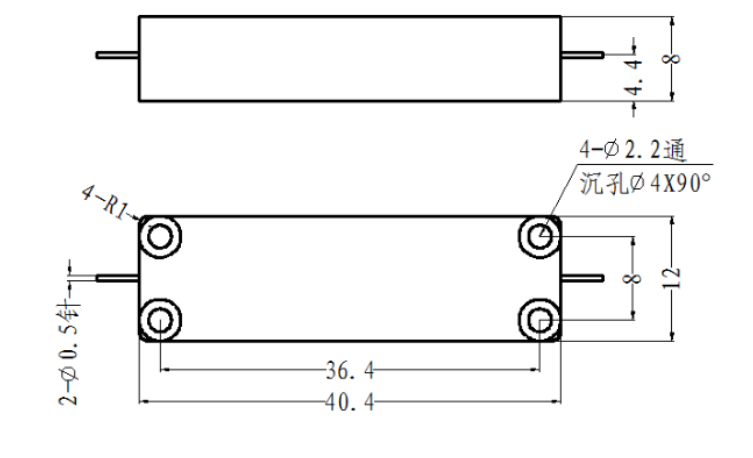

ZBF2-L1060-90-1824 Filter

Filter ZBF2-L1060-90-1824

Passband1015~1105MHz, DC-960MHz≥40dBc, 1.4-3GHz≥40dBc, Pin
View Details →
ZBF13-L960-300-180 Filter

Filter ZBF13-L960-300-180

Passband810~1110MHz, DC-570MHz≥50dB, 570-690MHz≥30dB, Pin
View Details →
ZBF13-L960-300-1785 Filter

Filter ZBF13-L960-300-1785

Passband810~1110MHz, DC-0.65GHz≥60dBc, 0.65-0.7GHz≥30dBc, SMD
View Details →
ZBF13-L937.5-375-1653 Filter

Filter ZBF13-L937.5-375-1653

Passband750~1125MHz, DC-562.5MHz≥50dBc, 1.3-3GHz≥50dBc, SMD
View Details →

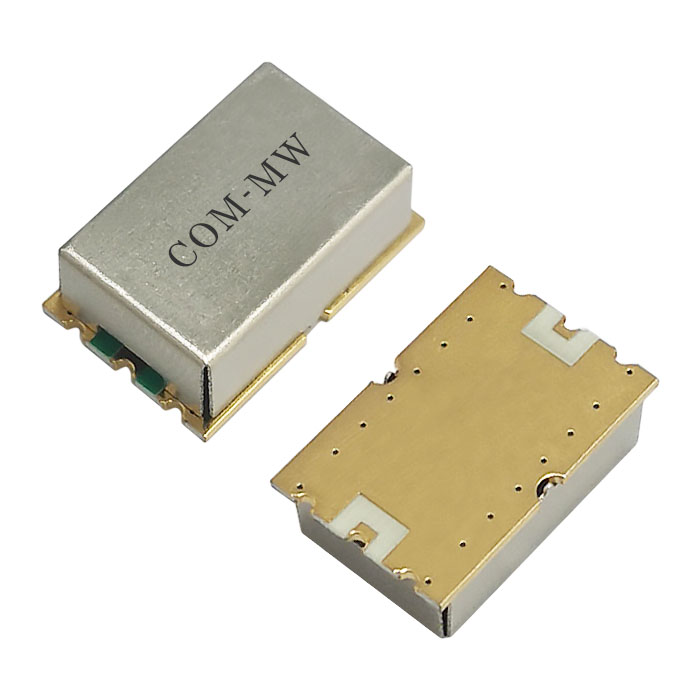

ZBF13-L1037.5-175-1498 Filter

Filter ZBF13-L1037.5-175-1498

Passband950~1125MHz, DC-562.5MHz≥50dBc, 1425-2250MHz≥50dBc, SMD
View Details →
DCBPF-1090M-10 Filter

Filter DCBPF-1090M-10

Passband1075~1105MHz, DC-1050MHz≥30dB, 1130-3500MHz≥30dB, N
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
