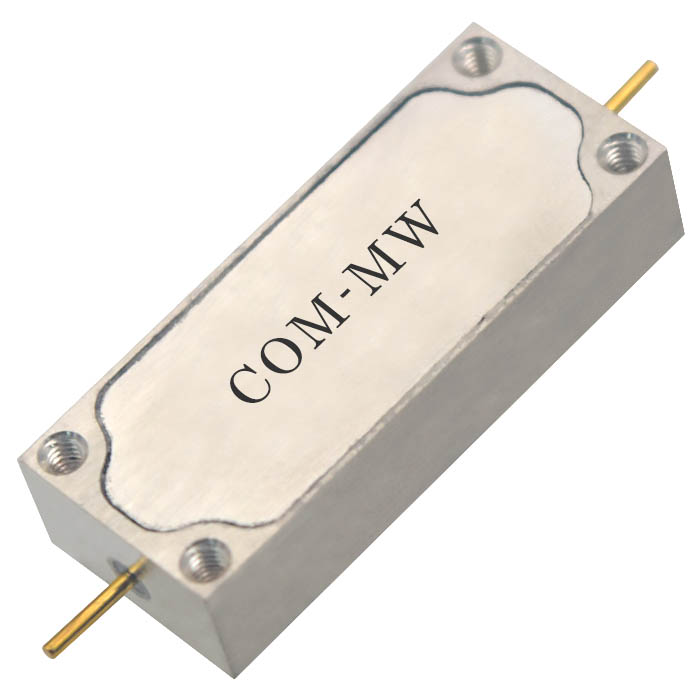

Passband1075~1105MHz, DC-1050MHz≥40dB, 1130-1800MHz≥40dB, Pin
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | Frequency | / | Min | Typical | Max | Units |
|---|---|---|---|---|---|---|
| Passband | / | / | 1075 | ~ | 1105 | MHz |
| Passband IL | / | / | 5 | dB | ||
| Ripple | / | / | 2 | dB | ||
| Rejection | DC-1050 | MHz≥ | 40 | dB | ||
| Rejection | 1130-1800 | MHz≥ | 40 | dB | ||
| Passband VSWR | / | / | 1.5 |
| Connector | Pin 0.8mm |
| Impedance | 50Ω |
| Surface | White |
| Power Capacity | 1W Design assurance |
| Operation Temp. | -40~+70℃ Design assurance |

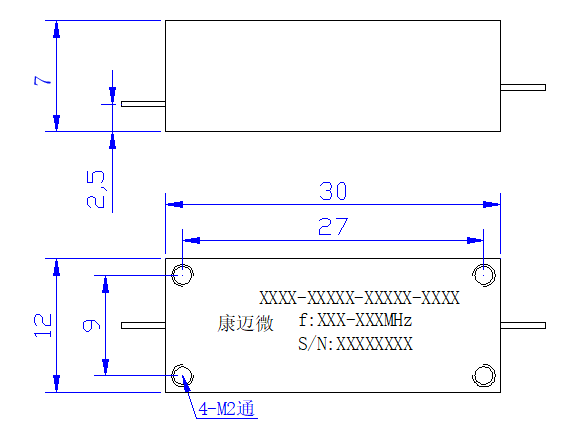

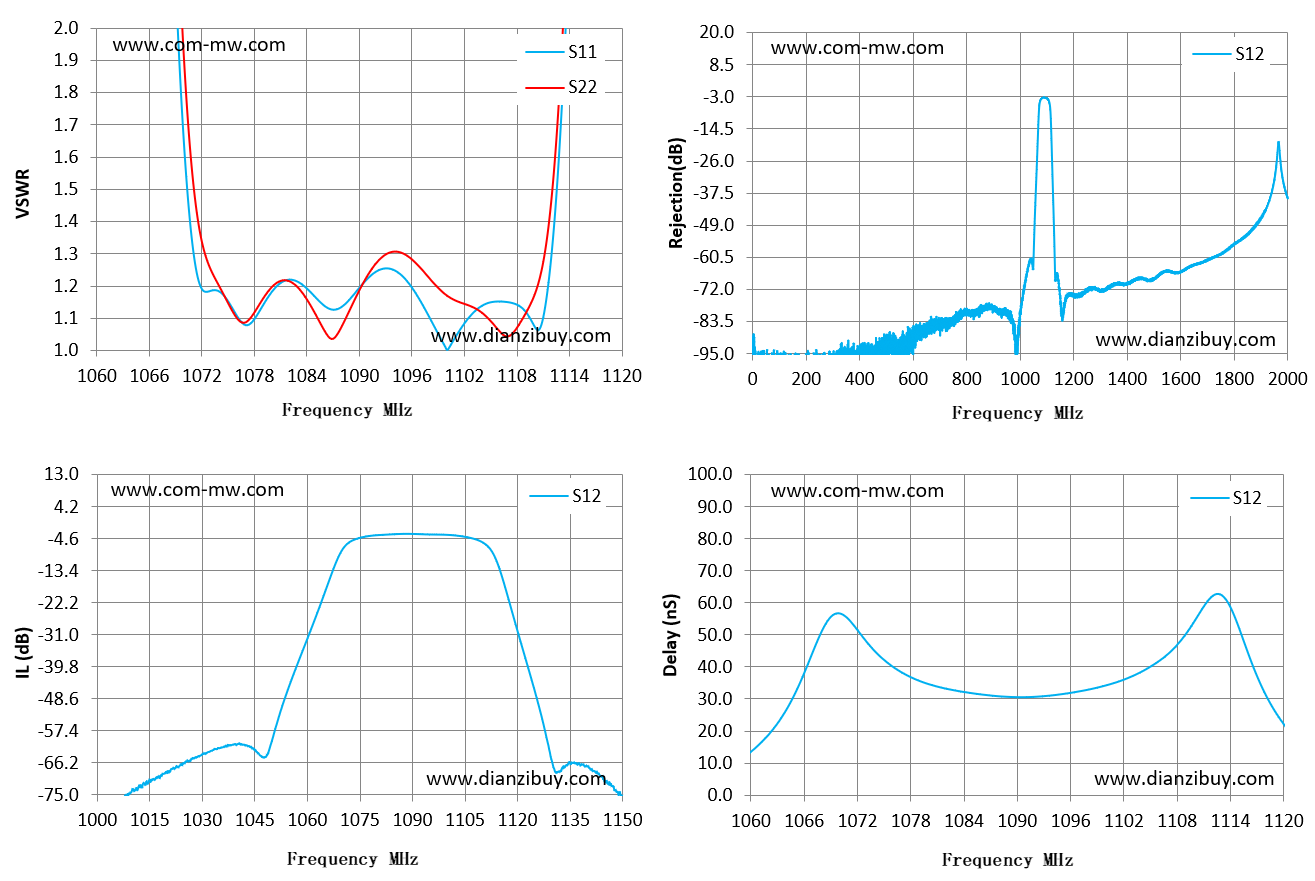

| Frequency MHz | S11 VSWR | S22 VSWR | S12 IL (dB) | S12 Delay (ns) |
|---|---|---|---|---|
| 1060 | 12.75 | 13.24 | -32.48 | 13.03 |
| 1064 | 7.66 | 8.35 | -22.39 | 25.79 |
| 1069 | 2.27 | 2.61 | -9.67 | 55.02 |
| 1073 | 1.18 | 1.26 | -5.1 | 48.58 |
| 1077 | 1.08 | 1.09 | -3.98 | 38.56 |
| 1081 | 1.21 | 1.21 | -3.57 | 33.99 |
| 1086 | 1.14 | 1.07 | -3.32 | 31.45 |
| 1090 | 1.19 | 1.18 | -3.28 | 30.58 |
| 1094 | 1.25 | 1.31 | -3.41 | 31.08 |
| 1099 | 1.06 | 1.2 | -3.5 | 33.41 |
| 1103 | 1.11 | 1.14 | -3.78 | 36.95 |
| 1107 | 1.15 | 1.04 | -4.45 | 43.66 |
| 1111 | 1.08 | 1.25 | -6.12 | 58.09 |
| 1116 | 3.81 | 4.03 | -15.9 | 45.6 |
| 1120 | 8 | 8.36 | -29.44 | 22.85 |
| 1 | Short term soaking and cleaning, please dry in a timely manner. |
| 2 | If the temperature is higher than 125℃, consult with us before ordering. |
