Filters
Filters 1
Feature
Bandpass 5 Notch 29
F Low MHz
76 1 87 3 88 28 94 1 107 1
–
Center frequency MHz
97.5 2 98 2 101 1 107.5 1
–
F High MHz
108 34
–
IL on center frequency dB
1 3 2 1 4 1
–
Maximum loss of side frequency dB
0.8 - 1 2 1.2 - 1.5 3 1.8 - 2 18 3 - 3.5 10 5 1
–
Rejection dB
20 - 28 4 30 - 32 7 35 - 40 18 50 5
–
Connector
SMD 3 SMA 17 N 8 Microstrip needle 6
Power Handling
0.1 - 1 11 2 - 5 14 10 - 50 9
–
Filter type
LC 31 Cavity&waveguide 2 stripline 1
F High：108 - 108 MHz× Clear all
matches 34 models Default Newest
BF041 Filter

Filter BF041

Passband94~108MHz, DC-80MHz≥20dB, 130-1900MHz≥20dB, SMD, Replace SXBP-101+
In Stock View Details →
ZBSF13-L88-108-3595 Filter

Filter ZBSF13-L88-108-3595

Stopband F88~108MHz, ≥35dBc, PassbandDC~80MHz, 120~1300MHz, SMA
In Stock View Details →
ZBSF4-L87-108-1166 Filter

Filter ZBSF4-L87-108-1166

Stopband F87~108MHz, ≥40dB, PassbandDC~62MHz, 135~1000MHz, SMA
View Details →
ZBSF3-L88-108-4257 Filter

Filter ZBSF3-L88-108-4257

Stopband F88~108MHz, ≥35dB, PassbandDC~50MHz, 150~6000MHz, SMA
View Details →
ZBSF3-L88-108-3640 Filter

Filter ZBSF3-L88-108-3640

Stopband F88~108MHz, ≥30dB, PassbandDC~78MHz, 118~1350MHz, Pin
View Details →
ZBSF3-L88-108-284 Filter

Filter ZBSF3-L88-108-284

Stopband F88~108MHz, ≥15dB, ≥20dB, PassbandDC~80MHz, 120~1350MHz, SMA
View Details →
ZBSF3-L76-108-3953 Filter

Filter ZBSF3-L76-108-3953

Stopband F76~108MHz, ≥30dB, PassbandDC~64MHz, 123~1350MHz, SMA
View Details →
ZBSF3-C88-108-2815 Filter

Filter ZBSF3-C88-108-2815

tunable stopband88~108MHz, , -3dB BW3~8MHz, ≥200KHz, N
View Details →
ZBSF3-2L88-108-2559 Filter

Filter ZBSF3-2L88-108-2559

Stopband F88~108MHz, ≥40dB, PassbandDC~68MHz, 128~1350MHz, SMA
View Details →
ZBSF2-L88-108-2174 Filter

Filter ZBSF2-L88-108-2174

Stopband F88~108MHz, ≥30dBc, Passband30~83MHz, 113~600MHz, N
View Details →
ZBSF15-L88-108-1578 Filter

Filter ZBSF15-L88-108-1578

Stopband F88~108MHz, ≥32dBc, Passband30~74MHz, 122~225MHz, SMD
View Details →
ZBSF15-L88-108-1313 Filter

Filter ZBSF15-L88-108-1313

Stopband F88~108MHz, ≥30dBc, PassbandDC~75MHz, 125-~300MHz, SMD
View Details →
ZBSF15-L50-150-594 Filter

Filter ZBSF15-L50-150-594

Stopband F88~108MHz, ≥35dBc, PassbandDC~50MHz, 150~1000MHz, Pin
View Details →
ZBSF15-L30-500-543 Filter

Filter ZBSF15-L30-500-543

Stopband F88~108MHz, ≥30dBc, Passband30~70MHz, 130~500MHz, Pin
View Details →
ZBSF13-L88-108-871 Filter

Filter ZBSF13-L88-108-871

Stopband F88~108MHz, ≥28dBc, PassbandDC~70MHz, 140~260MHz, Pin
View Details →
ZBSF13-L88-108-2245 Filter

Filter ZBSF13-L88-108-2245

Stopband F88~108MHz, ≥30dB, Passband20~80MHz, 120~200MHz, Pin
View Details →
ZBSF13-L88-108-1051 Filter

Filter ZBSF13-L88-108-1051

Stopband F88~108MHz, ≥40dB, PassbandDC~70MHz, 130~3600MHz, SMA
View Details →
ZBSF13-L30-3000-630 Filter

Filter ZBSF13-L30-3000-630

Stopband F88~108MHz, Stopband F800~960MHz, 20dB, Passband30~65MHz, 140~650MHz, 1150~3000MHz, N
View Details →
ZBF5-L97.5-21-3617 Filter

Filter ZBF5-L97.5-21-3617

Passband87~108MHz, DC-67MHz≥50dB, 137-1000MHz≥50dB, Pin
View Details →
ZBF20-L97.5-21-335 Filter

Filter ZBF20-L97.5-21-335

Passband87~108MHz, DC-75MHz≥40dB, 120-500MHz≥40dB, SMA
View Details →

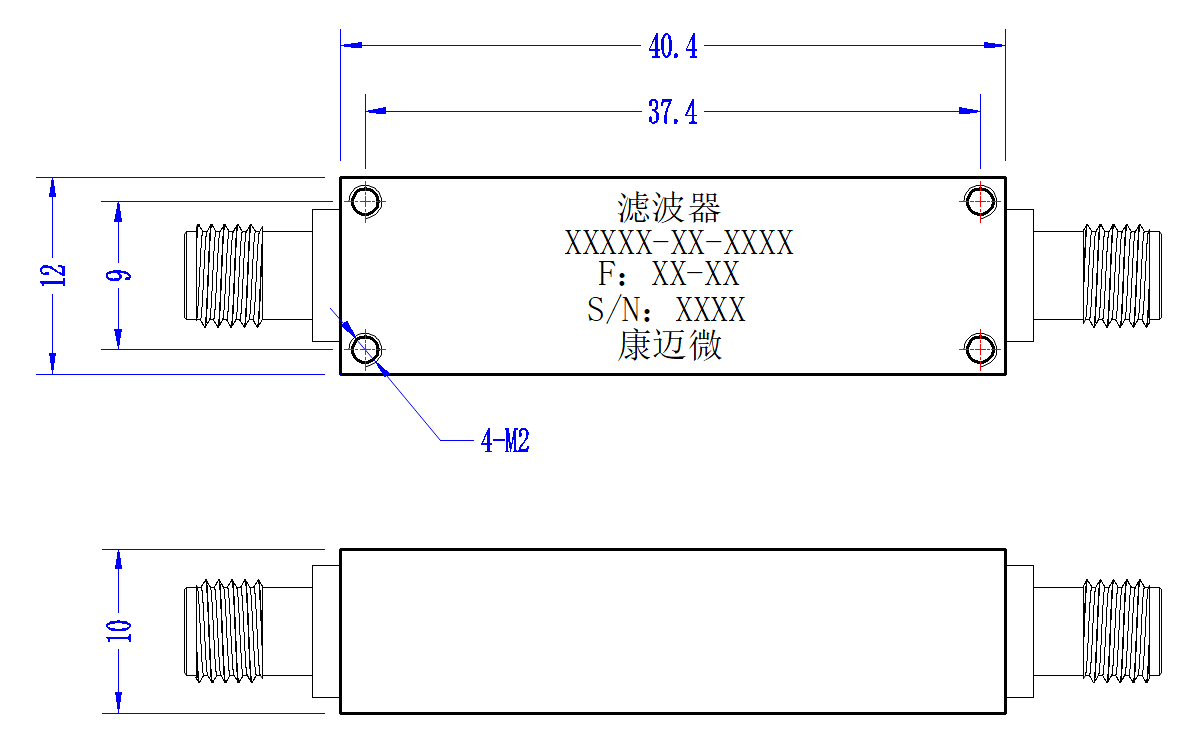

ZBF15-L107.5-1-505 Filter

Filter ZBF15-L107.5-1-505

Passband107~108MHz, f0±8MHz≥40dB, dB, SMA
View Details →
K6-88-108-20S5050-012 Filter

Filter K6-88-108-20S5050-012

Stopband F88~108MHz, ≥50dB, PassbandDC~68MHz, 128~800MHz, SMA
View Details →
K6-88-108-20S505-010 Filter

Filter K6-88-108-20S505-010

Stopband F88~108MHz, ≥50dB, PassbandDC~68MHz, 128~800MHz, SMA
View Details →

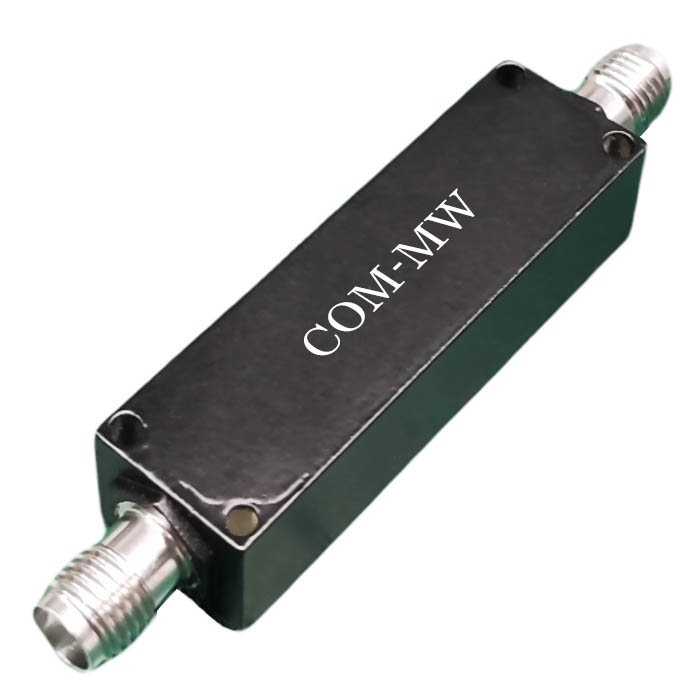

K6-88-108-20S4050-008 Filter

Filter K6-88-108-20S4050-008

Stopband F88~108MHz, ≥40dB, PassbandDC~68MHz, 128~800MHz, SMA
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
