tunable stopband88~108MHz, , -3dB BW3~8MHz, ≥200KHz, N
To check stock availability, search under "In-stock Products" on the Dianzibuy store.
Any change to the content of this page is subject to change without notice. Please confirm the specifications before ordering.
Products must not be used for any unlawful purpose; the customer bears any loss arising from unlawful use.
| Parameters | / | Min | Typical | Max | Units |
|---|---|---|---|---|---|
| tunable stopband | 88 | ~ | 108 | MHz | |
| -3dB BW | 3 | ~ | 8 | MHz | |
| -40dB BW | ≥200 | KHz | |||
| Passband VSWR | 1.8 |
| Connector | N -K |
| Impedance | 50Ω |
| Surface | Army green |

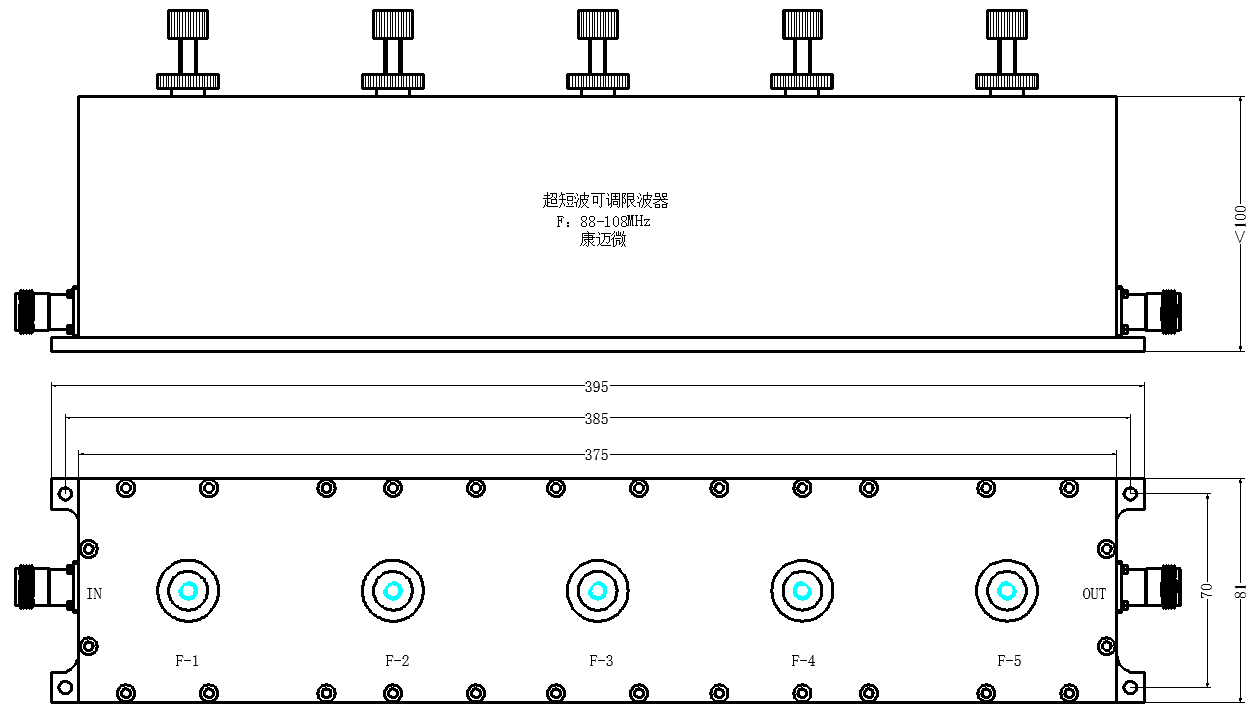

| Other | The frequency adjustment of this filter requires /uploads/kmw-media/zbsf3-c88-108-2815/manual/ZBSF3-C88-108-2815@2025-12-28-12-07-29.pdf debugging through debugging bits 1-5 |
| 1 | Clean the surface of the product, do not soak the product in cleaning solution for cleaning. |
| 2 | If the temperature is higher than 125℃, consult with us before ordering. |
