Filters
Filters 1
Feature
Bandpass 15 low pass 3 Notch 30
F Low MHz
0 - 55 9 76 - 88 32 90 - 97.5 5 100.5 - 107 2
–
Center frequency MHz
60 - 80 6 97.5 - 98 6 101 - 102.5 3 107.5 1
–
F High MHz
104.5 1 105 12 107.5 1 108 34
–
IL on center frequency dB
0.5 1 1 10 2 2 4 1 6 1
–
Maximum loss of side frequency dB
0.5 - 1 4 1.2 - 1.5 4 1.8 - 3 37 3.5 - 7 3
–
Rejection dB
20 - 28 4 30 - 32 11 35 - 40 22 50 - 60 11
–
Connector
SMD 7 SMA 21 N 9 Microstrip needle 11
Power Handling
0.1 - 0.5 3 1 - 2 27 5 - 10 8 20 - 50 9 100 1
–
Filter type
LC 45 Cavity&waveguide 2 stripline 1
F High：104.5 - 108 MHz× Clear all
matches 48 models Default Newest
LF015 Filter

Filter LF015

PassbandDC~105, 145-165MHz≥20dB, 165-1000MHz≥40dB, SMD, Replace RLP-105+
In Stock View Details →
BF041 Filter

Filter BF041

Passband94~108MHz, DC-80MHz≥20dB, 130-1900MHz≥20dB, SMD, Replace SXBP-101+
In Stock View Details →
ZBSF13-L88-108-3595 Filter

Filter ZBSF13-L88-108-3595

Stopband F88~108MHz, ≥35dBc, PassbandDC~80MHz, 120~1300MHz, SMA
In Stock View Details →

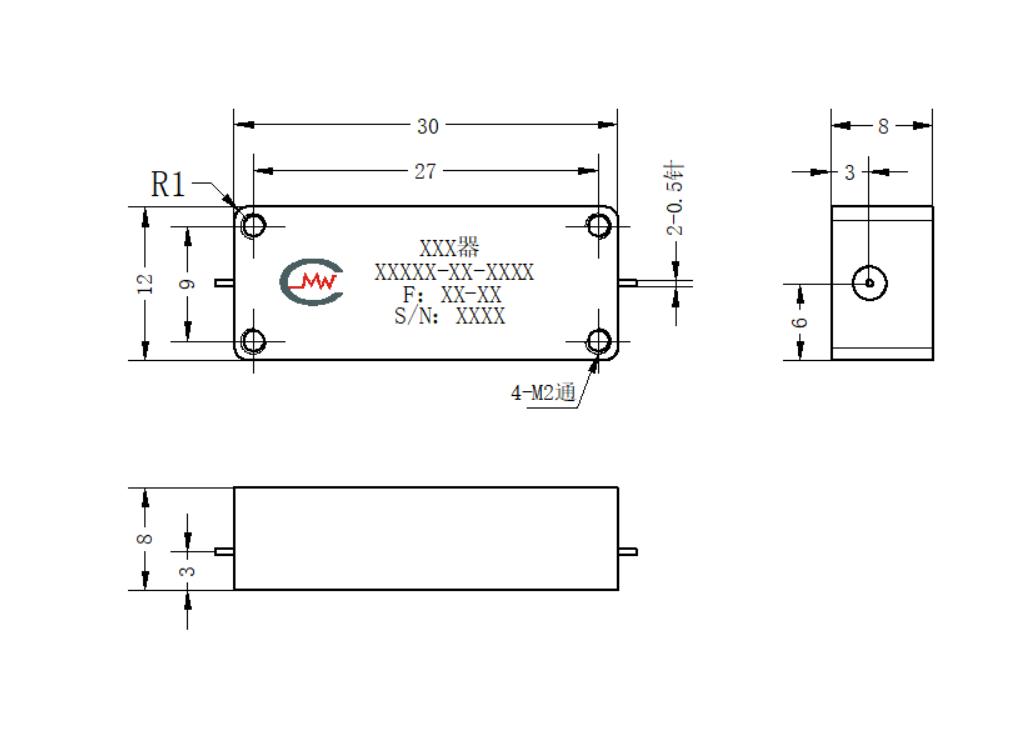

ZLPF13-L0-105-1152 Filter

Filter ZLPF13-L0-105-1152

PassbandDC~105MHz, 200MHz≥62dBc, 300MHz≥72dBc, Pin,
View Details →
ZBSF4-L87-108-1166 Filter

Filter ZBSF4-L87-108-1166

Stopband F87~108MHz, ≥40dB, PassbandDC~62MHz, 135~1000MHz, SMA
View Details →
ZBSF3-L88-108-4257 Filter

Filter ZBSF3-L88-108-4257

Stopband F88~108MHz, ≥35dB, PassbandDC~50MHz, 150~6000MHz, SMA
View Details →
ZBSF3-L88-108-3640 Filter

Filter ZBSF3-L88-108-3640

Stopband F88~108MHz, ≥30dB, PassbandDC~78MHz, 118~1350MHz, Pin
View Details →
ZBSF3-L88-108-284 Filter

Filter ZBSF3-L88-108-284

Stopband F88~108MHz, ≥15dB, ≥20dB, PassbandDC~80MHz, 120~1350MHz, SMA
View Details →
ZBSF3-L76-108-3953 Filter

Filter ZBSF3-L76-108-3953

Stopband F76~108MHz, ≥30dB, PassbandDC~64MHz, 123~1350MHz, SMA
View Details →
ZBSF3-C88-108-2815 Filter

Filter ZBSF3-C88-108-2815

tunable stopband88~108MHz, , -3dB BW3~8MHz, ≥200KHz, N
View Details →
ZBSF3-2L88-108-2559 Filter

Filter ZBSF3-2L88-108-2559

Stopband F88~108MHz, ≥40dB, PassbandDC~68MHz, 128~1350MHz, SMA
View Details →
ZBSF2-L88-108-2174 Filter

Filter ZBSF2-L88-108-2174

Stopband F88~108MHz, ≥30dBc, Passband30~83MHz, 113~600MHz, N
View Details →
ZBSF15-L90-105-1430 Filter

Filter ZBSF15-L90-105-1430

Stopband F90~105MHz, ≥32dB, PassbandDC~70MHz, 130~260MHz, Pin
View Details →
ZBSF15-L88-108-1578 Filter

Filter ZBSF15-L88-108-1578

Stopband F88~108MHz, ≥32dBc, Passband30~74MHz, 122~225MHz, SMD
View Details →
ZBSF15-L88-108-1313 Filter

Filter ZBSF15-L88-108-1313

Stopband F88~108MHz, ≥30dBc, PassbandDC~75MHz, 125-~300MHz, SMD
View Details →
ZBSF15-L50-150-594 Filter

Filter ZBSF15-L50-150-594

Stopband F88~108MHz, ≥35dBc, PassbandDC~50MHz, 150~1000MHz, Pin
View Details →
ZBSF15-L30-500-543 Filter

Filter ZBSF15-L30-500-543

Stopband F88~108MHz, ≥30dBc, Passband30~70MHz, 130~500MHz, Pin
View Details →
ZBSF13-L88-108-871 Filter

Filter ZBSF13-L88-108-871

Stopband F88~108MHz, ≥28dBc, PassbandDC~70MHz, 140~260MHz, Pin
View Details →
ZBSF13-L88-108-2245 Filter

Filter ZBSF13-L88-108-2245

Stopband F88~108MHz, ≥30dB, Passband20~80MHz, 120~200MHz, Pin
View Details →
ZBSF13-L88-108-1051 Filter

Filter ZBSF13-L88-108-1051

Stopband F88~108MHz, ≥40dB, PassbandDC~70MHz, 130~3600MHz, SMA
View Details →
ZBSF13-L30-3000-630 Filter

Filter ZBSF13-L30-3000-630

Stopband F88~108MHz, Stopband F800~960MHz, 20dB, Passband30~65MHz, 140~650MHz, 1150~3000MHz, N
View Details →
ZBF6-L97.5-15-4268 Filter

Filter ZBF6-L97.5-15-4268

Passband90~105MHz, DC-62MHz≥60dB, 133-500MHz≥60dB, SMA
View Details →
ZBF5-L97.5-21-3617 Filter

Filter ZBF5-L97.5-21-3617

Passband87~108MHz, DC-67MHz≥50dB, 137-1000MHz≥50dB, Pin
View Details →
ZBF5-L80-50-1846 Filter

Filter ZBF5-L80-50-1846

Passband55~105MHz, DC-40MHz≥50dB, 123-200MHz≥50dB, SMA-K
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
