RF Filter

Total 37 models
Categories
Categories RF Filter
RF Filter16040
RF Filter15368 Diplexer468 Combiner52 Filter bank148 Active Filter4
Power Distribution1709
Divider&Hybrid1047 Coupler559 Balun103
Antenna1228
Antenna1172 Antenna accessories7 Tripod35 Antenna Box14
Signal Amplification605
RF Amplifier605
Connector1428
RF Connector13 RF Coaxial Adapter184 Bias Tee37 Coaxial Cable774 DC Block11 Waveguide adapter193 Waveguide Connection214 Lightning arrester1 Impedance transformer1
Controller642
Limiter77 RF Switch359 Equalizer45 Switching filter63 Mixer26 Detector34 Digital attenuator1 Phase shifter13 Delayer24
Other devices1491
Load228 Attenuator886 Isolator228 Circulator139 Frequency multiplier10
Module and test system48
RF Switch Matrix20 Mobile RF Test Matrix1 RF Module18 Frequency source9
Accessories40
Chip Capacitor18 glass insulator15
Filters
Filters 1
Feature
Bandpass 37
F Low MHz
850 - 930 6 940 - 1010 11 1100 - 1300 8 1310 - 1335 8 1338 - 2686 4
–
Center frequency MHz
1349.5 1 1350 33 1355 2 1357.5 1
–
F High MHz
1360 - 1369 5 1370 - 1450 9 1500 - 1700 9 1750 - 1780 11 1800 - 2714 3
–
IL on center frequency dB
0.5 - 0.6 3 1 - 2 30 3 - 4.5 2 5 - 8.5 2
–
Maximum loss of side frequency dB
1 - 1.5 6 1.8 - 2.5 23 3 - 4 5 5.5 - 10 3
–
Rejection dB
15 - 30 3 35 - 40 12 45 - 50 7 60 - 70 14 80 1
–
Connector
Other 2 SMD 10 SMA 10 N 1 Microstrip pad 1 Microstrip needle 13
Power Handling
0.32 - 1 13 2 - 5 17 10 - 100 7
–
Filter type
LC 24 Cavity&waveguide 9 stripline 1 MMIC 1 Dielectric 2
Center frequency：1349.5 - 1357.5 MHz× Clear all
matches 37 models Default Newest
ZBF15-L1357.5-515-1294 Filter

Filter ZBF15-L1357.5-515-1294

Passband1100~1620MHz, DC-900MHz≥40dBc, 1800-6000MHz≥40dB, SMD
In Stock View Details →
WLD013015K Filter

Filter WLD013015K

Passband1250~1450MHz, 800MHz≥30dBc, 2000MHz≥30dBc, Microstrip pad, MMIC
In Stock View Details →
ZBF9-D1350-100-3247 Filter

Filter ZBF9-D1350-100-3247

Passband1300~1400MHz, DC-1250MHz≥40dB, 1450MHz≥40dB, SMD
In Stock View Details →
ZBF15-L1350-800-1172 Filter

Filter ZBF15-L1350-800-1172

Passband950~1750MHz, DC-800MHz≥40dBc, 2-4GHz≥40dBc, SMD
In Stock View Details →
ZBF13-L1350-500-3550 Filter

Filter ZBF13-L1350-500-3550

Passband1100~1600MHz, DC-0.9GHz≥50dB, 1.8-4GHz≥50dB, SMA
In Stock View Details →
ZBF2-C1355-90-2643 Filter

Filter ZBF2-C1355-90-2643

Passband1310~1400MHz, DC-1220MHzMHz≥45dBc, 1800&1830MHzMHz≥76dBc, Pin
In Stock View Details →
ZBF13-L1350-800-1672 Filter

Filter ZBF13-L1350-800-1672

Passband950~1750MHz, DC-0.5GHz≥40dBc, 2.4-2.7GHz≥40dBc, Pin
In Stock View Details →
ZBF6-C1350-700-2126 Filter

Filter ZBF6-C1350-700-2126

Passband1000~1700MHz, DC-600MHz≥60dB, 2100-3000MHz≥60dB, SMA
View Details →
ZBF5-L1350-860-1167 Filter

Filter ZBF5-L1350-860-1167

Passband920~1780MHz, DC-600MHz≥40dBc, 2150-6000MHz≥40dBc, Pin
View Details →
ZBF5-L1350-840-2568 Filter

Filter ZBF5-L1350-840-2568

Passband930~1770MHz, DC-740MHz≥50dB, 1960-3000MHz≥60dB, SMA-K
View Details →
ZBF5-L1350-820-993 Filter

Filter ZBF5-L1350-820-993

Passband940~1760MHz, 1860-2250MHz≥20dBc, 2250-3000MHz≥60dBc, Pin
View Details →
ZBF5-L1350-820-1306 Filter

Filter ZBF5-L1350-820-1306

Passband930~1770MHz, DC-740MHz≥50dB, 1960-3000MHz≥60dB, Pin
View Details →
ZBF5-L1350-700-3502 Filter

Filter ZBF5-L1350-700-3502

Passband1000~1700MHz, DC-750MHz≥40dB, 2000-5000MHz≥40dB, SMA
View Details →
ZBF4-C1350-20-304 Filter

Filter ZBF4-C1350-20-304

Passband1340~1360MHz, DC-1000MHz≥80dB, 1620-2500MHz≥50dB, SMA
View Details →
ZBF3-L1350-800-639 Filter

Filter ZBF3-L1350-800-639

Passband950~1750MHz, DC-800MHz≥50dB, 1900-3400MHz≥50dB, Pin
View Details →
ZBF3-L1350-300-2872 Filter

Filter ZBF3-L1350-300-2872

Passband1200~1500MHz, DC-1050MHz≥40dBc, 1650-3200MHz≥40dBc, Pin
View Details →

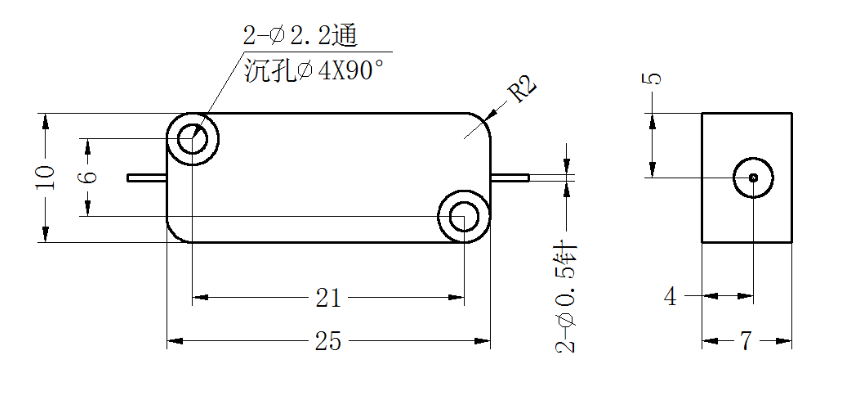

ZBF2-L1355-690-2194 Filter

Filter ZBF2-L1355-690-2194

Passband1010~1700MHz, 820-850MHz≥20dBc, DC-820MHz≥40dBc, Pin
View Details →
ZBF2-C1350-50-3305 Filter

Filter ZBF2-C1350-50-3305

Passband1325~1375MHz, DC~1295MHz≥60dB, 1405~2500MHz≥60dB, SMA
View Details →
ZBF2-C1350-50-3304 Filter

Filter ZBF2-C1350-50-3304

Passband1325~1375MHz, DC-1250MHz≥60dB, 1450-4000MHz≥60dB, MCX
View Details →

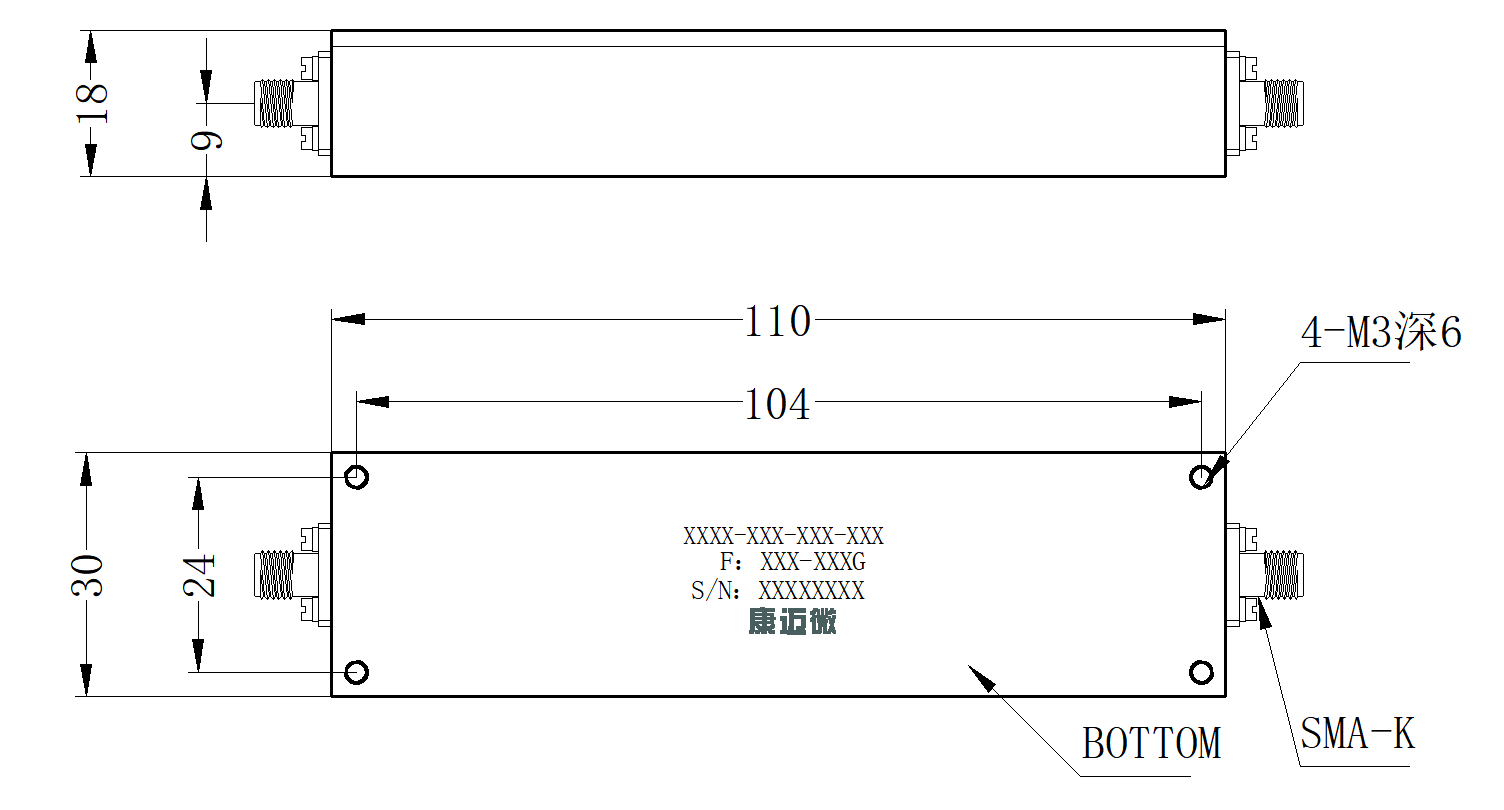

ZBF2-C1350-100-2952 Filter

Filter ZBF2-C1350-100-2952

Passband1300~1400MHz, DC-1227MHz≥70dBc, 1470-4200GHz≥70dBc, SMA-K
View Details →
ZBF16-C1350-50-349 Filter

Filter ZBF16-C1350-50-349

Passband1325~1375MHz, DC~1295MHz≥60dBc, 1405~2500MHz≥60dBc, GHz≥dB, GHz≥dB, SMA
View Details →
ZBF15-L1350-900-122 Filter

Filter ZBF15-L1350-900-122

Passband900~1800MHz, DC-350MHz≥50dBc, 2350-3000MHz≥50dBc, Pin
View Details →
ZBF15-L1350-800-968 Filter

Filter ZBF15-L1350-800-968

Passband950~1750MHz, DC-600MHz≥40dBc, 2-4GHz≥40dBc, SMD
View Details →
ZBF15-L1350-500-2852 Filter

Filter ZBF15-L1350-500-2852

Passband1100~1600MHz, DC-800MHz≥60dBc, 1000MHz≥30dBc, SMD
View Details →

Can't find the right model?

Send us the frequency, power, interface and other specifications — our engineers will respond within one working day with a recommendation or a custom design.
