Filters
Filters 1
Feature
Bandpass 39 low pass 1 Notch 5
F Low MHz
0 - 1382 10 1428 - 7418 11 7600 - 10920 12 11000 - 22300 8 25500 - 37500 4
–
Center frequency MHz
25.5 - 2155 9 3000 - 7708 7 8100 - 9320 7 9850 - 19450 8 21000 - 35000 8
–
F High MHz
50 - 2183 12 2300 - 6000 8 7998 - 10250 9 11170 - 23300 10 23800 - 44500 6
–
IL on center frequency dB
0.2 - 0.4 4 0.5 - 0.8 5 1 - 2 29 3 1
–
Maximum loss of side frequency dB
0.3 - 0.8 4 1 - 1.1 5 1.5 - 2 23 3 - 4 13
–
Rejection dB
20 - 40 10 45 - 55 13 60 - 70 18 75 - 90 4
–
Connector
SMP 45
Power Handling
1 - 2 10 3 - 5 9 10 - 40 23 100 - 10025 3
–
Filter type
LC 9 Cavity&waveguide 35 Dielectric 1
Connector：SMP× Clear all
matches 45 models Default Newest
ZBF5-C22.8-1G-3774 Filter

Filter ZBF5-C22.8-1G-3774

Passband22.3~23.3GHz, DC-21.8GHz≥30dB, 23.4-23.8GHz≥35dB, SMP
View Details →
ZBF4-C8.6-2G-1715 Filter

Filter ZBF4-C8.6-2G-1715

Passband7.6~9.6GHz, 7-7.4GHz≥35dBc, 9.8-10.2GHz≥35dBc, SMP
View Details →
ZBF4-C11.5-1G-1596 Filter

Filter ZBF4-C11.5-1G-1596

Passband11~12GHz, DC-10.5GHz≥45dB, 12.5-20GHz≥60dB, SMP
View Details →
ZBF25-C11045-250-337 Filter

Filter ZBF25-C11045-250-337

Passband10920~11170MHz, DC-6000MHz≥60dB, 6000-10620MHz≥50dB, SMP
View Details →
ZBF2-L622-112-3278 Filter

Filter ZBF2-L622-112-3278

Passband566~678MHz, DC-340MHz≥60dBc, 340-430MHz≥20dBc, 758-2000MHz≥60dBc, SMP
View Details →
ZBF2-D485-40-2745 Filter

Filter ZBF2-D485-40-2745

Passband465~505MHz, DC-425MHz≥55dB, 545-2500MHz≥55dB, SMP
View Details →
ZBF2-C41-7G-2668 Filter

Filter ZBF2-C41-7G-2668

Passband37.5~44.5GHz, DC-34.5GHz≥60dB, 47.5-50GHz≥60dB
View Details →
ZBF2-C35-7G-2667 Filter

Filter ZBF2-C35-7G-2667

Passband31.5~38.5GHz, DC-28.5GHz≥60dB, 41.5-45GHz≥60dB
View Details →
ZBF2-C29-7G-2666 Filter

Filter ZBF2-C29-7G-2666

Passband25.5~32.5GHz, DC-22.5GHz≥60dB, 35.5-48GHz≥60dB
View Details →

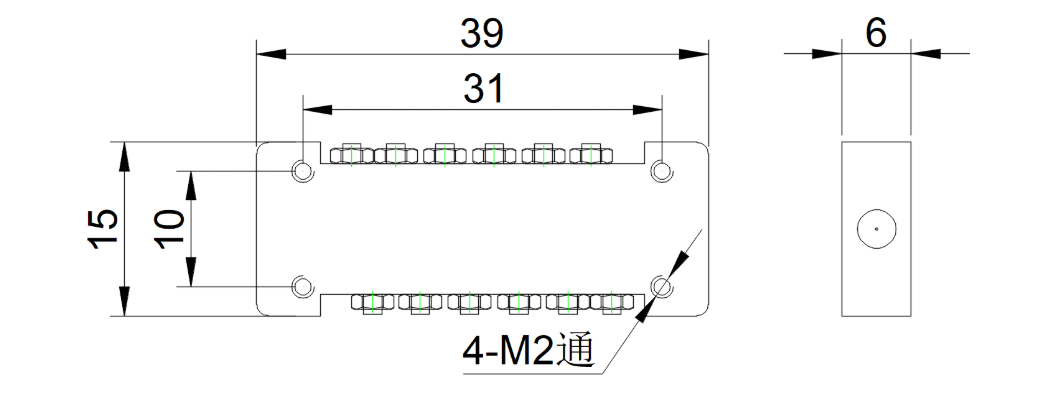

ZBF2-C23-7G-2665 Filter

Filter ZBF2-C23-7G-2665

Passband19.5~26.5GHz, DC-17.5GHz≥60dB, 28.5-42GHz≥60dB
View Details →

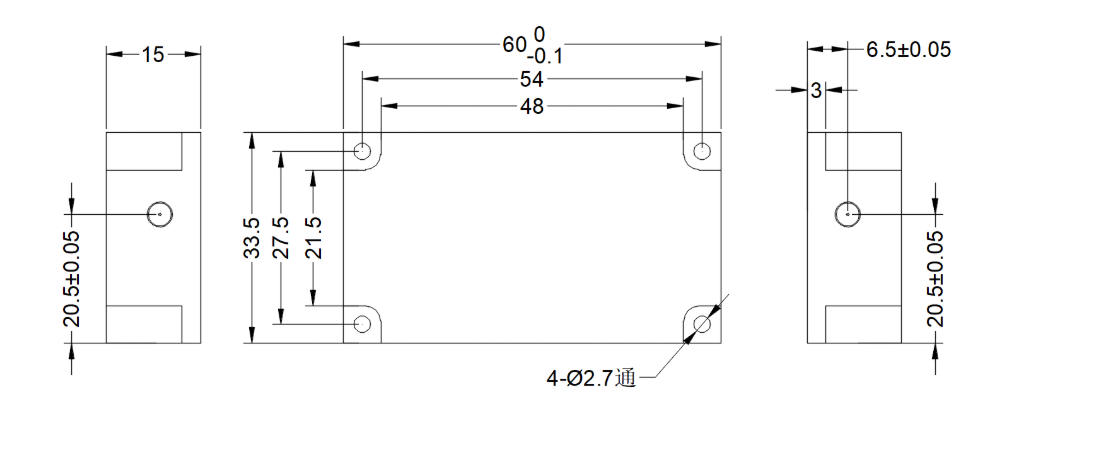

ZBF2-C1307.5-185-2713 Filter

Filter ZBF2-C1307.5-185-2713

Passband1215~1400MHz, DC-1GHz≥30dB, 2-4.5GHz≥50dB, SMP
View Details →

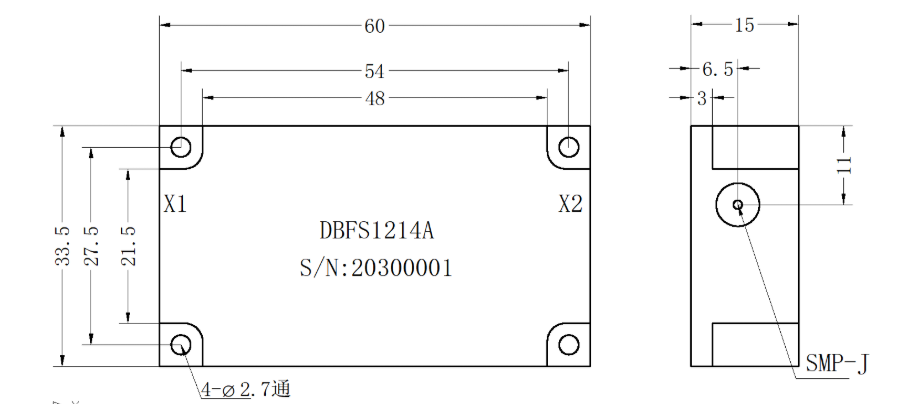

ZBF2-C1307.5-185-2452 Filter

Filter ZBF2-C1307.5-185-2452

Passband1215~1400MHz, DC-1GHz≥30dBc, 2-3GHz≥50dBc, SMP
View Details →

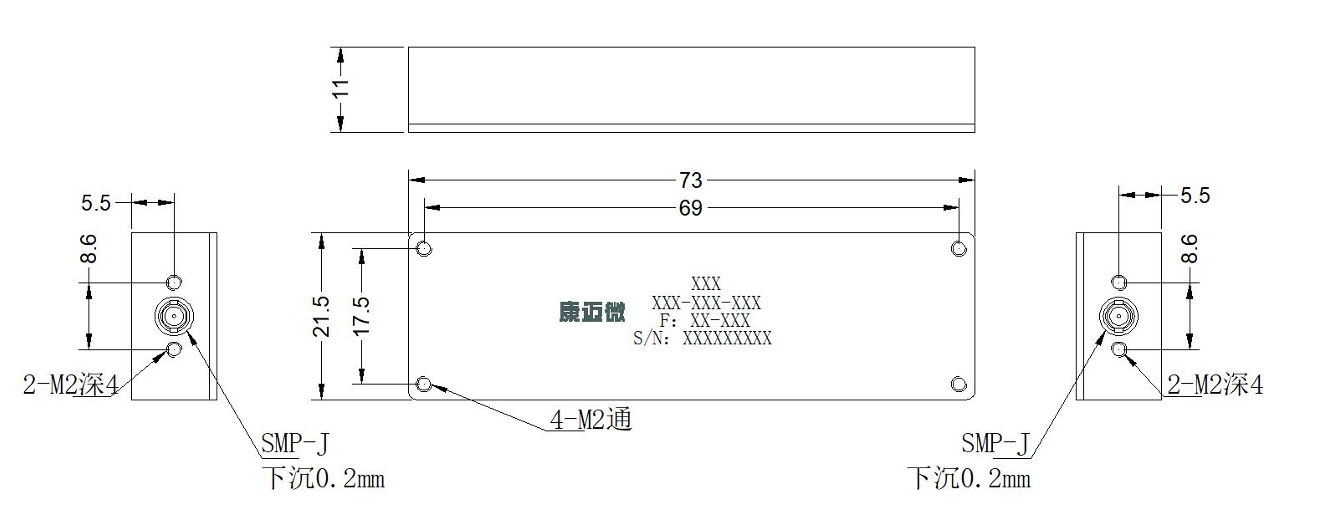

ZBF16-C4000-2000-621 Filter

Filter ZBF16-C4000-2000-621

Passband 3000~5000MHz, DC~1500MHz≥45dBc, 6500~15000MHz≥45dBc, SMP
View Details →

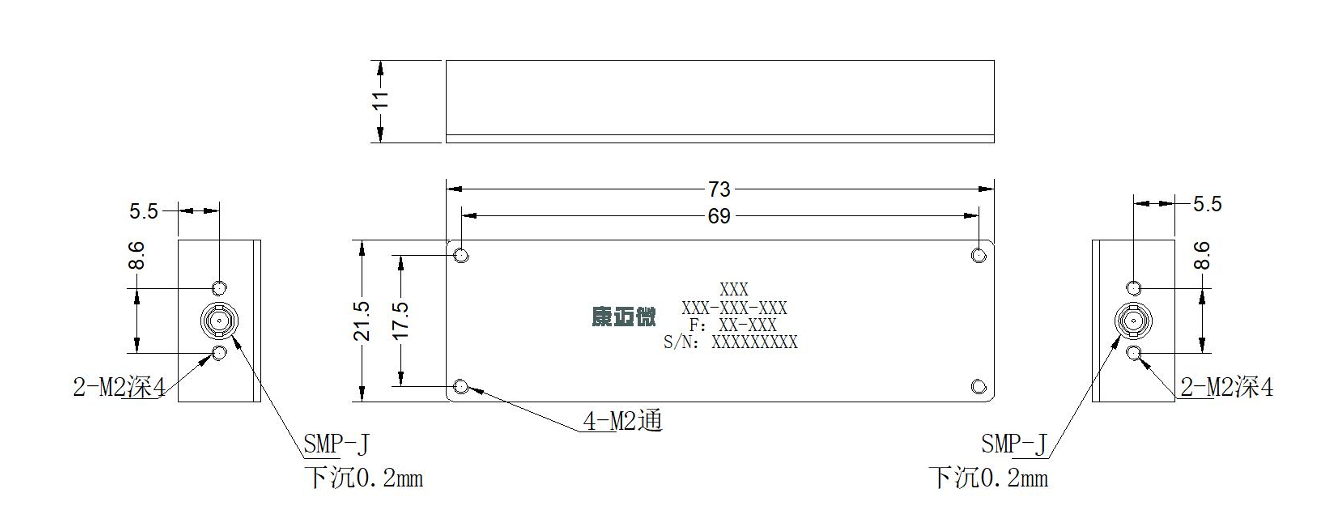

ZBF16-C3250-500-623 Filter

Filter ZBF16-C3250-500-623

Passband 3000~3500MHz, DC~2400MHz≥50dBc, 4100~15000MHz≥50dBc, SMP
View Details →
ZBF13-C9.85-0.8G-3430 Filter

Filter ZBF13-C9.85-0.8G-3430

Passband9.45~10.25GHz, DC-8.5GHz≥70dBc, 11.2-20GHz≥70dBc, SMP
View Details →
ZBF13-C7708-580-3556 Filter

Filter ZBF13-C7708-580-3556

Passband7418~7998MHz, DC-6608MHz≥90dB, 6808MHz≥70dB, SMP
View Details →
