Polarization：Left-hand circular polarization× Clear all
matches 46 models Default Newest

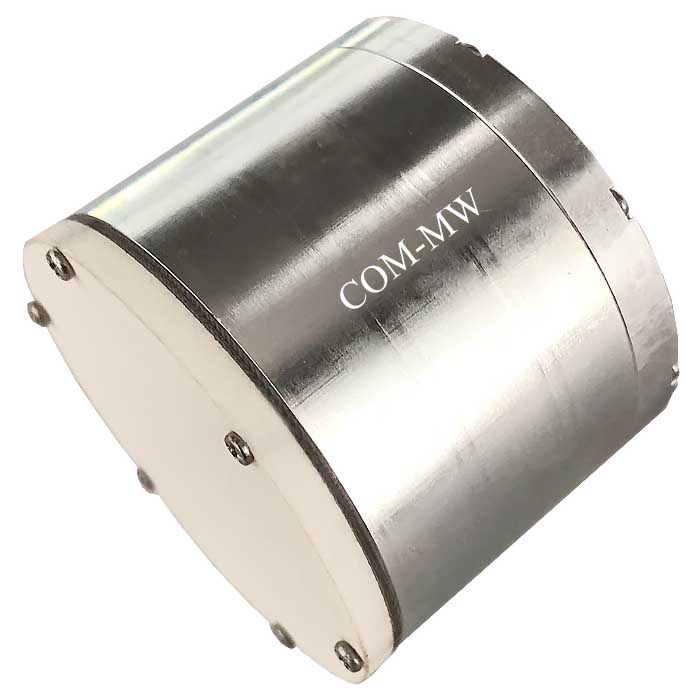

ZLX7-Z2-18G-1418 Planar spiral antenna

Planar spiral antenna ZLX7-Z2-18G-1418

Frequency2~18GHz, GaindBi@2-4GHz, GaindBi4-12GHz, GaindBi12-18GHz, Left-hand circular polarization, SMA
View Details →
ZLX7-Z2-18G-1415 Planar spiral antenna

Planar spiral antenna ZLX7-Z2-18G-1415

Frequency2~18GHz, GaindBi@2-4GHz, GaindBi@4-12GHz, GaindBi@12-18GHz, Left-hand circular polarization, SMP
View Details →
ZLX7-Z1-18G-2249 Planar spiral antenna

Planar spiral antenna ZLX7-Z1-18G-2249

Frequency1~18GHz, Gain2dBi, Left-hand circular polarization, BMA-K
View Details →

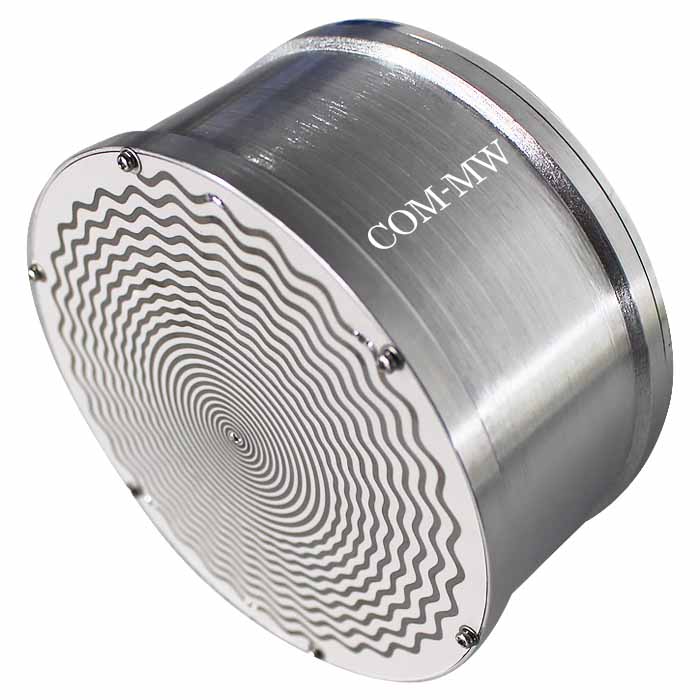

ZLX7-Z0.5-2G-923 Planar spiral antenna

Planar spiral antenna ZLX7-Z0.5-2G-923

Frequency0.5~2GHz, Gain0dBi, Left-hand circular polarization, SMA-K
View Details →
ZLX-Z8-12G-037 Cone Spiral Antenna

Cone Spiral Antenna ZLX-Z8-12G-037

Frequency8~12GHz, Gain6dBi, Left-hand circular polarization, 50W, SMA
View Details →
ZLB7-Z8-12.5G-1560 Horn Antenna

Horn Antenna ZLB7-Z8-12.5G-1560

Frequency8~12.5GHz, Gain10dBi, Left-hand circular polarization, SMA-K
View Details →

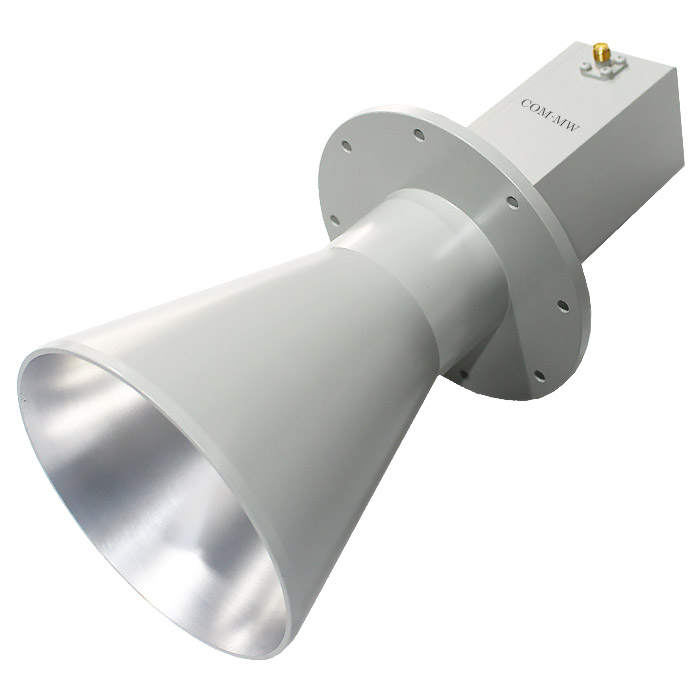

ZLB7-Z5.5-6.3G-813 Horn Antenna

Horn Antenna ZLB7-Z5.5-6.3G-813

Frequency5.5~6.3GHz, Gain15dBi, Left-hand circular polarization, SMA-K
View Details →
ZLB7-Z5-6.5G-1024 Horn Antenna

Horn Antenna ZLB7-Z5-6.5G-1024

Frequency5~6.5GHz, Gain5dBi, Left-hand circular polarization, SMA
View Details →
ZLB7-Z2.48-2.51G-1198 Horn Antenna

Horn Antenna ZLB7-Z2.48-2.51G-1198

Frequency2.48~2.51GHz, Gain5dBi, Left-hand circular polarization, N
View Details →

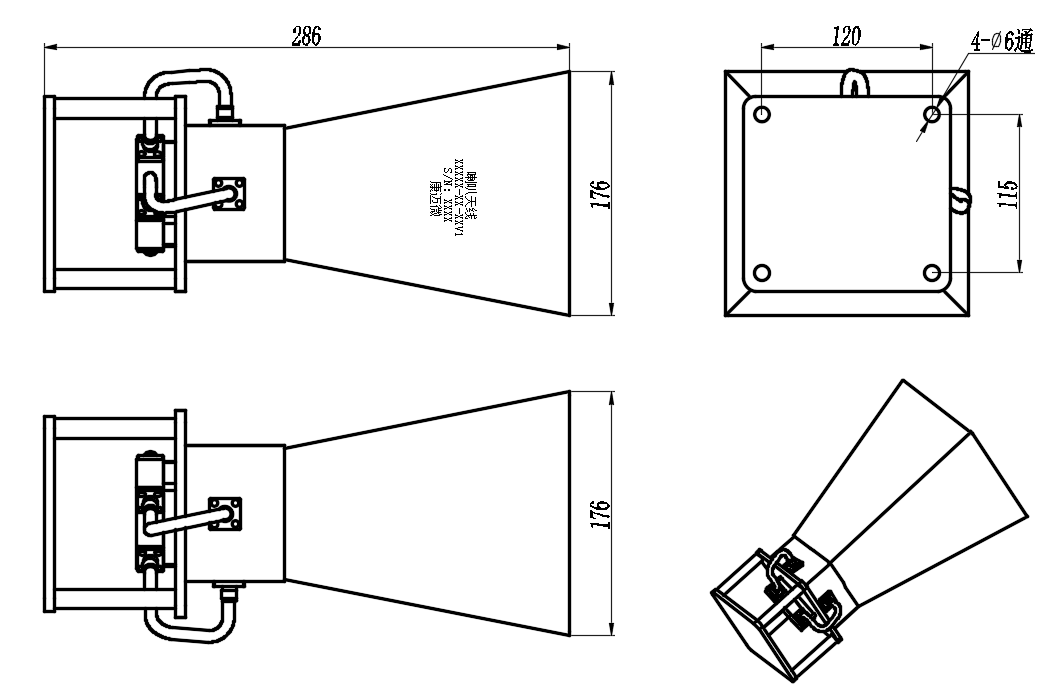

ZLB7-Z2-4G-1558 Horn Antenna

Horn Antenna ZLB7-Z2-4G-1558

Frequency 22~4GHz, Gain10dBi, Left-hand circular polarization, SMA-K
View Details →

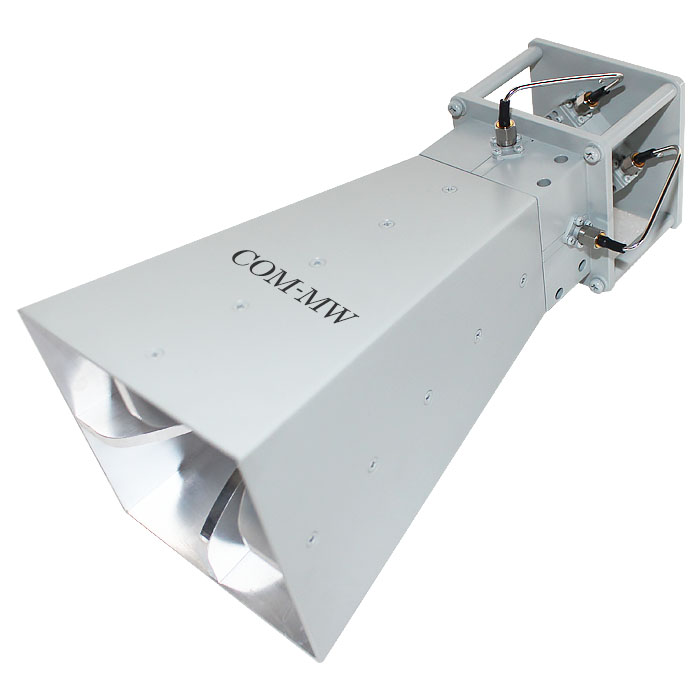

ZLB7-Z2-18G-2047 Horn Antenna

Horn Antenna ZLB7-Z2-18G-2047

Frequency2~18GHz, Gain10dBi, Left-hand circular polarization, SMA-K
View Details →

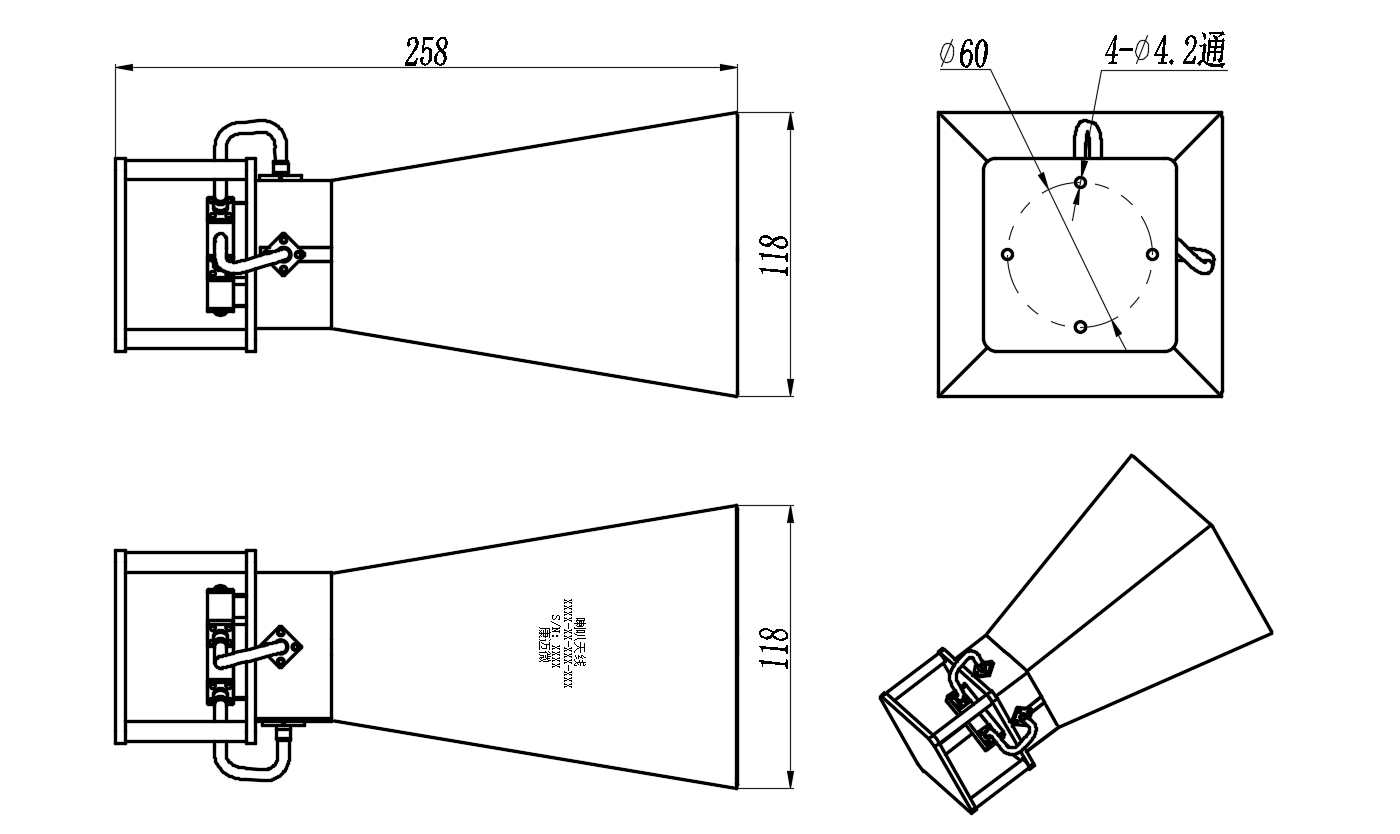

ZLB7-Z2-18G-1541 Horn Antenna

Horn Antenna ZLB7-Z2-18G-1541

Frequency2~18GHz, Gain10dBi, Left-hand circular polarization, SMA-K
View Details →

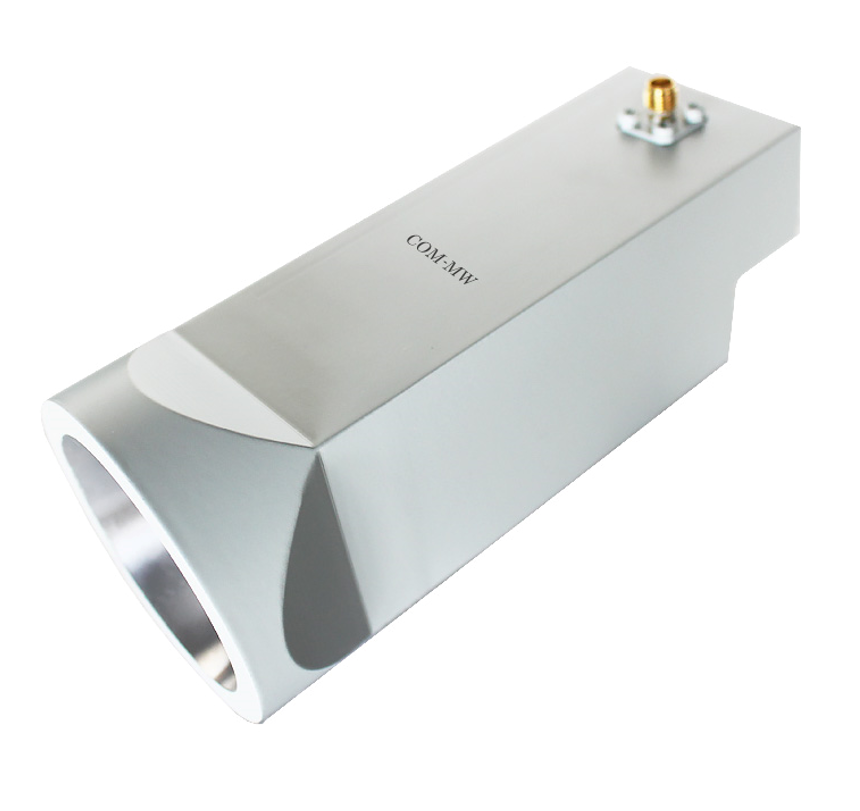

ZLB7-Z1.98-2.3G-1196 Horn Antenna

Horn Antenna ZLB7-Z1.98-2.3G-1196

Frequency1.98~2.3GHz, Gain5dBi, Left-hand circular polarization, N
View Details →

Horn Antenna ZLB7-Z1.55-1.68G-1202

Frequency1.55~1.68GHz, Gain5dBi, Left-hand circular polarization, N
View Details →
ZLB7-Z1.45-1.75G-1332 Horn Antenna

Horn Antenna ZLB7-Z1.45-1.75G-1332

Frequency1.45~1.75GHz, Gain7dBi, Left-hand circular polarization, N-K
View Details →

Horn Antenna ZLB7-Z1.17-1.28G-1200

Frequency1.17~1.28MHz, Gain5dBi, Left-hand circular polarization, N
View Details →
KPSAL-2-6-S Planar spiral antenna

Planar spiral antenna KPSAL-2-6-S

View Details →
KPSAL-0.8-2-S Planar spiral antenna

Planar spiral antenna KPSAL-0.8-2-S

View Details →
KPSAL-0.8-12-S Planar spiral antenna

Planar spiral antenna KPSAL-0.8-12-S

View Details →
KPSAL-0.5-2-S Planar spiral antenna

Planar spiral antenna KPSAL-0.5-2-S

View Details →
KPSAL-0.4-2-S Planar spiral antenna

Planar spiral antenna KPSAL-0.4-2-S

Frequency0.4~2GHz, Gain-2dBi, Left-hand circular polarization, SMA-K
View Details →
KPSAL-0.3-2-S Planar spiral antenna

Planar spiral antenna KPSAL-0.3-2-S

Frequency0.3~2GHz, Gain-5dBi, Left-hand circular polarization, SMA-K
View Details →
